00 ДЕТАЛИ ДВИГАТЕЛЯ в Алматы
![084 STARTING MOTOR [1681~]](/assets/img/parts/86d93b54d8f19ae09c8e96c011550dc910038eff.jpg)

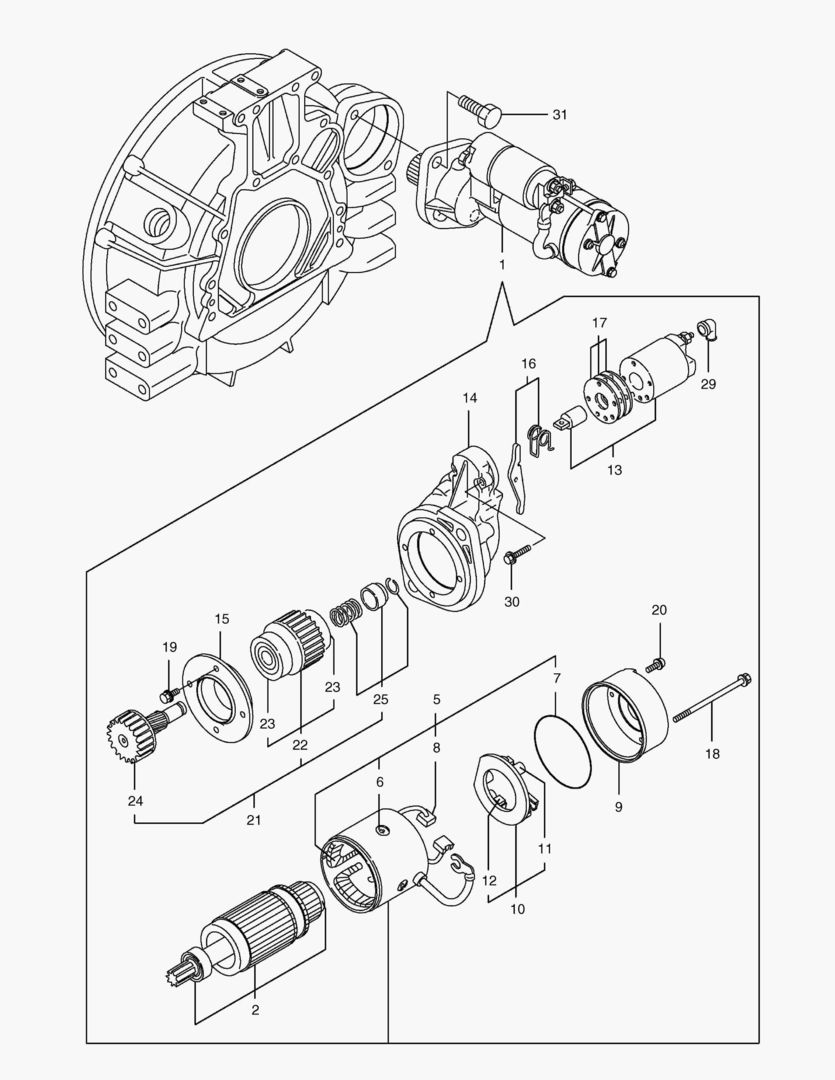

084 STARTING MOTOR [1681~]
1Артикул: K9006124, STARTER
2Артикул: K9006125, ARMATURE ASS`Y
3Артикул: K9006126, COIL ASS`Y;FIELD
![087 GASKET SET [1681~]](/assets/img/parts/e43a4deb6f274579757c494e4ba0bab21591103c.jpg)

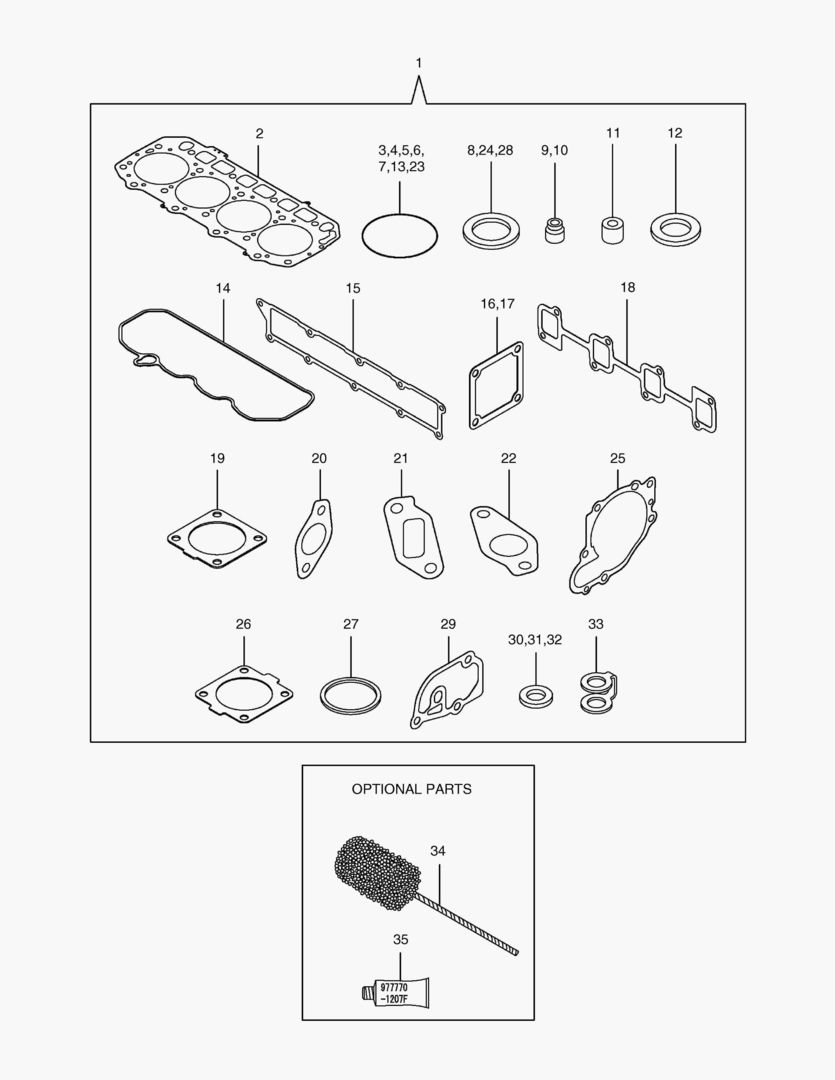

087 GASKET SET [1681~]
1Артикул: K9006178, GASKET SET
2Артикул: K9002122, GASKET;CYLINDER HEAD
3Артикул: S8000201, O-RING
![064 GENERATOR [1154~1680]](/assets/img/parts/17713d8aaa462e0781ada9ea3e4ca0317641171e.jpg)

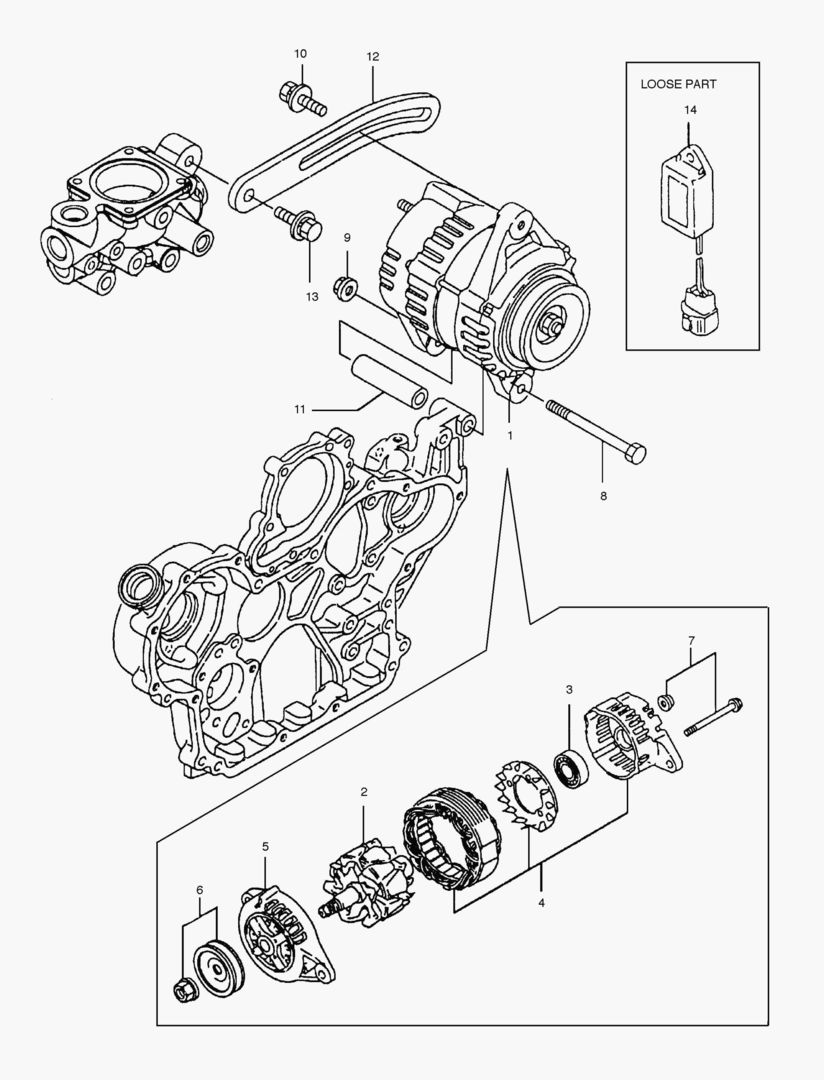

064 GENERATOR [1154~1680]
1Артикул: 123900-77210, GENERATOR
2Артикул: 123900-77700, ROTOR;GENERATOR
3Артикул: 129612-77710, BEARING;BALL
![051 GEAR HOUSING [1154~1680]](/assets/img/parts/c7db7928947ceb14d449b718b41464b67377a74f.jpg)

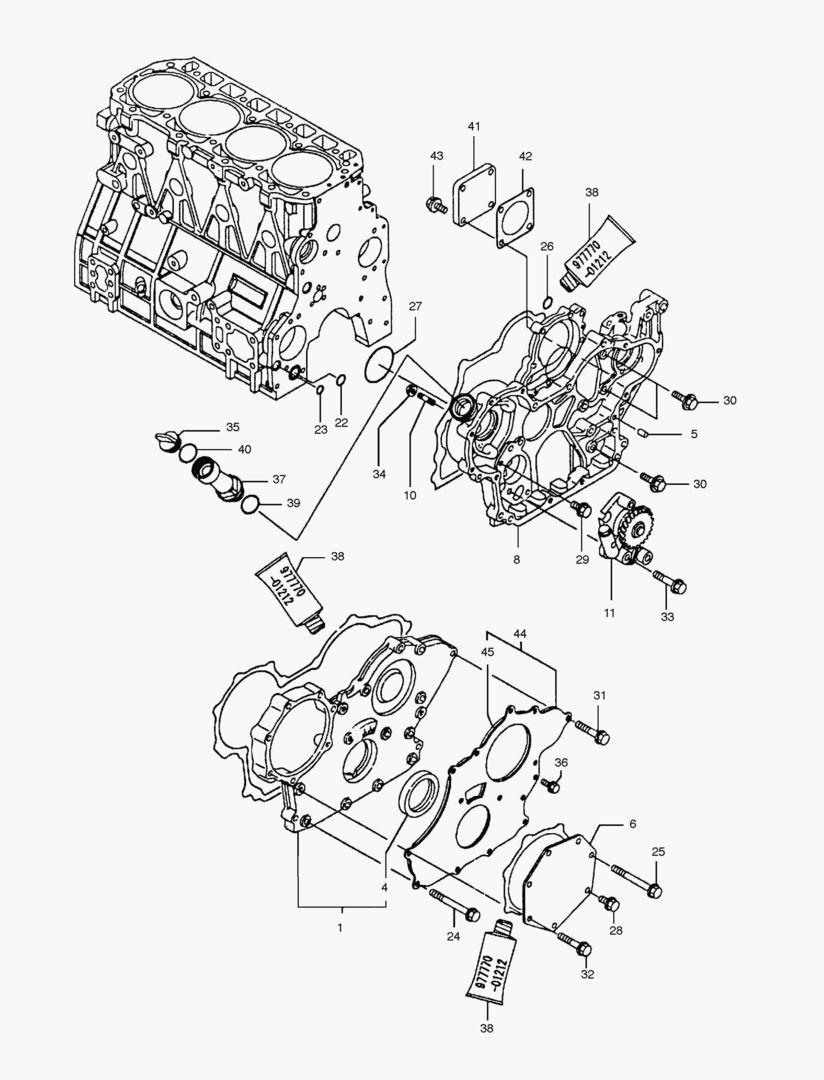

051 GEAR HOUSING [1154~1680]
1Артикул: 729906-01550, GEAR HOUSING
2Артикул: 129916-01800, SEAL;OIL
3Артикул: 129100-01580, PIN;PARALLEL
![065 GASKET SET [1154~1680]](/assets/img/parts/f40057b261beea451cce06397205362805429d66.jpg)

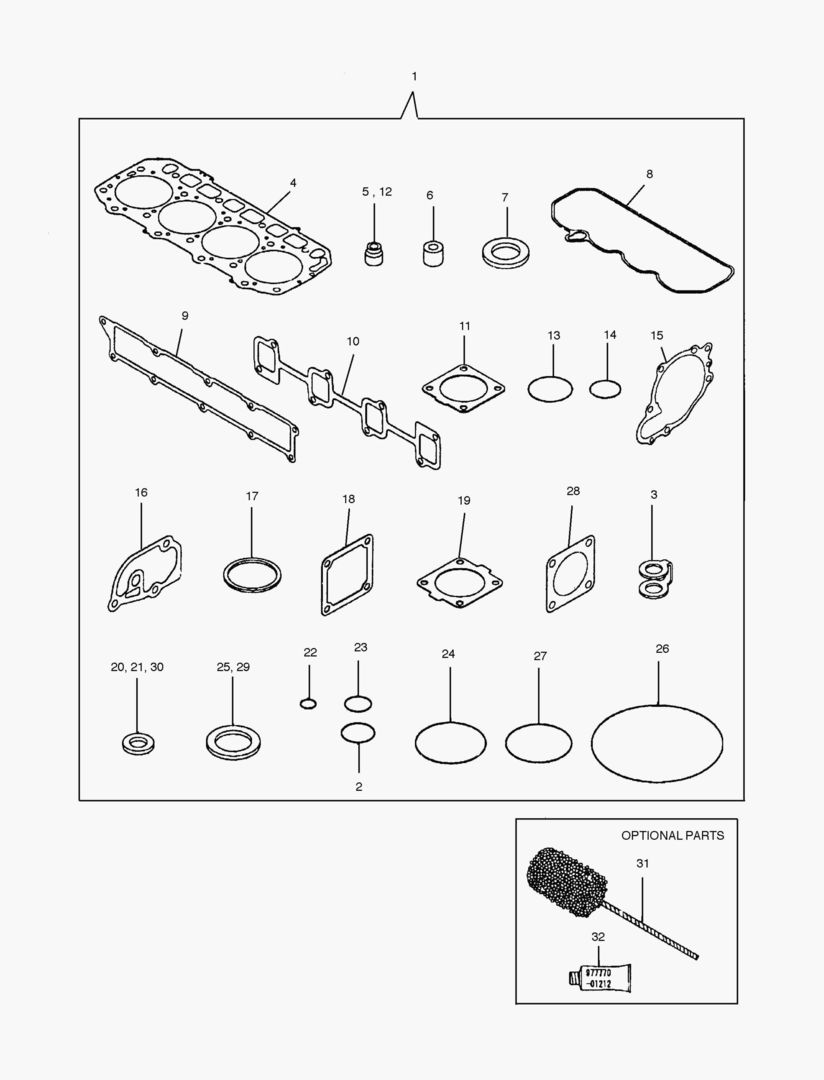

065 GASKET SET [1154~1680]
1Артикул: 729907-92660, GASKET SET
2Артикул: 24311-000150, O-RING
3Артикул: 123907-59550, PACKING;FUEL RETURN
![017 GASKET SET [1001~1153]](/assets/img/parts/18a26f73892eb610d379f4495ff1b9d54eebbdd8.jpg)

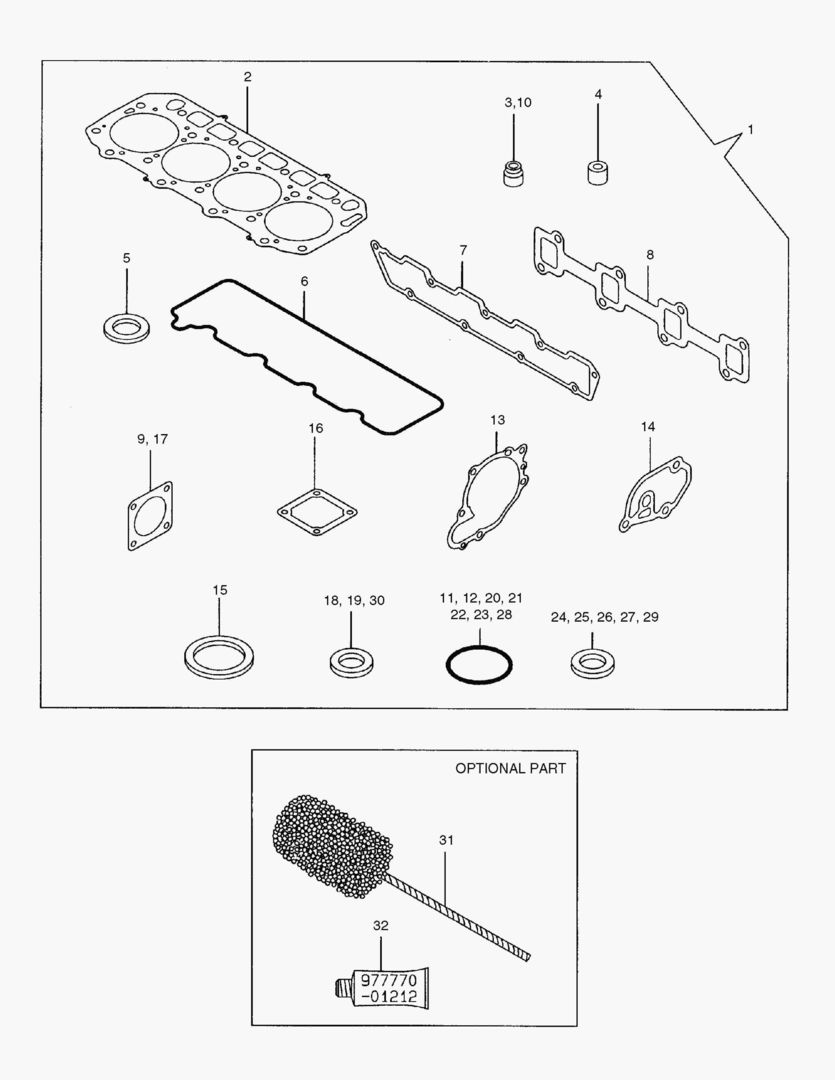

017 GASKET SET [1001~1153]
1Артикул: 729902-92810, GASKET SET(NON-ASB.)
2Артикул: 129902-01331, GASKET;HEAD
3Артикул: 124460-11340, SEAL;VALVE STEM
![006 EXHAUST MANIFOLD [1001~1153]](/assets/img/parts/7cf8d5f9dd455e713eed2cb8061bcf0e3a9c5b83.jpg)

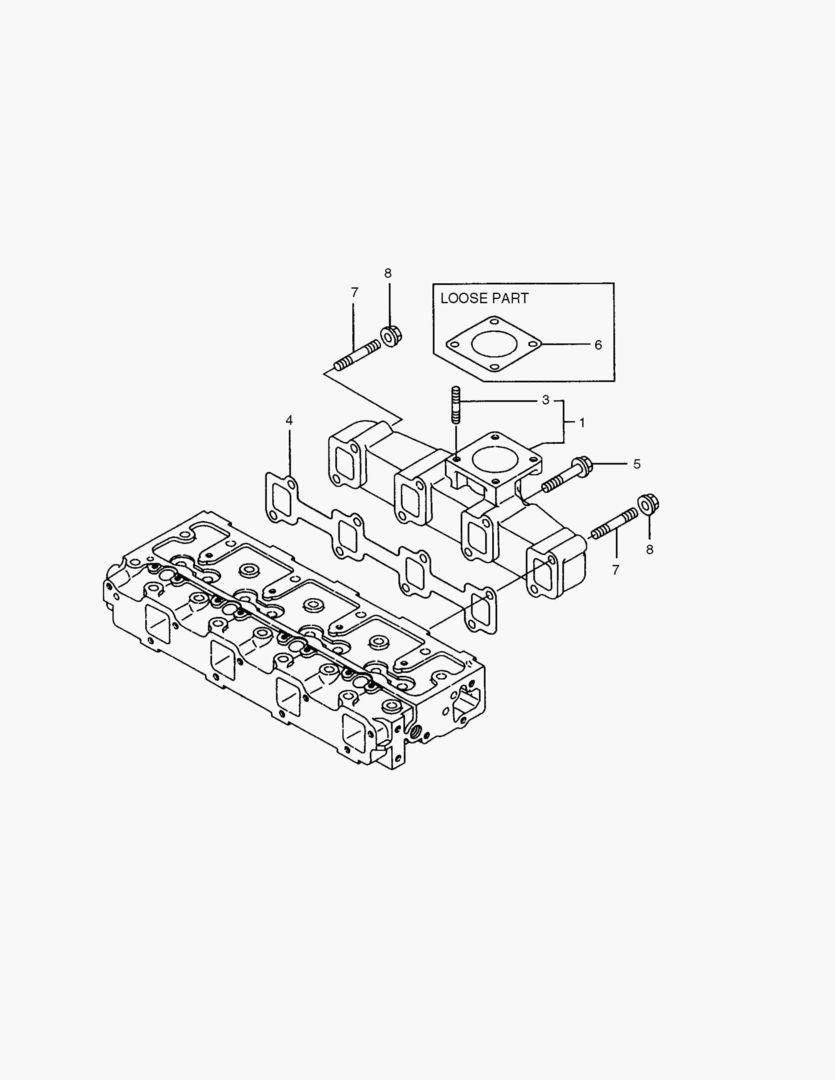

006 EXHAUST MANIFOLD [1001~1153]
1Артикул: 129955-13300, MANIFOLD;EXHAUST
2Артикул: 119131-18320, BOLT M8X22
3Артикул: 129900-13251, GASKET
![015 STARTING MOTOR [1001~1153]](/assets/img/parts/c276734c0b534366a8a9c75a004646612169797a.jpg)

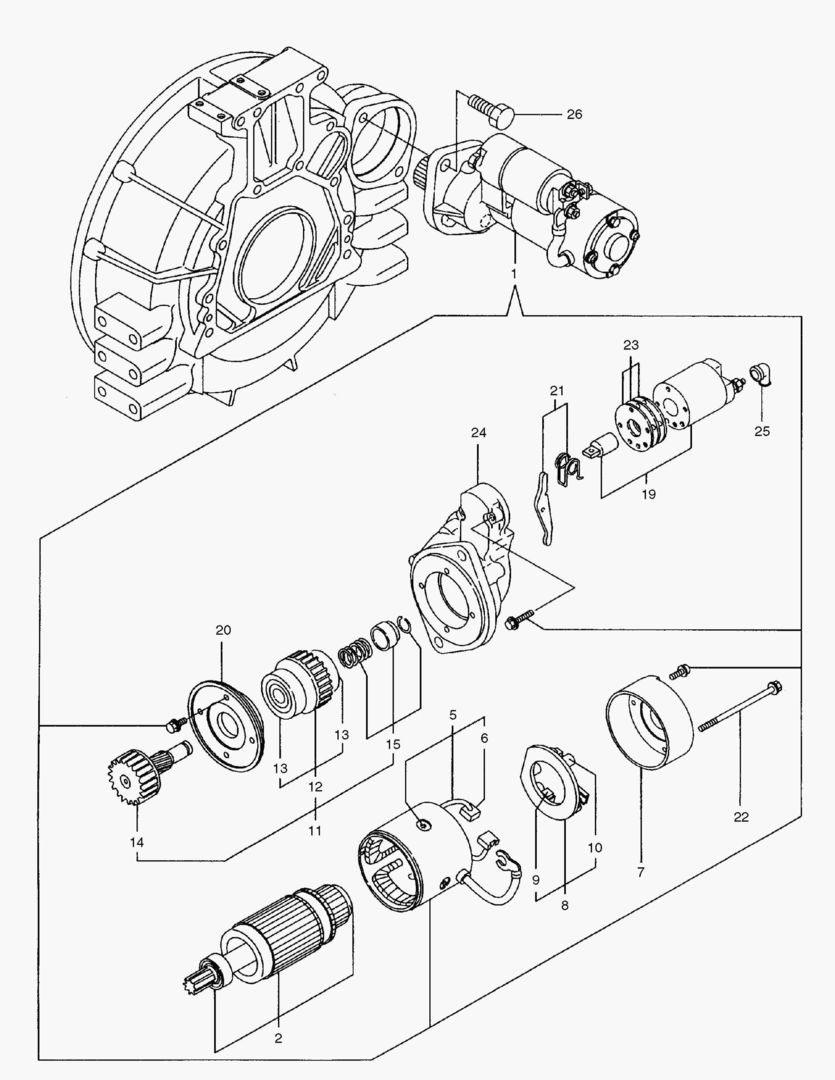

015 STARTING MOTOR [1001~1153]
1Артикул: 123900-77010, STARTER
2Артикул: 123900-77400, ARMATURE ASS`Y
3Артикул: 123900-77440, COIL ASS`Y
![085 GENERATOR [1681~]](/assets/img/parts/b2f22121a1579050df0a8b5399a63be93252e4c4.jpg)

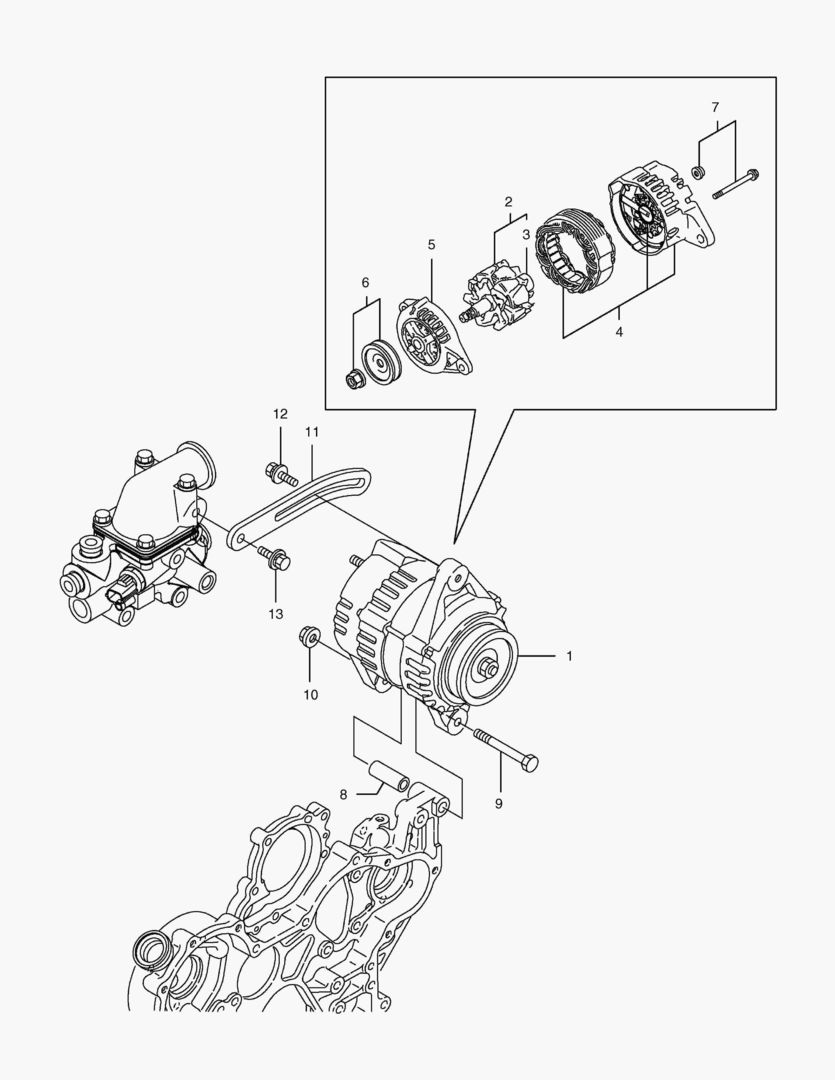

085 GENERATOR [1681~]
1Артикул: 502-00008A, GENERATOR
2Артикул: 2.407-00016, ROTOR ASS`Y
3Артикул: 2.109-00139, BEARING;BALL
![083 FUEL LINE [1681~]](/assets/img/parts/7bbbf334693f5f7aeec8718e80a9f7b69d8d4e48.jpg)

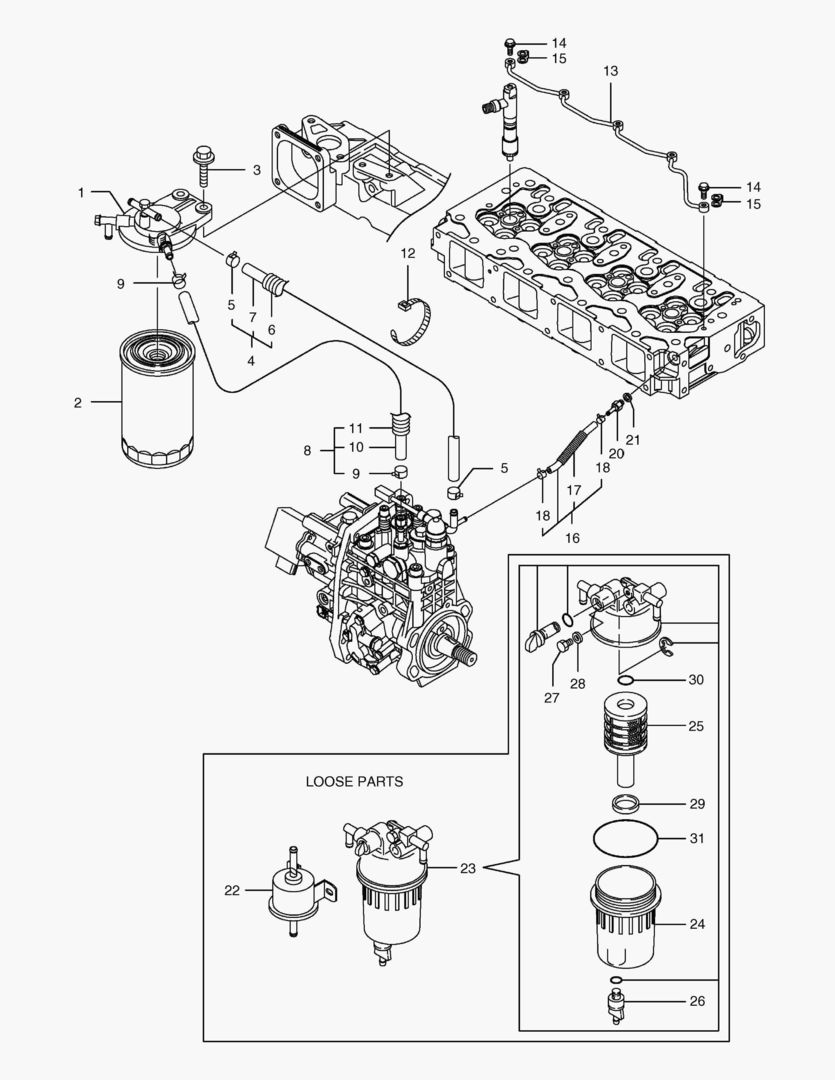

083 FUEL LINE [1681~]
1Артикул: K9004714, BRACKET;FUEL FILTER
2Артикул: K1033222, FILTER;FUEL
3Артикул: 2.120-00138, BOLT M8X30
![055 EXHAUST MANIFOLD [1154~1680]](/assets/img/parts/92ecc2eb065116facc364bad2b303ef037da4304.jpg)

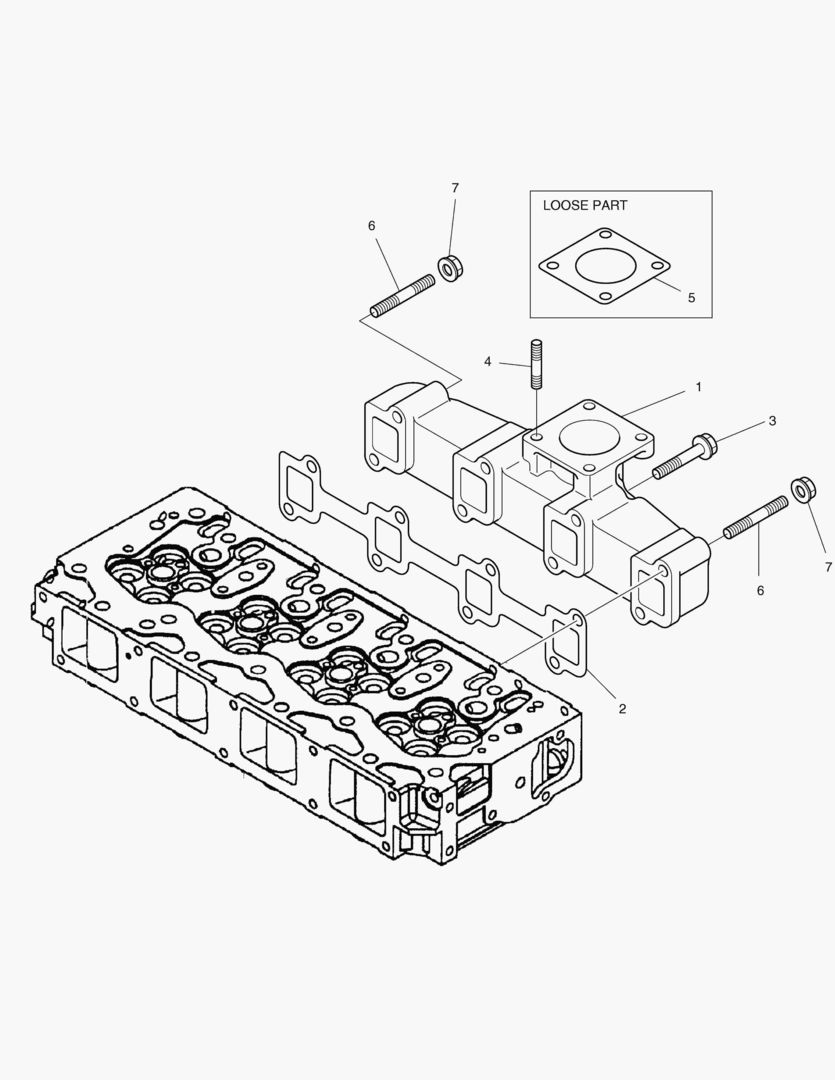

055 EXHAUST MANIFOLD [1154~1680]
1Артикул: 129900-13200, MANIFOLD;EXHAUST
2Артикул: 129900-13251, GASKET
3Артикул: 123900-13630, BOLT M8X80
![059 COOLING WATER PUMP [1154~1680]](/assets/img/parts/f217a631b6055ae4986cdc59f3fc225633c58016.jpg)

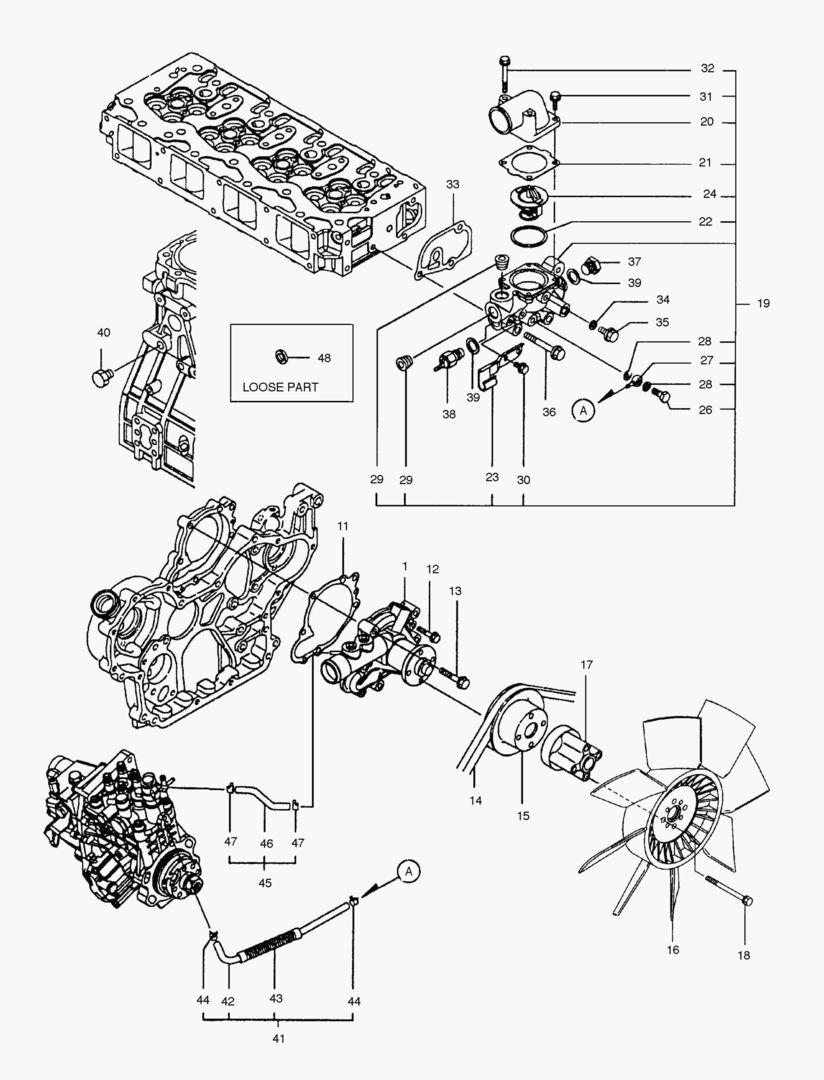

059 COOLING WATER PUMP [1154~1680]
1Артикул: 129907-42000, WATER PUMP ASS`Y
2Артикул: 129900-42020, GASKET
3Артикул: 26106-060302, BOLT M6X30
![052 FLYWHEEL HOUSING & OIL PAN [1154~1680]](/assets/img/parts/506200c23f86be05eea0d2e6e32cb641b0370629.jpg)

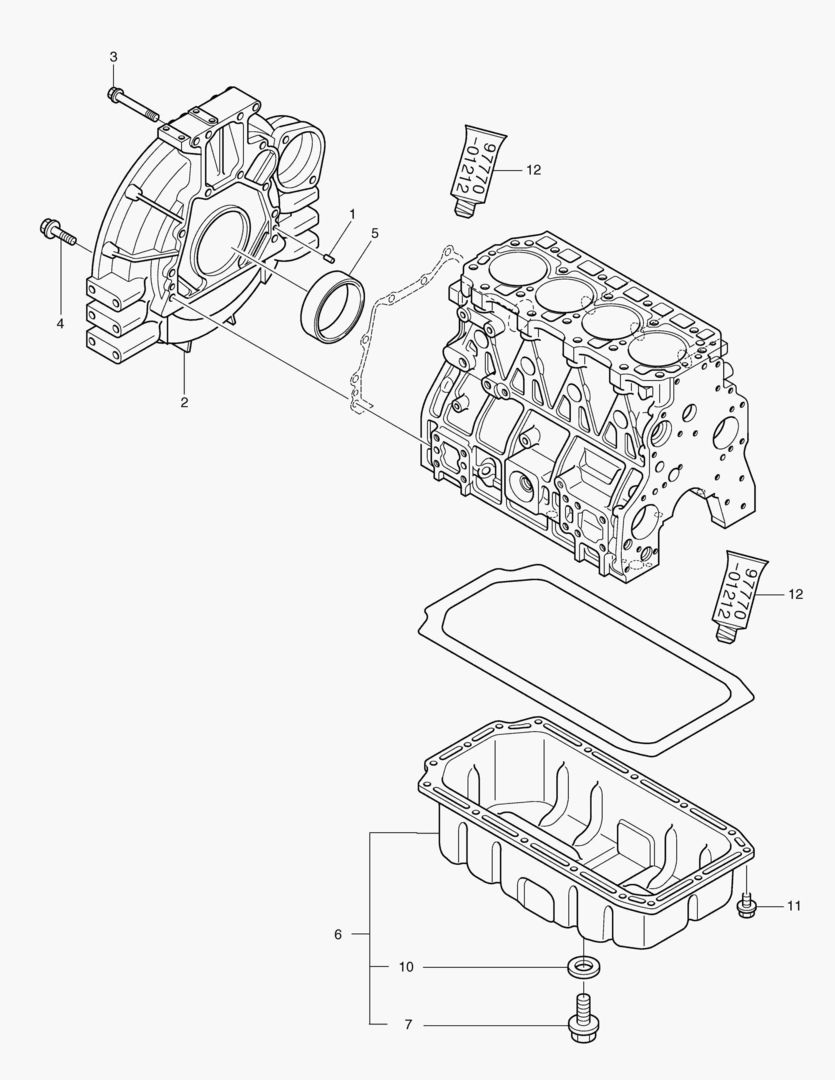

052 FLYWHEEL HOUSING & OIL PAN [1154~1680]
1Артикул: 129100-01580, PIN;PARALLEL
2Артикул: 129981-01600, FLYWHEEL COVER ASS`Y
3Артикул: 26206-100702, BOLT M10X70
![071 GEAR HOUSING [1681~]](/assets/img/parts/3e419d6eaf9b5a4ef473a86db44555f1bec81753.jpg)

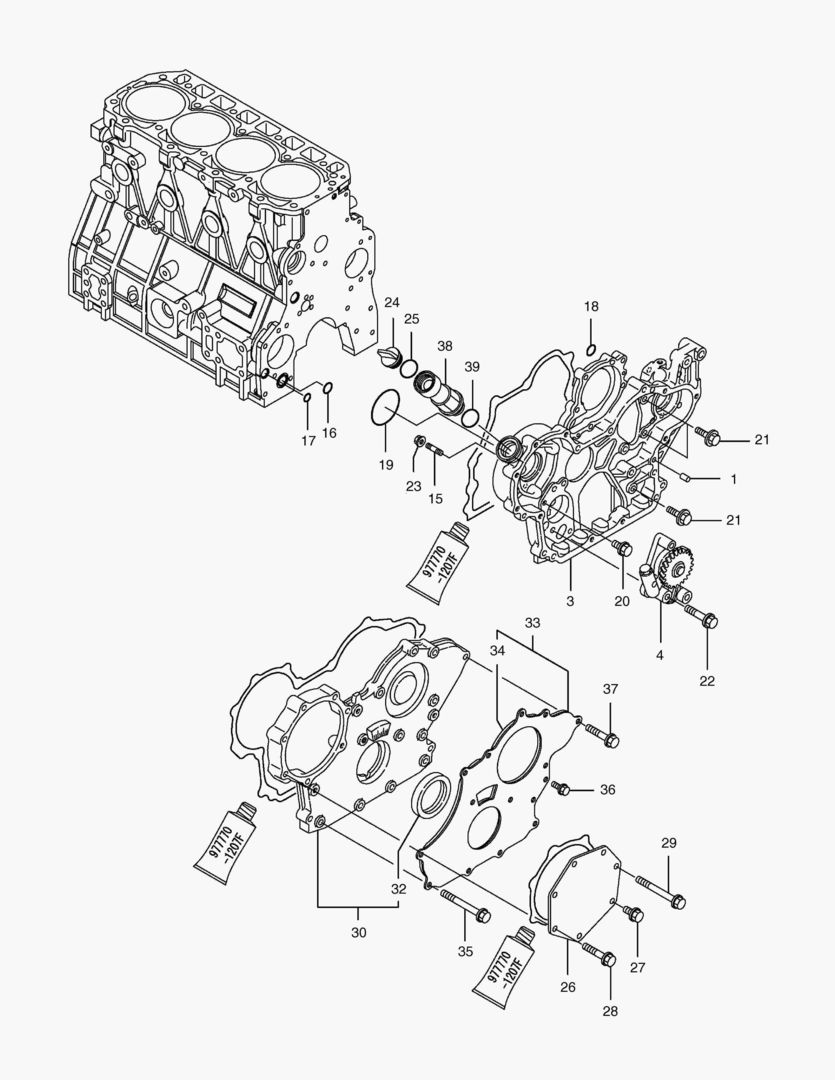

071 GEAR HOUSING [1681~]
1Артикул: S5701041, PIN;PARALLEL
2Артикул: K9006142, HOUSING;GEAR
3Артикул: A408112, PUMP;OIL
![076 CAMSHAFT & DRIVING GEAR [1681~]](/assets/img/parts/5f201826f1bcc52ef7bbe71180074e2f5b071443.jpg)

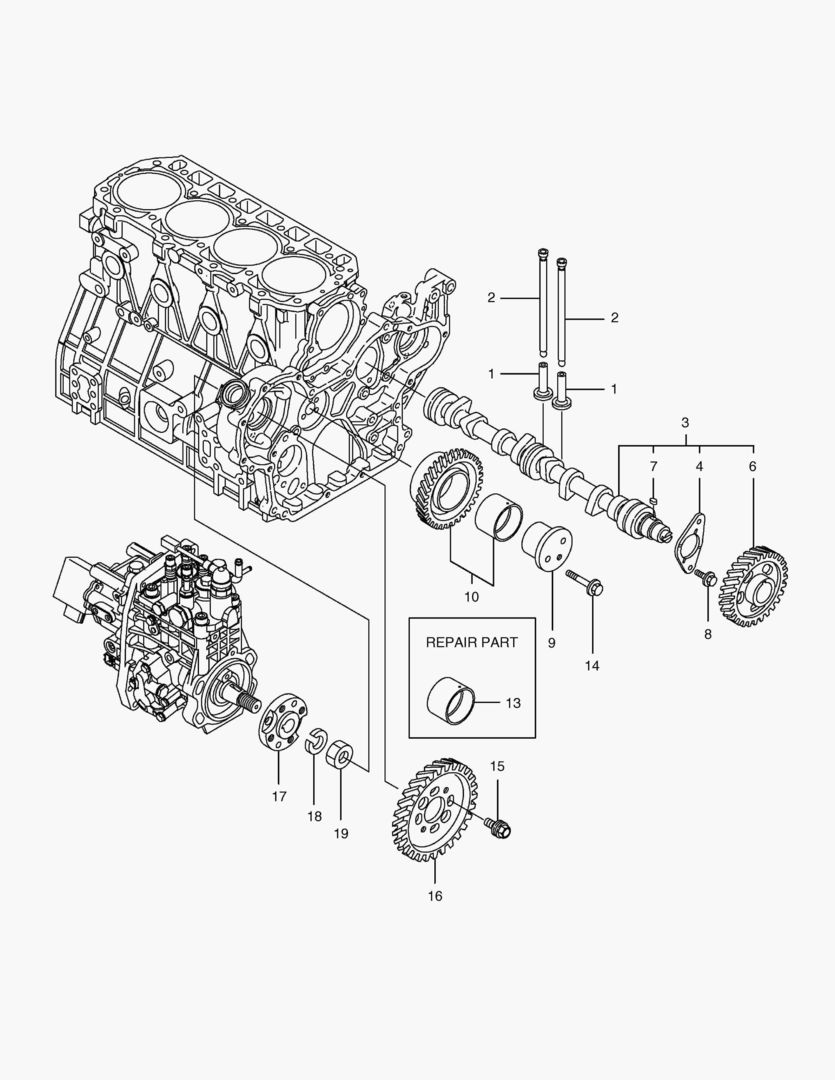

076 CAMSHAFT & DRIVING GEAR [1681~]
1Артикул: 2.429-00133, TAPPET
2Артикул: A408100, ROD;PUSH
3Артикул: K9006079, CAM SHAFT ASSY
![077 CRANKSHAFT & PISTON [1681~]](/assets/img/parts/6d3e86a9993c98dde451273469316b4bc9e582df.jpg)

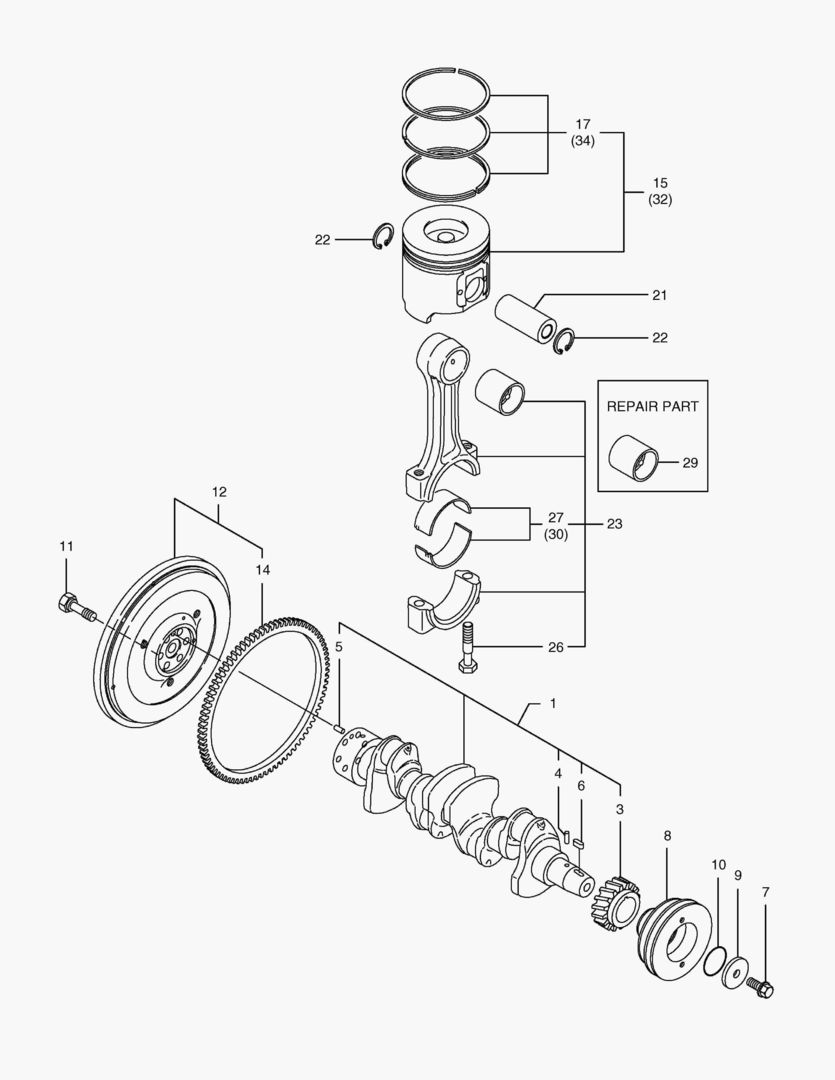

077 CRANKSHAFT & PISTON [1681~]
1Артикул: A408104, CRANK SHAFT ASS`Y
2Артикул: A408102, GEAR;CRANK SHAFT
3Артикул: A408379, PIN;PARALLEL
![007 CAMSHAFT & DRIVING GEAR [1001~1153]](/assets/img/parts/aa4240aaf1377b82155a800d05933b5006526315.jpg)

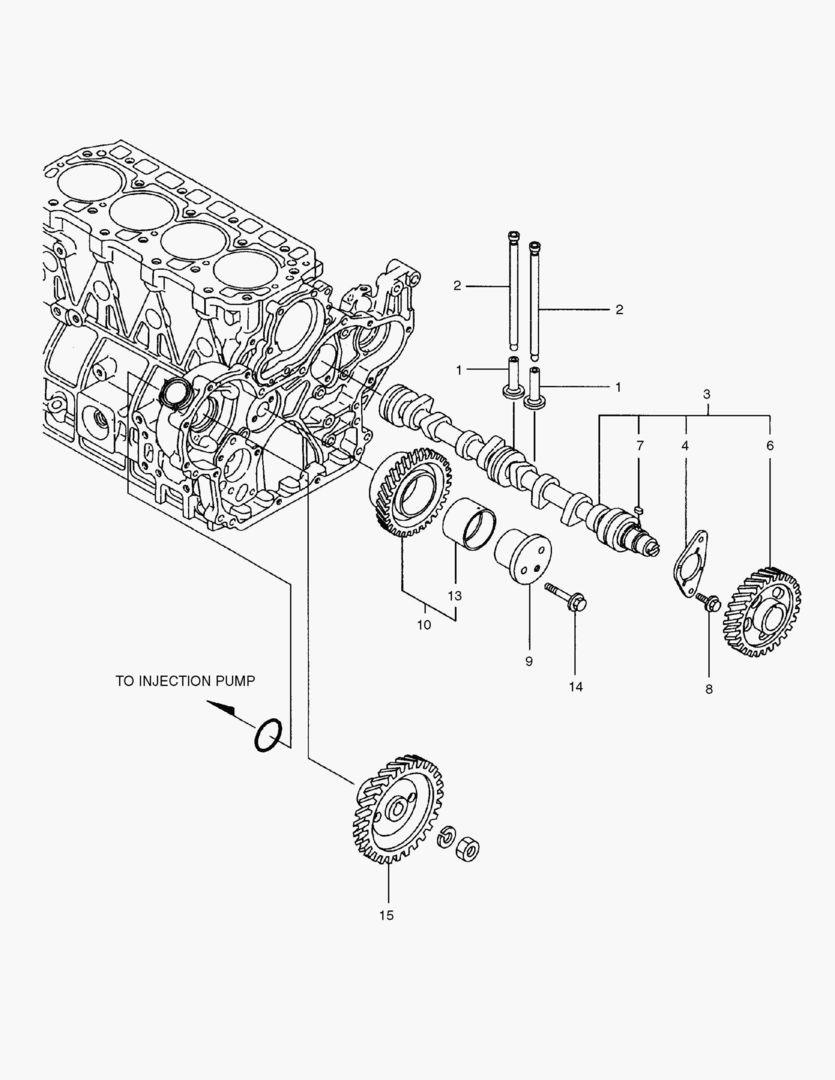

007 CAMSHAFT & DRIVING GEAR [1001~1153]
1Артикул: 129150-14200, TAPPET
2Артикул: 129900-14400, ROD
3Артикул: 129900-14580, CAM SHAFT ASS`Y
![062 FUEL FILTER [1154~1680]](/assets/img/parts/b2fea3c984fbe661b3a2031deca941b578919554.jpg)

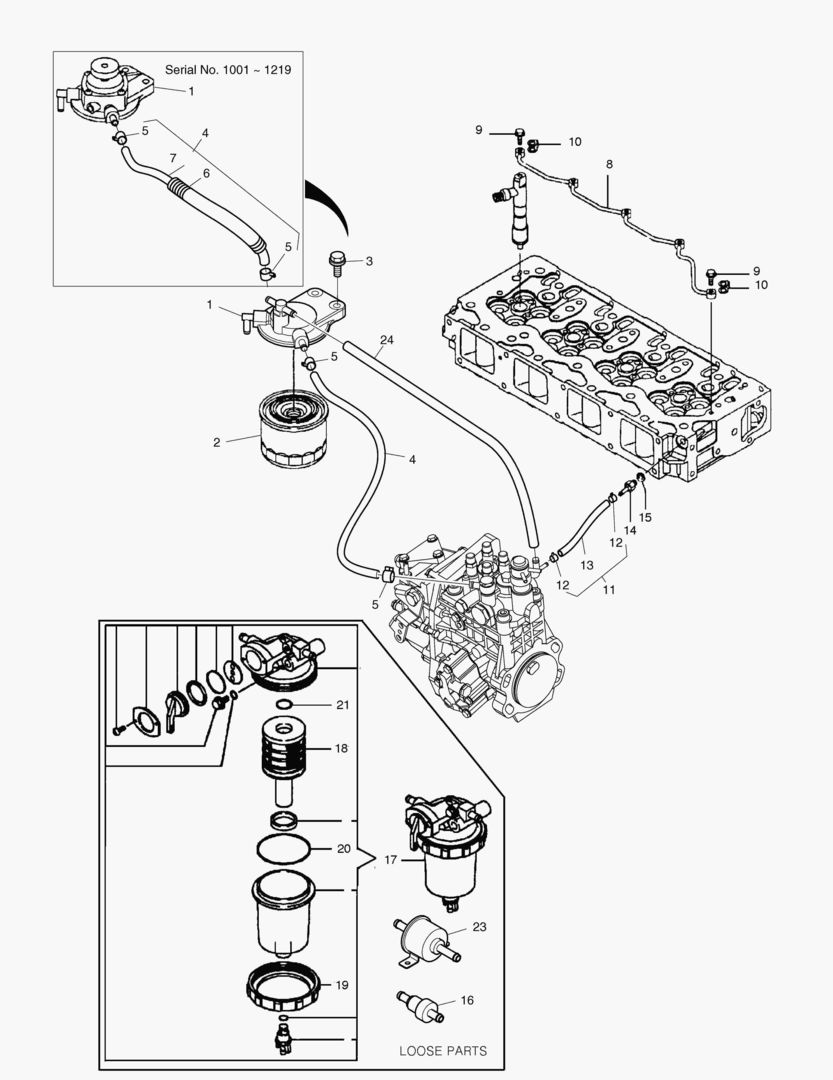

062 FUEL FILTER [1154~1680]
1Артикул: 119802-55610, BRACKET
2Артикул: 129004-55610, BRACKET;FILTER
3Артикул: 119802-55800, FUEL FILTER
![056 CAM SHAFT & DRIVING GEAR [1154~1680]](/assets/img/parts/6aed923f87e95b65b9323f3d1e16bdbcb32c1a80.jpg)

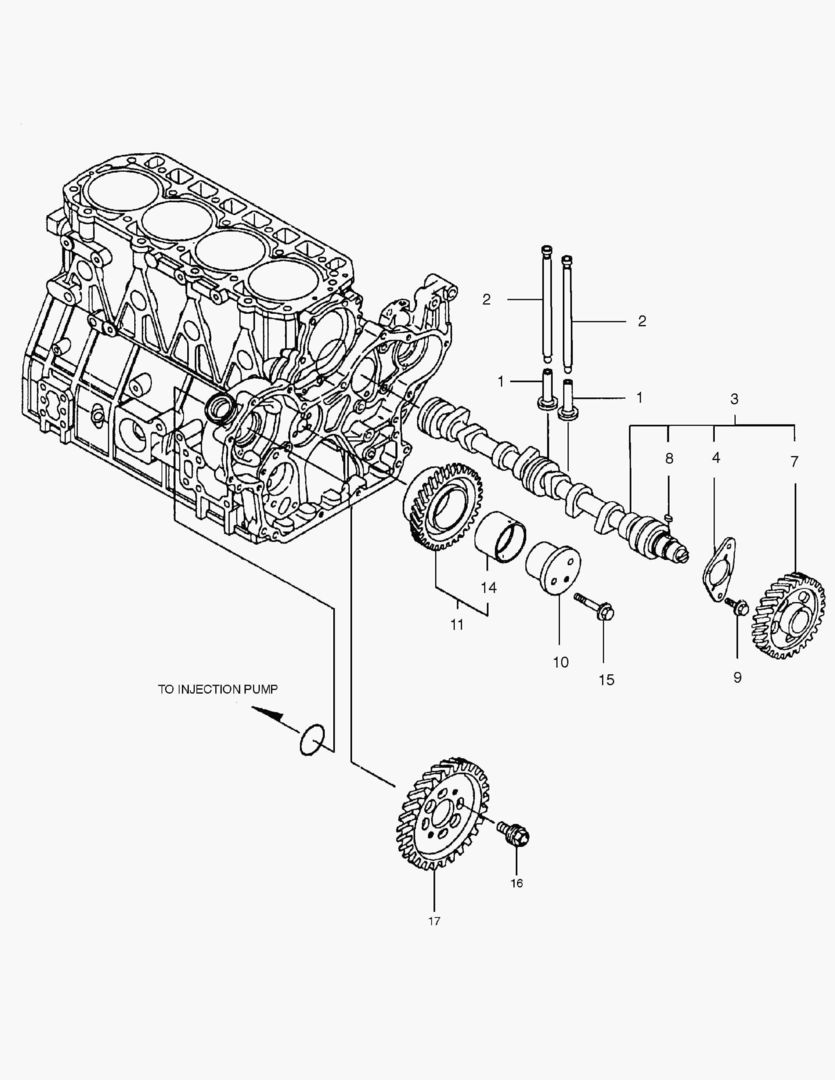

056 CAM SHAFT & DRIVING GEAR [1154~1680]
1Артикул: 129150-14200, TAPPET
2Артикул: 129907-14400, ROD;BUSH
3Артикул: 129907-14581, CAM SHAFT ASS`Y
![004 CYLINDER HEAD & BONNET [1001~1153]](/assets/img/parts/71fd0a2200fc4acff81fed8a3ca97b636e30658d.jpg)
004 CYLINDER HEAD & BONNET [1001~1153]
1Артикул: 124160-01751, COVER;FILLER
2Артикул: 129910-03100, RETAINER
3Артикул: 26106-080122, BOLT M8X12
![050 CYLINDER BLOCK [1154~1680]](/assets/img/parts/97e5b28a4316f12400422c77fdafef39d4695406.jpg)

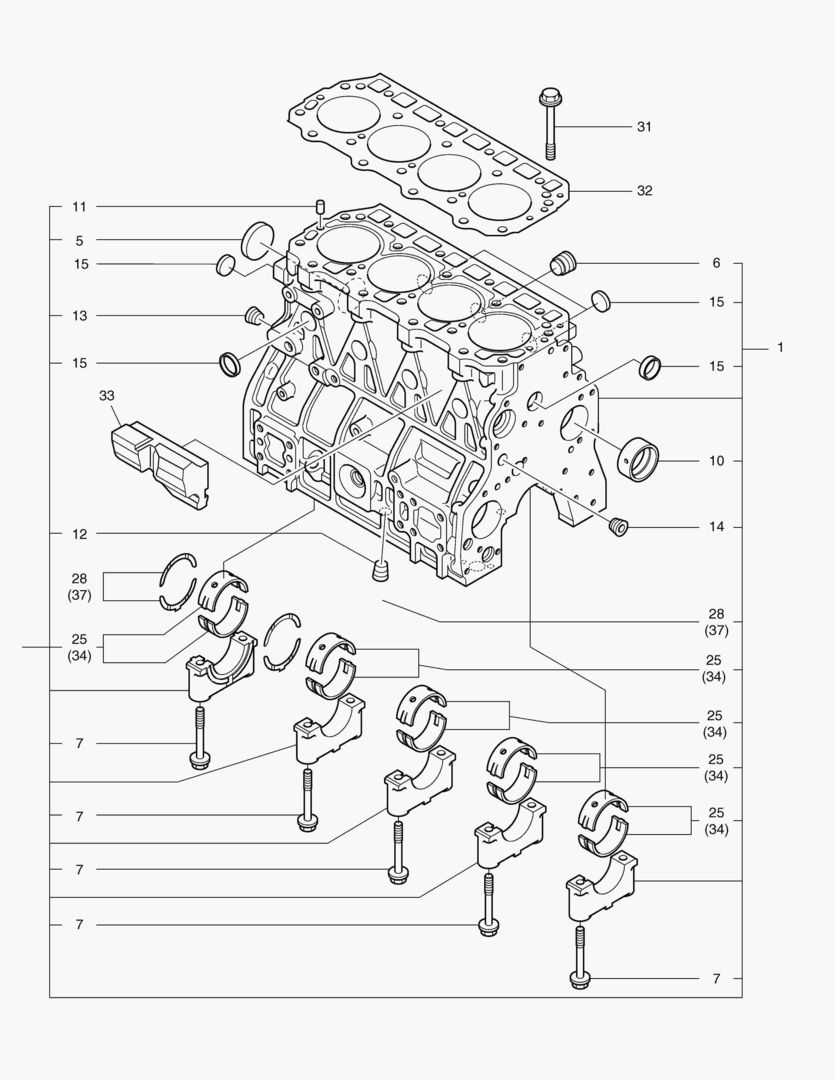

050 CYLINDER BLOCK [1154~1680]
1Артикул: 729907-01560, CYLINDER BLOCK ASS`Y
2Артикул: 129900-01250, PLUG 55
3Артикул: 171051-01921, PLUG
![070 CYLINDER BLOCK [1681~]](/assets/img/parts/344a3cf79f159500a184e5dacd4941b354fe3e12.jpg)

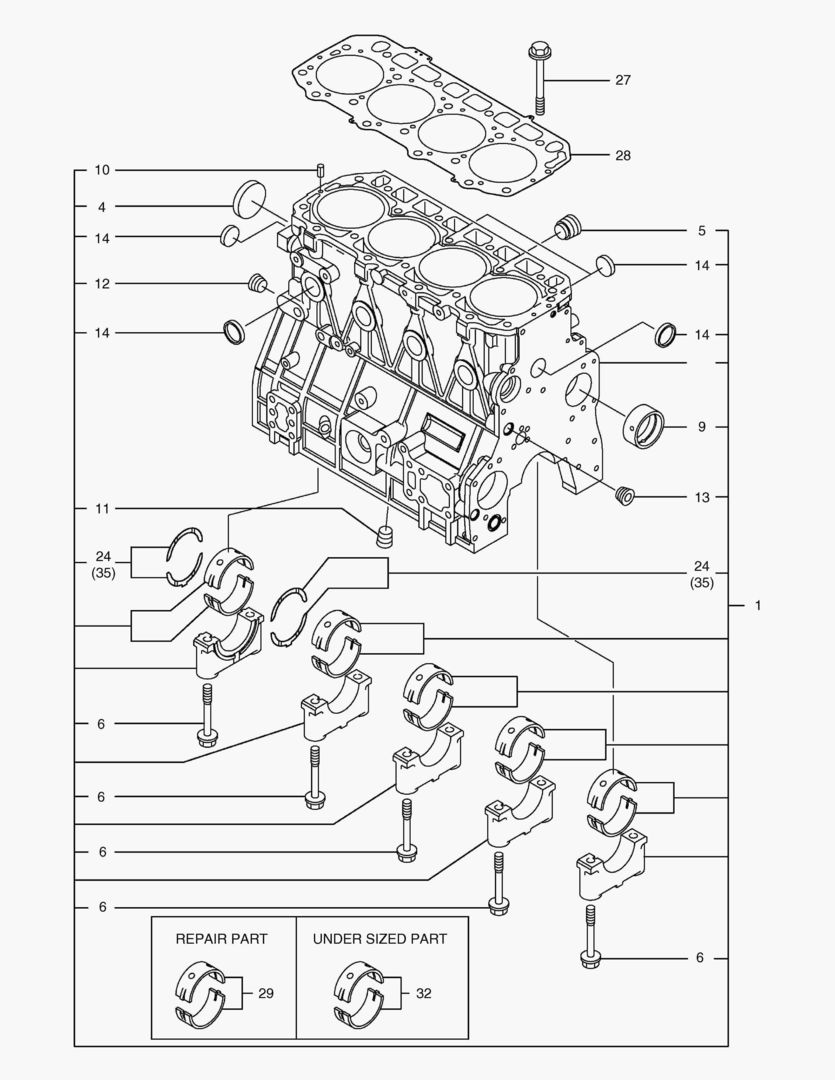

070 CYLINDER BLOCK [1681~]
1Артикул: K9006174, BLOCK ASS`Y;CYLINDER
2Артикул: 2.181-00317, PLUG
3Артикул: 2.181-00306, PLUG
![001 CYLINDER BLOCK [1001~1153]](/assets/img/parts/5ea0ebfbd1c1d1fa96c718b4913842632468ff67.jpg)

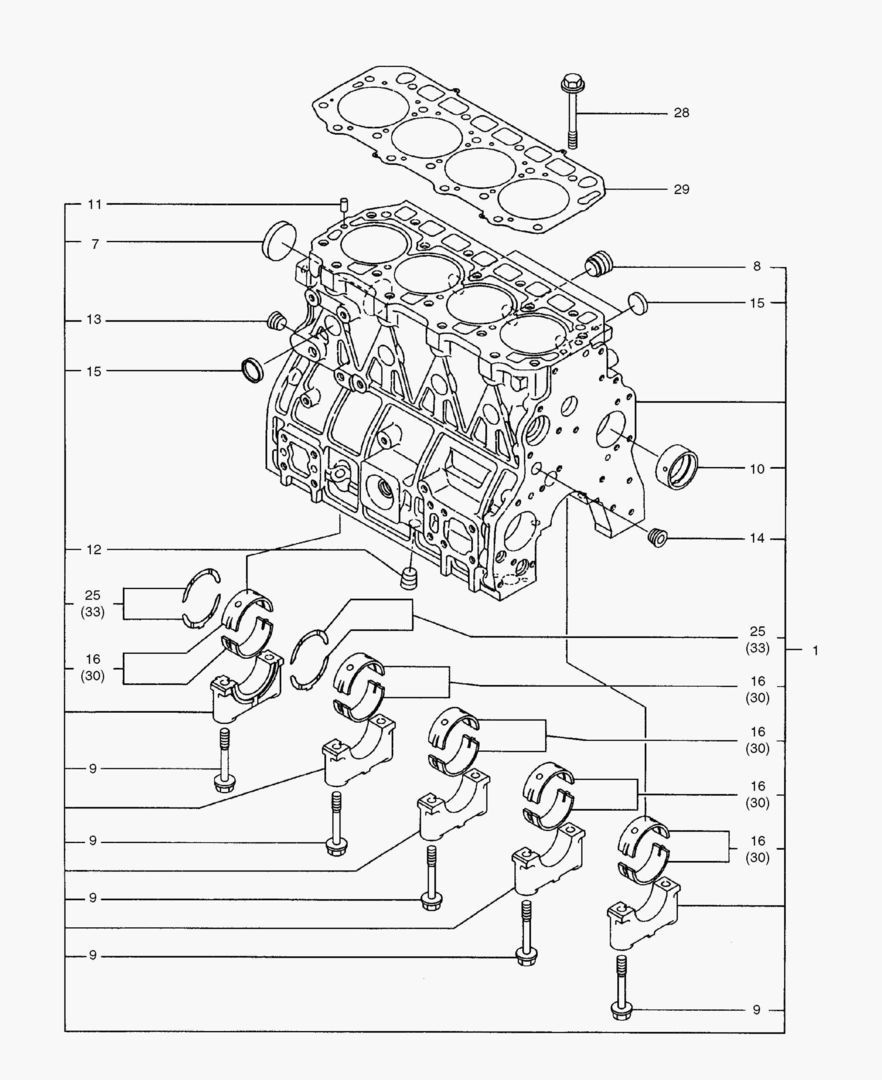

001 CYLINDER BLOCK [1001~1153]
1Артикул: 729902-01560, CYLINDER BLOCK ASS`Y
2Артикул: 129900-01250, PLUG 55
3Артикул: 171051-01921, PLUG
![058 OIL SYSTEM [1154~1680]](/assets/img/parts/9690df5e2b67551b0466d112c232d7af242ebf3c.jpg)

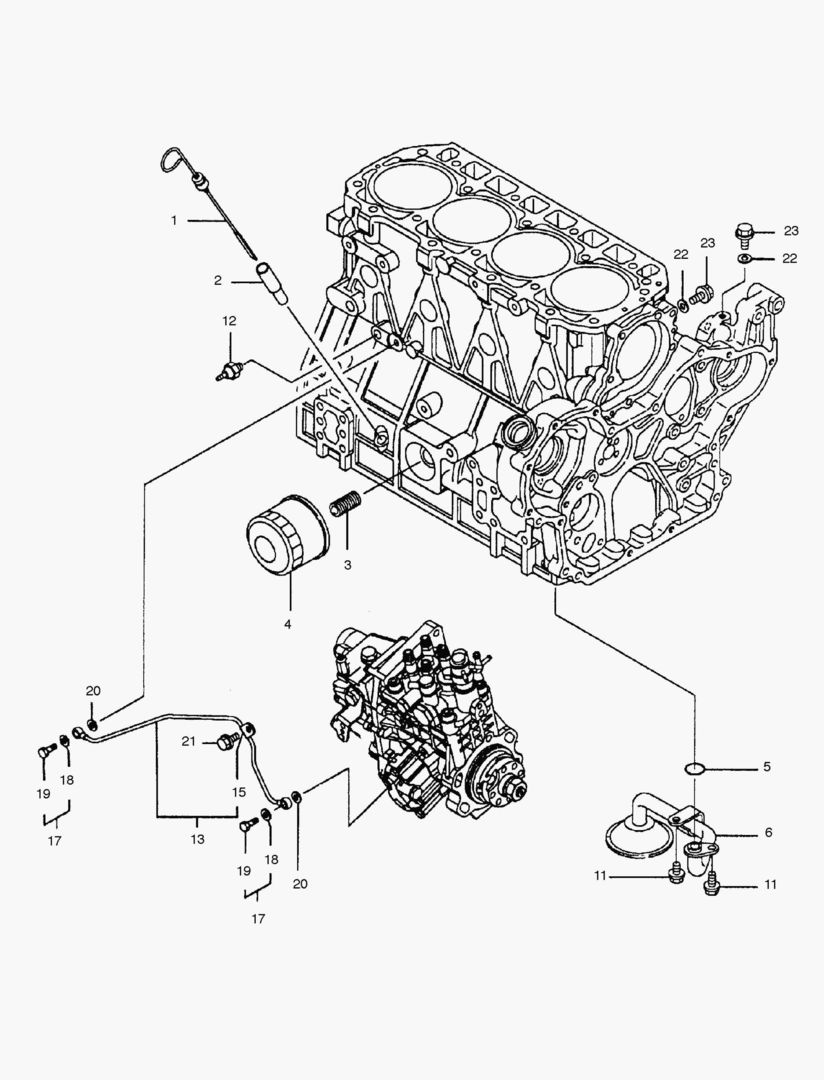

058 OIL SYSTEM [1154~1680]
1Артикул: 129900-34800, DIPSTICK
2Артикул: 121520-34810, GUIDE;OIL GAUGE
3Артикул: 119000-35140, STUD;OIL FILTER
![074 SUCTION MANIFOLD [1681~]](/assets/img/parts/524f56feb235453047ce9e604baf18192ebe72c9.jpg)

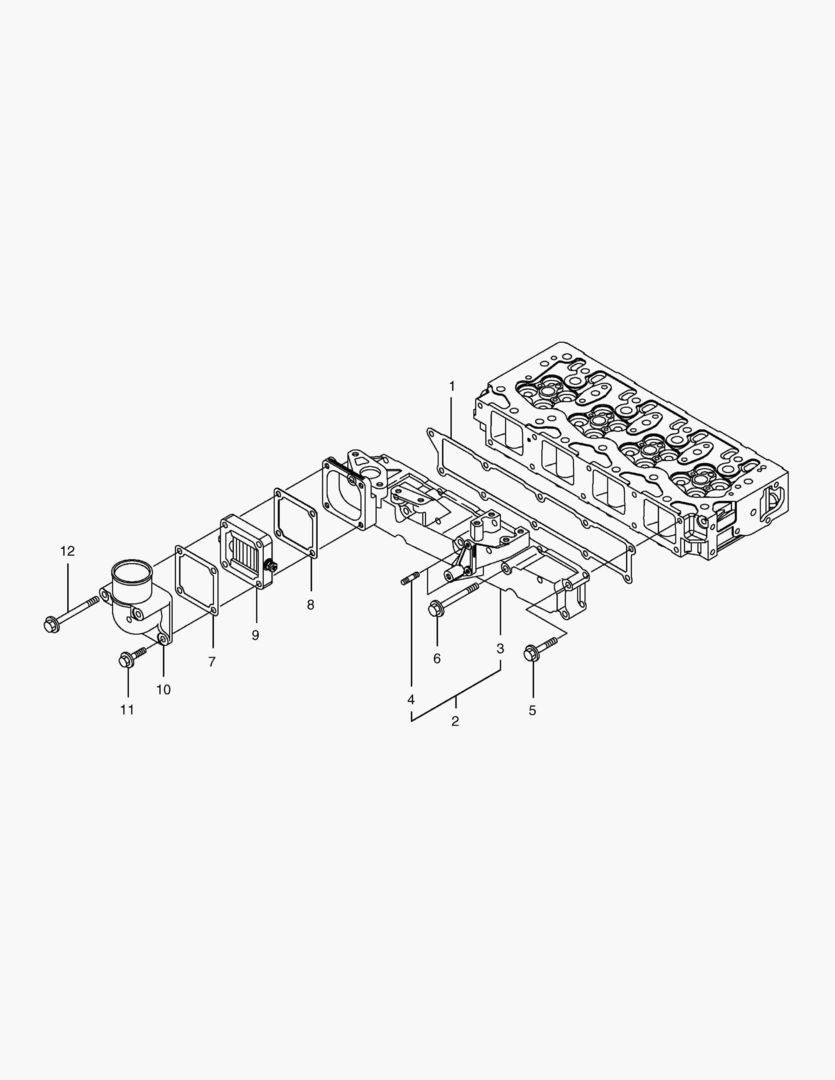

074 SUCTION MANIFOLD [1681~]
1Артикул: A408094, PACKING;INTAKE MANIFOLD
2Артикул: K9006083, MANIFOLD ASSY;INTAKE
3Артикул: K9006082, MANIFOLD;INTAKE
![054 INTAKE MANIFOLD [1154~1680]](/assets/img/parts/6e1e701e3262faf56fc254363f362ba346960842.jpg)

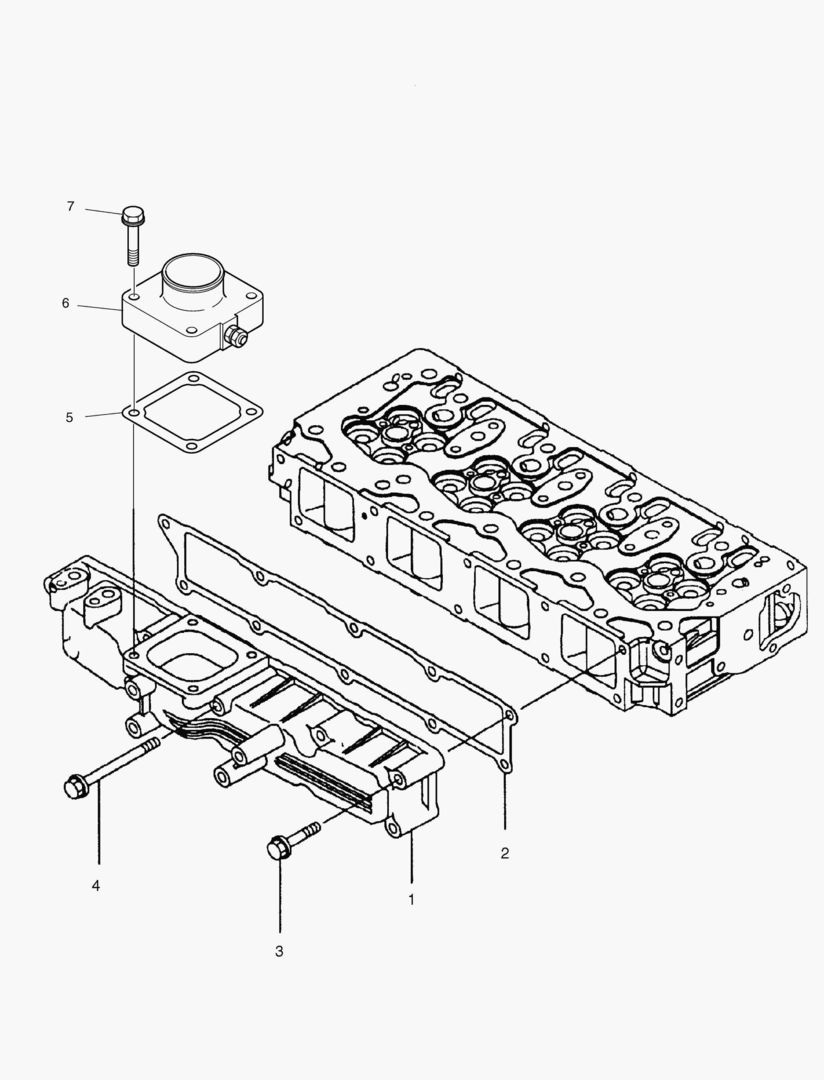

054 INTAKE MANIFOLD [1154~1680]
1Артикул: 129907-12100, GASKET;INTAKE MANIFOLD
2Артикул: 129907-12110, PACKING;FUEL RETURN
3Артикул: 26106-080552, BOLT M8X55
![010 COOLING WATER PUMP [1001~1153]](/assets/img/parts/4a9b8a75e524a463e697473910460cb87292f9db.jpg)
010 COOLING WATER PUMP [1001~1153]
1Артикул: 129900-42001, WATER PUMP ASS`Y
2Артикул: 129900-42020, GASKET
3Артикул: 121250-44901, SWITCH;THERMOSTAT
![053 CYLINDER HEAD & BONNET [1154~1680]](/assets/img/parts/7269b6758a68dc852efa7d2f5940a40b6ced87d3.jpg)

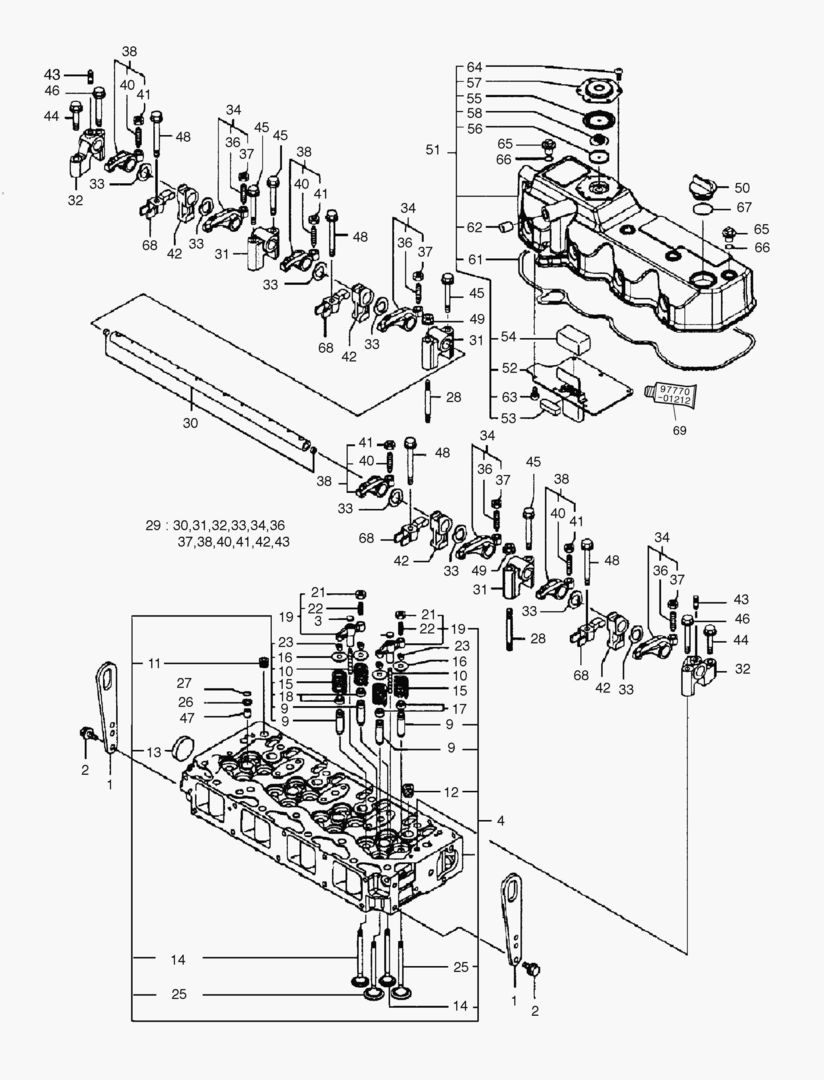

053 CYLINDER HEAD & BONNET [1154~1680]
1Артикул: 129900-07900, LIFTER;ENGINE
2Артикул: 26106-080162, BOLT M8X16
3Артикул: 123907-11550, VALVE;SEAT
![061 INJECTION PIPE [1154~1680]](/assets/img/parts/ef935ce73fff506ddcba500520ca17c604ada6b2.jpg)

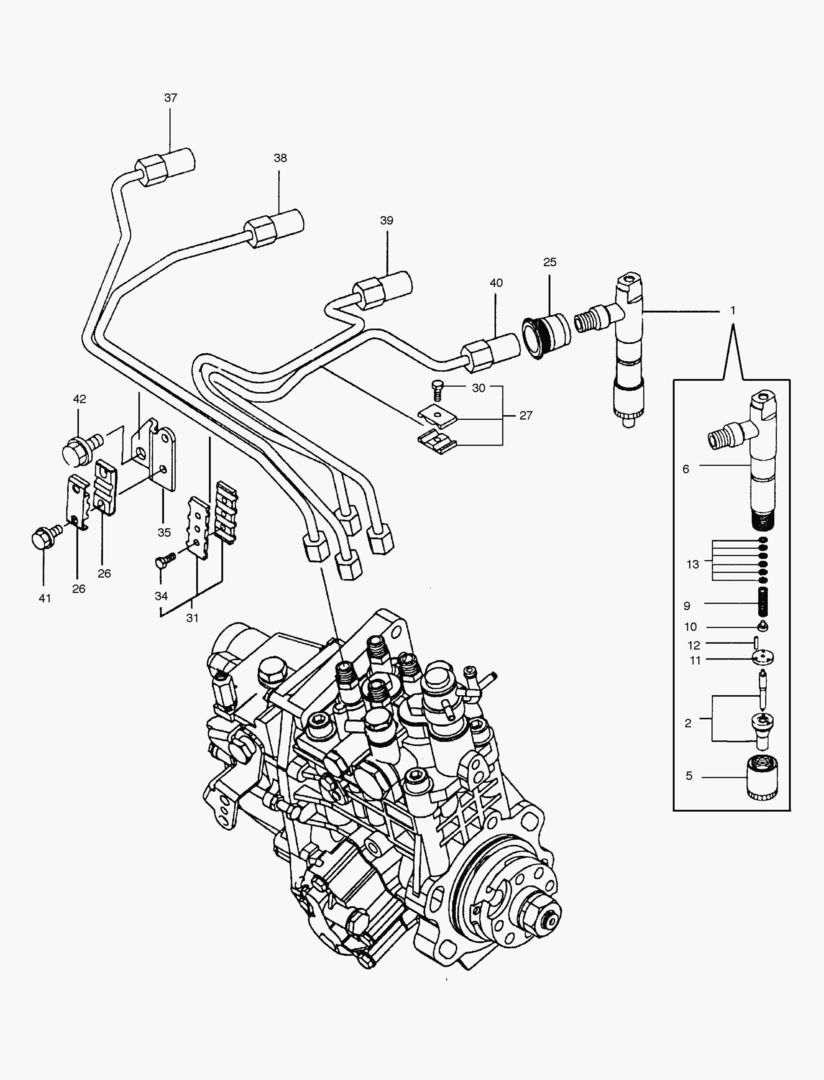

061 INJECTION PIPE [1154~1680]
1Артикул: 729907-53100, NOZZLE ASS`Y
2Артикул: 129907-53000, NOZZLE
3Артикул: 114250-53080, NUT
![016 GENERATOR [1001~1153]](/assets/img/parts/67a030beef5b436d24f20726576f8a8478f8ae65.jpg)

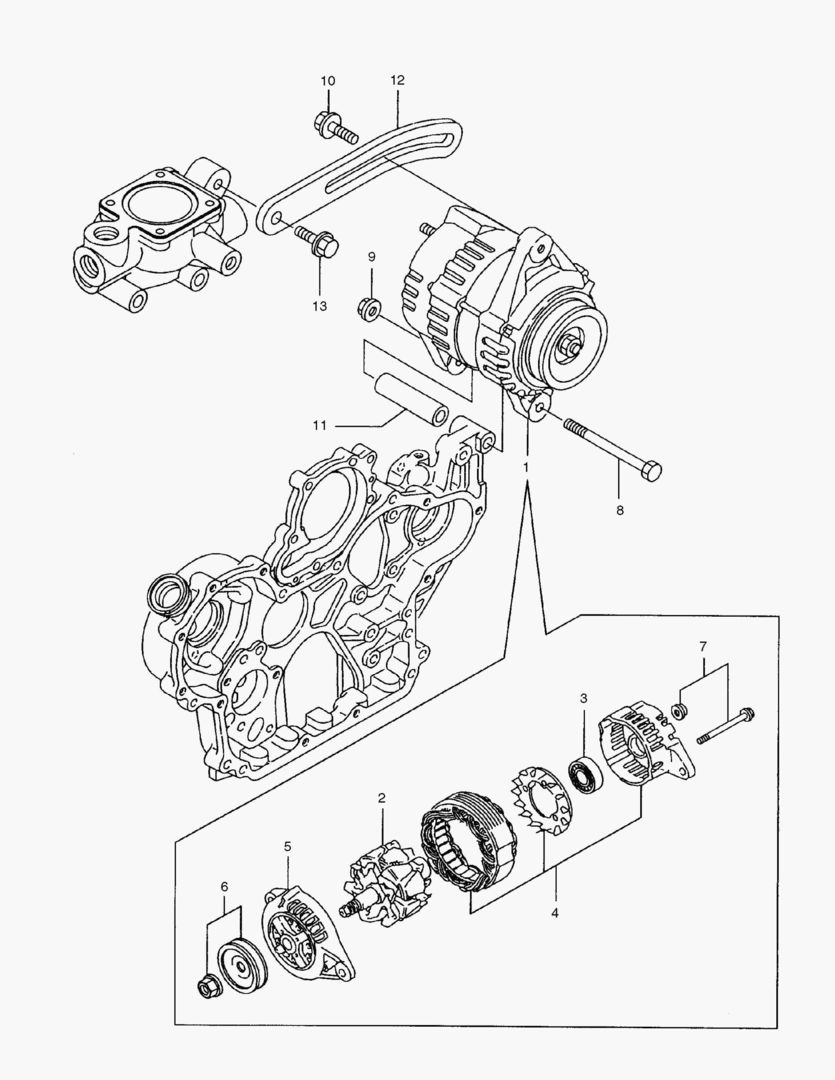

016 GENERATOR [1001~1153]
1Артикул: 123900-77210, GENERATOR
2Артикул: 123900-77700, ROTOR;GENERATOR
3Артикул: 129612-77710, BEARING;BALL
![009 LUB. OIL SYSTEM [1001~1153]](/assets/img/parts/52c0982e1e82cc7b9ff879b4df1837e5635f9019.jpg)

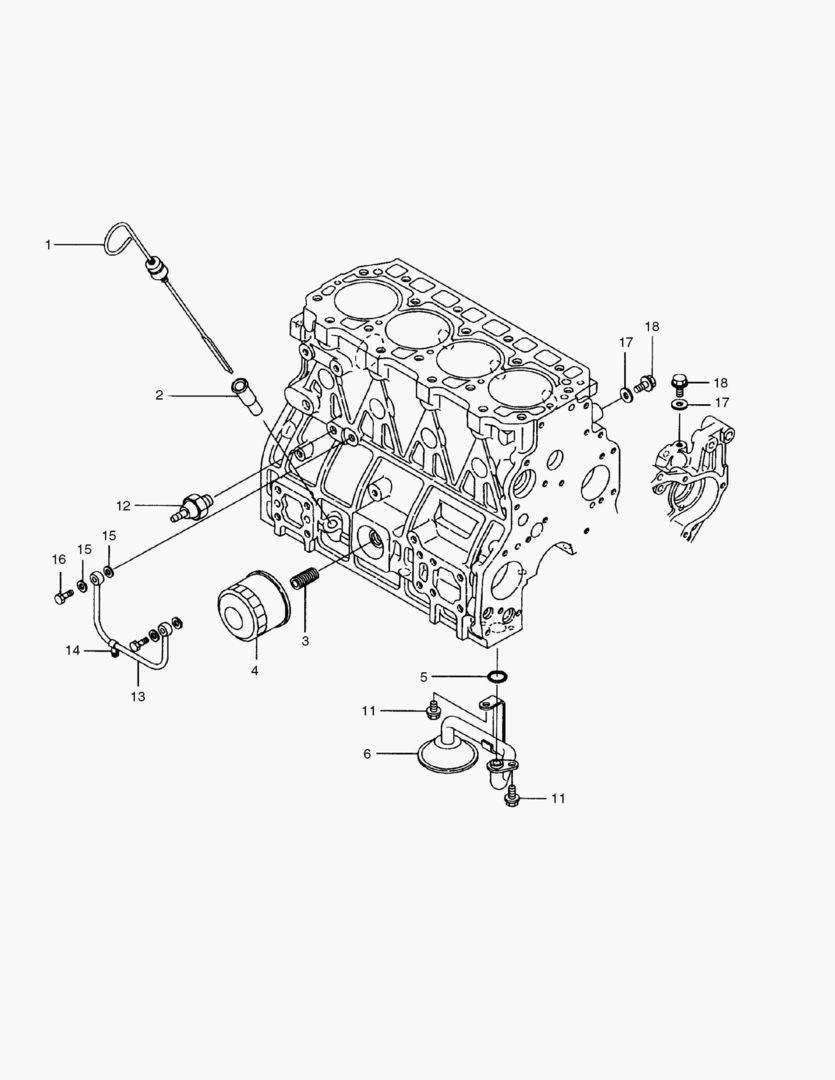

009 LUB. OIL SYSTEM [1001~1153]
1Артикул: 129900-34800, DIPSTICK
2Артикул: 121520-34810, GUIDE;OIL GAUGE
3Артикул: 119000-35140, STUD;OIL FILTER
![060 INJECTION PUMP [1154~1680]](/assets/img/parts/5907506a9242440fd241a97a827ce8fb9eeb9c2d.jpg)

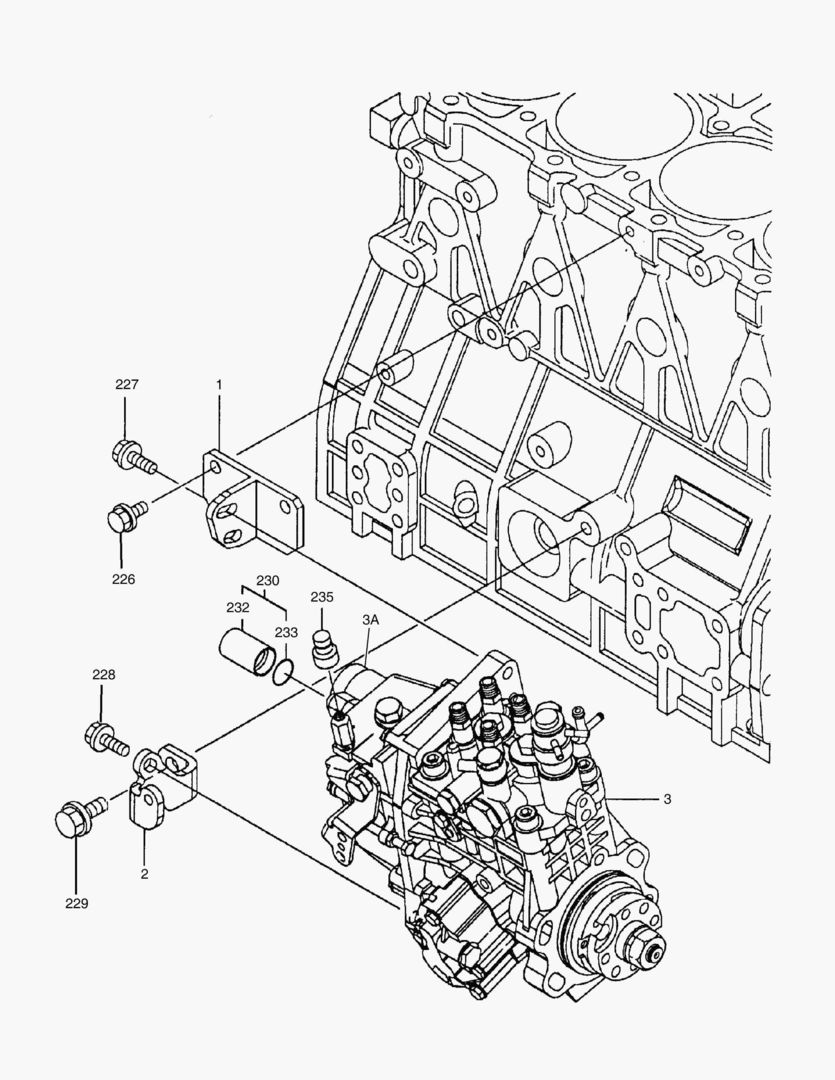

060 INJECTION PUMP [1154~1680]
1Артикул: 129907-01950, RETAINER
2Артикул: 129907-01960, RETAINER
3Артикул: 729907-51310, INJECTION PUMP ASS`Y
![003 FLYWHEEL HOUSING & OIL PUMP [1001~1153]](/assets/img/parts/cddb17e0de5a56cd79f0aafa94731e05e554846a.jpg)

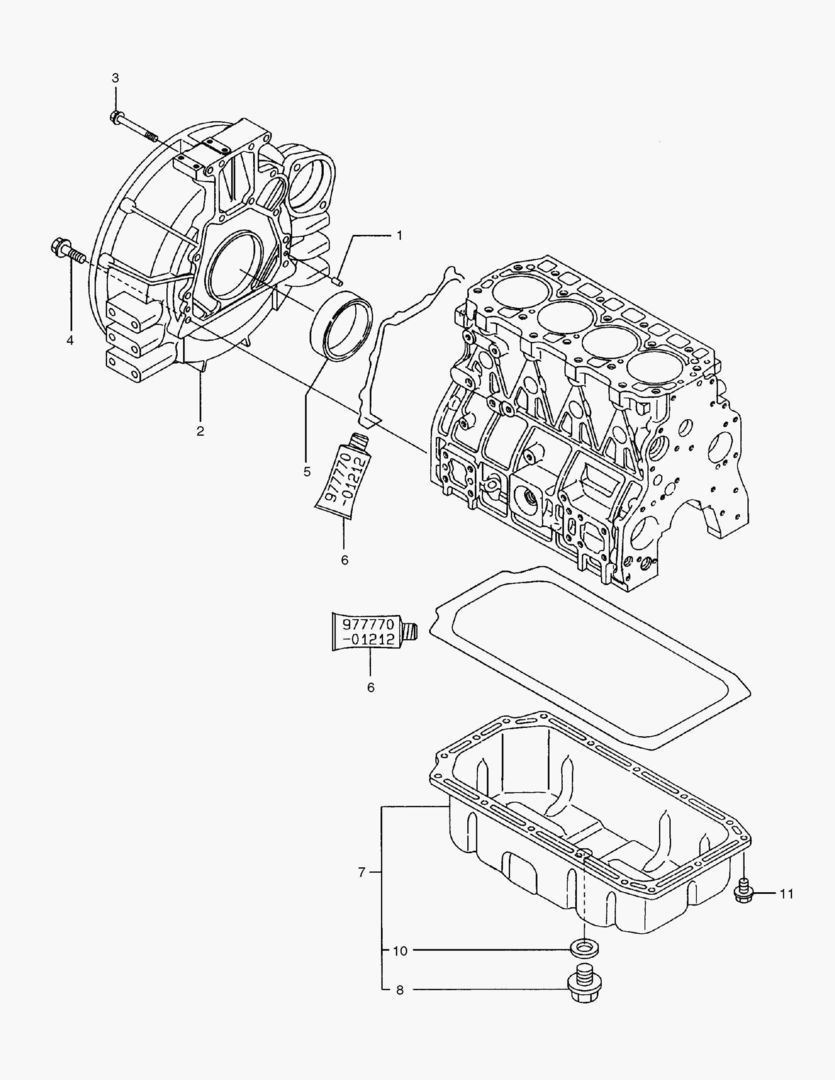

003 FLYWHEEL HOUSING & OIL PUMP [1001~1153]
1Артикул: 129100-01580, PIN;PARALLEL
2Артикул: 129981-01600, FLYWHEEL COVER ASS`Y
3Артикул: 26206-100702, BOLT M10X70
![014 ENGINE STOP DEVICE [1001~1153]](/assets/img/parts/08b7b21e2c9f780d80e2a17e179daf7cb1acd5cf.jpg)

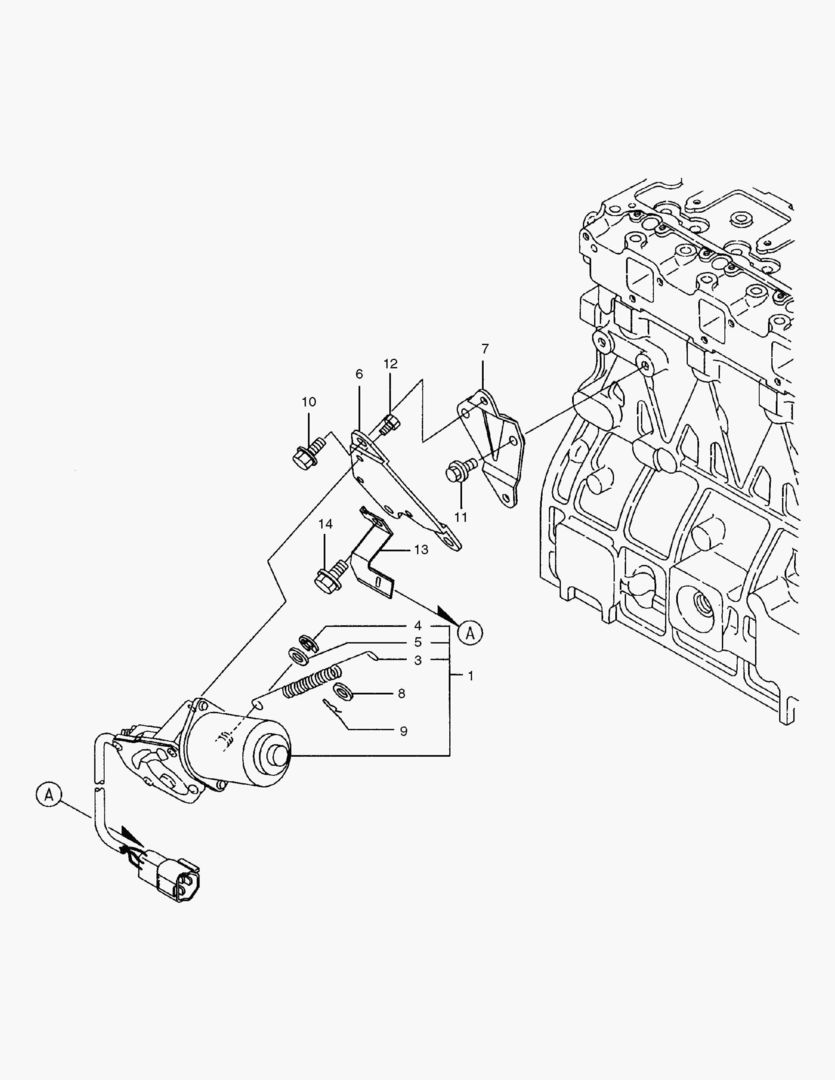

014 ENGINE STOP DEVICE [1001~1153]
1Артикул: 129953-66790, STOP MOTOR ASS`Y
2Артикул: 129953-66830, SPRING;STOP MOTOR
3Артикул: 129566-66880, RING;SNAP
![012 FUEL INJECTION PIPE [1001~1153]](/assets/img/parts/1997d4a0a8fae44f17a8570704275002c93a0dab.jpg)

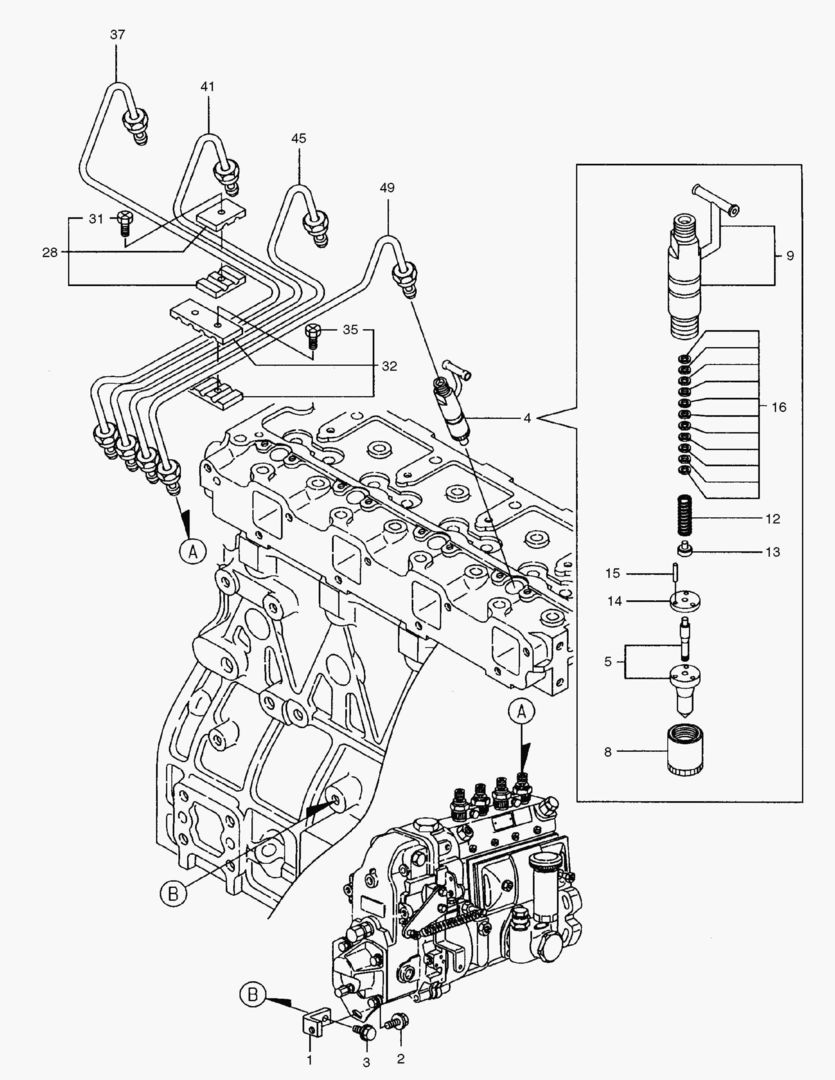

012 FUEL INJECTION PIPE [1001~1153]
1Артикул: 129900-01950, BRACKET
2Артикул: 26106-100142, BOLT M10X14
3Артикул: 26106-080202, BOLT M8X20
![086 ELECTRIC PARTS [1681~]](/assets/img/parts/01414d5657f02cf14ed6abd1b59cf7e60278f8b0.jpg)

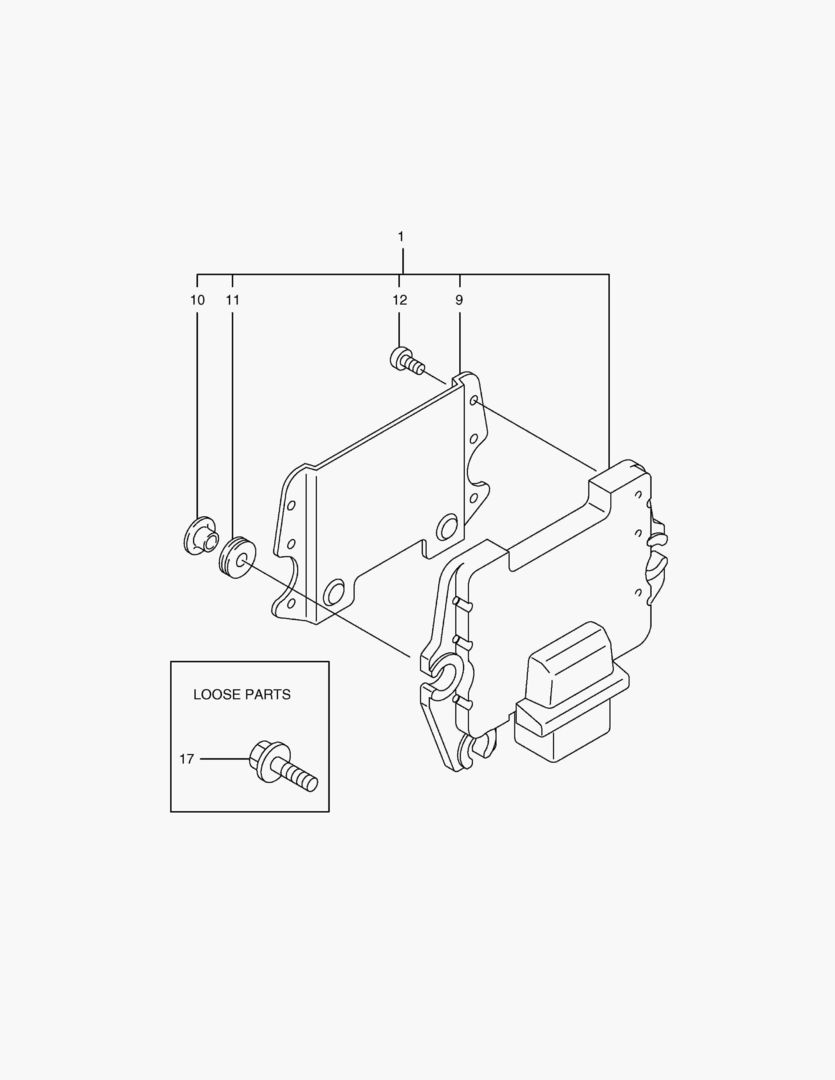

086 ELECTRIC PARTS [1681~]
1Артикул: -, ECU MAP DATA(EU)
2Артикул: K9006119, PLATE;ECU
3Артикул: K9006120, COLLAR
![080 FUEL INJECTION PUMP [1681~]](/assets/img/parts/d14a31c28d8985ebf5fffff94d884c5e53a1b696.jpg)

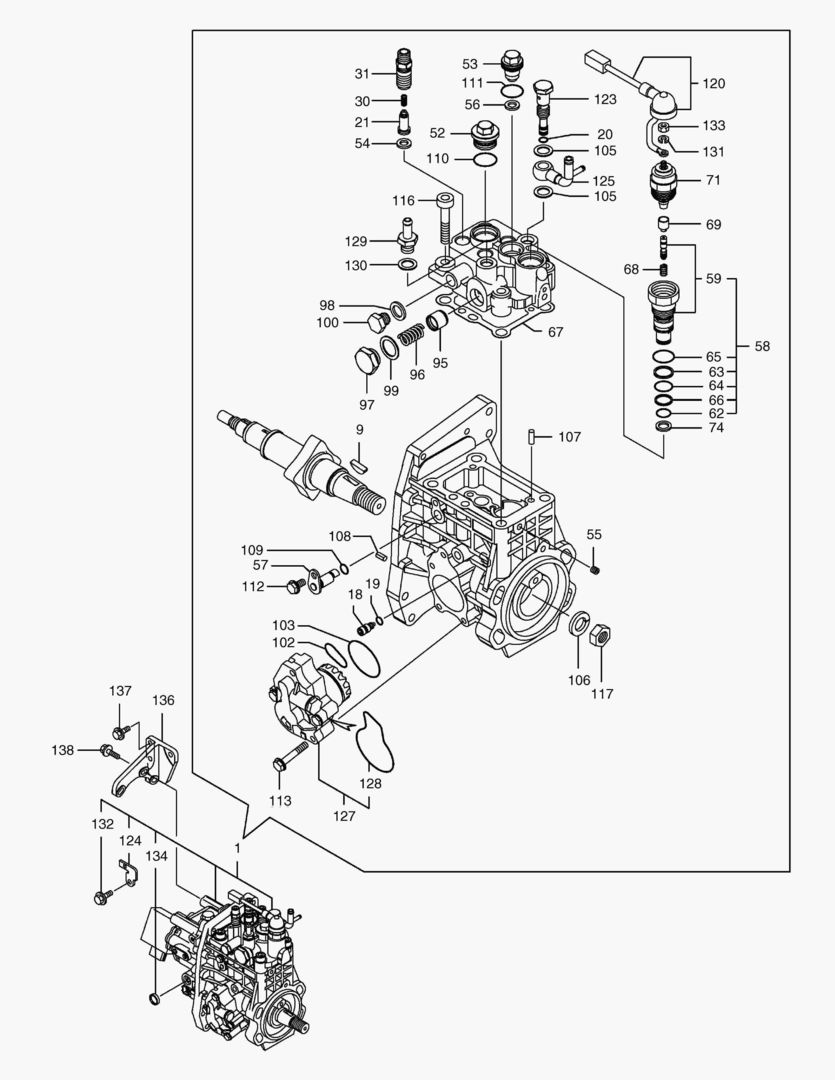

080 FUEL INJECTION PUMP [1681~]
1Артикул: K9006179, INJECTION PUMP ASS`Y
2Артикул: K9006144, KEY 5X19
3Артикул: K9004830, STOPPER
![002 TIMING GEAR CASE [1001~1153]](/assets/img/parts/ccacd5655b6c8135ae0a3ca84c7f0b8205faa668.jpg)

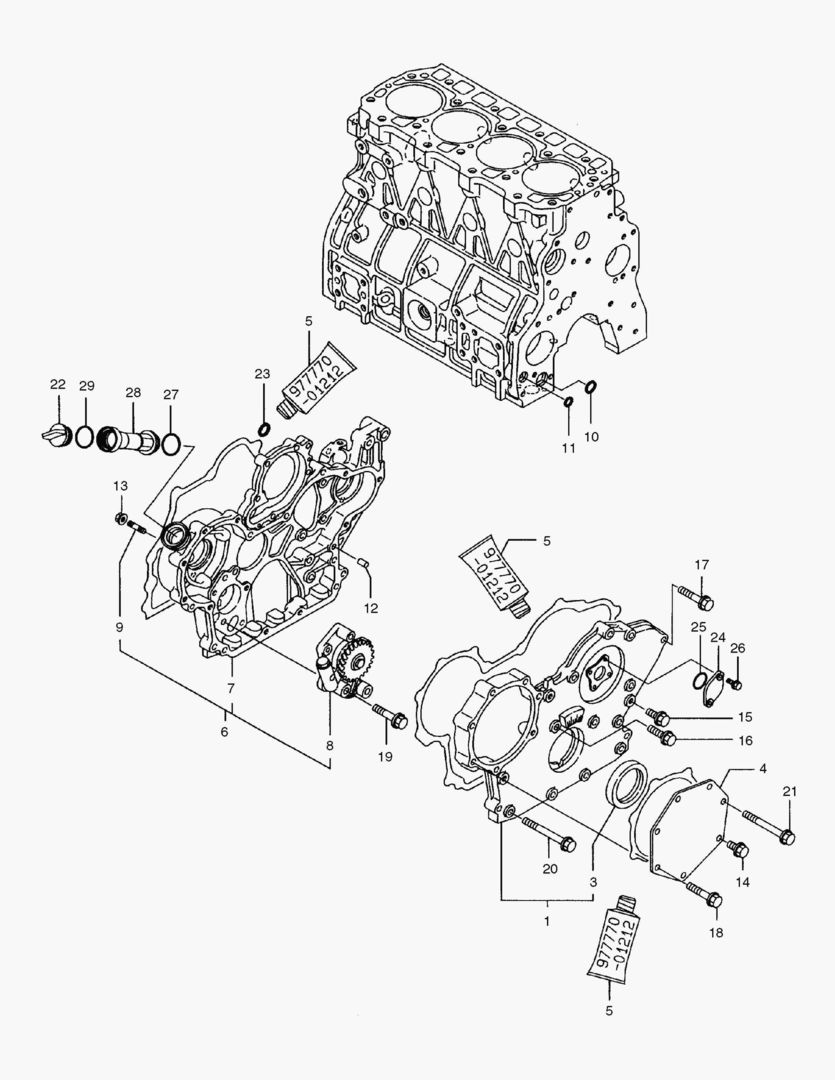

002 TIMING GEAR CASE [1001~1153]
1Артикул: 729916-01570, COVER;GEAR HOUSING
2Артикул: 129916-01800, SEAL;OIL
3Артикул: 129951-01740, COVER
![082 FUEL INJECTION VALVE [1681~]](/assets/img/parts/c9794ac1e82848da6ed7d3b75608aae2c65b24cc.jpg)
082 FUEL INJECTION VALVE [1681~]
1Артикул: K9006177, INJECTOR ASS`Y;FUEL
2Артикул: 2.121-00085, NUT
3Артикул: K9006106, HOLDER ASS`Y;NOZZLE
![075 EXHAUST MANIFOLD [1681~]](/assets/img/parts/dd84ac1c57610aa255354d3ab3fc38570472b8bd.jpg)

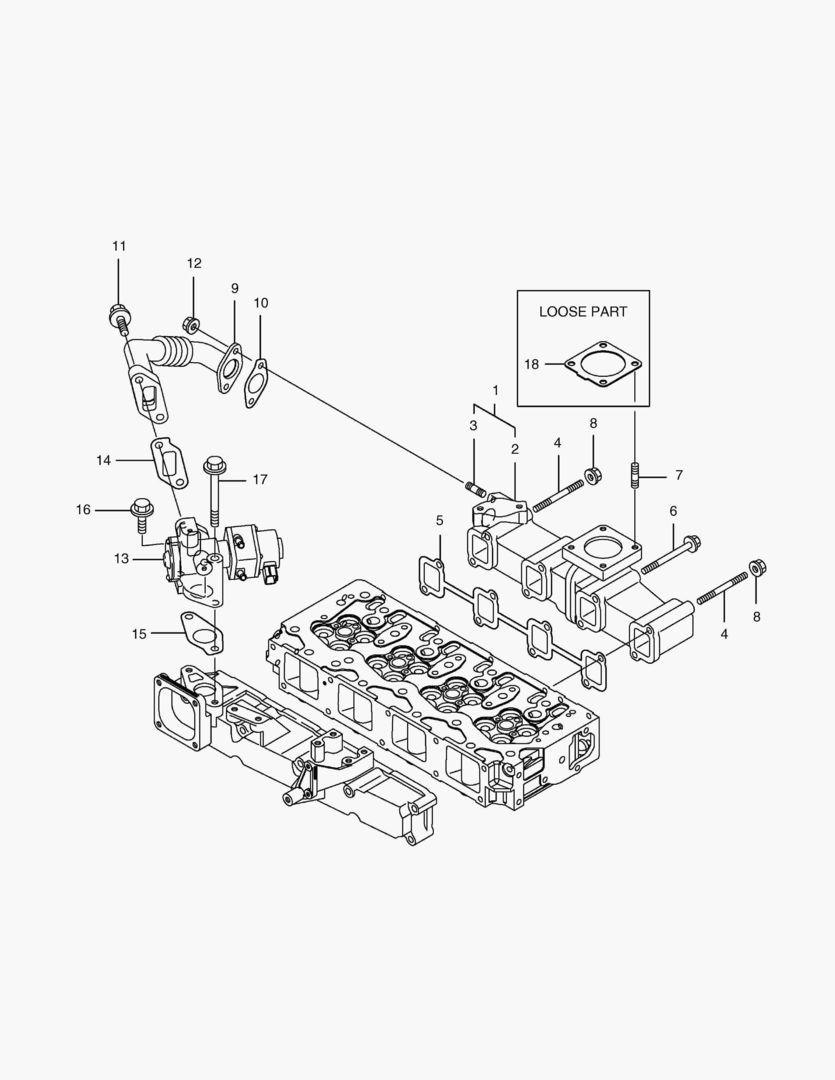

075 EXHAUST MANIFOLD [1681~]
1Артикул: K9006085, MANIFOLD ASSY;EXHAUST
2Артикул: K9006084, MANIFOLD;EXHAUST
3Артикул: K9006075, BOLT;STUD M8X20
![081 GOVERNOR [1681~]](/assets/img/parts/2a207f18b6488d6a07522414115f9af3f65c67f9.jpg)

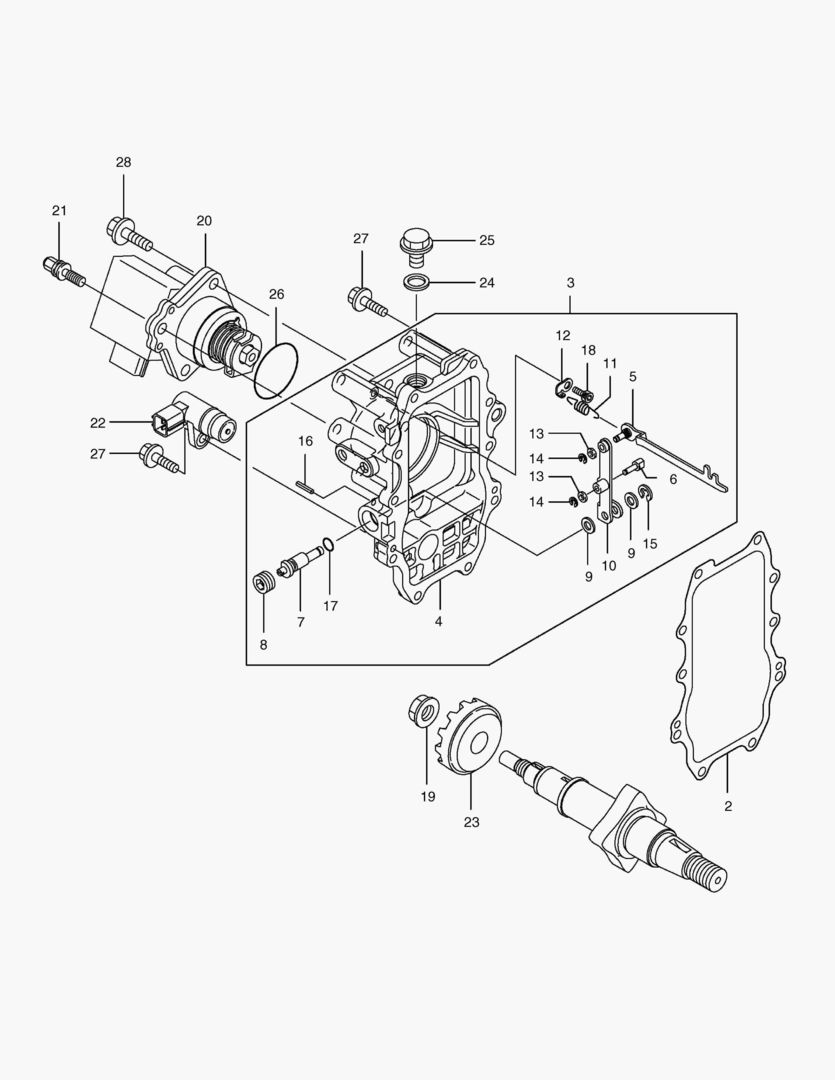

081 GOVERNOR [1681~]
1Артикул: K9002131, PACKING;CASE
2Артикул: K9006114, CASE ASS`Y;GOVERNOR
3Артикул: K9006113, CASE;GOVERNOR
![013 FUEL FILTER [1001~1153]](/assets/img/parts/a8404c966fdcb93b89afba999cee29e5fc0a007f.jpg)

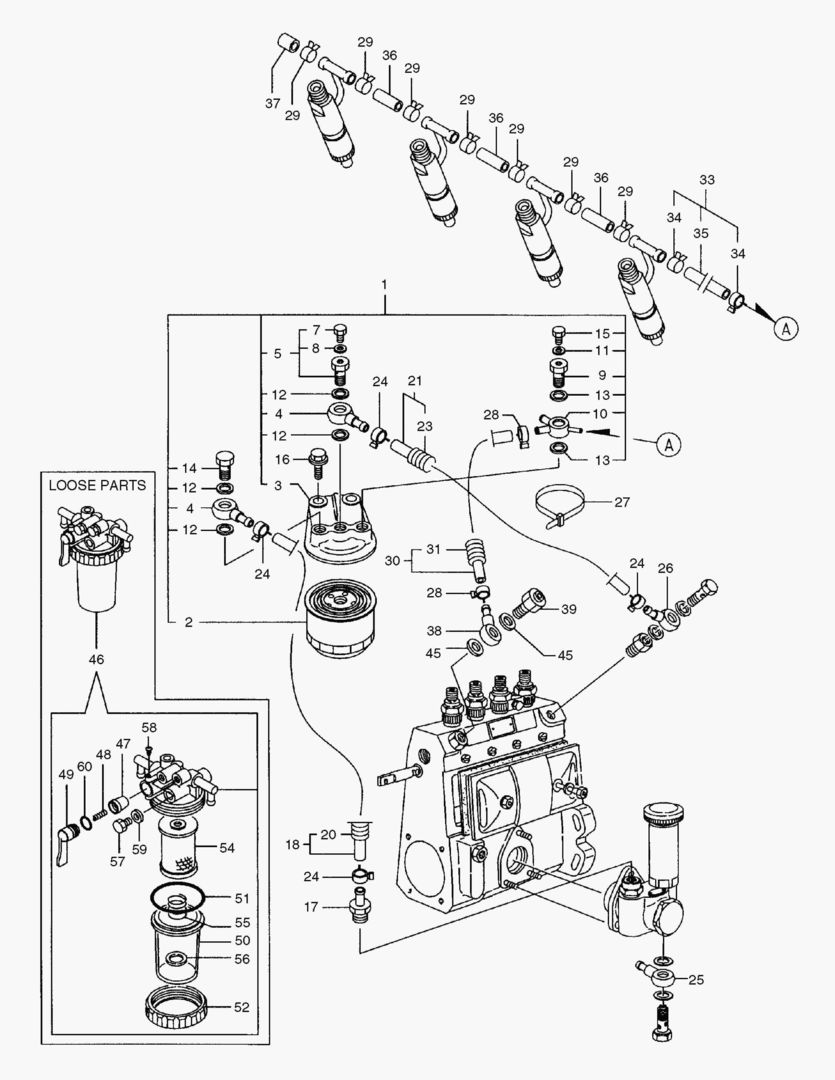

013 FUEL FILTER [1001~1153]
1Артикул: 129982-55600, FUEL FILTER ASS`Y
2Артикул: 119000-55600, FILTER;FUEL
3Артикул: 129470-55610, BODY;FUEL FILTER
![057 CRANK SHAFT & PISTON [1154~1680]](/assets/img/parts/dbd5c8970daf666ab2c5e2ef9b29359c041fa2cd.jpg)

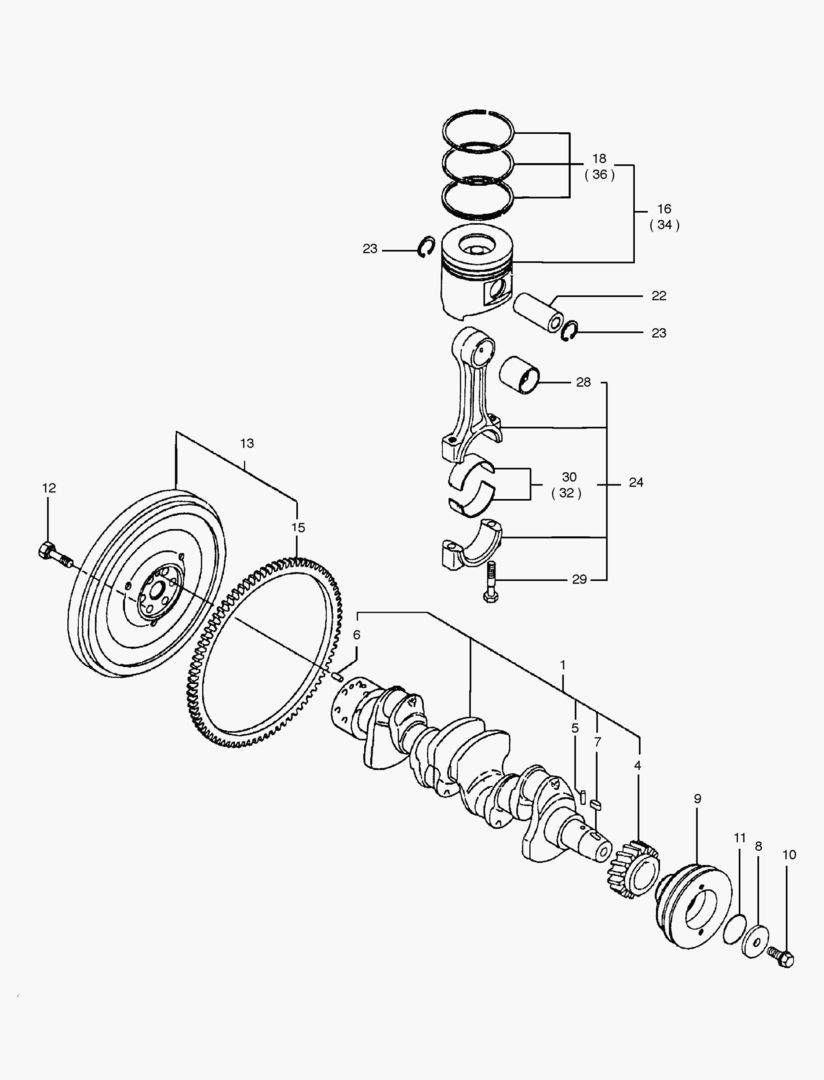

057 CRANK SHAFT & PISTON [1154~1680]
1Артикул: 129902-21000, CRANK SHAFT ASS`Y
2Артикул: 129900-21200, GEAR;CRANK SHAFT
3Артикул: 121850-21290, PIN
![008 CRANKSHAFT & PISTON [1001~1153]](/assets/img/parts/b2a5024e1ac507cf749573a26c05602d42eed30b.jpg)

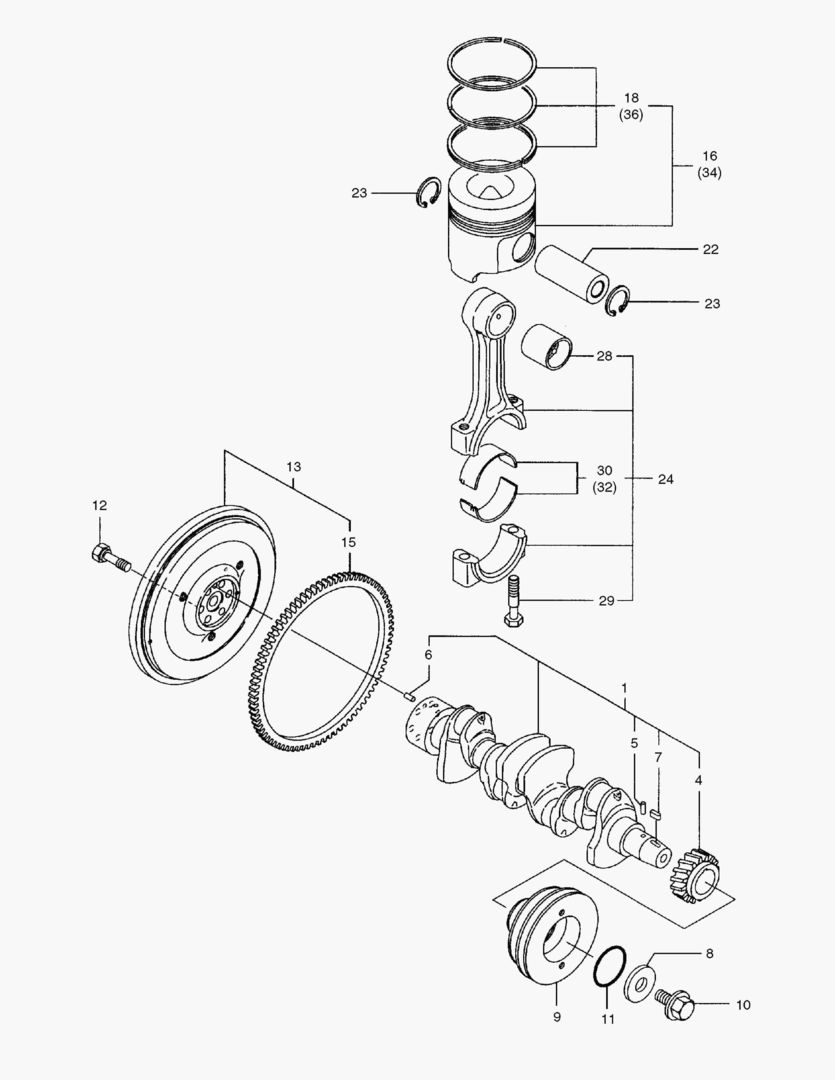

008 CRANKSHAFT & PISTON [1001~1153]
1Артикул: 129902-21000, CRANK SHAFT ASS`Y
2Артикул: 129900-21200, GEAR;CRANK SHAFT
3Артикул: 121850-21290, PIN

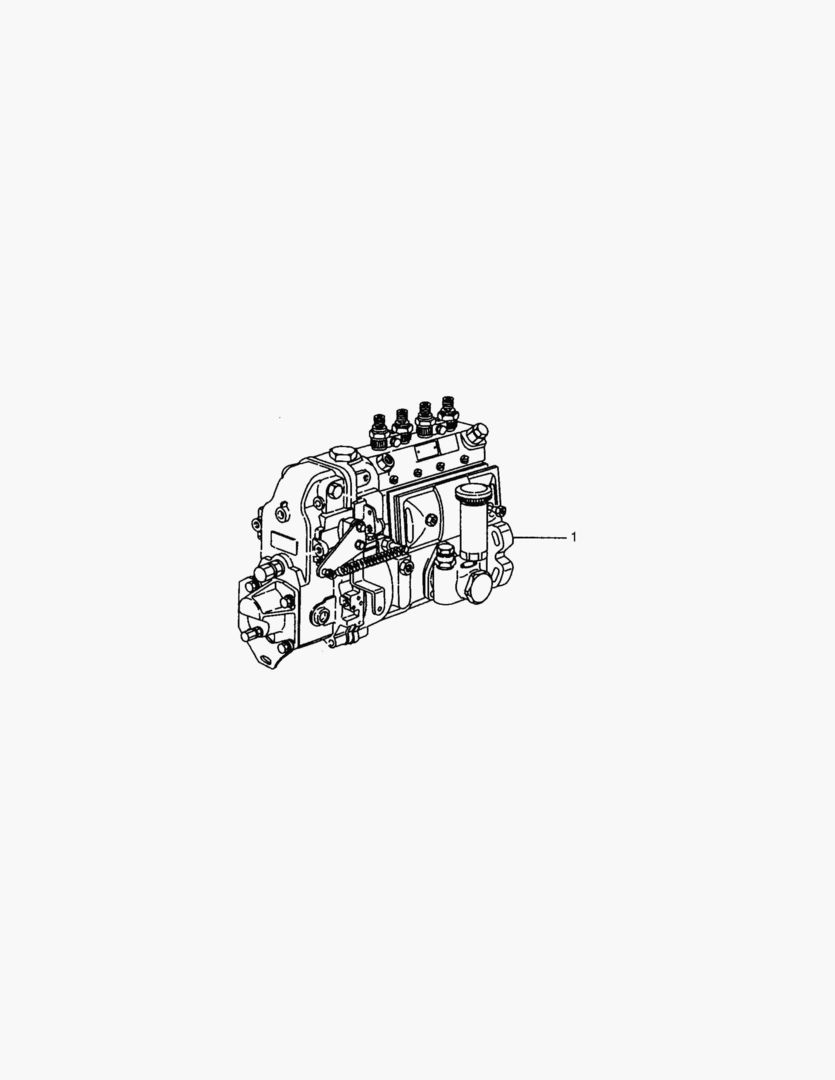

![011 FUEL INJECTION PUMP [1001~1153]](/assets/img/parts/cdb2b6a5c380e0d6081f45d8715b7ad692cd6960.jpg)
![078 LUB.OIL SYSTEM [1681~]](/assets/img/parts/c5ab95dbfb3b00092a310775273adad2a9ba2e2a.jpg)

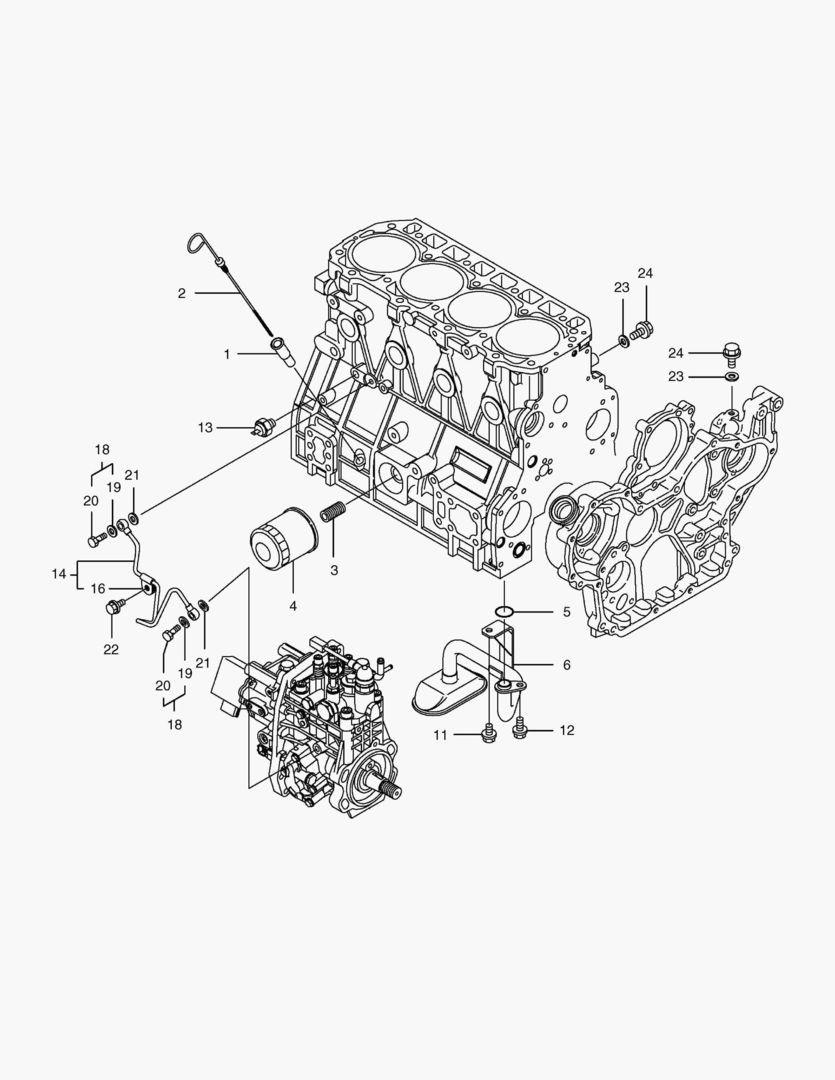

078 LUB.OIL SYSTEM [1681~]
1Артикул: 2.429-00043, GUIDE;OIL GAUGE
2Артикул: K9002128, DIPSTICK
3Артикул: D471165, STUD;OIL FILTER
![005 INTAKE MANIFOLD [1001~1153]](/assets/img/parts/a2a1ea916c0155eaa4b5a18f27c28538fdf3d9c6.jpg)

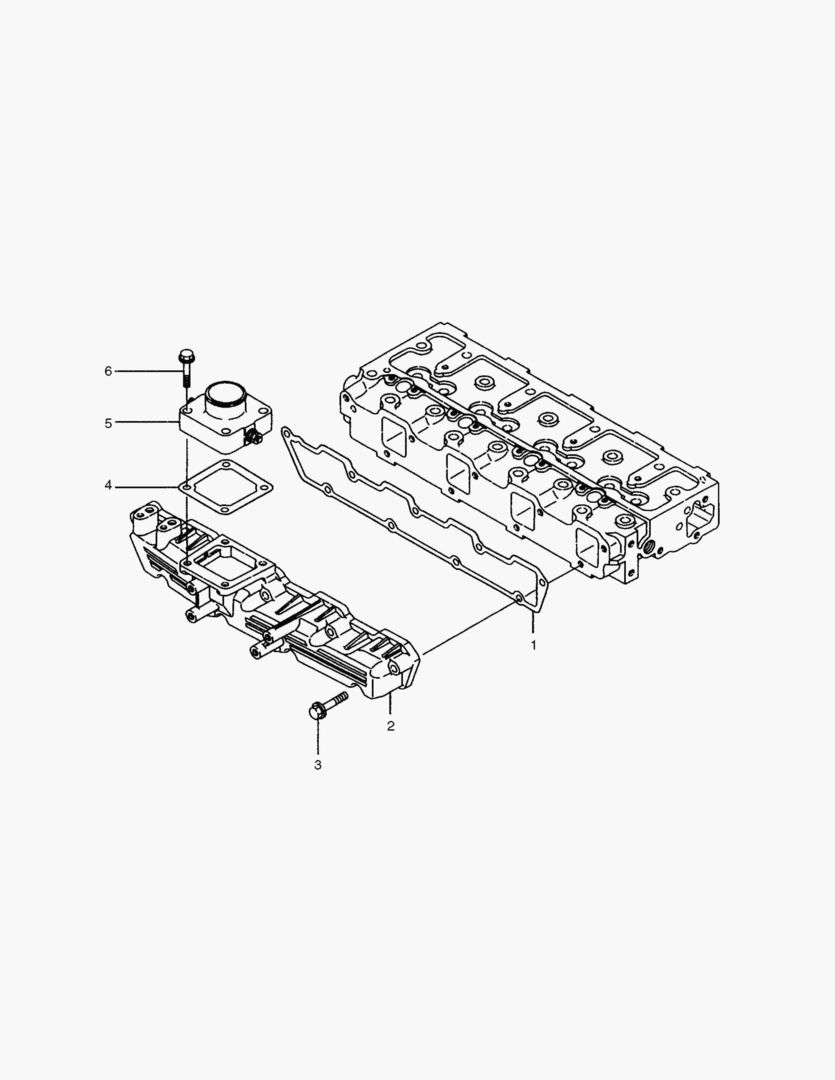

005 INTAKE MANIFOLD [1001~1153]
1Артикул: 129900-12050, GASKET;INLET MANIFOLD
2Артикул: 129900-12100, MANIFOLD;INTAKE
3Артикул: 26106-080452, BOLT M8X45
![063 STARTER [1154~1680]](/assets/img/parts/e9952b17ea36b75b381139152480eab5830cbfc1.jpg)

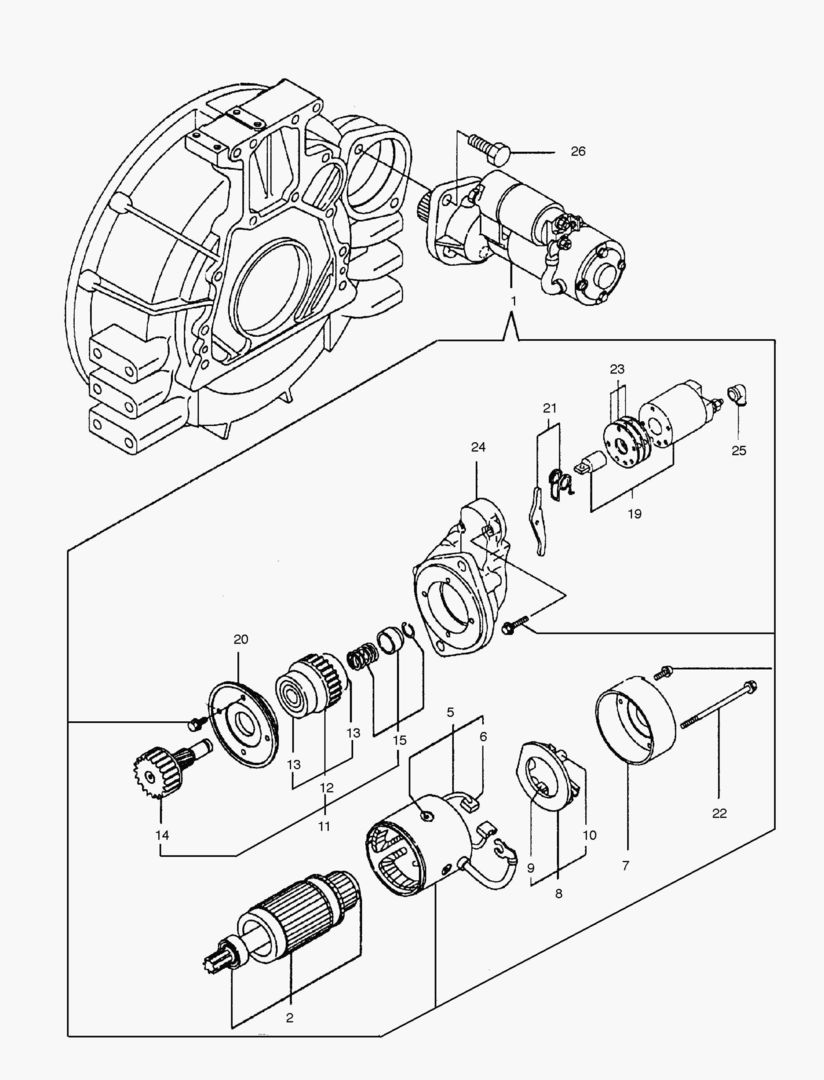

063 STARTER [1154~1680]
1Артикул: 123900-77010, STARTER
2Артикул: 123900-77400, ARMATURE ASS`Y
3Артикул: 123900-77440, COIL ASS`Y
![073 CYLINDER HEAD & BONNET [1681~]](/assets/img/parts/cafcaeb83e38804269c5c470f544bbdc11d8a859.jpg)

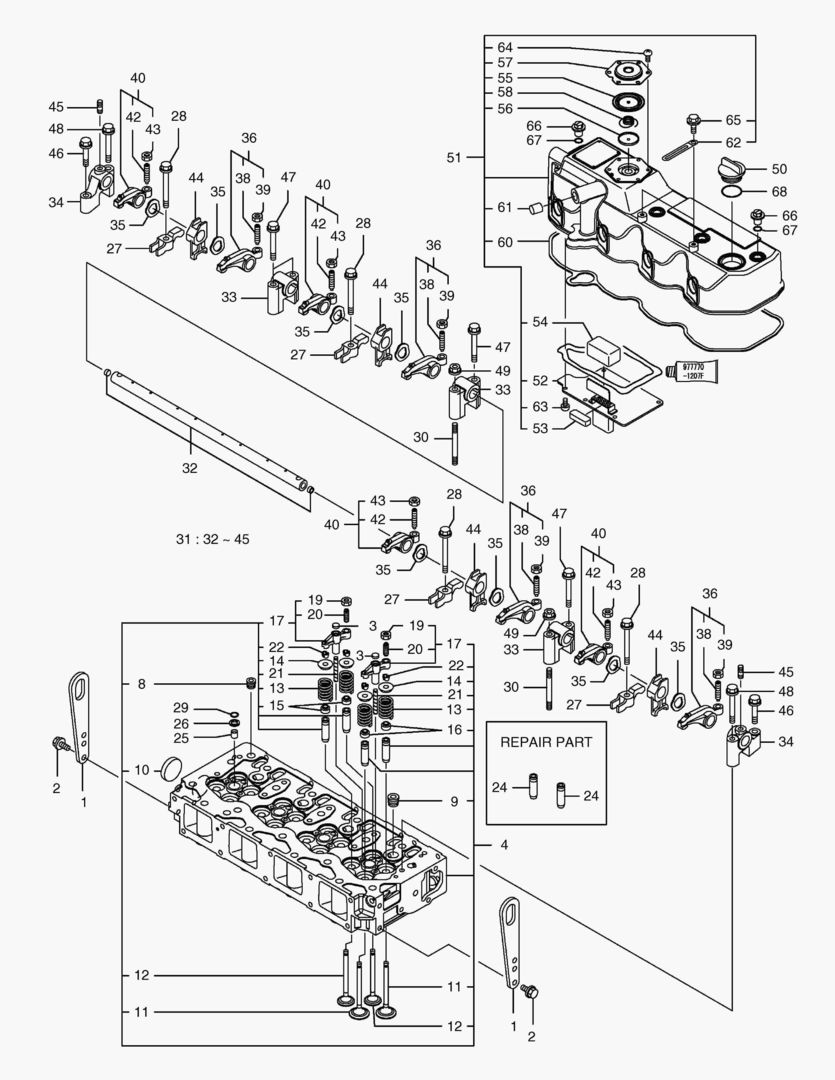

073 CYLINDER HEAD & BONNET [1681~]
1Артикул: 2.197-00046, LIFTER;ENGINE
2Артикул: 2.120-00136, BOLT;PLATED M8X16
3Артикул: A408332, SEAT A;VALVE BRIDGE
![079 COOLING WATER SYSTEM [1681~]](/assets/img/parts/197e49f87df9a7c4e057dda5f9d806e484c5cdf6.jpg)

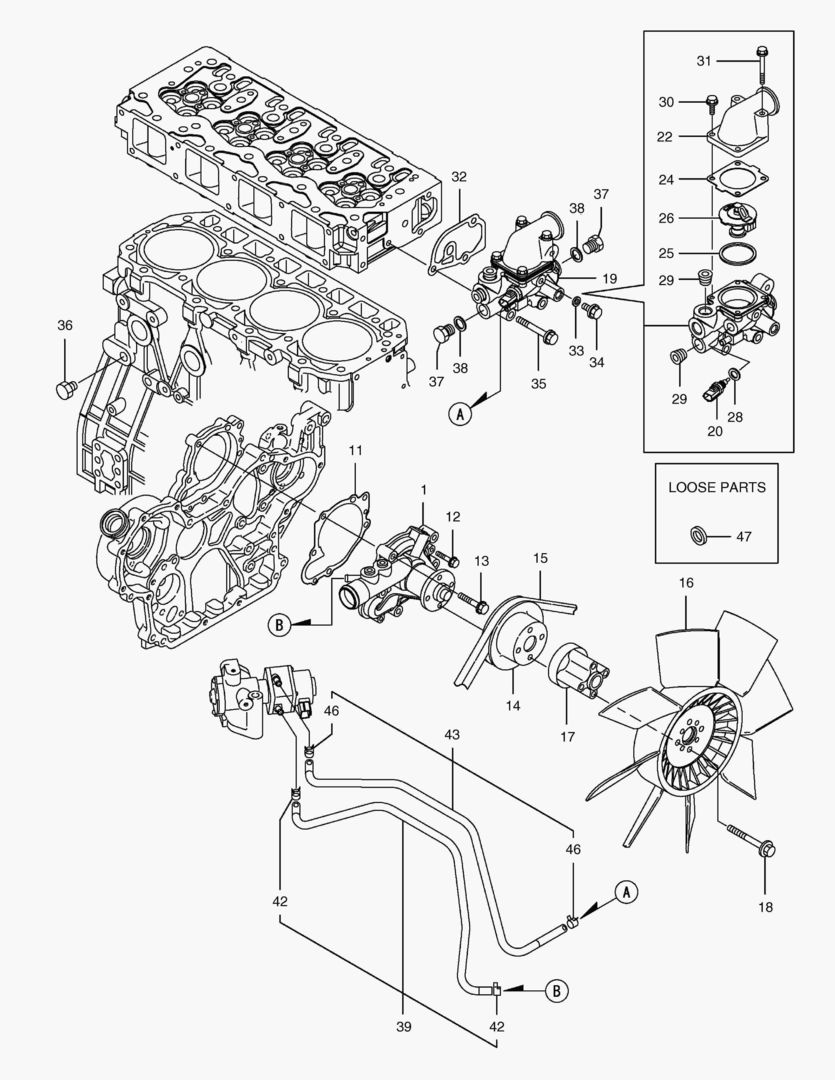

079 COOLING WATER SYSTEM [1681~]
1Артикул: K9006097, WATER PUMP ASS`Y
2Артикул: 2.180-00101, GASKET
3Артикул: 2.120-00030, BOLT M6X30
![072 FLYWHEEL HOUSING & OIL PAN [1681~]](/assets/img/parts/22fd1496f7748ca172c6650691d6f57b68dcf015.jpg)

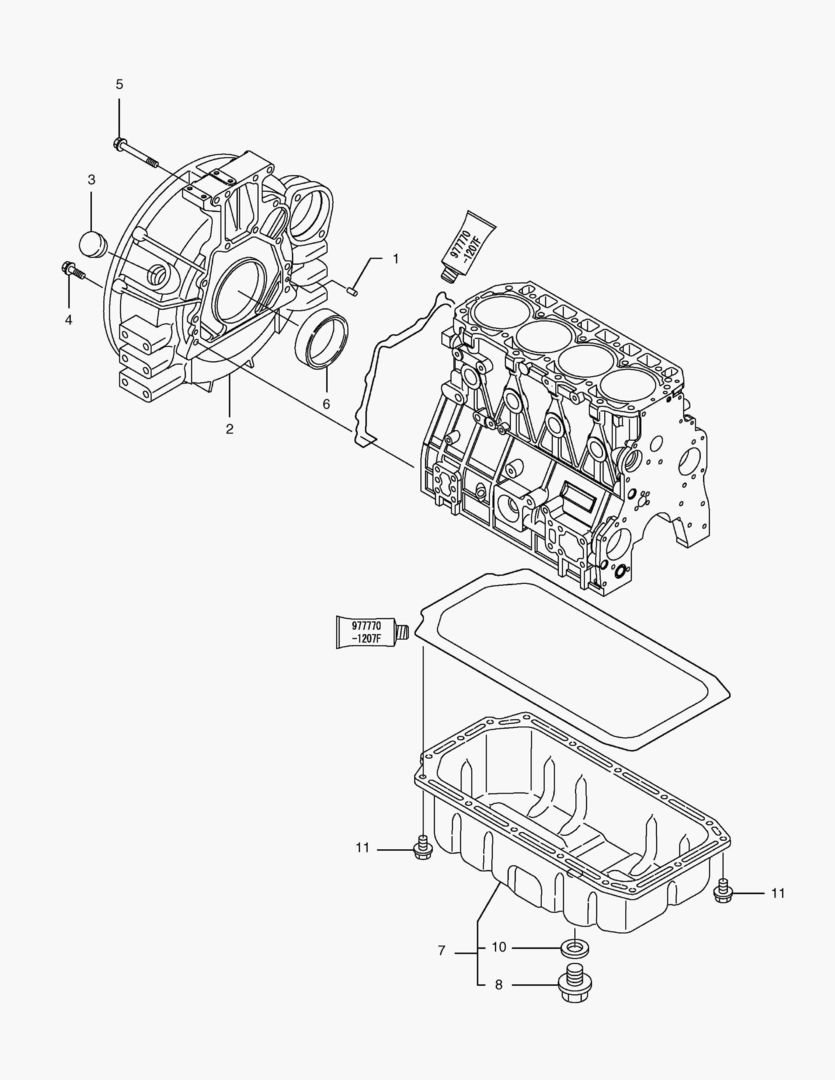

072 FLYWHEEL HOUSING & OIL PAN [1681~]
1Артикул: S5701041, PIN;PARALLEL
2Артикул: 2.430-00302, HOUSING;FLYWHEEL
3Артикул: 2.430-00083, CAP;FLYWHEEL COVER
