ГИДРАВЛИЧЕСКАЯ СИСТЕМА в Алматы

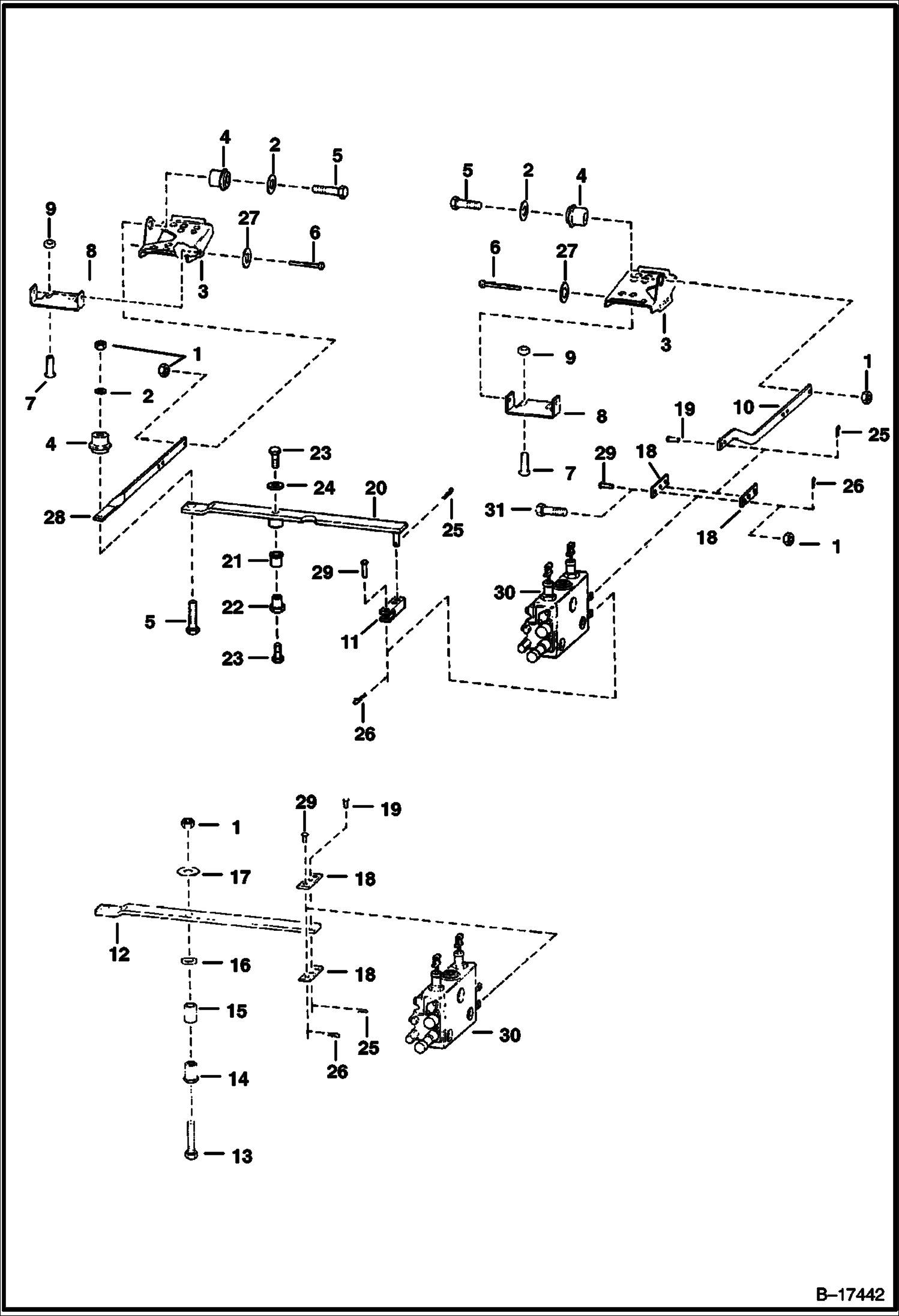

ОРГАНЫ УПРАВЛЕНИЯ
1Артикул: 95D6, NUT Was 91D000006B - A
2Артикул: 6563914, WASHER
3Артикул: 7115219, PEDAL Was 6726680 - A
ЦИЛИНДР ПОДЪЕМА
1Артикул: 7142833, CYLINDER Ref. 2-17 - Was 6586575 - A
2Артикул: 7142834, CASE Was 6586577 - A
3Артикул: 6677195, PISTON W/Ref. 9 & 10 - W/Non-Replaceable wear sleeves - Was 6661694 - D
ДОПОЛНИТЕЛЬНАЯ ГИДРАВЛИКА
1Артикул: 6729153, HOSE Was 6714577 - A
2Артикул: 6704409, TUBE
3Артикул: 6704410, TUBE
ЦИЛИНДР НАКЛОНА
1Артикул: 6804692, CYLINDER, TILT See Illustration TILT CYLINDER/ TS1127 - Ref. 2-13 & 15-19 - before ordering repair parts, make sure that this is the correct style cylinder - Note the difference in the length of the cylinder, rod end W/ or W/O grease zerk & the piston rod end recess
2Артикул: 6804703, CASE 3.25-- (82,6 mm) I.D. - 21.38 (543,05mm) overall length
3Артикул: 6804699, PISTON 1.125-- (28,6 mm) I.D. - W/.40-- (11,16 mm) rod end recess
ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН (--C-- СЕРИИ)
1Артикул: VALVE, VALVE See BTI307 NLA - W/long spools - Before ordering repair parts, make sure that this is the correct style Valve - Valve shown here uses stamped boot retainers, 5, which fit flush to valve body - Was 6588142 - A
2Артикул: VALVE, VALVE See BTI307 NLA - W/long spools - for high horsepower hydraulics - Was 6588265 - A
3Артикул: 6588165, SCREW
КЛАПАН РЕГУЛИРОВКИ ПОЛОЖЕНИЯ КОВША
1Артикул: VALVE, VALVE NLA - Order 6673959 valve - if loader is not equipped with an on/off switch, Also Order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 load check - Was 6666341 - A
2Артикул: 6647784, PLUG W/Ref. 3
3Артикул: 79K10, O RING 10
ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН
1Артикул: VALVE, VALVE See BTI307 NLA - Ref. 2 - 56 & 60 -W/SHORT SPOOLS & FITTINGS - BEFORE ORDERING REPAIR PARTS, MAKE SURE THAT THIS IS THE CORRECT STYLE VALVE - VALVE SHOWN HERE USES FLAT BOOT RETAINERS, Ref. 5, WHICH FIT ABOVE PROTRUDING SPOOL SEAL, Ref. 54 - WAS 6597195 - A
2Артикул: 29G412, BOLT
3Артикул: 54K20002, O-RING 10
