ГИДРАВЛИЧЕСКАЯ СИСТЕМА в Алматы

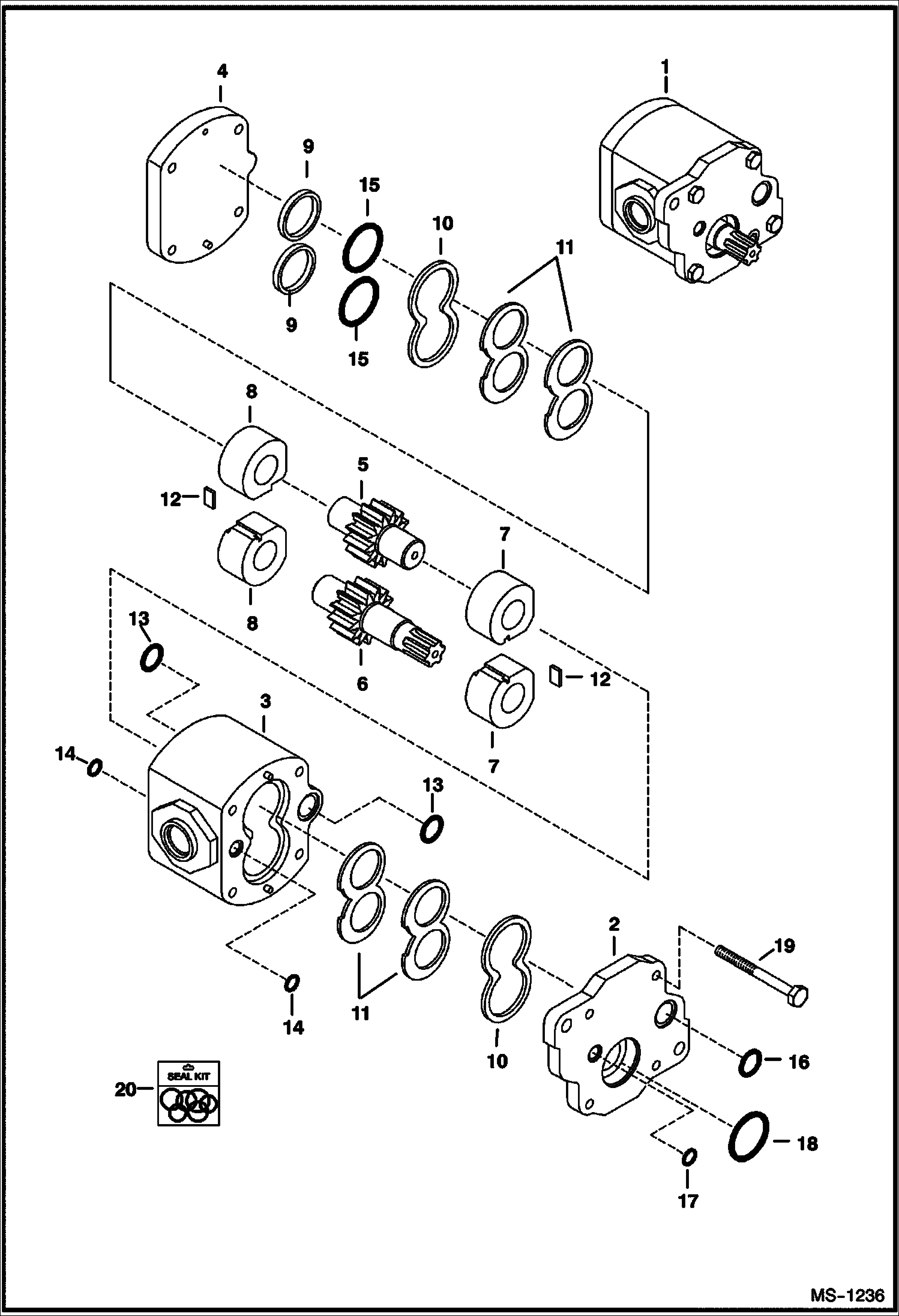

ШЕСТЕРЕННЫЙ НАСОС
1Артикул: 6685769, PUMP, GEAR Assy. - W/Ref. 2-19 - Was 6677780 - A
2Артикул: COVER, COVER NSS
3Артикул: HOUSING, HOUSING NSS

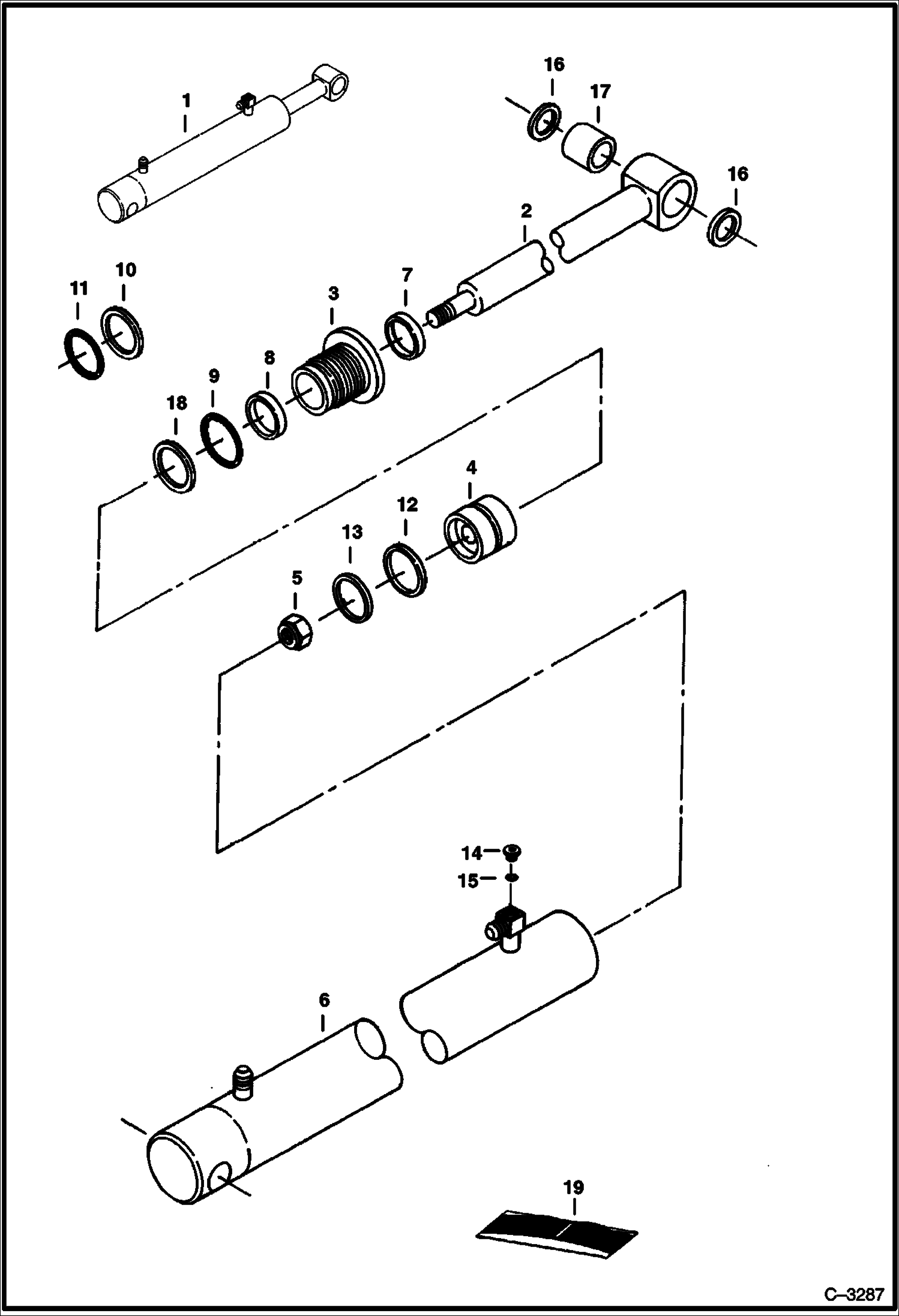

ЦИЛИНДР ПОВОРОТА
1Артикул: 6816319, CYLINDER, SWING Ref. 2-15 - Also Order Ref. 17 & (2) Ref. 16 - Was 6814862 Ref. 2-17 - Also Order (2) Ref. 16 - Was 6814862 - A
2Артикул: 6810420, ROD Also Order Ref. 17 & (2) of Ref. 16
3Артикул: 6538367, HEAD, CYL TILT

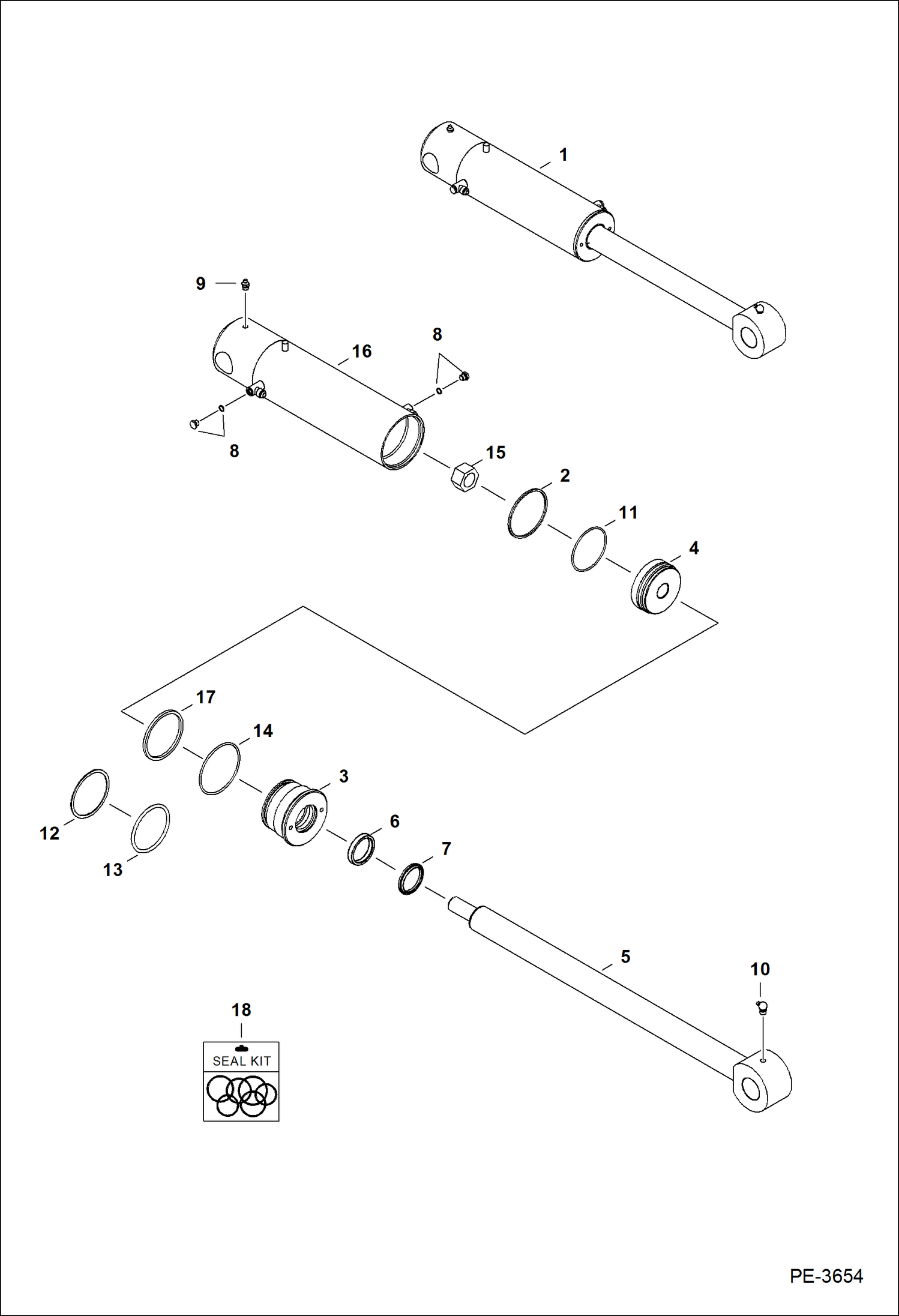

ЦИЛИНДР ОТВАЛА
1Артикул: 6597350, CYLINDER blade
2Артикул: 1530265, PISTON SEAL
3Артикул: 6534985, HEAD

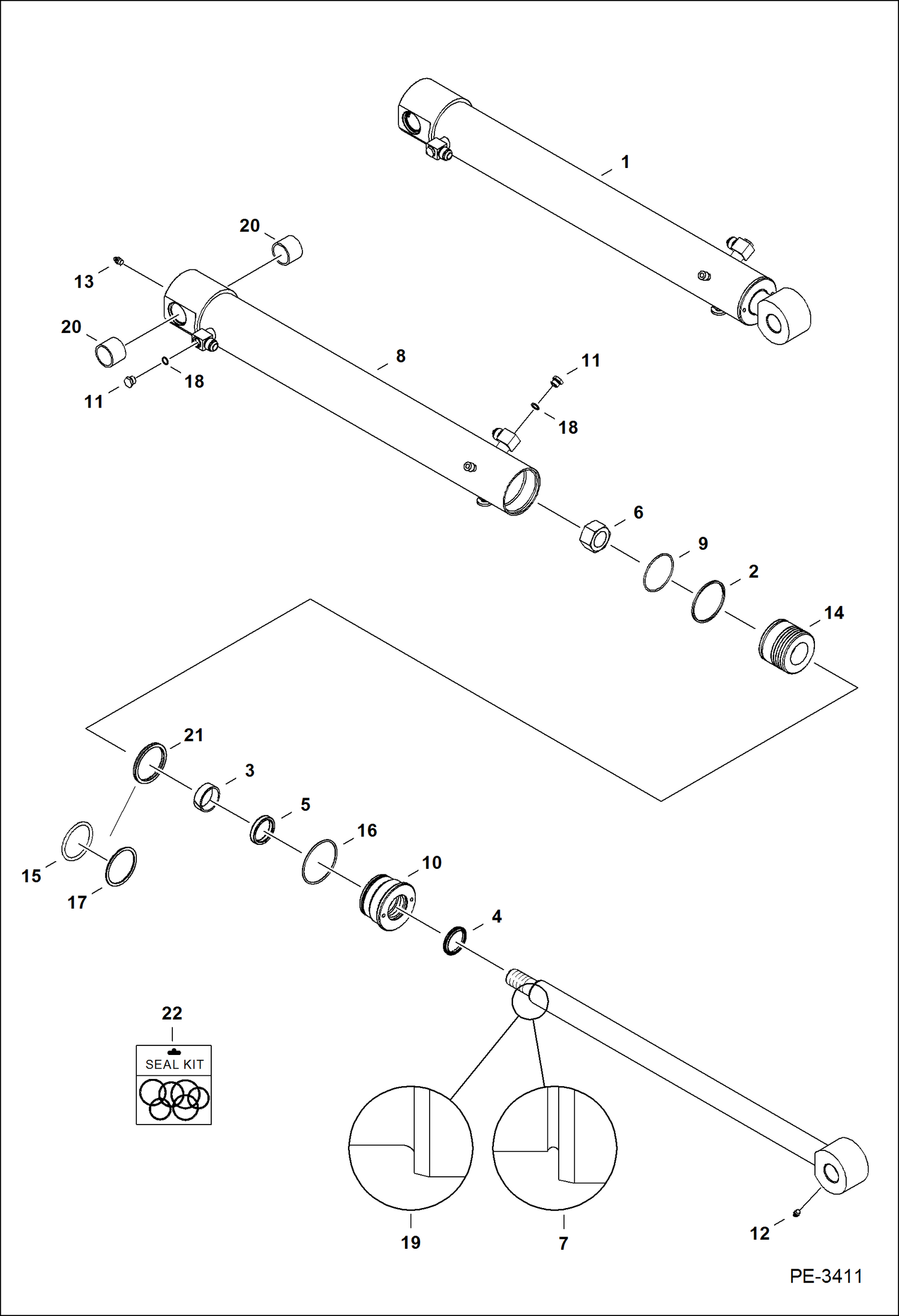

ЦИЛИНДР СТРЕЛЫ
1Артикул: CYLINDER, CYLINDER NLA - W/Ref. 2-19 - Order 7156579 - Also Order Ref. 12, 13, 20, & (2) of 6652915 dust seal - Was 6814980 - A
2Артикул: 7156579, CYLINDER, BOOM Also Order Ref. 12, 13, 20, & (2) of 6652915 dust seal - Was 7148239 - A
3Артикул: 6513466, PISTON RG

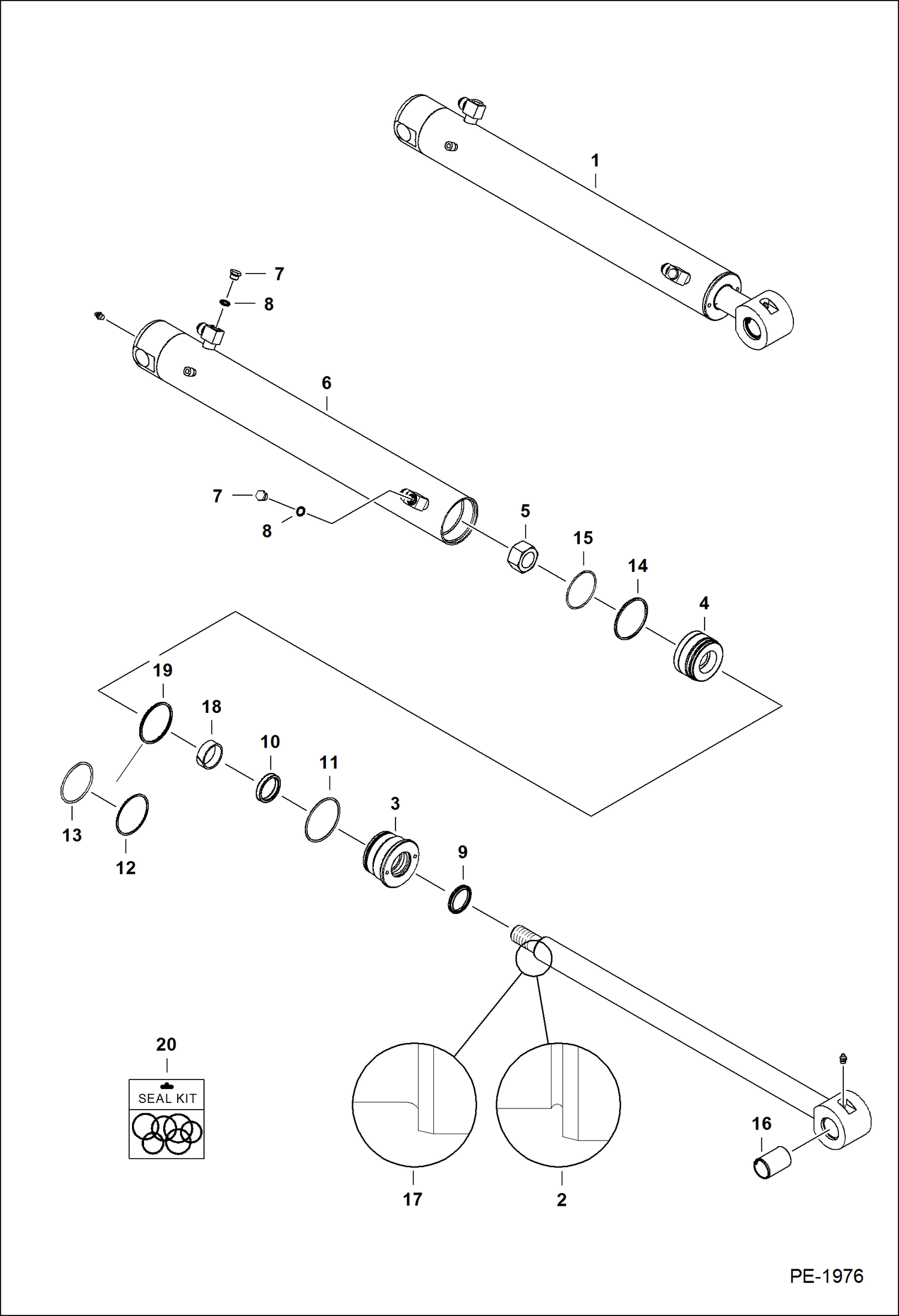

ЦИЛИНДР РУКОЯТИ
1Артикул: CYLINDER, CYLINDER NLA - W/Ref. 2-15 & 18 - Order 7156578 - Also Order Ref. 16 & (2) of 6652915 dust seal - Was 6817188 - A
2Артикул: 7156578, CYLINDER, ARM W/Ref. 3-15, 17 & 18 - Also Order Ref. 16 & (2) of 6652915 dust seal - Was 7148322
3Артикул: ROD, ROD NLA - Order 7148323 rod & 7147317 piston - Also Order Ref. 16 & (2) of 6652915 dust seal - Was 6810566 - A
