ГИДРАВЛИЧЕСКАЯ СИСТЕМА в Алматы
ОРГАНЫ УПРАВЛЕНИЯ
1Артикул: 6564653, BAR
2Артикул: 6706680, LINK Also order Ref. 28 & 29 - Was 6564544 - A
3Артикул: 7115219, PEDAL Was 6726680 - A
ЦИЛИНДР НАКЛОНА (BOBCAT) (СО СМЕННЫМ ПАТРУБКОМ)
1Артикул: CYLINDER, CYLINDER See Illustration TILT CYLINDER/ MS2446 NLA - Ref. 2-21 - tube is attached to fitting and held on with two clamps and nut and bolt - Order 7104437 cylinder - Was 6539810 - A
2Артикул: 7141930, CASE Was 6588686 - A
3Артикул: 6810539, NUT Was 6804592
ГИДРОЦИЛИНДР ПОДЪЕМА (С СМЕННЫМ ПАТРУБКОМ)
1Артикул: 6586671, CYLINDER, LIFT Ref. 2-17 - Was 6592962 - A
2Артикул: 6586674, TUBE, CASE CYL LIFT cylinder - Was 6592621 - A
3Артикул: 92D12, NUT Was 86D000012 - B
АВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН (РЕЗЕРВНЫЙ КЛАПАН - СОЕДИНЕНИЯ МИНУС)
1Артикул: VALVE,, VALVE, CONTROL SERVICE See Illustration HYDRAULIC CONTROL VALVE/ B18342 - NLA - Order components - Ref. 2-44 - before ordering make sure that this is the correct style valve - valve shown here uses flat boot retainers, Ref. 5, which fit above protruding spool seal retainer - Was 6802997 - A
2Артикул: 29G412, BOLT
3Артикул: 54K20002, O-RING 10
ЦИЛИНДРА НАКЛОНА (СО СМЕННЫМ ПАТРУБКОМS)
1Артикул: CYLINDER, CYLINDER See Illustration TILT CYTLINDER/ MS2615 NLA - Order 6539810 Cylinder
2Артикул: 6592041, CASE
3Артикул: 86D16, NUT

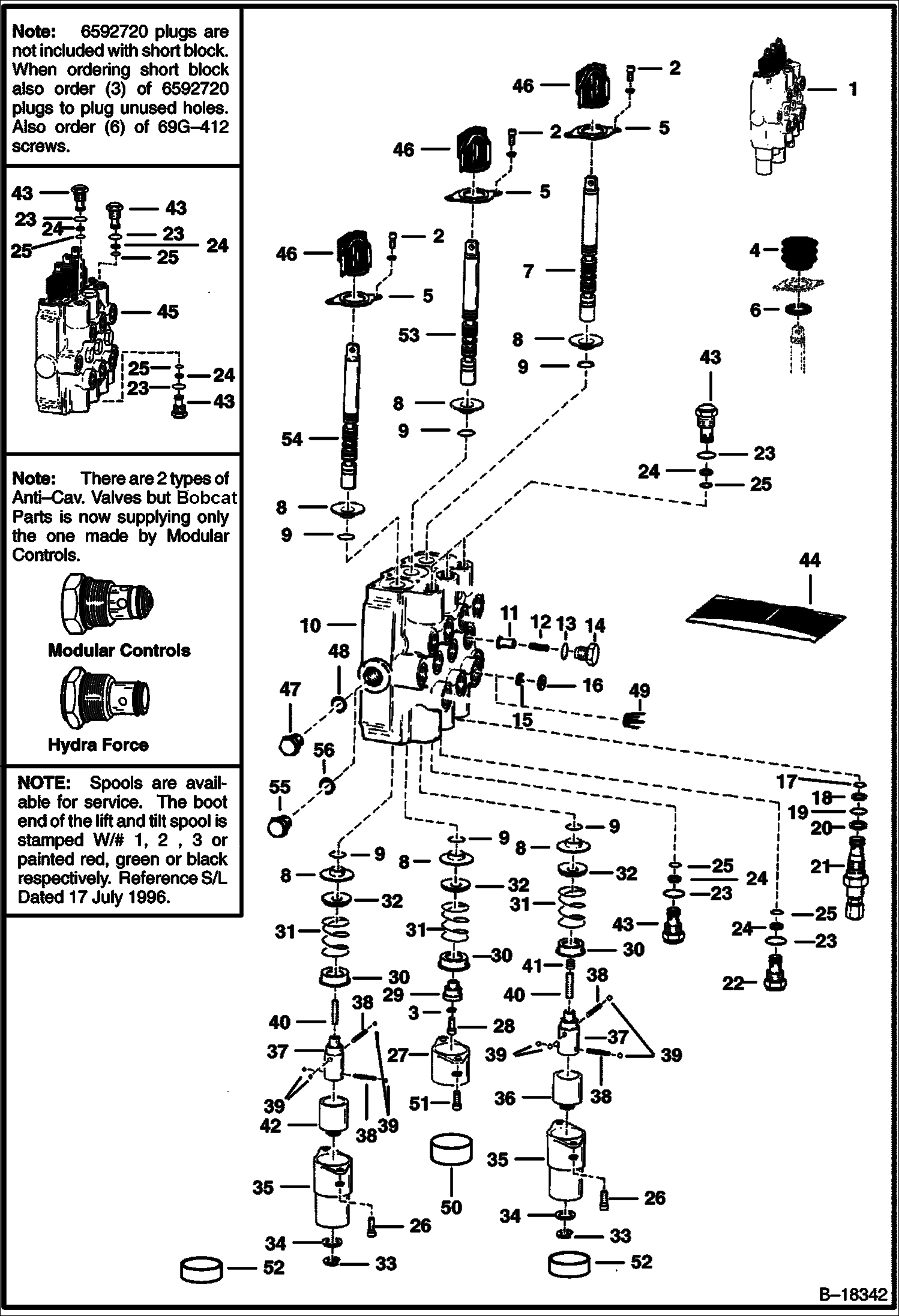

ГИДРАВЛИЧЕСКИЙ РЕГУЛИРУЮЩИЙ КЛАПАН
1Артикул: VALVE, VALVE NLA - Ref. 2-52 - Before ordering repair parts, make sure that this is the correct style Valve with stamped boot retainers, Ref. 5 which fit flush to valve body - Order 6802997 valve - Was 6586287 - A
2Артикул: 6588165, SCREW Was 73G000410B - B
3Артикул: 22E4, WASHER

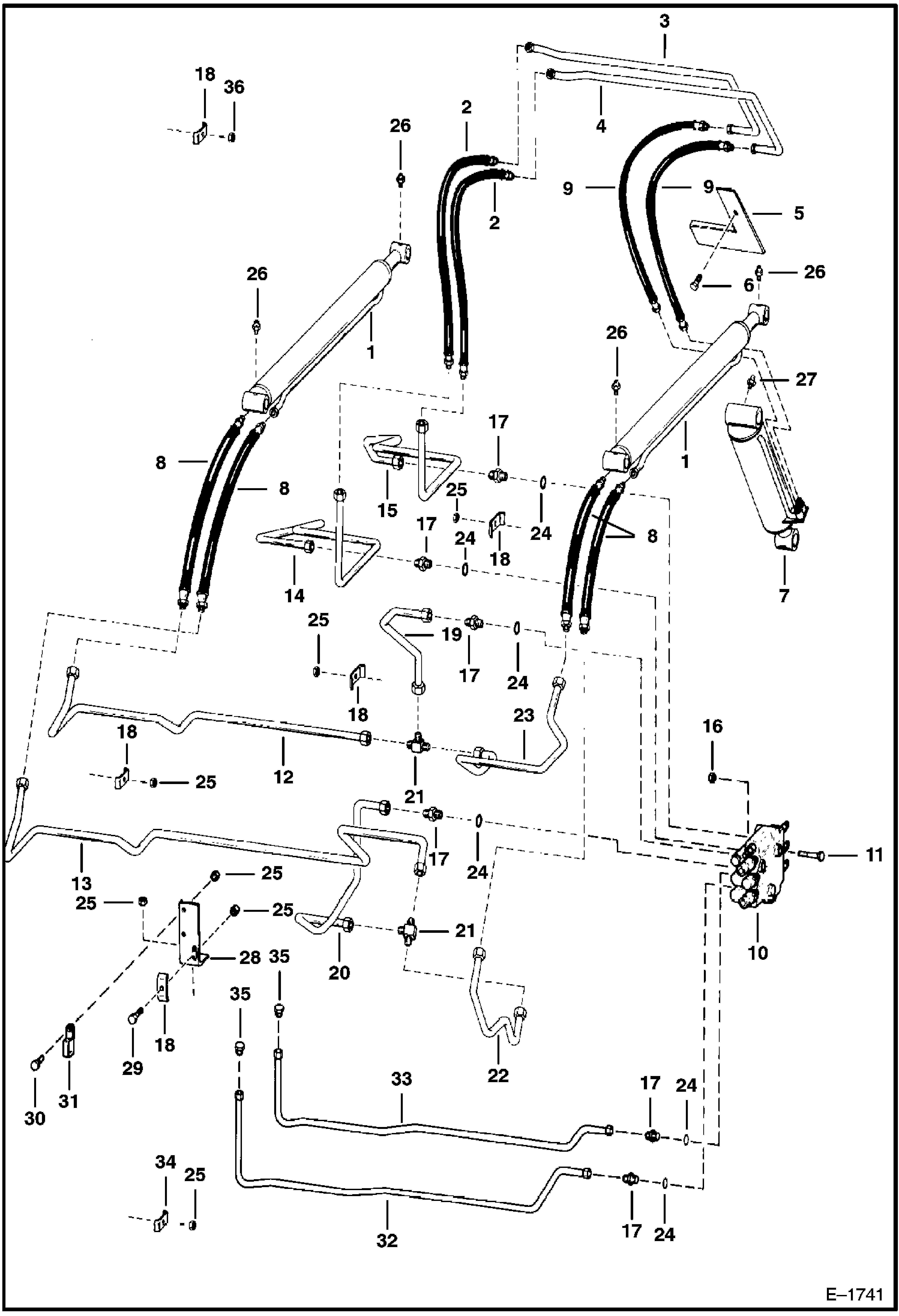

СХЕМА ГИДРАВЛИЧЕСКОЙ СИСТЕМЫ
1Артикул: CYLINDER, CYLINDER See Illustration LIFT CYLINDER/ B6942 LIFT
2Артикул: 6541094, HOSE
3Артикул: 6557780, TUBE
ЦИЛИНДР НАКЛОНА
1Артикул: 7104437, TILT CYLINDER Ref. 2-19 - tube is attached to cylinder with stud on cylinder & one clamp
2Артикул: 7141930, CASE
3Артикул: 6539290, PISTON, CYL TILT
