ГИДРОСТАТИЧЕСКАЯ СИСТЕМА в Алматы

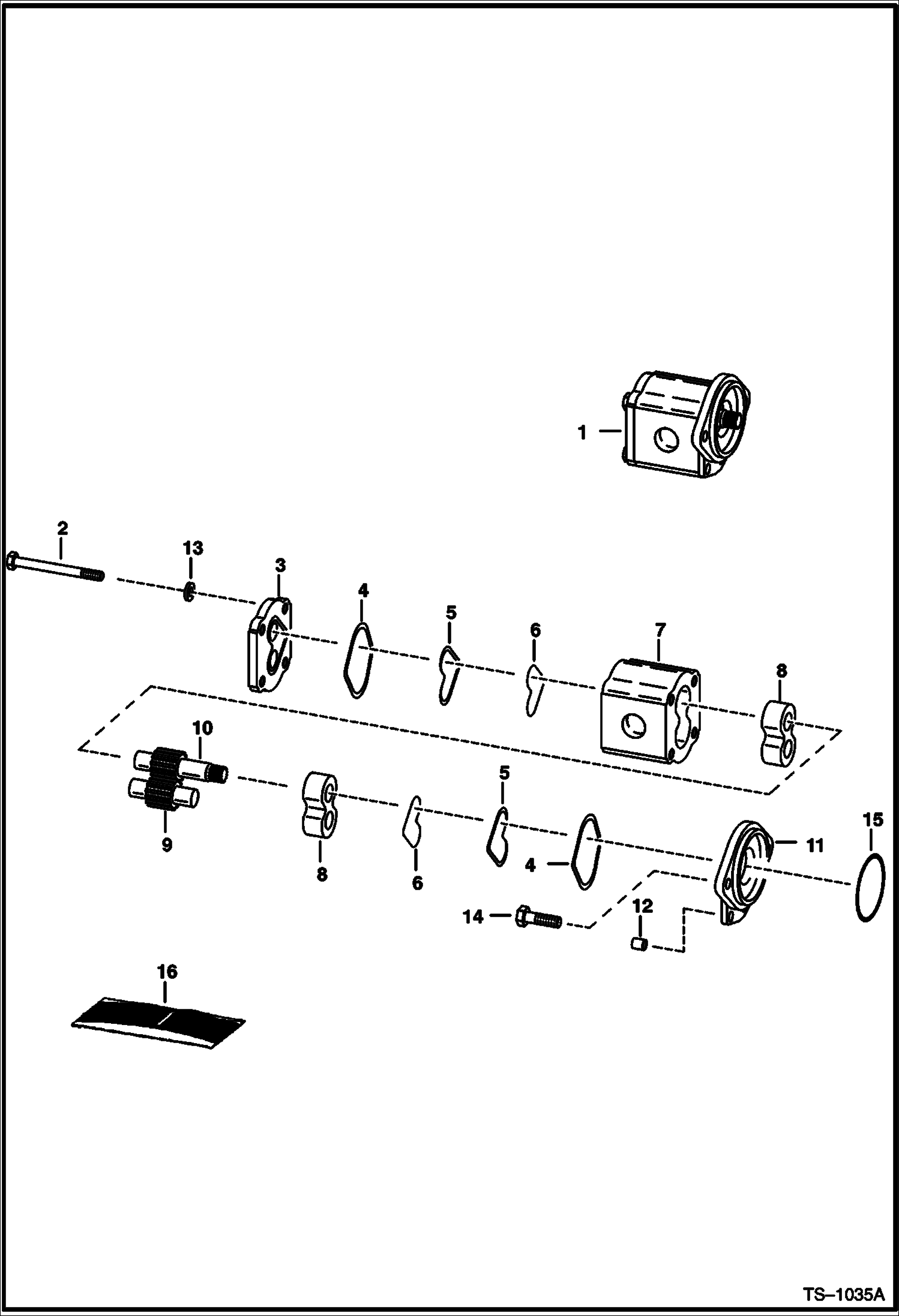

ШЕСТЕРЕННЫЙ НАСОС (B5501-36006) (СЕРЫЙ)
1Артикул: 6669385, PUMP, GEAR W/Ref. 2 - 13 - Mounts to tandem hydrostatic pump model 4355049 4355066
2Артикул: BOLT, BOLT NSS
3Артикул: COVER, COVER NLA - Was 6655415 - A
ШЕСТЕРЕННЫЙ НАСОС (ЭКСПОРТИРУЕМЫЙ) (B5501-34727) (ЧЕРНЫЙ)
1Артикул: PUMP, PUMP NLA - W/Ref. 2 - 13 - Order 6669385 - Mounts to tandem hydrostatic pump model 4355047 4355065 - Was 6667723 - A
2Артикул: BOLT, BOLT NSS
3Артикул: COVER, COVER
ФИЛЬТР ГИДРОСТАТИЧЕСКОГО МАСЛА (В СОСТАВЕ ЛИНИИ)
1Артикул: 6661022, FILTER, OIL HYD IN-LINE Ref. 2-8
2Артикул: HOUSING, HOUSING NLA
3Артикул: SPRING, SPRING NLA
ШЕСТЕРЕННЫЙ НАСОС (B5501-30574) (СЕРЫЙ)
1Артикул: PUMP, PUMP See Illustration GEAR PUMP/ TS1035A NLA - W/Ref. 2 - 13 - ORDER 6669385 PUMP - Mounts to tandem hydrostatic pump model M91-35916 - WAS 6650678 - A
2Артикул: BOLT, BOLT NSS
3Артикул: COVER, COVER NLA - Was 6655415 - A
ФИЛЬТР ГИДРОСТАТИЧЕСКОГО МАСЛА
1Артикул: 6661334, FILTER ASSY W/Ref. 2 -5 - 50 PSI by-pass & switch
2Артикул: 6632053, SWITCH pressure - Normally open
3Артикул: 6599365, KIT Nut, washer & O-rings for switch

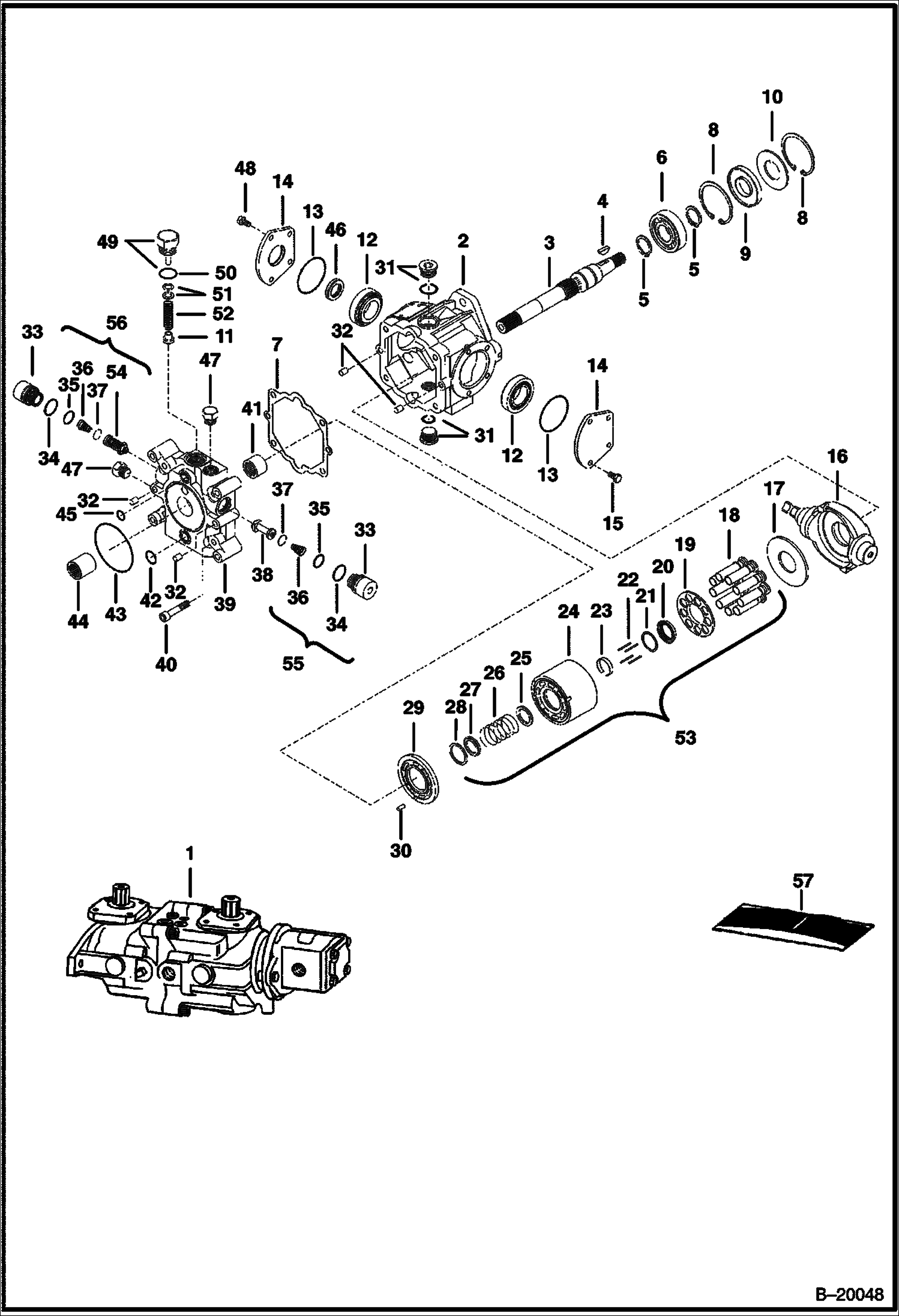

ГИДРОСТАТИЧЕСКИЙ НАСОС 4355035 4355064 И 4355032 4355063
1Артикул: PUMP, PUMP NLA - Complete W/Gear Pump - 4355035 - Order 6669466 Pump - Was 6669012 - A
2Артикул: PUMP, PUMP NLA - Model 4355064 - Complete W/Gear Pump - must use brackets 6576196 & 6706096 from old pump - Order 6669077 REM (Pump, hyd complete) - Was 6669466 - A
3Артикул: PUMP, PUMP NLA - Complete W/Gear Pump - 4355032 - Export - Order 6669467 Pump - Was 6669013 - A

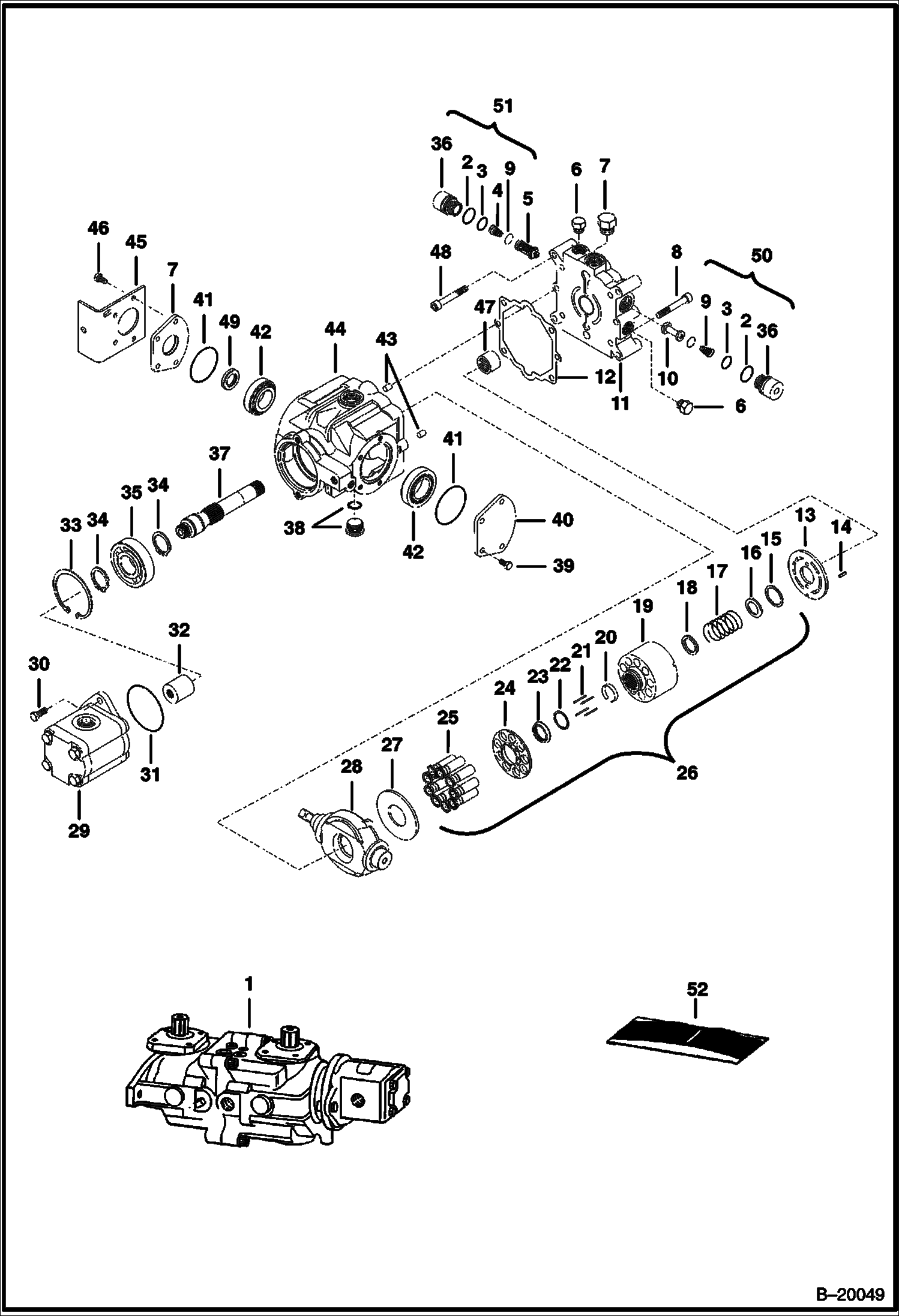

ГИДРОСТАТИЧЕСКИЙ НАСОС 4355035 И 4355064 И 4355032 4355063
1Артикул: PUMP, PUMP NLA - Complete W/B5501-30574 Gear Pump - 4355048 - Order 6669466 Pump
2Артикул: PUMP, PUMP NLA - Complete W/B5501-36006 Gear Pump - 4355035 - Order 6669466 Pump - Was 6669012 - A
3Артикул: PUMP, PUMP NLA - Model 4355064 - Complete W/Gear Pump - must use brackets 6576196 & 6706096 from old pump - Order 6669077 REM (Pump, hyd complete) - Was 6669466 - A
ГИДРОСТАТИЧЕСКИЙ НАСОС M91-35209 И M91-35198
1Артикул: PUMP, PUMP See Illustration HYDROSTATIC PUMP/ B20048 NLA - COMPLETE W/GEAR PUMP - M91-35209 - ORDER 6669466 PUMP - WAS 6667187 - A
2Артикул: PUMP, PUMP See Illustration HYDROSTATIC PUMP/ B20048 NLA - COMPLETE W/GEAR PUMP - M91-35198 - EXPORT - ORDER 6669467 PUMP - WAS 6667321 - A
3Артикул: 6669466REM, PUMP, HYD TANDEM, W/O GEAR PUMP NLA - Remanufactured - M91-35209 - must use brackets 6576196 & 6706096 from old pump - Was 6669077REM - A

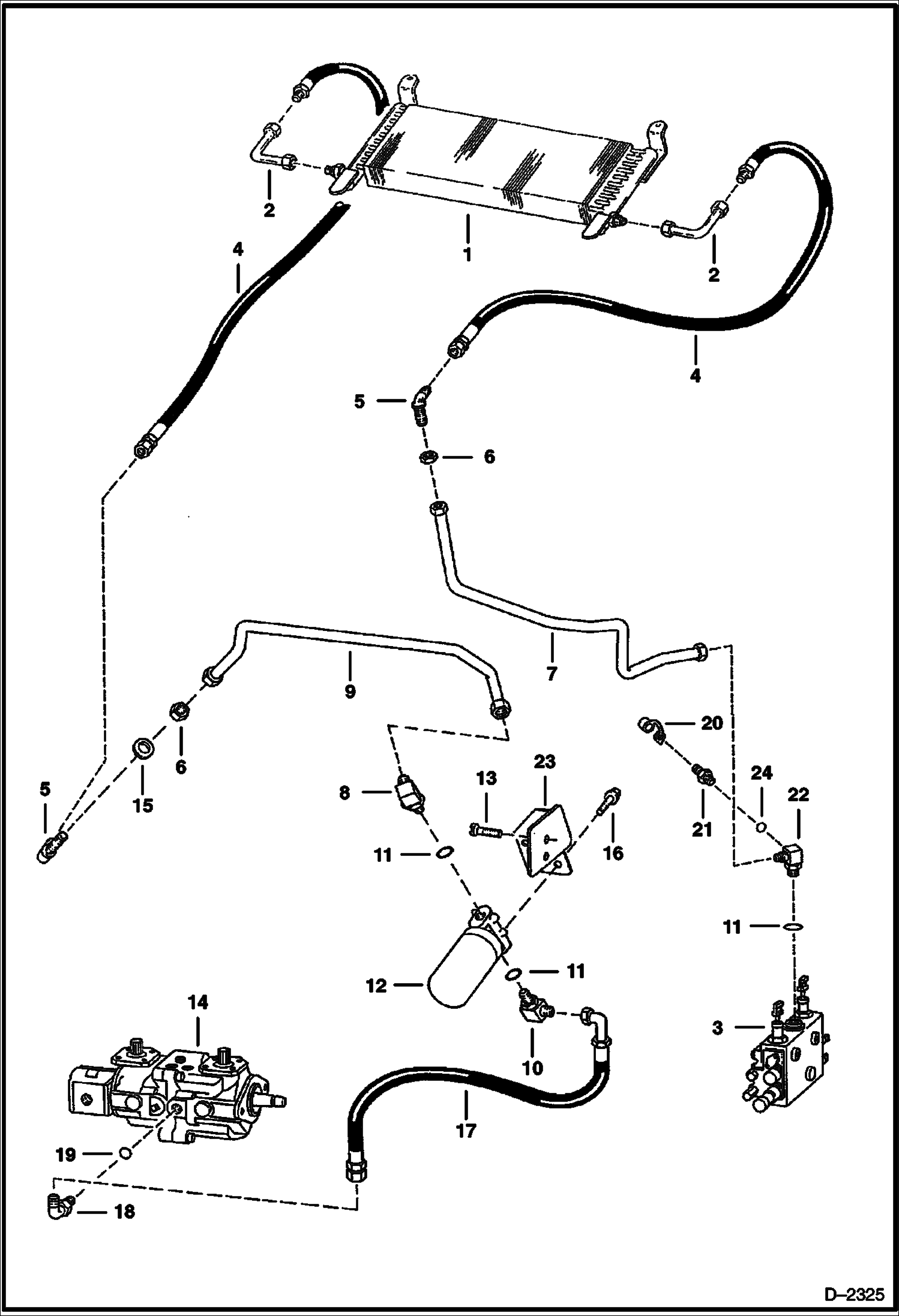

СХЕМА ГИДРОСТАТИЧЕСКОЙ СИСТЕМЫ
1Артикул: 6661238, OIL COOLER
2Артикул: 6703012, TUBE
3Артикул: VALVE, VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046 HYD. CONTROL
ГИДРОСТАТИЧЕСКИЙ ДВИГАТЕЛЬ
1Артикул: 6681605, MOTOR, DRIVE HYD Ref. 2-25 - Model 161-0079-005
2Артикул: 6689697, HOUSING, MOTOR W/Ref. 3 & 24
3Артикул: 6668079, PLUG, MOTOR W/Ref. 24
ОРГАНЫ РУЧНОГО УПРАВЛЕНИЯ
1Артикул: 6702543, LEVER, STEERING
2Артикул: BELLCRANK, BELLCRANK NLA - W/Notch for bushing tub - Order 7110571 Bellcrank, Ref. 9 (10H000035B Grease Zerk), Ref. 28 (619021 Washer) & Ref. 29 (6678076 Bushing) - Was 6703880 - A
3Артикул: BELLCRANK, BELLCRANK NLA - W/Notch for bushing tub - Use W/Ref. 9 (6518200 Grease Zerk) - Order 7110571 Bellcrank & Ref. 9 (10H000035B Grease Zerk) - Was 7101047 - A
