ГИДРОСТАТИЧЕСКАЯ СИСТЕМА в Алматы

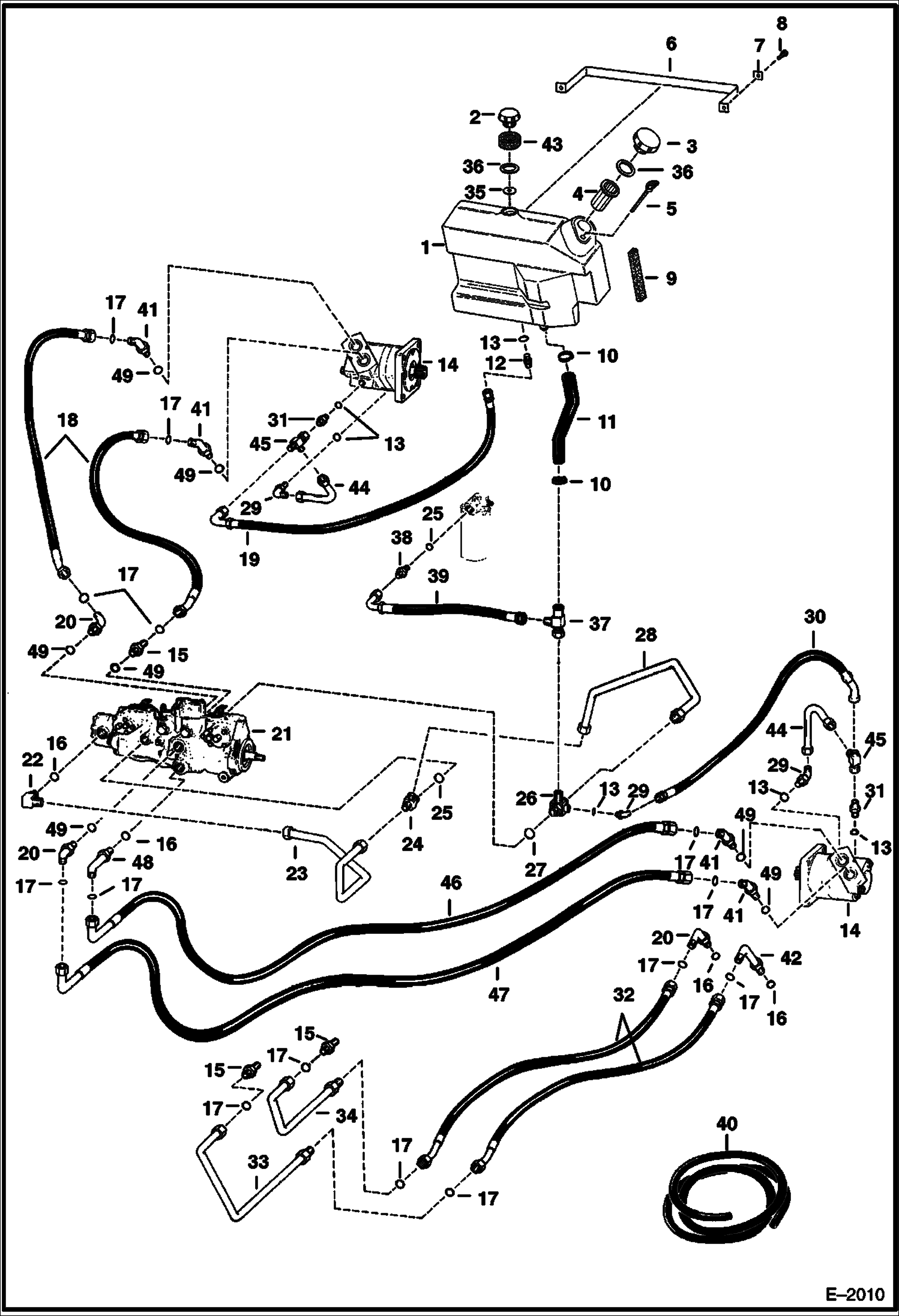

СХЕМА ГИДРОСТАТИЧЕСКОЙ СИСТЕМЫ (СЕРИЙНЫЙ НОМЕР 5084 11290 И НИЖЕ)
1Артикул: 6704551, TANK Was 6700459 - A
2Артикул: 6727475, CAP, OIL HYD Breather - Also Order Ref. 40 - Was 6577785 - A
3Артикул: 6728149, CAP , HYD NON VENTED hyd oil - Also Order Ref. 36 - Was 6532508 - A

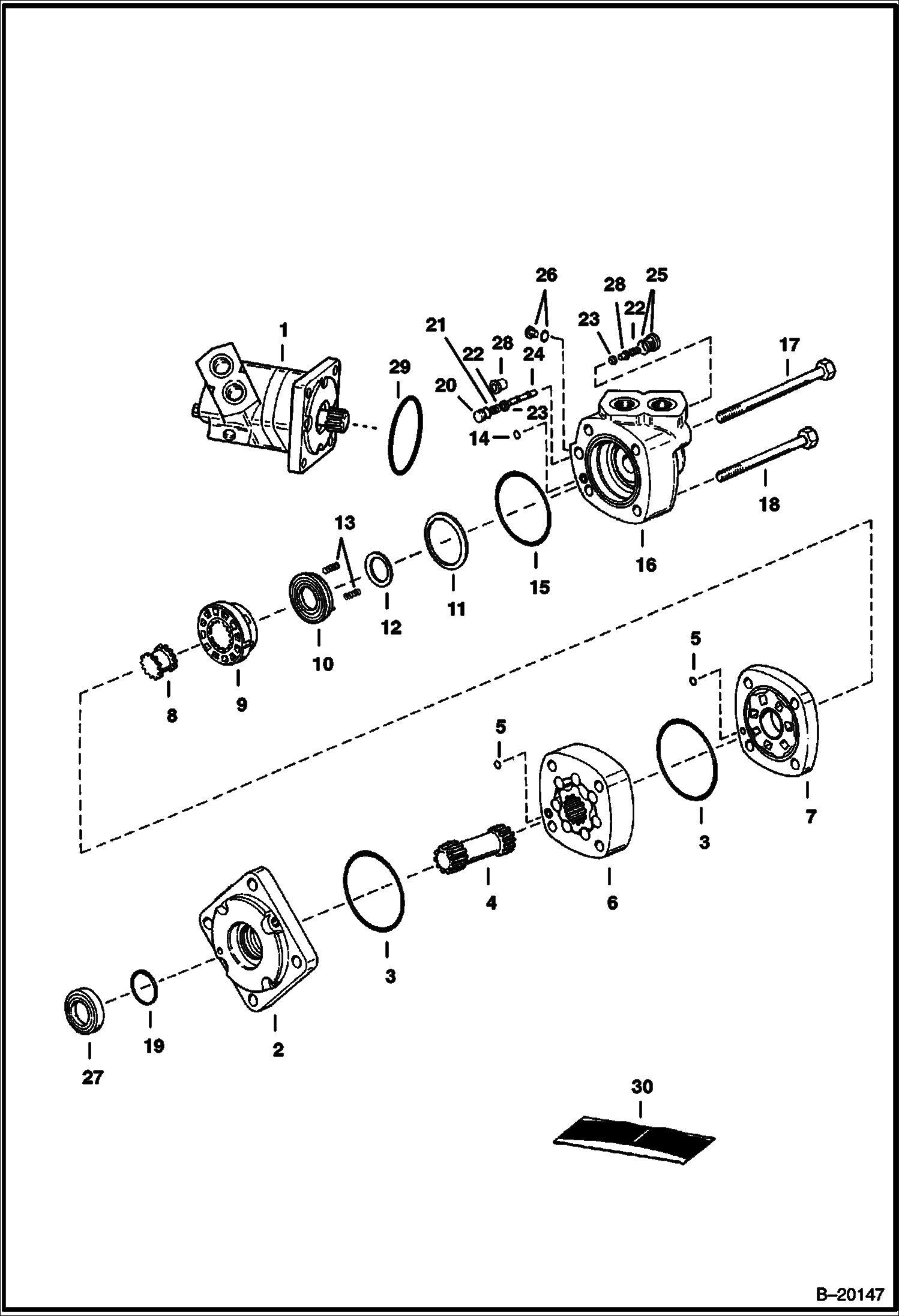

ГИДРОСТАТИЧЕСКИЙ ДВИГАТЕЛЬ
1Артикул: MOTOR, MOTOR NLA - kit - Ref. 2-29 (114-1019-005) & (114-1059-005) - Was 6720886 - A
2Артикул: 6722529, MOTOR kit - Ref. 27 & 29 (114-1064-005) & (006)
3Артикул: 6513528, FLANGE mounting

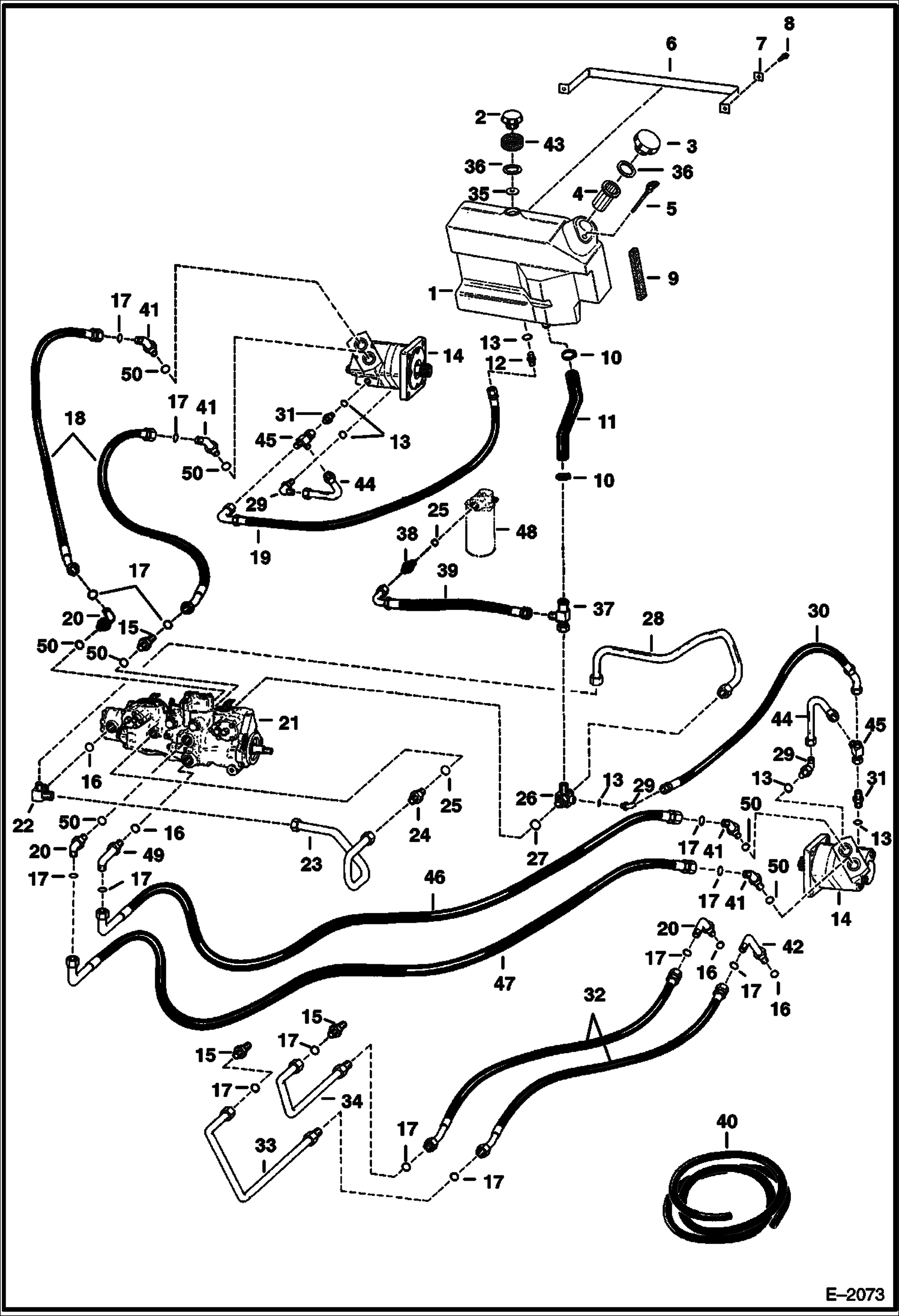

СХЕМА ГИДРОСТАТИЧЕСКОЙ СИСТЕМЫ (СЕРИЙНЫЙ НОМЕР 5084 11291 И ВЫШЕ) (СЕРИЙНЫЙ НОМЕР 5097 11001 И ВЫШЕ)
1Артикул: 6704551, TANK Was 6700459
2Артикул: 6727475, CAP, OIL HYD Breather - Also Order Ref. 36 - Was 6577785 - A
3Артикул: 6728149, CAP , HYD NON VENTED hyd oil - Also Order Ref. 36 - Was 6532508 - A

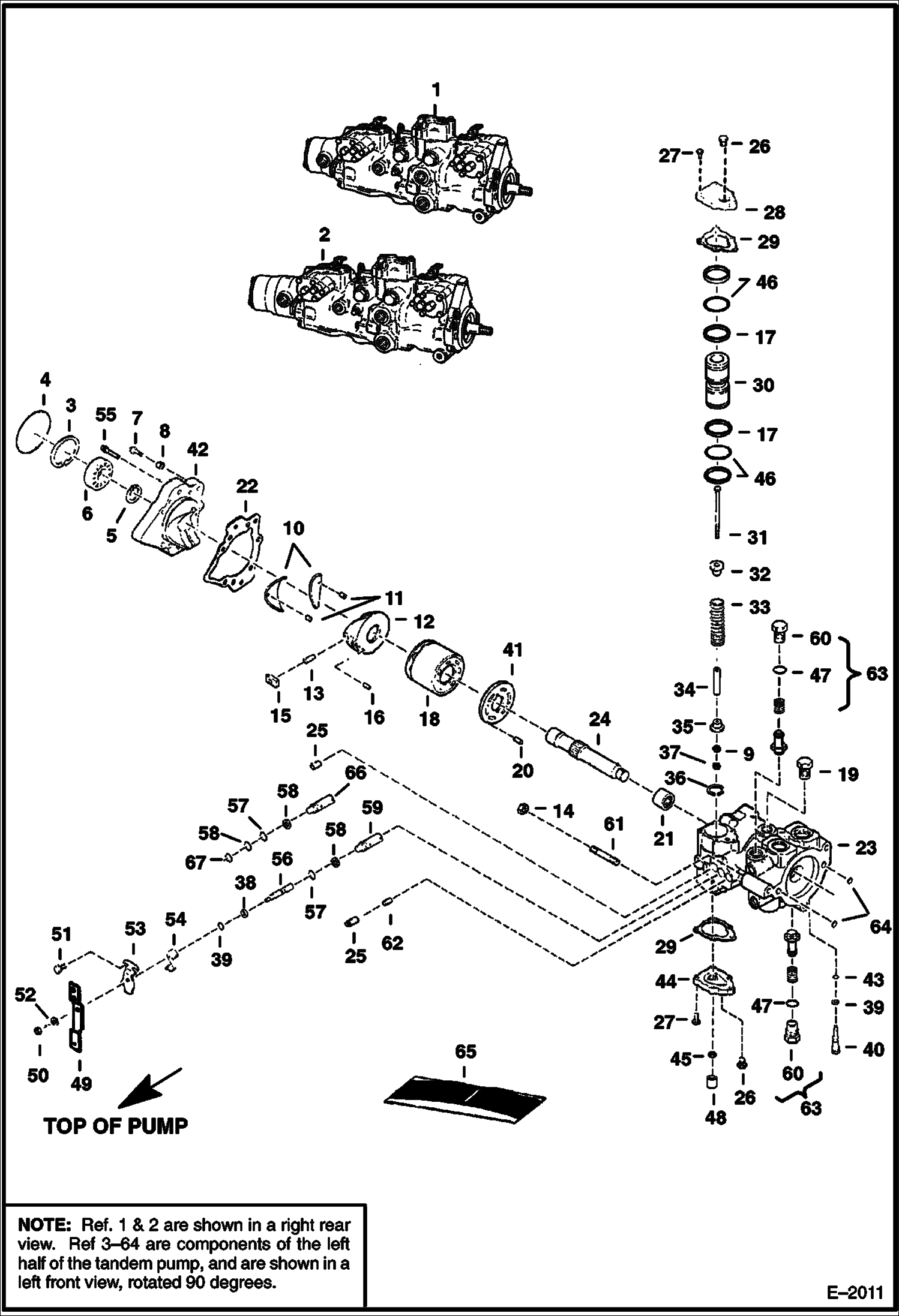

ГИДРОСТАТИЧЕСКИЙ НАСОС (ЛЕВАЯ ПОЛОВИНА) (M91-46907, 46909, 46910, 46911, 46918 И 46919)
1Артикул: PUMP, PUMP NLA - Order 6662917 Pump & 6519195 Elbow-W/gear pump-M91-46906 M91-46909 - Was 6658751 - A
2Артикул: PUMP, PUMP NLA - Order 6662917 Pump - W/gear pump-M91-46911-Was 6660481 - A
3Артикул: 6671021REM, PUMP, HYD COMPLETE, W/O GEAR PUMP W/gear pump - M91-46919 - Was 6671021 - A
КРУГОВАЯ СХЕМА
1Артикул: PUMP, PUMP NLA - Ref. 2-14 - Order 6673916 - Also Order 6717662 Tee, 19J-12 (2) Clamp, 58K-214 O-Ring, 17C-620 (4) Bolt & (1) 24KN-5 Plug - Was 6665551 - A
2Артикул: 6673916, PUMP
3Артикул: BOLT, BOLT NSS
ФИЛЬТР ГИДРОСТАТИЧЕСКОГО МАСЛА
1Артикул: 6661247, FILTER W/Ref. 2-5 (50 PSI by-pass & switch) - Was 6648905 - A
2Артикул: 6661282, FILTER ASSY. W/Ref. 2, 3, 5 & 6 (50 PSI by- pass, switch & internal check valve)
3Артикул: 6660260, SWITCH pressure - Normally closed

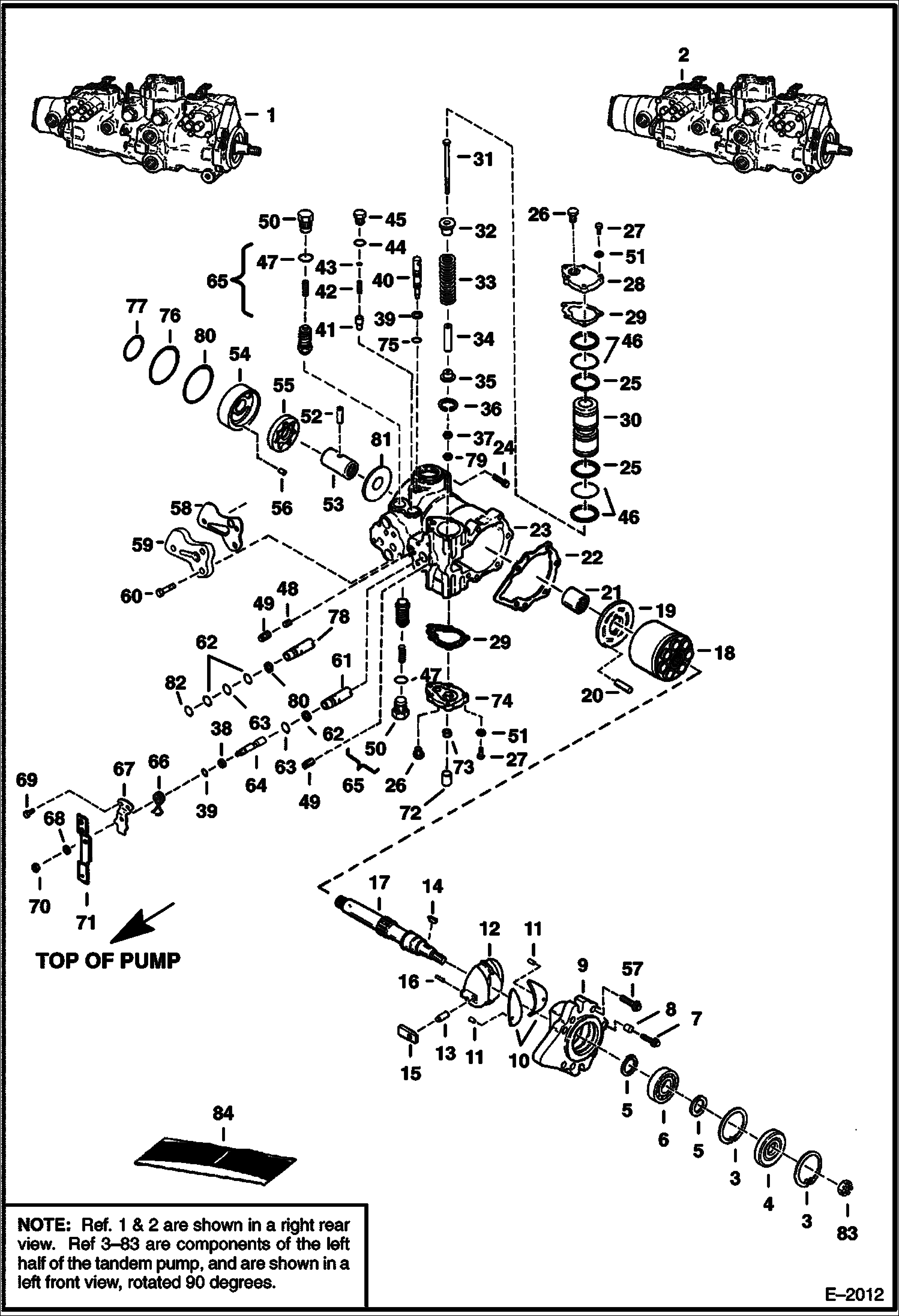

ГИДРОСТАТИЧЕСКИЙ НАСОС (ПРАВОСТОРОННИЙ) (M91-46907, 46909, 46910, 46911, 46918 И 46919)
1Артикул: PUMP, PUMP NLA - Order 6662917 Pump & 6519195 Elbow - W/gear pump - M91-46909 - Was 6658751 - A
2Артикул: PUMP, PUMP NLA - Order 6662917 Pump - W/gear pump - M91-46911 - Was 6660481 - A
3Артикул: 6671021REM, PUMP, HYD COMPLETE, W/O GEAR PUMP W/Gear Pump - M91-46919 - Was 6671021 - A

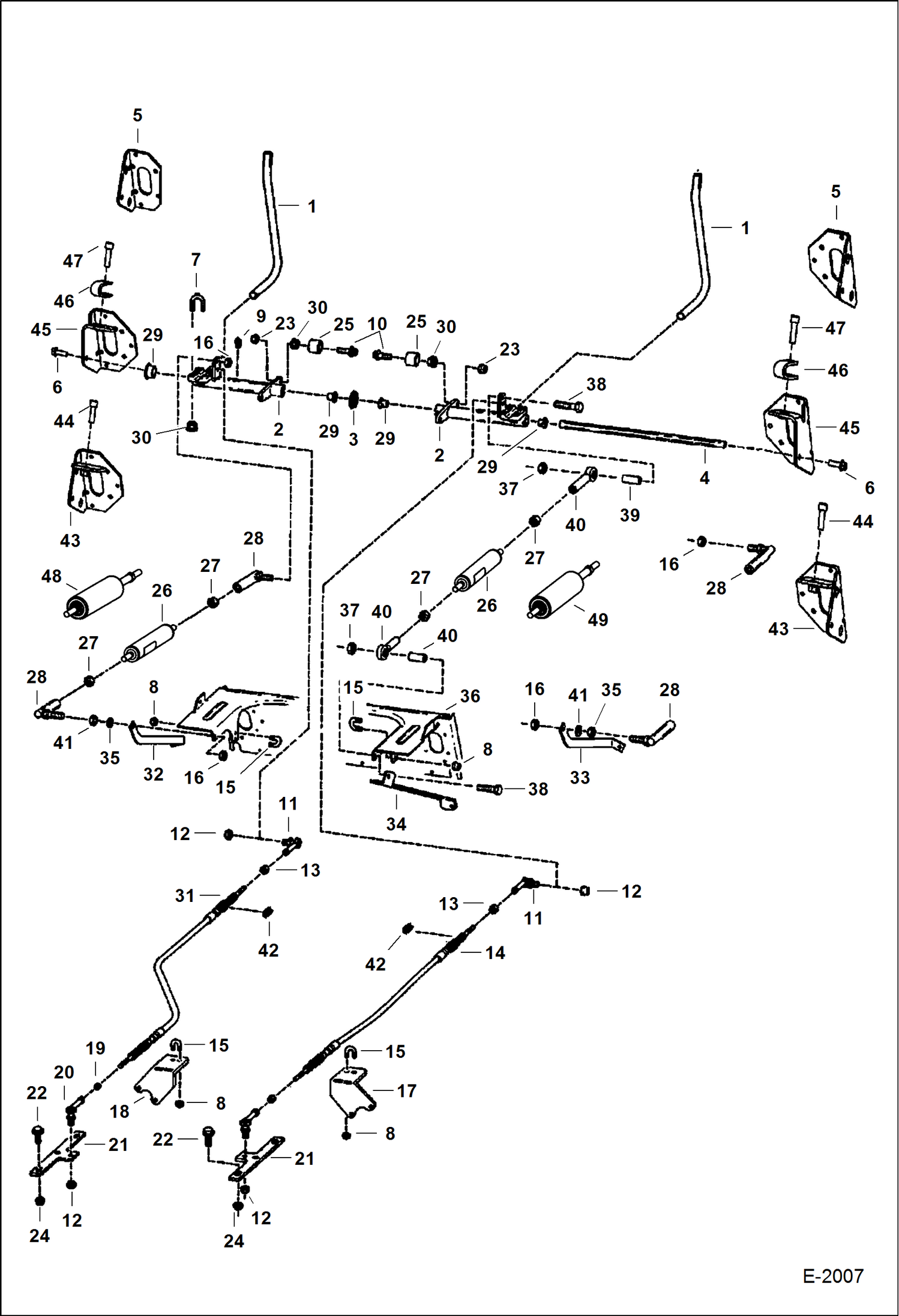

ОРГАНЫ РУЧНОГО УПРАВЛЕНИЯ
1Артикул: 6576991, LEVER
2Артикул: 6576991, LEVER
3Артикул: 6702543, LEVER, STEERING for Cobra style handles

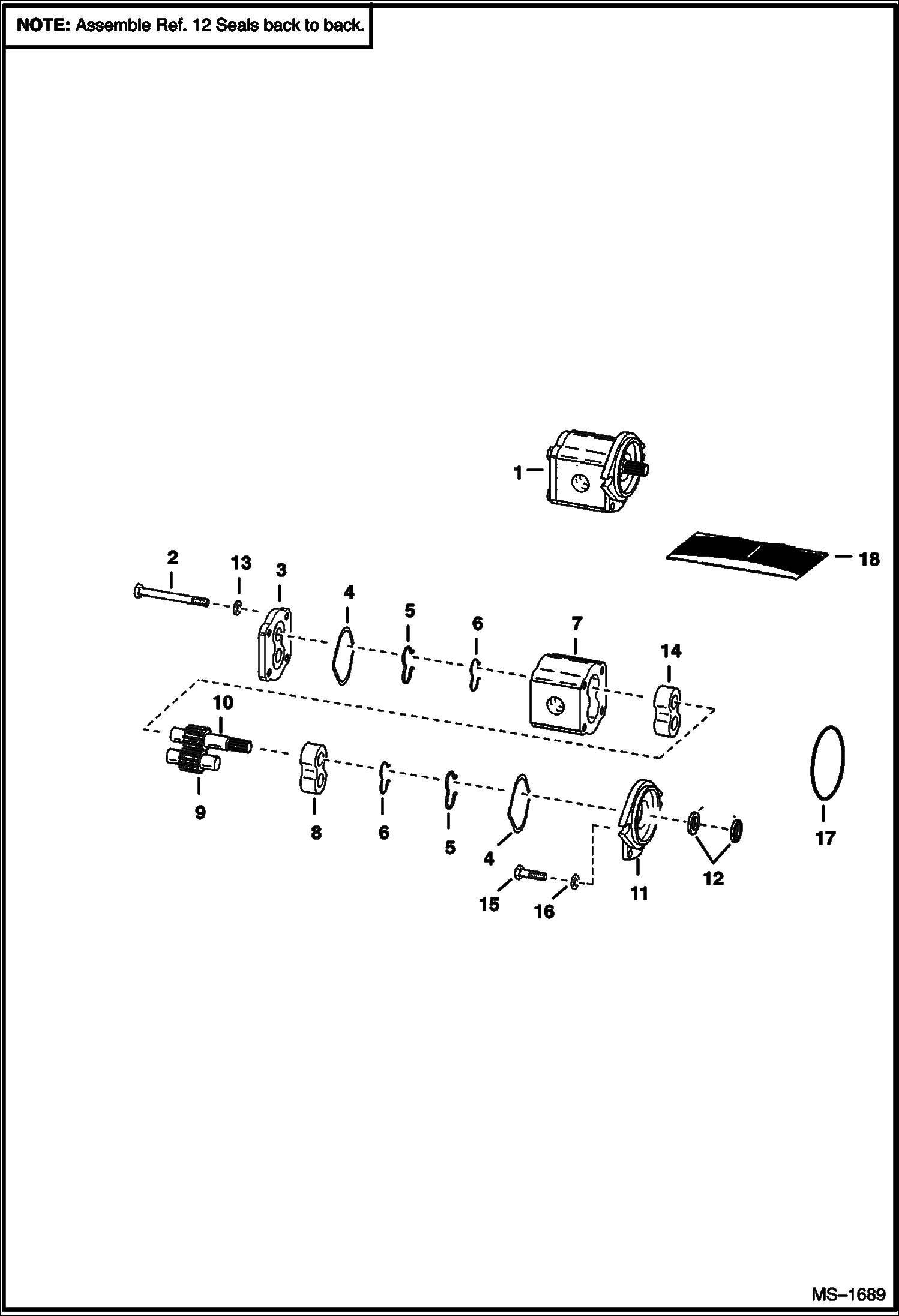

ШЕСТЕРЕННЫЙ НАСОС (B5501-29155) (20 ММ ДИАМЕТР ВАЛА)
1Артикул: PUMP, PUMP See Illustration GEAR PUMP/ MS1689A NLA - Ref. 2-14 -ORDER 6665551 PUMP - WAS 6657327 - A
2Артикул: BOLT, BOLT NSS - Was 6658124 - A
3Артикул: COVER, COVER NLA - Was 6658123 - A

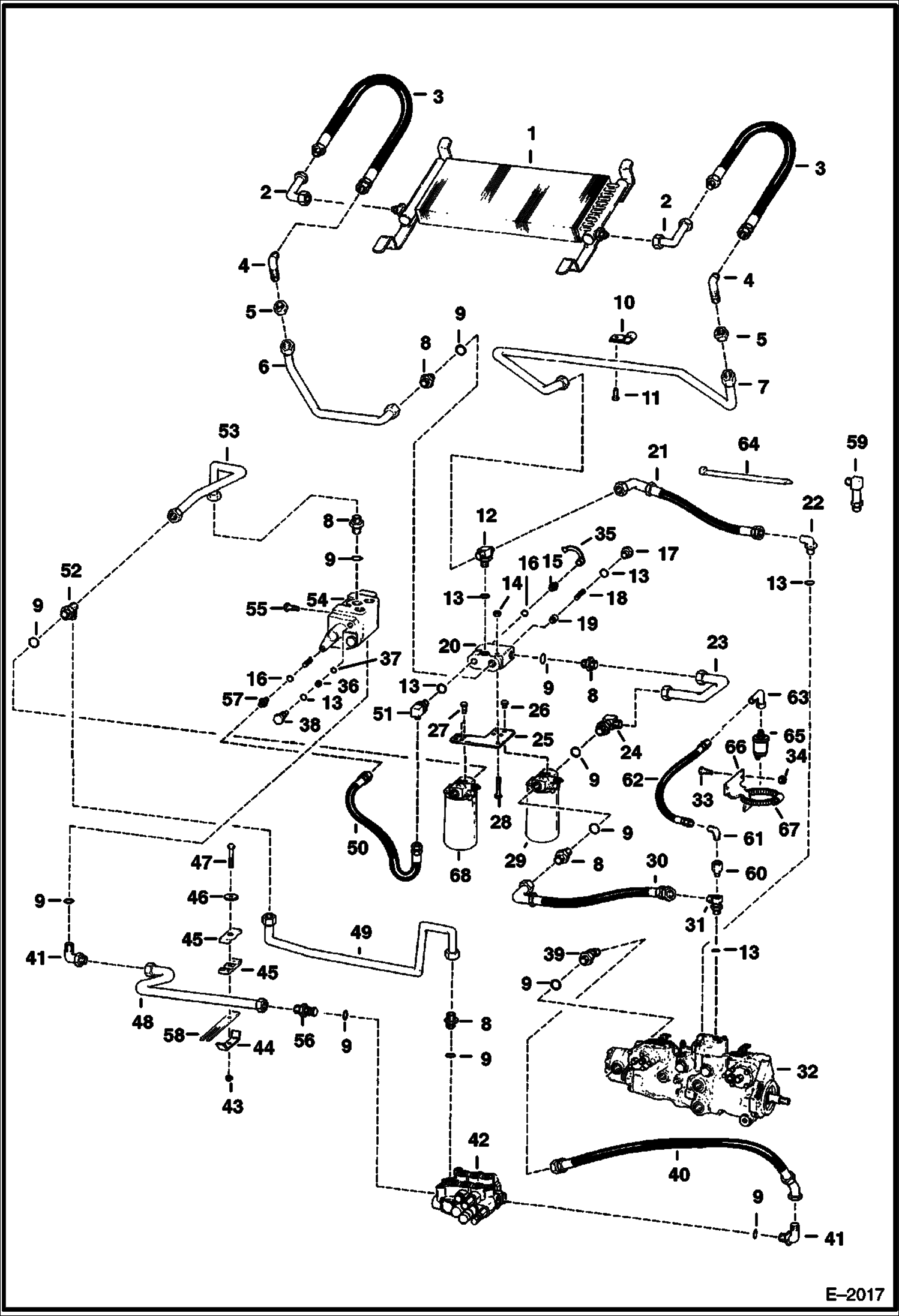

СХЕМА ГИДРОСТАТИЧЕСКОЙ СИСТЕМЫ
1Артикул: 6662948, COOLER oil - Was 6659359 - A
2Артикул: 6703012, TUBE Was 6700920 - A
3Артикул: 6654205, HOSE
