РАМА в Алматы
СИДЕНИЕ И ОПОРА СИДЕНЬЯ
1Артикул: 6669135, SEAT, OPERATOR VINYL See Illustration SEAT COVERS/ NA10386 See Illustration SEAT/ B7185 Was 6563140 - A
2Артикул: SEAT, SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A
3Артикул: SEAT, SEAT BELT NLA - Order Ref. 32 - Was 6564774 - A

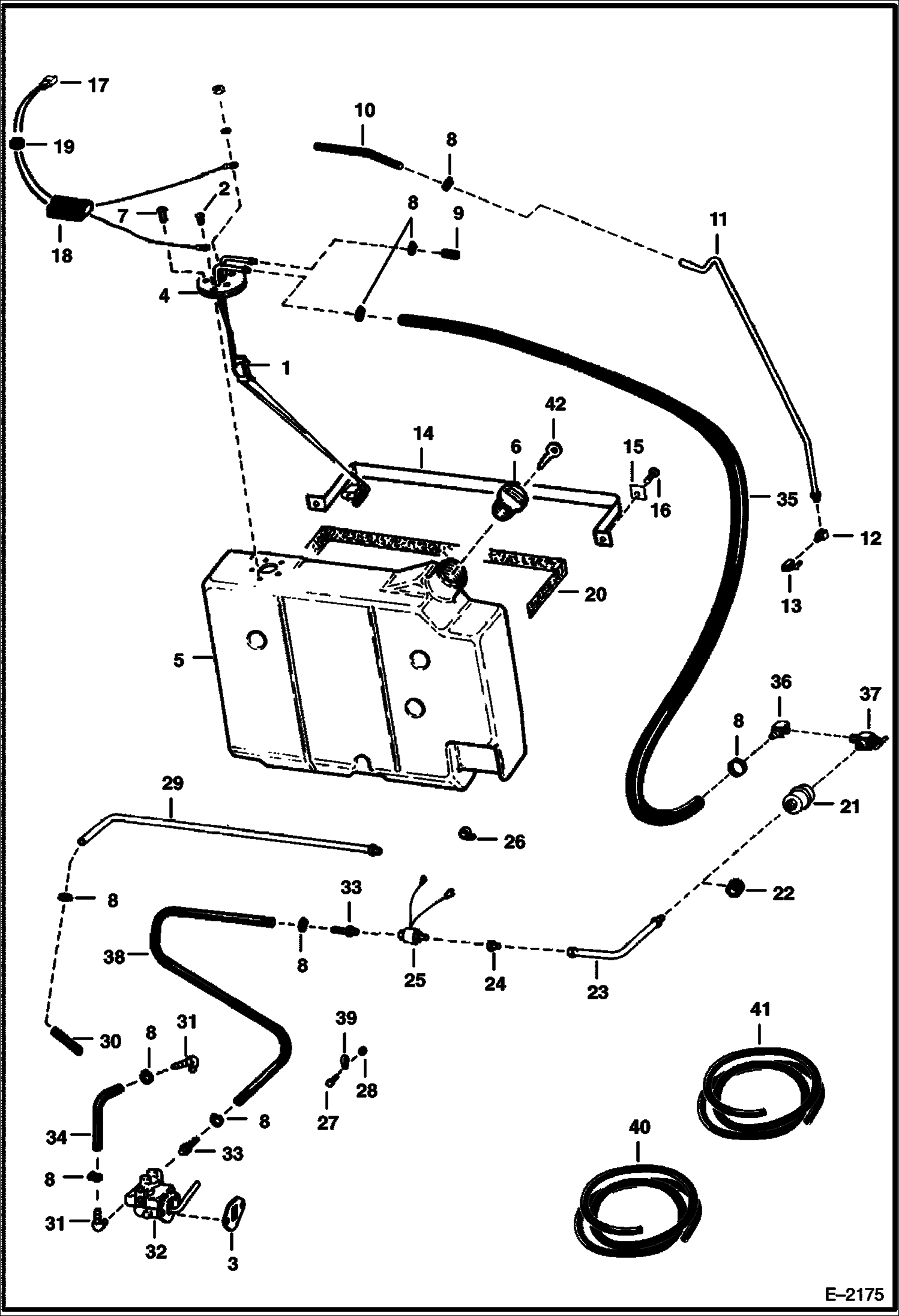

ТОПЛИВНАЯ СИСТЕМА
1Артикул: 6563210, SENDER Fuel - includes gasket
2Артикул: 85G1010, SCREW
3Артикул: 6512203, GASKET Was 6599163 - A
ЗАДНЯЯ ДВЕРЬ
1Артикул: 6707690, REAR DOOR
2Артикул: 6564340, PIN
3Артикул: 6563681, HANDLE
КАБИНА ОПЕРАТОРА
1Артикул: 6569248, KIT cab - Ref. 8-23, 27 & 31 - Also Order 6569249 Cab
2Артикул: CAB, CAB See BTI245 NSS
3Артикул: 6569021, DECAL - Was 6557312 - A
ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH
1Артикул: 17C640, BOLT
2Артикул: 6547595, PIN
3Артикул: 6547593, PIN, PIVOT
BOB-TACH
1Артикул: BOB-TACH, BOB-TACH See Illustration DECALS/ B17668 See BTI288 NLA - Ref. 2-26 - Also Order 6561383 Decal - Was 6562309 - A
2Артикул: 6567114, BUSHING W/Ref. 3
3Артикул: 6562067, BUSHING
СИДЕНЬЕ (MILSCO)
1Артикул: SEAT, SEAT See Illustration SEAT/ B14720 NLA - ORDER 6669135 - WAS 6563140 - A
2Артикул: 6630468, CUSHION seat
3Артикул: 6630465, CUSHION back
СИДЕНИЕ (МИЧИГАН)
1Артикул: SEAT, SEAT NLA - Order 6669135 Seat - W/Ref. 2-5 & 8
2Артикул: 6669135, SEAT, OPERATOR VINYL See Illustration SEAT COVERS/ NA10386 W/Ref. 2-7
3Артикул: 6670160, CUSHION W/edging, clip & (2) grommets
