РАМА в Алматы

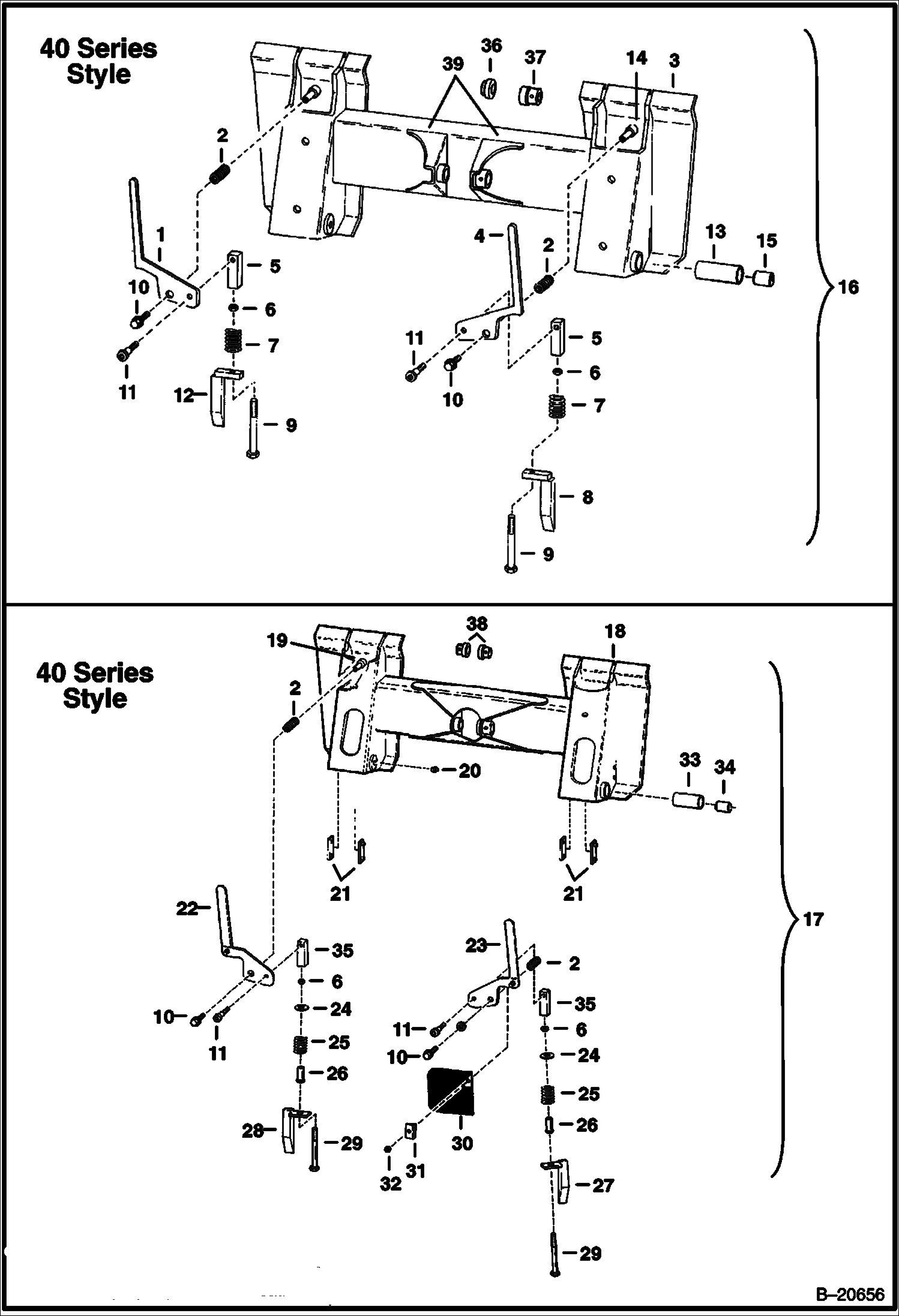

BOB-TACH (СЕРИЙНЫЙ НОМЕР 13999 И НИЖЕ)
1Артикул: 6563106, LEVER LH - Was 6579698 - A
2Артикул: 6704453, SPRING Was 6503387 - A
3Артикул: FRAME, FRAME NLA - Order Ref. 17

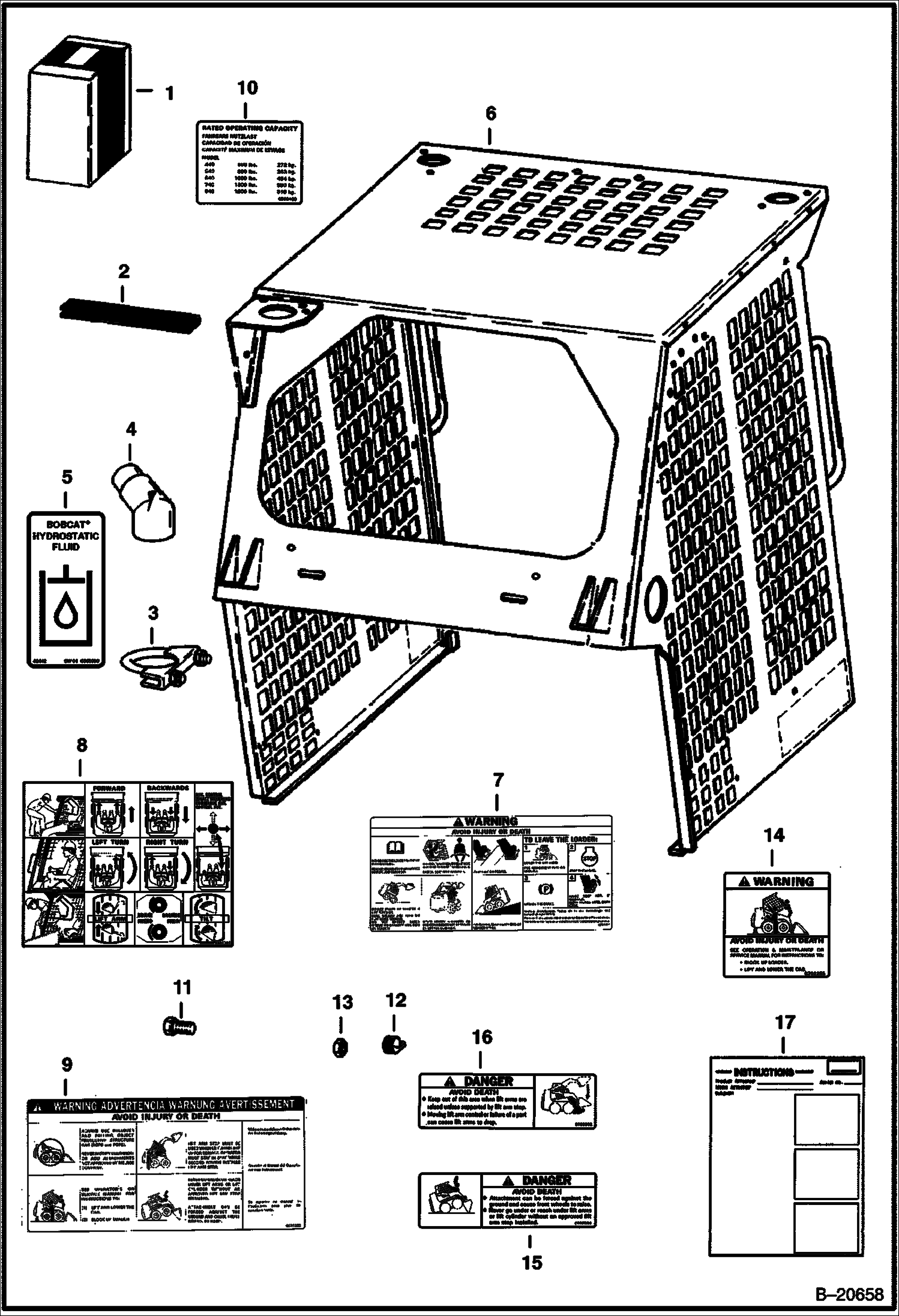

КАБИНА ОПЕРАТОРА
1Артикул: 6569247, KIT operator cab - Ref. 2 - 13 - Was 6563029 - A
2Артикул: MOULDING, MOULDING NLA - bulk - sold per foot - Was 6620417 - A
3Артикул: 710706, CLAMP

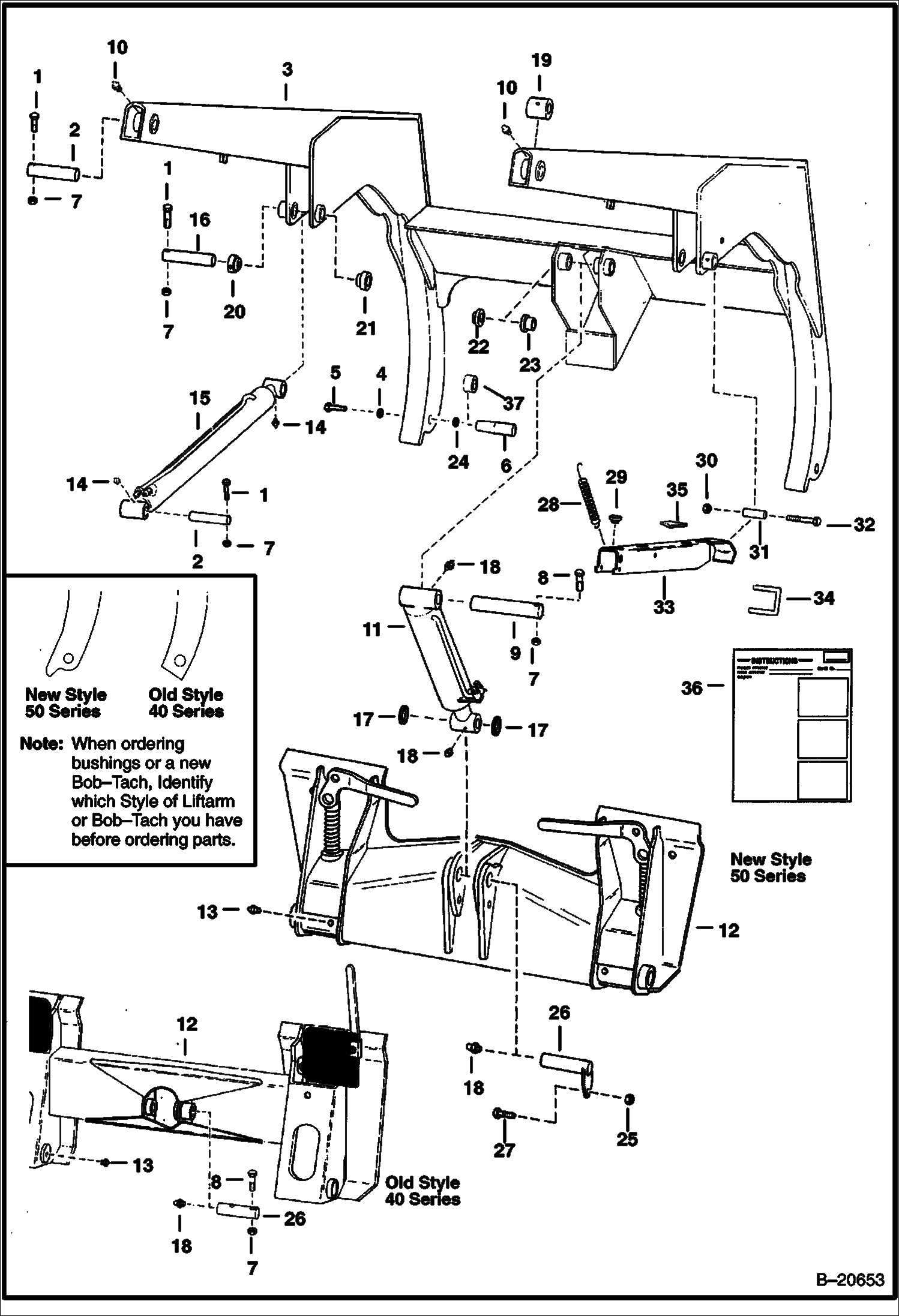

ПОДЪЕМНЫЕ РУКОЯТИ И BOBTACH
1Артикул: 17C640, BOLT
2Артикул: 6547595, PIN
3Артикул: 6703953, LIFT ARM

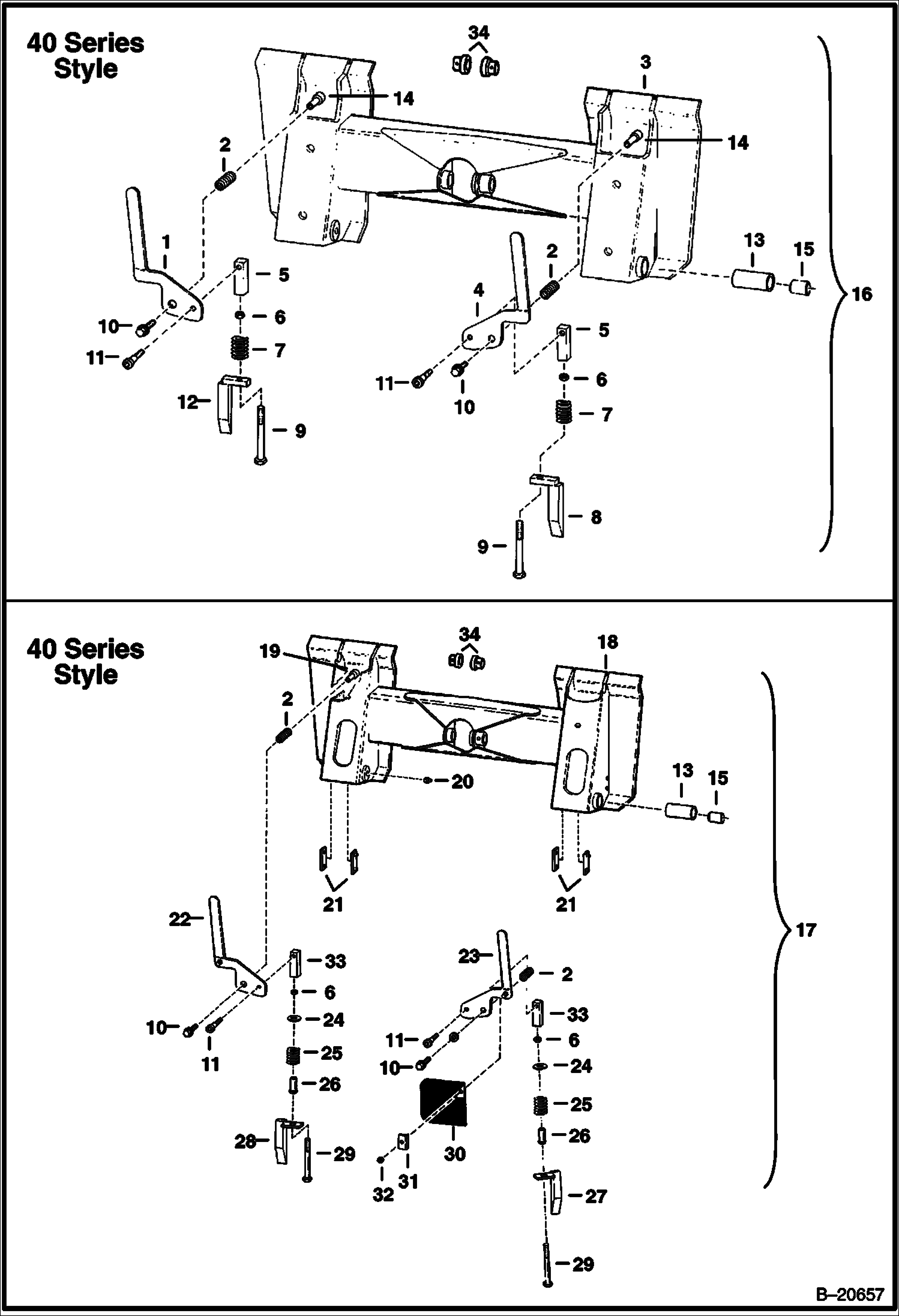

BOB-TACH (СЕРИЙНЫЙ НОМЕР 14001 И ВЫШЕ)
1Артикул: 6563106, LEVER L.H. - Was 6579698 - A
2Артикул: 6704453, SPRING Was 6503387 - A
3Артикул: FRAME, FRAME NLA - Order Ref. 17

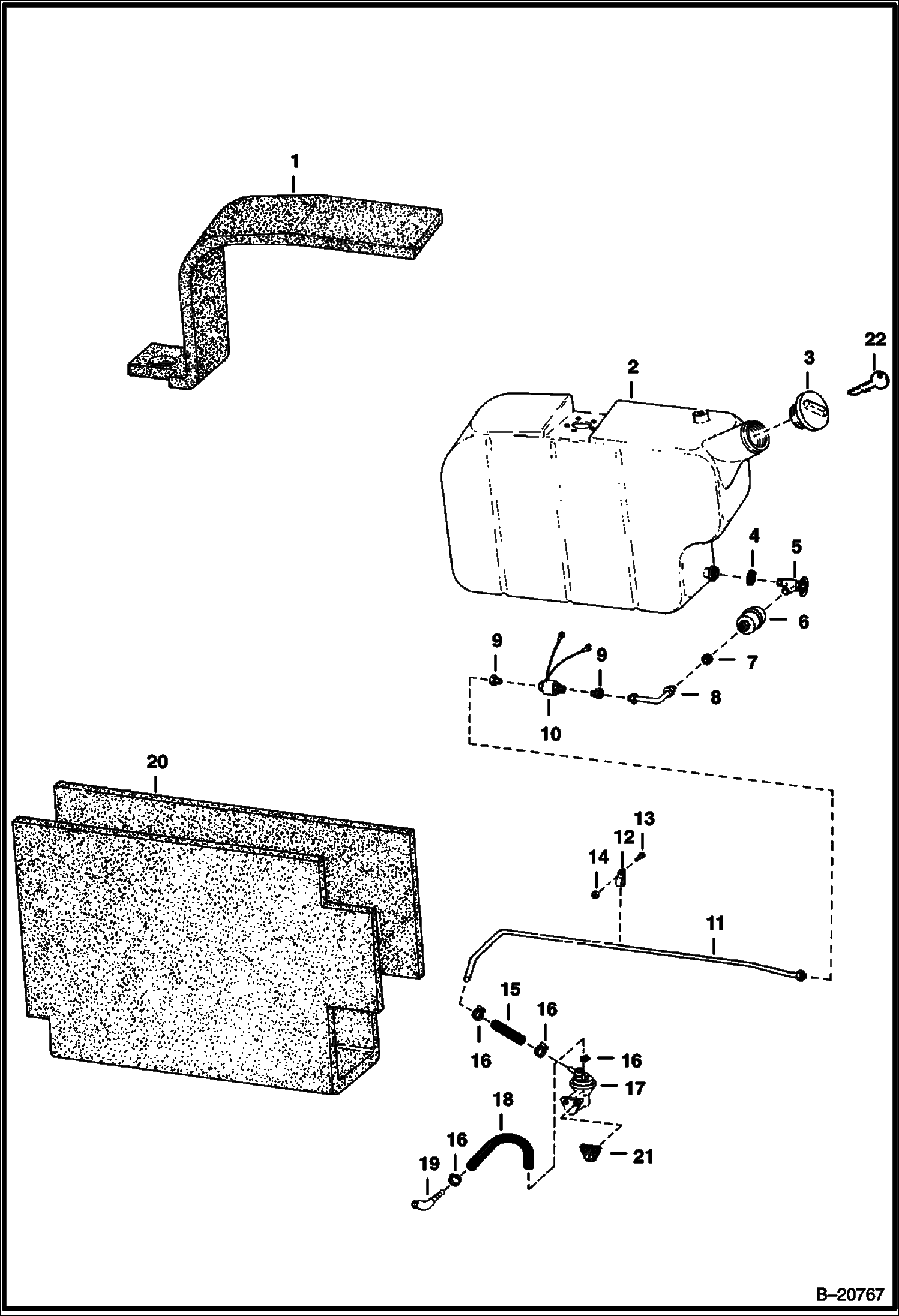

ТОПЛИВНАЯ СИСТЕМА
1Артикул: 6555909, INSULATION
2Артикул: TANK, TANK NLA - Order 6560211 - Was 6557743 - A
3Артикул: 6632468, CAP Was 6661114 - A
ПАНЕЛИ И СИДЕНЬЕ
1Артикул: 6553796, PANEL
2Артикул: 84G3712, BOLT 5
3Артикул: SEAT, SEAT See Illustration SEAT/ B7184
СИДЕНИЕ
1Артикул: 6563141, SEAT Clip-In Cushions
2Артикул: 6630464, CUSHION back
3Артикул: 6630468, CUSHION seat
BOB-TACH
1Артикул: 6705172, KIT Ref. 4 & 20 - 28
2Артикул: BOB-TACH, BOB-TACH NLA - W/Ref. 7 (NLA bushing 6577445) - 2.25 in. (57,15 mm) O.D. weld on bushing - Order 6709215 Bob-tach, Ref. 1 or (Qty. 2) Ref. 4 - Also Order 6561383 decal - Was 6705173 - A
3Артикул: 6571744, BOB-TACH W/Ref. 5 - 2.50 in. (63,5 mm) O.D. weld on bushings - Not in kit - Also Order Ref. 1 & (2) Ref. 4 & 6561383 decal
ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH
1Артикул: 17C640, BOLT
2Артикул: 6547595, PIN
3Артикул: LIFT, LIFT ARMS See BTI152 See BTI172 See BTI174 NLA - Order (1) 6702894 lift arm, (1) 6539810 cylinder from Bobcat Parts Marketing & (1) 6705172 Bob-tach kit
