РАМА в Алматы
BOB-TACH (СЕРИЙНЫЙ НОМЕР 12002 И НИЖЕ)
1Артикул: 6563106, LEVER L.H. - Was 6579698 - A
2Артикул: 6704453, SPRING Was 6503387 - A
3Артикул: FRAME, FRAME NLA - Order Ref. 17
ЗАДНЯЯ ДВЕРЬ (ПРИКРЕПЛЯЕТЬСЯ НА ПЕТЛЯХ)
1Артикул: 14J3740, PIN
2Артикул: 6513440, WASHER
3Артикул: HANDLE, HANDLE See BTI191 NLA - W/Ref. 15-17 - Was 6558474 - A
BOB-TACH (СЕРИЙНЫЙ НОМЕР 12003 И ВЫШЕ)
1Артикул: 6563106, LEVER L.H. - Was 6579698 - A
2Артикул: 6704453, SPRING Was 6503387 - A
3Артикул: FRAME, FRAME NLA - Order 17
КАБИНА ОПЕРАТОРА
1Артикул: 6569247, KIT Operator Cab - Ref. 2 - 13 - Was 6563029 - A
2Артикул: MOULDING, MOULDING NLA - bulk - sold per foot - Was 6620417 - A
3Артикул: 710706, CLAMP
BOB-TACH
1Артикул: 6705172, KIT Ref. 4 & 20-28
2Артикул: BOB-TACH, BOB-TACH See Illustration DECALS/ B18176 NLA - W/Ref. 7 (NLA/6577445 Bushing) - 2.25-- (57,15mm) O.D. weld on bushings - Order 6571744 Bob-Tach & (2) of Ref. 4 - Also Order 6561383 Decal - Was 6705173 - A
3Артикул: 6571744, BOB-TACH See Illustration DECALS/ B18176 W/Ref. 5 - 2.50--(63,5 mm) O.D. weld on bushings - Also order (2) of Ref. 4 - Not in Kit - Also order 6561383 Decal
ПАНЕЛИ И СИДЕНЬЕ
1Артикул: 6553796, PANEL
2Артикул: 84G3716, SCREW 5
3Артикул: SEAT, SEAT See Illustration SEAT/ B7184

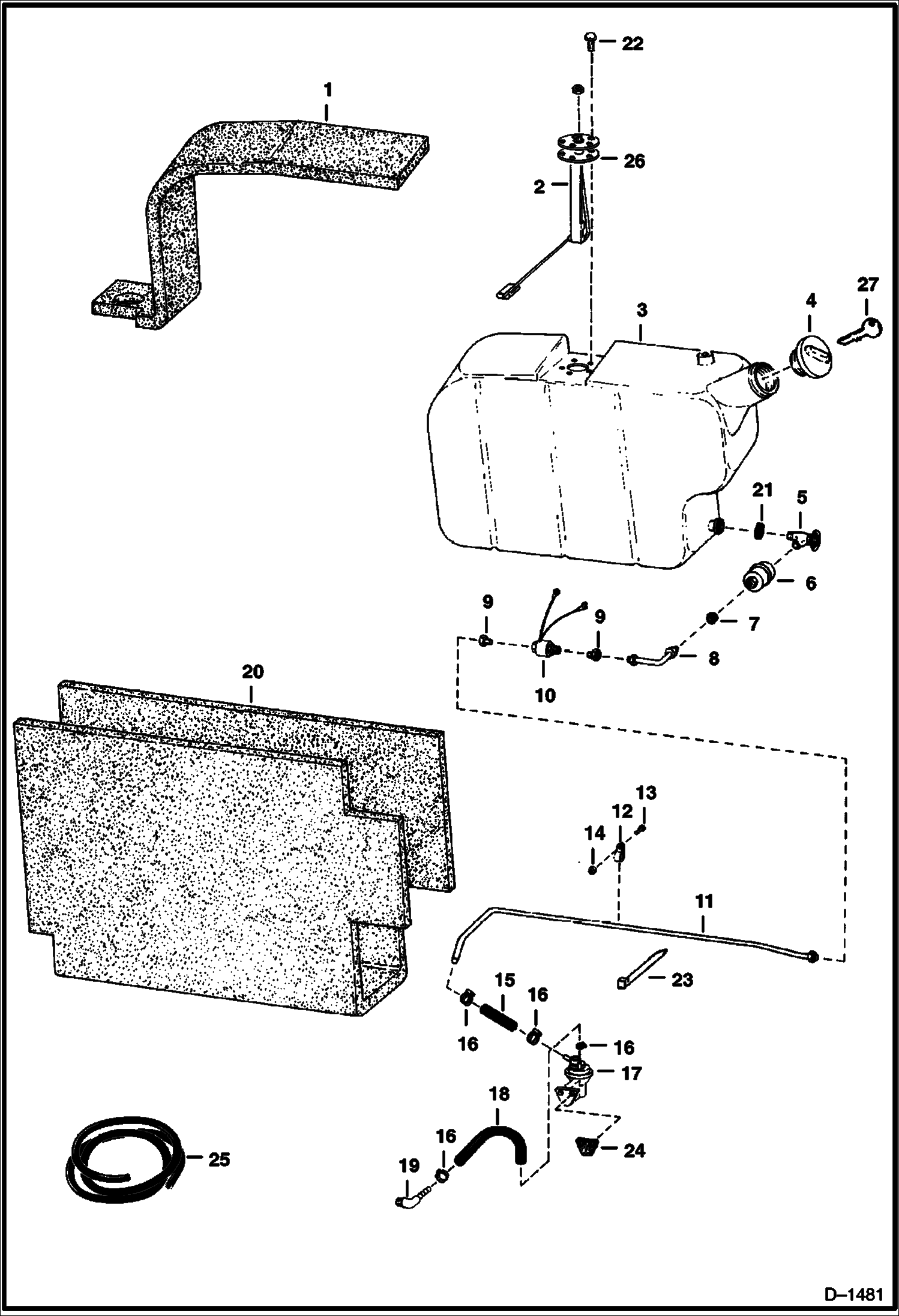

ТОПЛИВНАЯ СИСТЕМА
1Артикул: 6555909, INSULATION
2Артикул: SENDER, SENDER NLA - fuel - Was 6560169 - A
3Артикул: TANK, TANK NLA - Order 6560211 tank - Was 6557743 - A
ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH
1Артикул: 17C640, BOLT
2Артикул: 6547595, PIN
3Артикул: LIFT, LIFT ARM See Illustration LIFT ARM & BOBTACH/ E2114 NLA - ORDER 6703953 LIFT ARM, 6539810 CYLINDER & 6705172 BOB-TACH KIT
ПОДЪЕМНАЯ РУКОЯТЬ И BOBTACH
1Артикул: 17C640, BOLT
2Артикул: 6547595, PIN
3Артикул: 6703953, LIFT ARM See Illustration LIFT ARM & BOB-TACH/ D1380
СИДЕНИЕ
1Артикул: 6563141, SEAT Clip-In Cushions
2Артикул: 6630464, CUSHION back
3Артикул: 6630468, CUSHION seat
