ТРАНСМИССИЯ в Алматы

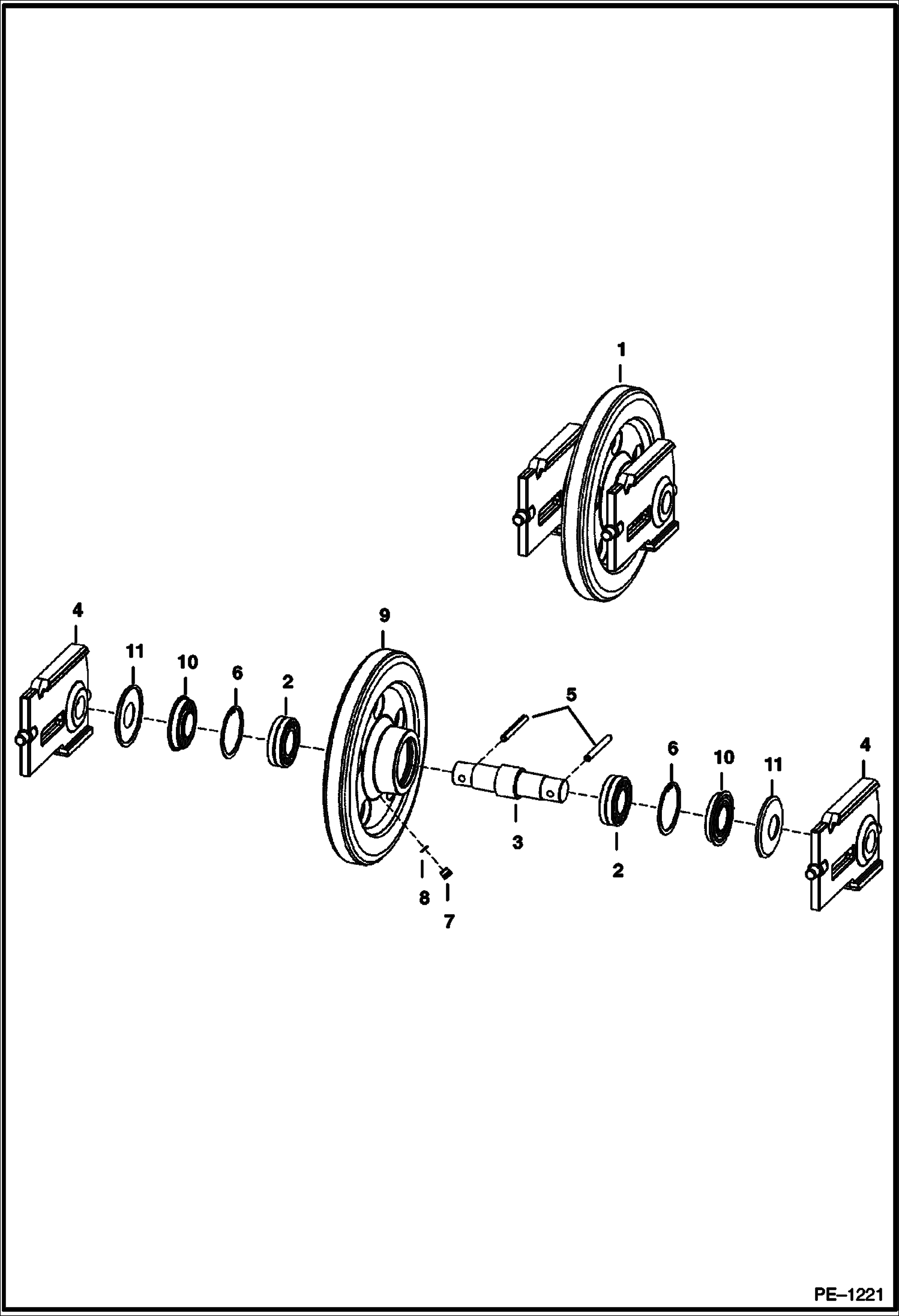

ПЕРЕДНЕЕ НАТЯЖНОЕ КОЛЕСО (СЕРИЙНЫЙ НОМЕР 5193 13368 И НИЖЕ, 5194 12089 И НИЖЕ)
1Артикул: IDLER, IDLER ASSY See Illustration FRONT IDLER/ PE1692 NLA - FRONT - Ref. 2-10 - ORDER 6732902 IDLER ASSY - WAS 6715764 - A
2Артикул: BEARING, BEARING See Illustration FRONT IDLER/ PE1692 NLA - ORDER 7108789 AXLE & (2) OF 6686728 BEARING - WAS 6672952 - A
3Артикул: AXLE, AXLE See Illustration FRONT IDLER/ PE1692 NLA - SHAFT - ORDER 7108789 AXLE & (2) OF 6686728 BEARING - WAS 6715749 - A

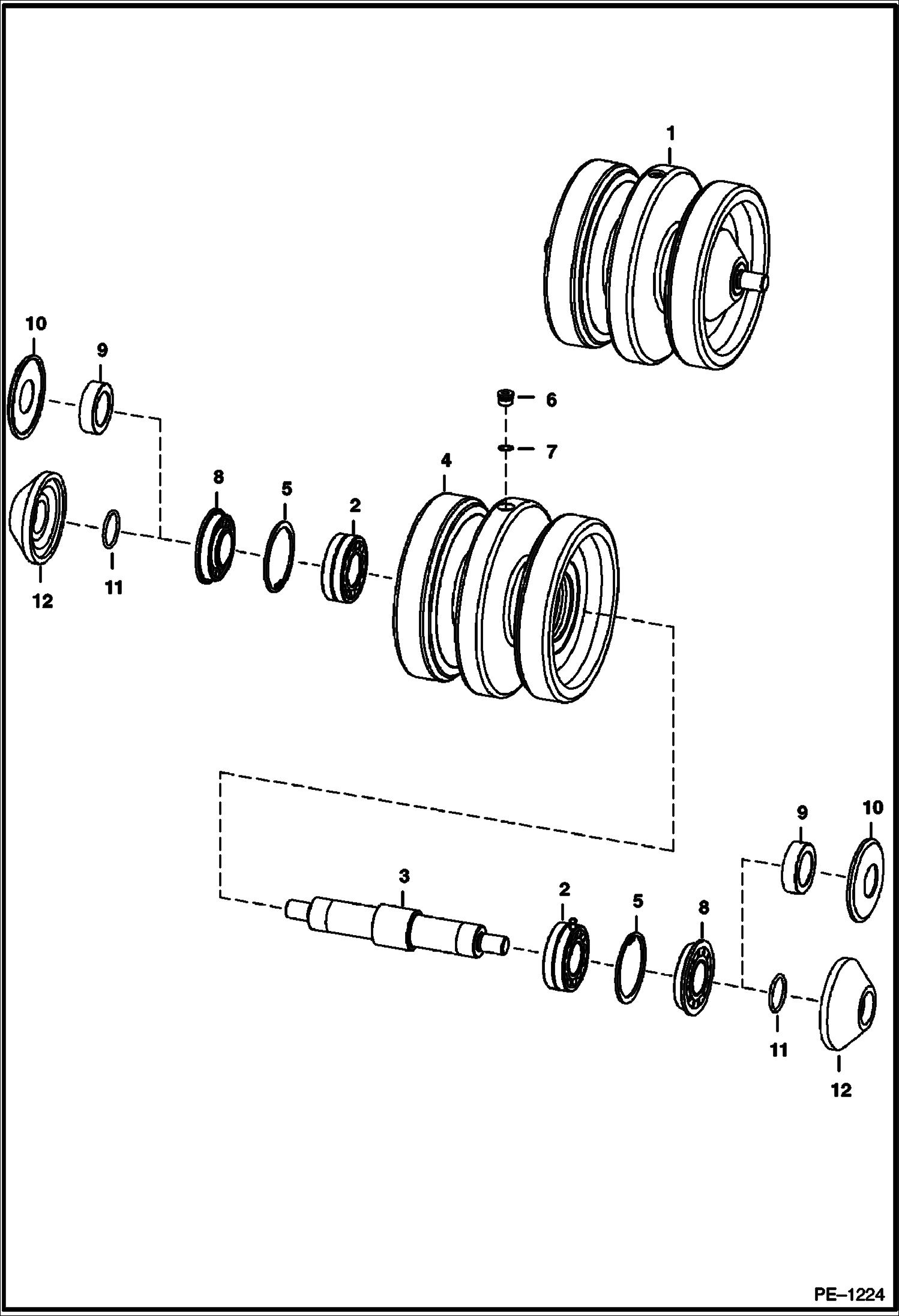

ЗАЩИТА РОЛИКОВ ГУСЕНИЦЫ (СЕРИЙНЫЙ НОМЕР 5193 13368 И НИЖЕ, 5194 12089 И НИЖЕ)
1Артикул: ROLLER, ROLLER ASSY See Illustration TRACK ROLLER/ PE1570 NLA - W/Ref. 2 - 8 - ORDER 6689371 ROLLER ASSY - WAS 6715766 - A
2Артикул: BEARING, BEARING See Illustration TRACK ROLLER/ PE1570 NLA - ORDER 6732874 AXLE & (2) OF 6679883 BEARING - WAS 6673212 - A
3Артикул: AXLE, AXLE See Illustration TRACK ROLLER/ PE1570 NLA - SHAFT - W/1.168-- THREADED ENDS - USE W/Ref. 11 & 10 - ORDER 6732874 AXLE & (2) OF 6679883 BEARING - WAS 6715750 - A
РОЛИК ГУСЕНИЦЫ
1Артикул: ROLLER, ROLLER ASSY NLA - W/threaded spindle - Order 6689371 track roller & (2) of 31C1224 bolt - Was 6686632 - A
2Артикул: ROLLER,, ROLLER, TRACK 2 NLA - W/threaded holes - 35 mm (1.38--) deep threads - Was 6689371 - B
3Артикул: 6689371, ROLLER, TRACK 2 W/threaded holes - 45 mm (1.77--) deep threads

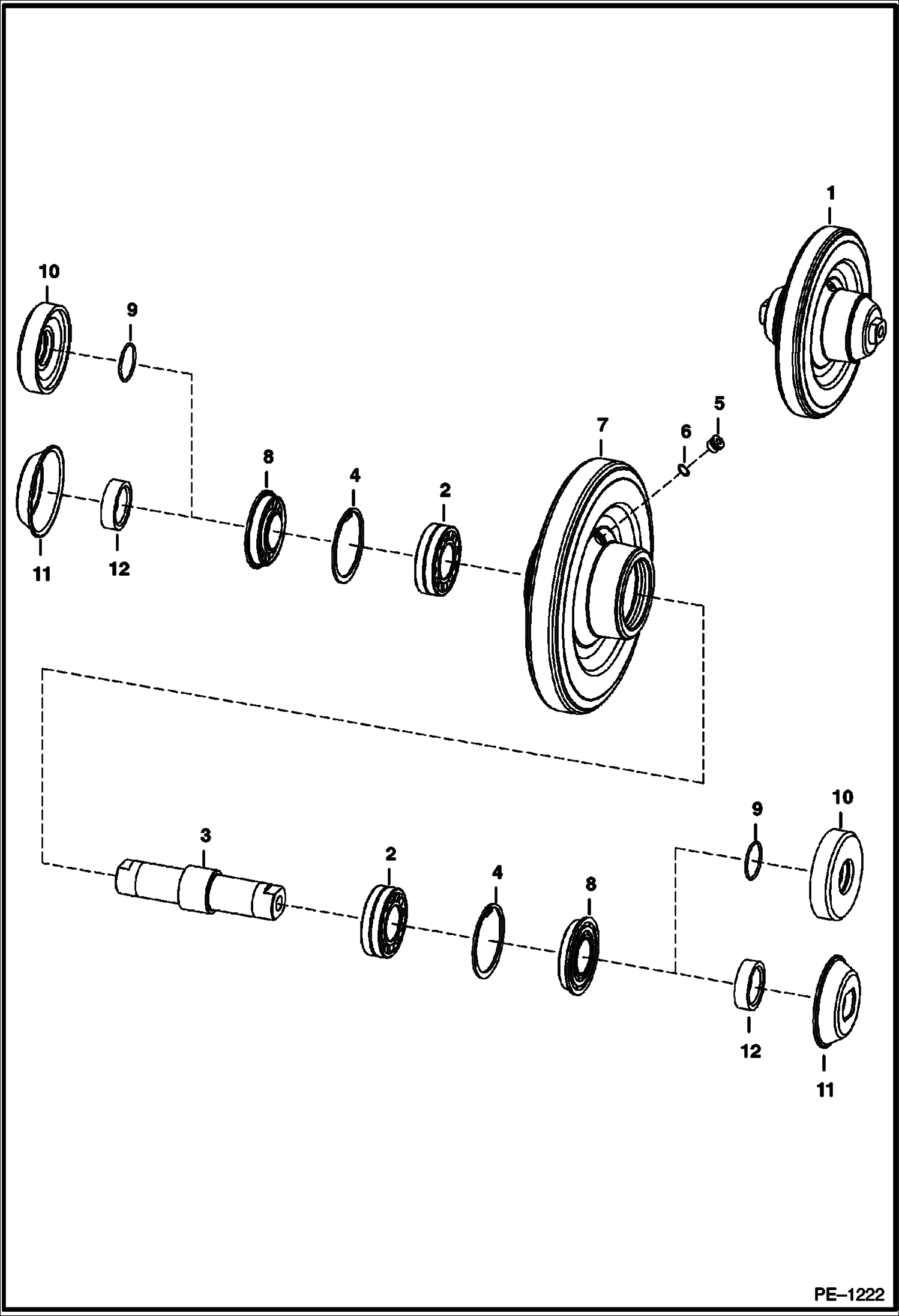

ЗАДНЕЕ НАТЯЖНОЕ КОЛЕСО (СЕРИЙНЫЙ НОМЕР 5193 13368 И НИЖЕ, 5194 12089 И НИЖЕ)
1Артикул: IDLER, IDLER ASSY See Illustration REAR IDLER/ PE1569 NLA - REAR - W/Ref. 2 - 8 - ORDER 6732903 IDLER ASSY - WAS 6715765 - A
2Артикул: BEARING, BEARING See Illustration REAR IDLER/ PE1569 NLA - ORDER 7108790 AXLE & (2) OF 6686728 BEARING - WAS 6672952 - A
3Артикул: AXLE, AXLE See Illustration REAR IDLER/ PE1569 NLA - SHAFT - W/.52-- DEEP END NOTCHES - USE W/Ref. 9 & 10 - ORDER 7108790 AXLE & (2) OF 6686728 BEARING - WAS 6715748 - A
НАТЯЖИТЕЛЬ ГУСЕНИЦЫ
1Артикул: TENSIONER,, TENSIONER, TRACK ASSY NLA - Ref. 2-11 - Order 7180666 tensioner - Was 7160783 - A
2Артикул: 7180666, TENSIONER, TRACK ASSY Ref. 2-7 & 10-13
3Артикул: COIL, COIL SPRING ASSY NSS - Order Ref. 1
