ЗАПЧАСТИ ДВИГАТЕЛЯ в Алматы
МАСЛЯНЫЙ РАДИАТОР И ФИЛЬТР
1Артикул: 6912015, OIL COOLER W/Ref. 2-8
2Артикул: 6911896, OIL COOLER
3Артикул: 6911977, SEAL
КОЛЕНЧАТЫЙ ВАЛ - ПОРШНИ
1Артикул: 7024011, KIT CRANKSHAFT W/Ref. 2-6 - Was 6912029 - A
2Артикул: CRANKSHAFT, CRANKSHAFT NSS - Order Ref. 1
3Артикул: 6912021, KIT BEARING MAIN Was 7017230 - B,D
ВОДЯНАЯ ПОМПА И ТЕРМОСТАТ
1Артикул: 6912024, WATER PUMP KIT W/Ref. 2-16
2Артикул: WATER, WATER PUMP Order Ref. 1
3Артикул: BODY, BODY Order Ref. 1
ОСЬ КЛАПАННОГО КОРОМЫСЛА
1Артикул: 6912004, ROCKER ASSY W/Ref. 2-19
2Артикул: 6912005, ROCKER SHAFT ASSY W/Ref. 3-4
3Артикул: SPINDLE, SPINDLE NSS - Order Ref. 2
ШЕСТЕРНЯ РАСПРЕДЕЛИТЕЛЬНОГО ВАЛА
1Артикул: 6924902, GASKET - TIMING CASE Was 7024173 - A
2Артикул: 6924943, TIMING CASE Was 6911985 - A
3Артикул: 6924902, GASKET - TIMING CASE Was 7024173 - A

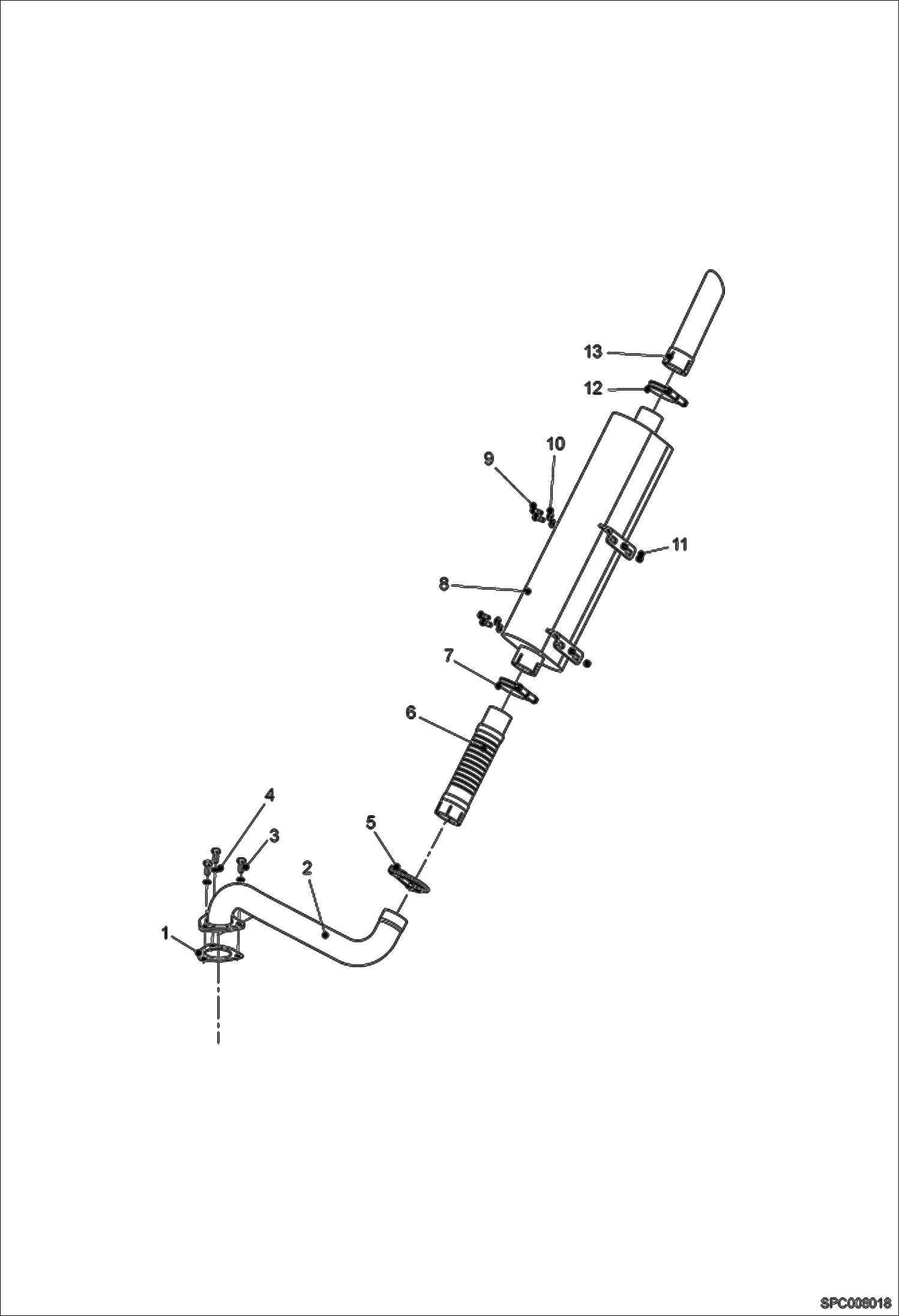

СИСТЕМА ВЫПУСКА
1Артикул: 7167620, SEAL Was 7017270 - A
2Артикул: 6915723, Exhaust tube Was 6911770 - A
3Артикул: 1CM1025, BOLT Was 01605.5 - B
ПОДАЧА ТОПЛИВА
1Артикул: 6912158, PUMP, LIFT W/Ref. 2-5 - Was 6912009
2Артикул: PUMP, PUMP NSS - Order Ref. 1
3Артикул: SPACER, SPACER NSS - Order Ref. 9
КАРТЕР МАХОВИКА И СТАРТЕР
1Артикул: 81041.6, Housing
2Артикул: 7017248, SEAL Was 81039.0 - A
3Артикул: 64645.5, Dowel
ТУРБОКОМПРЕССОР
1Артикул: 7022470, MANIFOLD Was 6911993 - A
2Артикул: 6911973, EXHAUST MANIFOLD JOINT
3Артикул: 7022465, SCREW Was 93408.3 - A
ОБОРУДОВАНИЕ СИСТЕМЫ ВПРЫСКА ТОПЛИВА
1Артикул: 6911898, PUMP, INJ FUEL W/Ref. 2-4
2Артикул: PUMP,, PUMP, INJECTION NSS - Order Ref. 1
3Артикул: 7022462, O-RING Was 93191.5 - A
УСТАНОВКА СИСТЕМЫ ОХЛАЖДЕНИЯ
1Артикул: 6914085, RADIATOR W/shroud & fan screen - W/Ref. 2-6 - Was 6910317
2Артикул: 6912542, COOLER WATER/OIL
3Артикул: 7008310, FITTING Was 6912545 - A

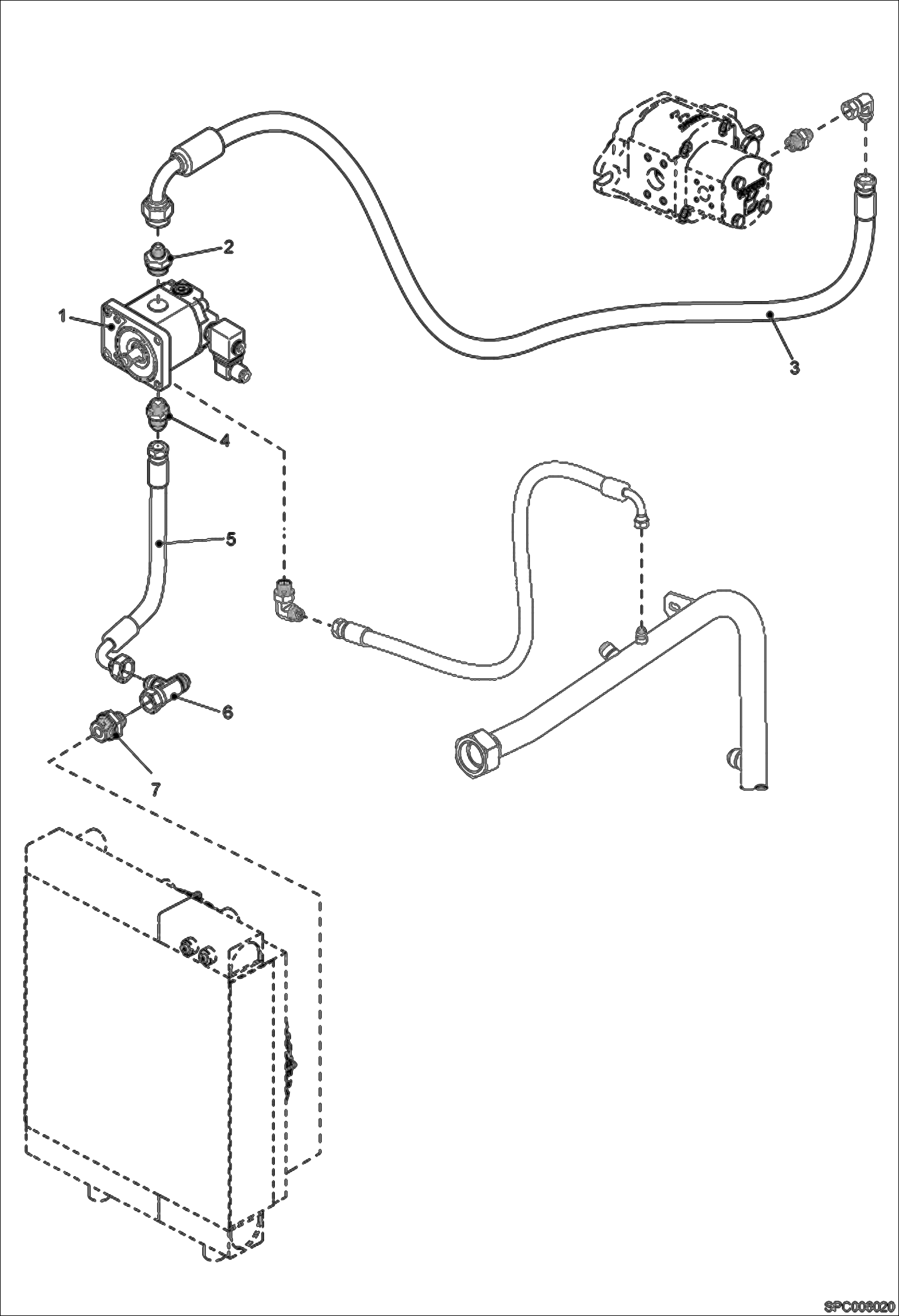

СХЕМА ВЕНТИЛЯТОРА ОХЛАЖДЕНИЯ
1Артикул: 6916978, HYDRAULIC MOTOR See Illustration HYDRAULIC MOTOR/ SPC003181 1 speed - Was 6910598 - A
2Артикул: 100375-59Q, UNION 3/4 JIC 3/4 BSP
3Артикул: 101319-27P, HOSE ASSEM

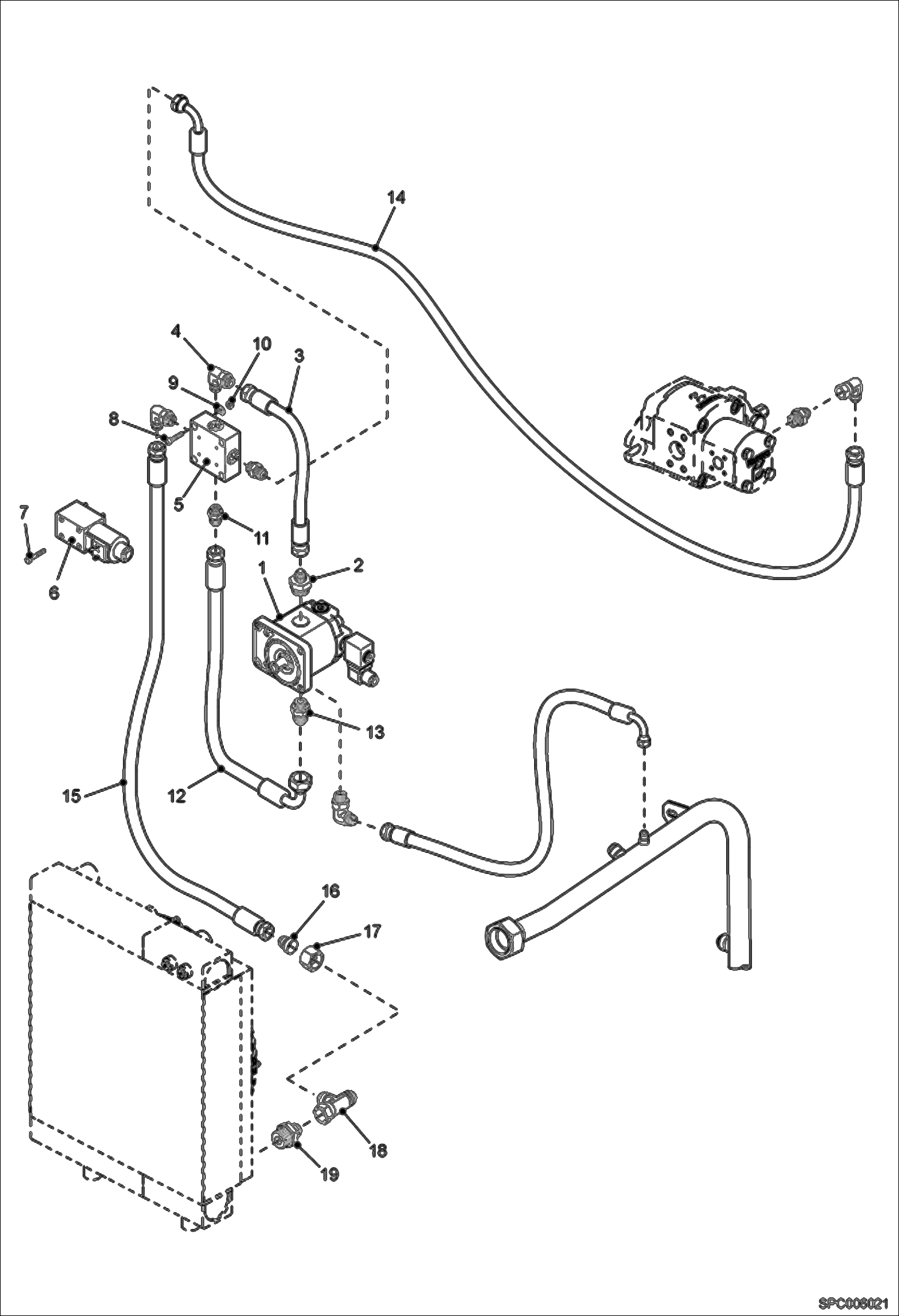

СХЕМА ВЕНТИЛЯТОРА ОХЛАЖДЕНИЯ (С ДОПОЛНИТЕЛЬНОЙ ПЕРЕДАЧЕЙ ЗАДНЕГО ХОДА)
1Артикул: 6916978, HYDRAULIC MOTOR See Illustration HYDRAULIC MOTOR/ SPC003181 1 speed - Was 6910598
2Артикул: 100375-59Q, UNION 3/4 JIC 3/4 BSP
3Артикул: 92995.0, Hose
КРЫШКА ГОЛОВКИ ЦИЛИНДРА
1Артикул: 6912017, CYLINDER HEAD COVER ASSY W/Ref. 2-13
2Артикул: COVER, COVER NSS - Order Ref. 1
3Артикул: 6911968, ROCKER COVER JOINT
БЛОК ПРОКЛАДОК ДВИГАТЕЛЯ
1Артикул: 6912020, TOP JOINT AND GASKET KIT top
2Артикул: 6912019, BOTTOM JOINT AND GASKET KIT bottom
МАСЛЯНЫЙ ПОДДОН - МАСЛЯНЫЙ НАСОС
1Артикул: 6912010, OIL PUMP Was 7017252 - A
2Артикул: 6912056, SCREW
3Артикул: 6668678, GASKET Was 81063.0 - A
МАХОВИК И ПРИВОДНОЙ ШКИВ
1Артикул: 7022459, FLYWHEEL, ASSY W/Ref. 2-3 - Was 81038.2 - A
2Артикул: FLY, FLY WHEEL NSS - Order Ref. 1
3Артикул: 6515771, RING GEAR Was 55698.5 - A
ГОЛОВКА БЛОКА ЦИЛИНДРОВ
1Артикул: 6912028, CYLINDER HEAD KIT W/Ref. 2-21
2Артикул: CYLINDER, CYLINDER HEAD Order Ref. 1
3Артикул: 93164.2, Guide
БЛОК ЦИЛИНДРОВ
1Артикул: 6912027, CYLINDER BLOCK KIT W/Ref. 2-23
2Артикул: CYLINDER, CYLINDER BLOCK NSS - Order Ref. 1
3Артикул: BEARING, BEARING CAP NSS - Order Ref. 1
ГЕНЕРАТОР
1Артикул: 6911377, ALTERNATOR ESA 85 AMP (EUROPE)
2Артикул: 7270428, BRACKET Was 6911382 - A
3Артикул: 57506.8, Screw Was 10944.7 - B,D
УСТАНОВКА ДВИГАТЕЛЯ
1Артикул: ENGINE, ENGINE NLA - Order 7017318 engine - Was 98038.3 - A
2Артикул: 38441.2, Union
3Артикул: COUPLER, COUPLER NLA - Order 78301.9 - Was 98011.0 - A
