2) в Алматы
×
![]()
Характеристики и описание

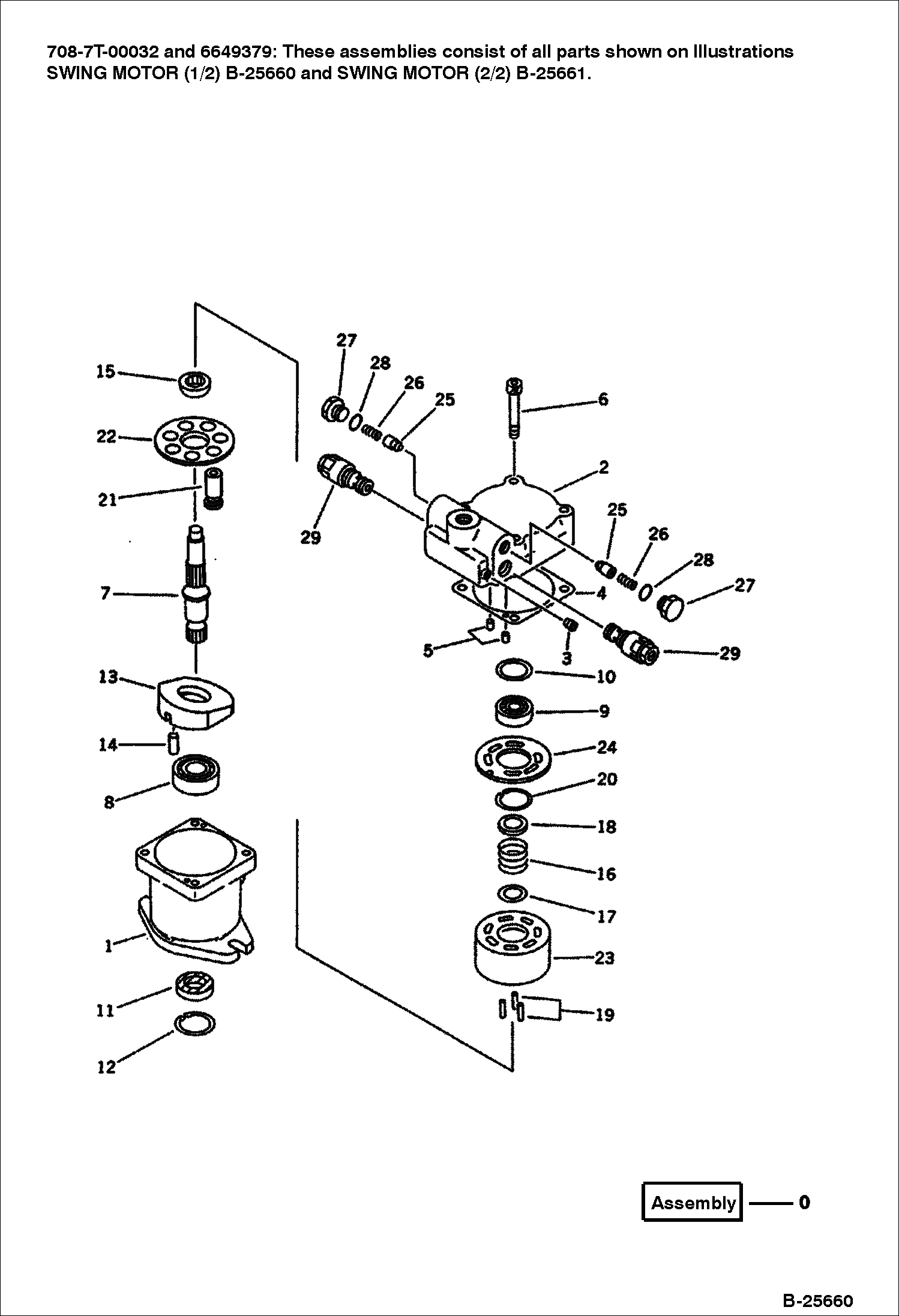

Габариты, схема
Техническая документация
| 1 | Артикул: MOTOR, MOTOR ASS-Y Komatsu S/N 11655 & Abv. - Was 708-7T-00032 |
| 2 | Артикул: 6649379, SWING ASY Komatsu S/N 10001-11654 |
| 3 | Артикул: CASE, CASE Was 708-7T-11111 |
| 4 | Артикул: CAP,, CAP, END Komatsu S/N 11655 & Abv. - Was 708-7T-11511 |
| 5 | Артикул: CAP,, CAP, END (708-7T-11511, 07043-70108) - Komatsu S/N 10001-11654 - Was 708-7T-11510 |
| 6 | Артикул: 6637452, PLUG Komatsu S/N 11655 & Abv. |
| 7 | Артикул: GASKET, GASKET Was 708-7T-11120 |
| 8 | Артикул: PIN, PIN Was 720-68-19610 |
| 9 | Артикул: BOLT, BOLT Was 708-1D-19120 |
| 10 | Артикул: SHAFT, SHAFT Was 708-7T-12120 |
| 11 | Артикул: BEARING, BEARING Was 708-1T-12140 |
| 12 | Артикул: BEARING, BEARING Was 708-1T-12150 |
| 13 | Артикул: SPACER, SPACER KIT Was 708-7T-05010 |
| 14 | Артикул: SEAL,, SEAL, OIL Was 708-7B-12210 |
| 15 | Артикул: RING, RING Was 04065-04818 |
| 16 | Артикул: PLATE,, PLATE, SWASH Was 708-7T-13410 |
| 17 | Артикул: 6637176, PIN, DOWEL |
| 18 | Артикул: GUIDE,, GUIDE, RETAINER Was 708-7T-13510 |
| 19 | Артикул: SPRING, SPRING Was 708-7T-13521 |
| 20 | Артикул: WASHER, WASHER Was 708-7T-13530 |
| 21 | Артикул: SPACER, SPACER Was 708-7T-13550 |
| 22 | Артикул: PIN, PIN Was 708-7T-13540 |
| 23 | Артикул: RING,, RING, SNAP Was 04065-03815 |
| 24 | Артикул: PISTON, PISTON SUB ASSY Was 708-7T-13351 |
| 25 | Артикул: RETAINER,, RETAINER, SHOE Komatsu S/N 11655 & Abv. - Was 708-7T-13342 |
| 26 | Артикул: RETAINER,, RETAINER, SHOE Komatsu S/N 10001-11654 - Was 708-7T-13341 |
| 27 | Артикул: BLOCK,, BLOCK, CYLINDER Was 708-7T-13120 |
| 28 | Артикул: PLATE,, PLATE, VALVE Komatsu S/N 11655 & Abv. - Was 708-7T-13231 |
| 29 | Артикул: PLATE,, PLATE, VALVE Komatsu S/N 10001-11654 - Was 708-7T-13230 |
| 30 | Артикул: VALVE, VALVE Was 708-7T-16110 |
| 31 | Артикул: SPRING, SPRING Was 708-7T-16120 |
| 32 | Артикул: 6637436, PLUG |
| 33 | Артикул: 6637415, O-RING |
| 34 | Артикул: RELIEF, RELIEF VALVE ASS-Y Was 708-7T-02051 |
2): Техника, которая работает на результат
ГИДРОМОТОР ПОВОРОТА ПЛАТФОРМЫ (1/2) на мини-экскаватор Bobcat 100 504912001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
Документация
Документация временно недоступна.
