2) KOMATSU СЕРИЙНЫЙ НОМЕР 10001-11899 в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация

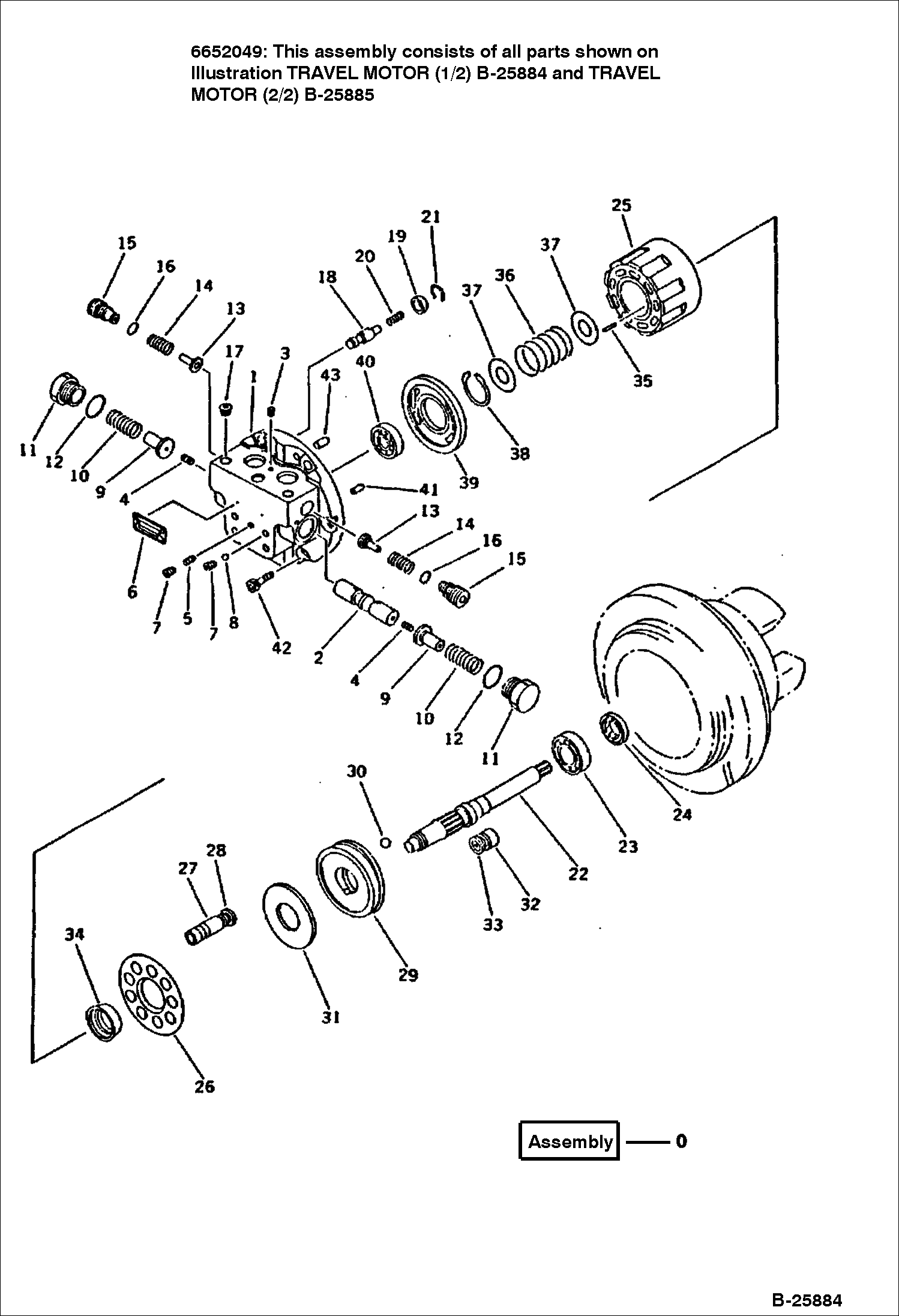

| 1 | Артикул: 6652049, MOTOR ASY See Illustration TRAVEL MOTOR (2/2)/ B25885 |
| 2 | Артикул: PISTON, PISTON MOTOR ASSY Was TZ312B200001AA |
| 3 | Артикул: FLANGE, FLANGE Was TZ312B210101-A |
| 4 | Артикул: FLANGE, FLANGE |
| 5 | Артикул: SPOOL, SPOOL |
| 6 | Артикул: EXPANDER, EXPANDER Was TZMB700-060 |
| 7 | Артикул: ORIFICE, ORIFICE Was TZ300B2044-00 |
| 8 | Артикул: ORIFICE, ORIFICE Was TZ121F2070-00 |
| 9 | Артикул: PLATE,, PLATE, NAME Was TZ850A0006-00 |
| 10 | Артикул: PLUG, PLUG Was TZGM1-8 |
| 11 | Артикул: 6642071, BALL |
| 12 | Артикул: 6641681, STOPPER |
| 13 | Артикул: 6641684, SPRING |
| 14 | Артикул: 6641680, PLUG |
| 15 | Артикул: 6669517, ORING |
| 16 | Артикул: VALVE, VALVE Was TZ300A2054-00 |
| 17 | Артикул: 6641683, SPRING |
| 18 | Артикул: PLUG, PLUG Was TZ300A2053-00 |
| 19 | Артикул: 6637370, O-RING |
| 20 | Артикул: PLUG, PLUG Was TZGM1-4 |
| 21 | Артикул: VALVE, VALVE Was TZ200B2073-00 |
| 22 | Артикул: 6641705, STOPPER |
| 23 | Артикул: SPRING, SPRING Was TZ300B2043-01 |
| 24 | Артикул: 6641708, RING |
| 25 | Артикул: 6669498, SHAFT |
| 26 | Артикул: 6642074, BEARING |
| 27 | Артикул: SEAL,, SEAL, OIL (KIT) Was TZ15Z-17-35-B |
| 28 | Артикул: 6669499, CYL BLOCK |
| 29 | Артикул: PLATE,, PLATE, RETAINER Was TZ310B2007-00 |
| 30 | Артикул: PISTON, PISTON ASSY Was TZ300B2105-00 |
| 31 | Артикул: PISTON, PISTON |
| 32 | Артикул: SHOE, SHOE |
| 33 | Артикул: PLATE,, PLATE, SWASH Was TZ310B200301-A |
| 34 | Артикул: BALL, BALL Was TZJB1501-18 |
| 35 | Артикул: 6657722, PLATE |
| 36 | Артикул: PISTON, PISTON ASSY Was TZ310B2070-01 |
| 37 | Артикул: PISTON, PISTON |
| 38 | Артикул: SHOE, SHOE |
| 39 | Артикул: BALL,, BALL, THRUST Was TZ310B2008-00 |
| 40 | Артикул: 6669515, PIN |
| 41 | Артикул: SPRING, SPRING Was TZ550A2014-01 |
| 42 | Артикул: WASHER, WASHER Was TZ310B2010-00 |
| 43 | Артикул: RING,, RING, SNAP Was TZIRTW-32 |
| 44 | Артикул: 6669503, TIME PLAT |
| 45 | Артикул: 6669056, BALL BRG. |
| 46 | Артикул: PIN,, PIN, DOWEL Was TZJB1354-4-10 |
| 47 | Артикул: 6642022, BOLT |
| 48 | Артикул: PIN,, PIN, DOWEL Was TZJB1354-8-16 |
2) KOMATSU СЕРИЙНЫЙ НОМЕР 10001-11899: Техника, которая работает на результат
ХОДОВОЙ ГИДРОМОТОР (1/2) KOMATSU СЕРИЙНЫЙ НОМЕР 10001-11899 на мини-экскаватор Bobcat 116 505012001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
