Характеристики и описание
Габариты, схема
Техническая документация

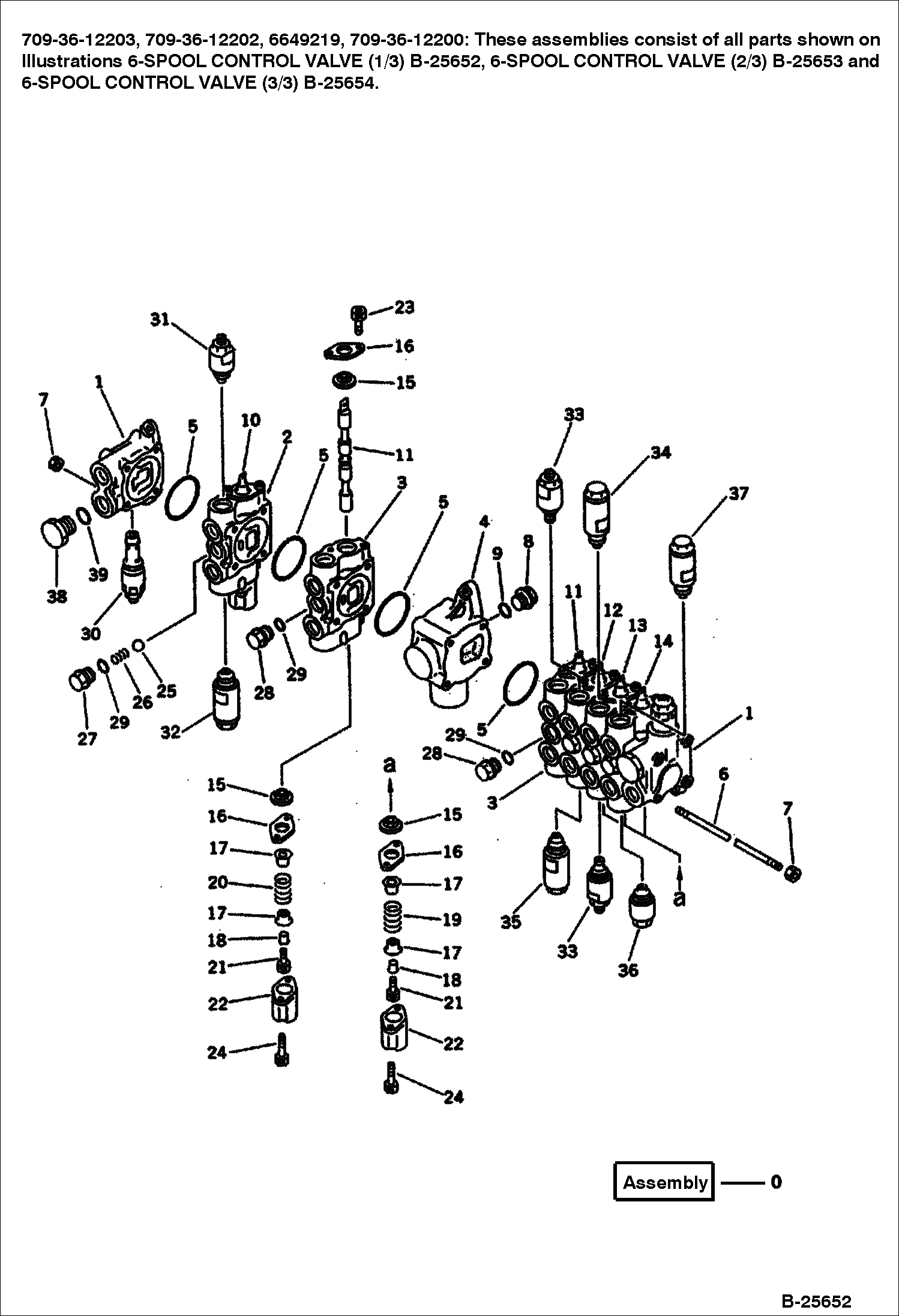

| 1 | Артикул: VALVE, VALVE ASS-Y Was 709-36-12203 |
| 2 | Артикул: VALVE, VALVE ASS-Y Komatsu S/N 11655-12575 - Was 709-36-12202 |
| 3 | Артикул: 6649219, VALVE ASY Komatsu S/N 10065-11654 |
| 4 | Артикул: VALVE, VALVE ASS-Y Komatsu S/N 10001-10064 - Was 709-36-12200 |
| 5 | Артикул: BLOCK, BLOCK |
| 6 | Артикул: BLOCK, BLOCK |
| 7 | Артикул: BLOCK, BLOCK |
| 8 | Артикул: BLOCK, BLOCK |
| 9 | Артикул: 6637375, O-RING |
| 10 | Артикул: 6640595, STUD |
| 11 | Артикул: NUT, NUT Was 01580-10806 |
| 12 | Артикул: PLUG, PLUG |
| 13 | Артикул: O-RING, O-RING |
| 14 | Артикул: SPOOL,, SPOOL, ARM |
| 15 | Артикул: SPOOL,, SPOOL, TRAVEL |
| 16 | Артикул: SPOOL,, SPOOL, BUCKET |
| 17 | Артикул: SPOOL., SPOOL. BOOM |
| 18 | Артикул: SPOOL,, SPOOL, BOOM SWING |
| 19 | Артикул: 6640575, SEAL |
| 20 | Артикул: 6640576, SHIELD |
| 21 | Артикул: 6640577, RETAINER |
| 22 | Артикул: 6640578, COLLAR |
| 23 | Артикул: 6640580, SPRING |
| 24 | Артикул: 6640581, SPRING |
| 25 | Артикул: 6637051, BOLT |
| 26 | Артикул: 6640579, COVER |
| 27 | Артикул: 6637049, BOLT |
| 28 | Артикул: 6637050, BOLT |
| 29 | Артикул: 6637318, BALL |
| 30 | Артикул: 6640583, SPRING |
| 31 | Артикул: 6640582, PLUG |
| 32 | Артикул: PLUG, PLUG Was 709-32-11930 |
| 33 | Артикул: 6637415, O-RING |
| 34 | Артикул: 6669709, REL VALVE main |
| 35 | Артикул: 6640566, VALVE ASSY suction and safety |
| 36 | Артикул: 6654899, VALVE ASY suction and safety |
| 37 | Артикул: VALVE, VALVE ASS-Y suction and safety - Was 709-30-63201 |
| 38 | Артикул: 6640562, VALVE ASY suction and safety |
| 39 | Артикул: VALVE, VALVE ASS-Y safety - Was 709-30-66200 |
| 40 | Артикул: VALVE, VALVE ASS-Y suction and safety - Was 709-30-63702 |
| 41 | Артикул: VALVE, VALVE ASS-Y suction and safety - Komatsu S/N 11655-12575 - Was 709-30-63701 |
| 42 | Артикул: VALVE, VALVE ASS-Y suction and safety - Komatsu S/N 10001-11654 - Was 709-30-63700 |
| 43 | Артикул: 6640559, VALVE ASY suction and safety |
| 44 | Артикул: VALVE, VALVE ASS-Y suction and safety - Komatsu S/N 10001-12575 - Was 709-30-62400 |
| 45 | Артикул: 6640551, VALVE ASY suction |
| 46 | Артикул: 6654899, VALVE ASY suction and safety |
| 47 | Артикул: VALVE, VALVE ASS-Y suction and safety - Komatsu S/N 11655-12575 - Was 709-30-63601 |
| 48 | Артикул: VALVE, VALVE ASS-Y suction and safety - Komatsu S/N 10001-11654 - Was 709-30-63600 |
| 49 | Артикул: 6637437, PLUG |
| 50 | Артикул: 6637410, O-RING |
