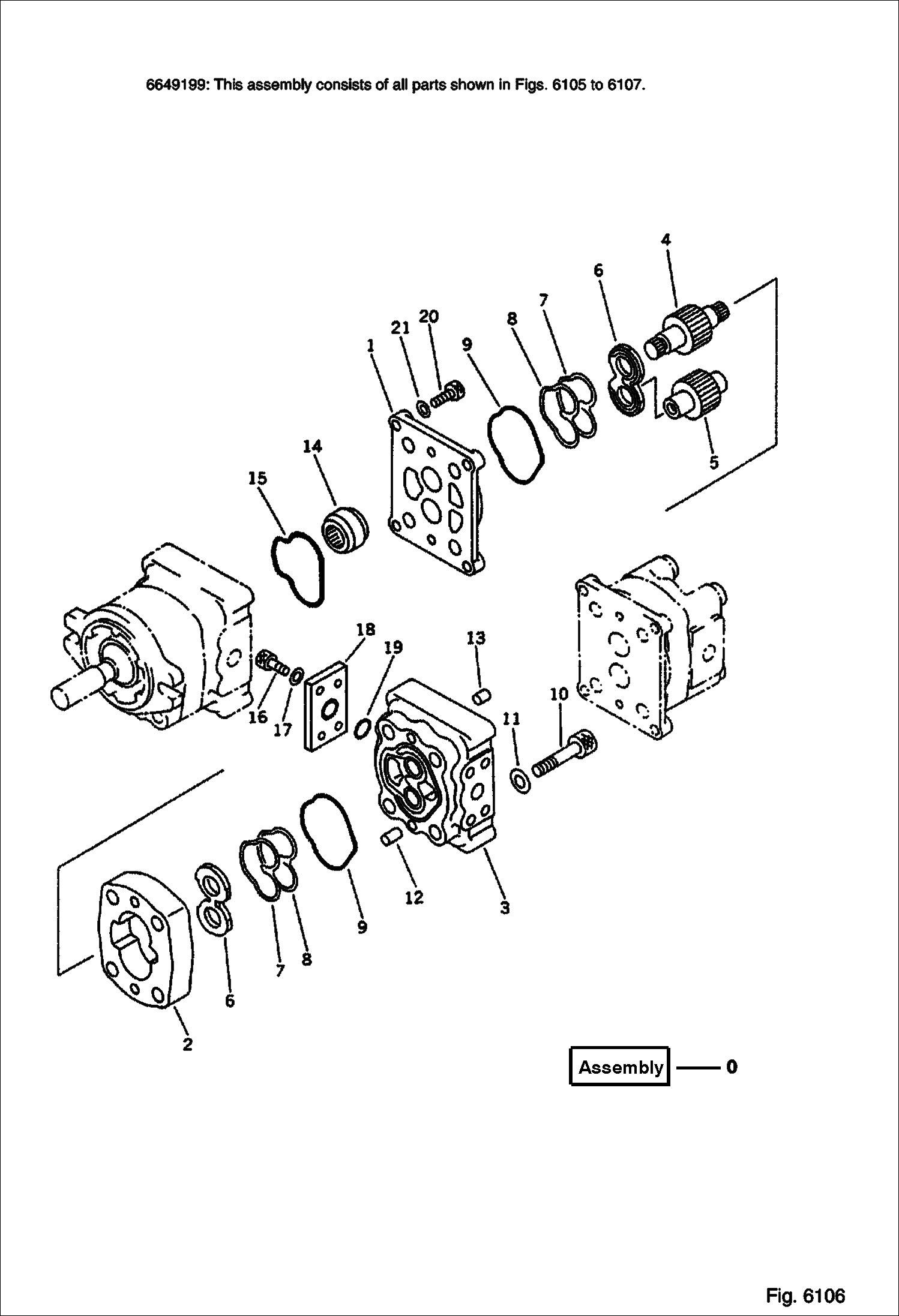

1	Артикул: 6649199, PUMP ASSY
2	Артикул: PUMP, PUMP ASS-Y Was 705-41-04001
3	Артикул: BRACKET, BRACKET Was 705-40-80511
4	Артикул: BUSHING,, BUSHING, PLANE (for driven) - Was 705-40-80610
5	Артикул: BUSHING,, BUSHING, PLANE (for drive) - Was 705-40-80620
6	Артикул: CASE,, CASE, GEAR Was 705-40-22011
7	Артикул: CARRIER, CARRIER Was 705-40-80311
8	Артикул: BUSHING,, BUSHING, PLANE (for drive) - Was 705-40-80610
9	Артикул: BUSHING,, BUSHING, PLANE (for driven) - Was 705-40-80620
10	Артикул: GEAR,, GEAR, DRIVE Was 705-40-22462
11	Артикул: GEAR,, GEAR, DRIVEN Was 705-40-22511
12	Артикул: 6661680, WEARPLATE side
13	Артикул: RING,, RING, BACKUP Was 705-40-80730
14	Артикул: RING,, RING, SEAL Was 705-40-80740
15	Артикул: RING,, RING, SEAL Was 705-40-80630
16	Артикул: BOLT, BOLT Was 01252-31270
17	Артикул: WASHER, WASHER Was 01643-51232
18	Артикул: 6637175, PIN, DOWEL
19	Артикул: 6640315, PIN
20	Артикул: 6640316, COUPLING
21	Артикул: 6649196, SEAL
22	Артикул: 6637052, BOLT
23	Артикул: WASHER, WASHER Was 01643-50823
24	Артикул: PLATE, PLATE Was 705-40-80941
25	Артикул: 6637342, O-RING
26	Артикул: 6637052, BOLT
27	Артикул: WASHER, WASHER Was 01643-50823

ГИДРОПРИВОДНОЙ НАСОС (2/3) на мини-экскаватор Bobcat 100 504912001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»
