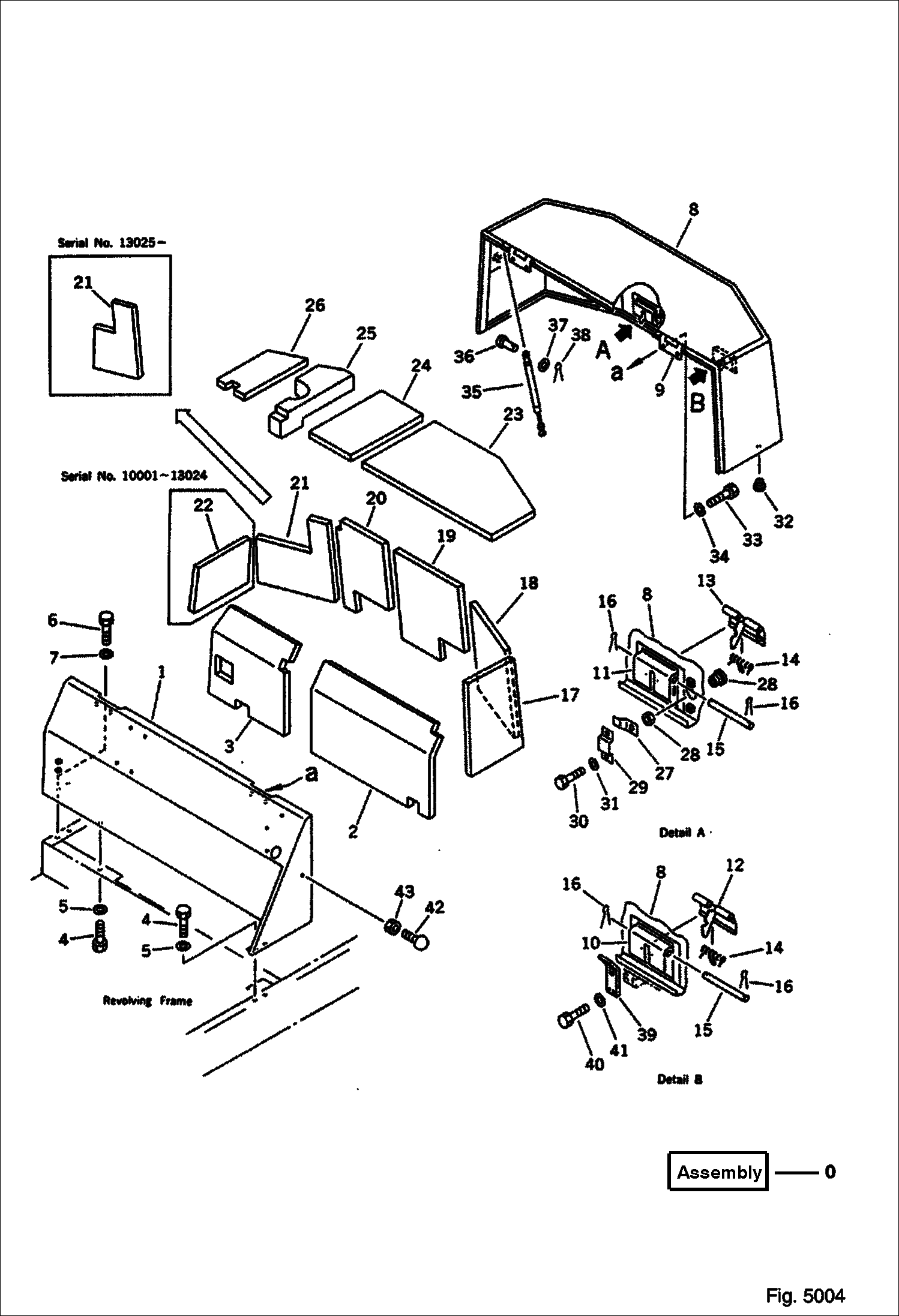

3) (ДЛЯ ОХРАННОГО УСТРОЙСТВА) в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация
| 1 | Артикул: COVER, COVER ASS-Y Komatsu S/N 13025 & Abv. - Was 20S-54-31302 |
| 2 | Артикул: COVER, COVER ASS-Y Komatsu S/N 10001-13024 - Was 20S-54-31301 |
| 3 | Артикул: COVER, COVER Komatsu S/N 13025 & Abv. |
| 4 | Артикул: COVER, COVER Komatsu S/N 10001-13024 |
| 5 | Артикул: SHEET, SHEET Komatsu S/N 13025 & Abv. - Was 20S-54-31321 |
| 6 | Артикул: SHEET, SHEET Komatsu S/N 10001-13024 - Was 20S-54-31320 |
| 7 | Артикул: SHEET, SHEET Was 20S-54-31330 |
| 8 | Артикул: 6636968, BOLT |
| 9 | Артикул: 6637157, WASHER |
| 10 | Артикул: 6636992, BOLT |
| 11 | Артикул: 6637159, WASHER |
| 12 | Артикул: HOOD, HOOD ASS-Y Komatsu S/N 13025 & Abv. - Was 20S-54-31400 |
| 13 | Артикул: HOOD, HOOD ASS-Y Komatsu S/N 10001-13024 - Was 20S-54-36300 |
| 14 | Артикул: HINGE, HINGE (welded) - Was 20S-54-31160 |
| 15 | Артикул: COVER, COVER (welded) - Was 20S-54-21440 |
| 16 | Артикул: COVER, COVER (welded) - Was 20S-54-25140 |
| 17 | Артикул: LEVER, LEVER Was 20S-54-31120 |
| 18 | Артикул: LEVER, LEVER Was 20S-54-34120 |
| 19 | Артикул: 6639464, SPRING |
| 20 | Артикул: 6638780, PIN |
| 21 | Артикул: 6637198, PIN, COTTER |
| 22 | Артикул: SHEET, SHEET Komatsu S/N 13025 & Abv. - Was 20S-54-31232 |
| 23 | Артикул: 6654774, SHEET Komatsu S/N 10001-13024 |
| 24 | Артикул: 6654775, SHEET |
| 25 | Артикул: 6654776, SHEET |
| 26 | Артикул: SHEET, SHEET Was 20S-54-36320 |
| 27 | Артикул: SHEET, SHEET Komatsu S/N 13025 & Abv. - Was 20S-54-31272 |
| 28 | Артикул: 6654778, SHEET Komatsu S/N 10001-13024 |
| 29 | Артикул: SHEET, SHEET Komatsu S/N 10001-13024 - Was 20S-54-31281 |
| 30 | Артикул: 6654770, SHEET |
| 31 | Артикул: SHEET, SHEET Was 20S-54-31221 |
| 32 | Артикул: SHEET, SHEET Was 20S-54-31211 |
| 33 | Артикул: SHEET, SHEET Was 20S-54-31350 |
| 34 | Артикул: 6642783, PLATE |
| 35 | Артикул: 6642599, LOCK ASSY |
| 36 | Артикул: 6642926, COVER |
| 37 | Артикул: 6636956, BOLT |
| 38 | Артикул: 6637156, WASHER |
| 39 | Артикул: 6639202, STOPPER |
| 40 | Артикул: 6636967, BOLT |
| 41 | Артикул: 6637157, WASHER |
| 42 | Артикул: SPRING,, SPRING, GAS Komatsu S/N 10900 & Abv. - Was 20U-54-11631 |
| 43 | Артикул: SPRING,, SPRING, GAS Komatsu S/N 10001-10899 - Was 20U-54-11630 |
| 44 | Артикул: PIN, PIN Was 04205-10828 |
| 45 | Артикул: 6637146, WASHER |
| 46 | Артикул: 6637197, PIN, COTTER |
| 47 | Артикул: LOCK, LOCK Was 20S-54-31361 |
| 48 | Артикул: 6636967, BOLT |
| 49 | Артикул: 6637157, WASHER |
| 50 | Артикул: STOPPER, STOPPER (for cab) - Was 20T-54-27591 |
| 51 | Артикул: 6637109, NUT (for cab) |
3) (ДЛЯ ОХРАННОГО УСТРОЙСТВА): Техника, которая работает на результат
КАБИНА МАШИНЫ (3/3) (ДЛЯ ОХРАННОГО УСТРОЙСТВА) на мини-экскаватор Bobcat 100 504912001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
Документация
Документация временно недоступна.
