8-- (22,23 ММ) ОТВЕРСТИЕМ) в Алматы
×
![]()
Характеристики и описание

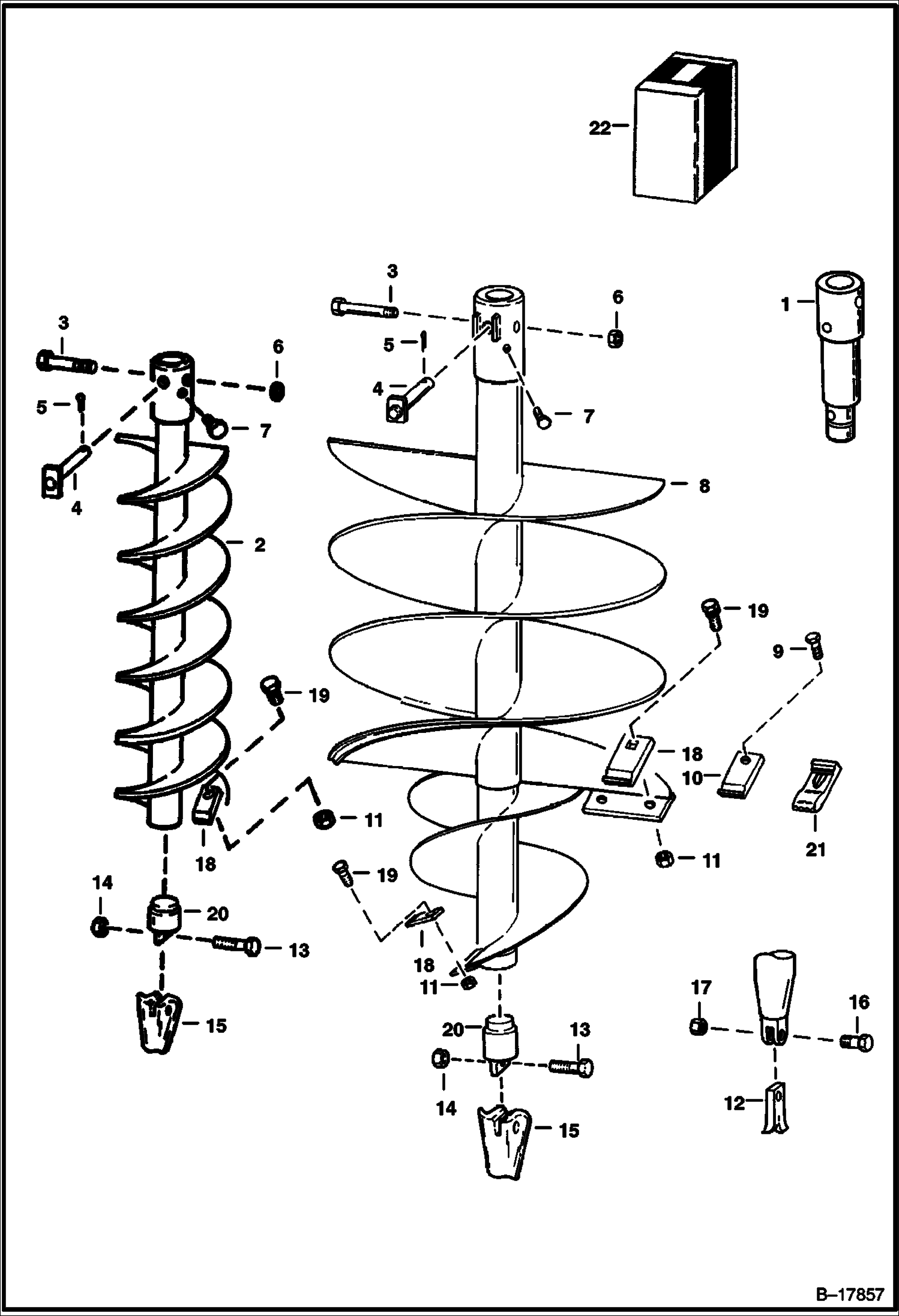

Габариты, схема
Техническая документация
| 1 | Артикул: EXTENSION, EXTENSION SALES |
| 2 | Артикул: AUGER, AUGER SALES - 6-- (152,4mm) - 2 teeth |
| 3 | Артикул: AUGER, AUGER SALES - 9-- (228,6mm) - 4 teeth |
| 4 | Артикул: AUGER, AUGER SALES - 12-- (304,8mm) - 4 teeth |
| 5 | Артикул: AUGER, AUGER SALES - 18-- (457,2mm) - 6 teeth |
| 6 | Артикул: AUGER, AUGER SALES - 24-- (609,6mm) - 9 teeth |
| 7 | Артикул: 17C888, BOLT 1/2-- (12,7mm) - For Round Shaft |
| 8 | Артикул: 6599663, PIN 7/8-- (22,23mm) - For Round Shaft |
| 9 | Артикул: 6631661, PIN 3/4-- (19,05mm) - For Hex Shaft |
| 10 | Артикул: 1F824, COTTER |
| 11 | Артикул: 81D8, NUT |
| 12 | Артикул: 17C816, BOLT |
| 13 | Артикул: AUGER, AUGER SALES - tree - 18-- (457,2mm) - 4 teeth |
| 14 | Артикул: AUGER, AUGER SALES - tree - 24-- (609,6mm) - 5 teeth |
| 15 | Артикул: 17C1024, BOLT |
| 16 | Артикул: TOOTH, TOOTH NLA - Standard - Order Ref. 18 - Was 6599661 - A |
| 17 | Артикул: TOOTH, TOOTH NLA - Tungsten Carbide - Order Ref. 21 - Was 6599659 - A |
| 18 | Артикул: TOOTH, TOOTH NLA - long - Tungsten Carbide - Was 6599660 - A |
| 19 | Артикул: 81D10, NUT |
| 20 | Артикул: POINT, POINT NLA - fishtail - Male - Order Ref. 22 - Was 6599662 - A |
| 21 | Артикул: 17C528, BOLT |
| 22 | Артикул: 81D5, NUT |
| 23 | Артикул: 6630663, POINT, AUGER PILOT female |
| 24 | Артикул: 17C632, BOLT 5 |
| 25 | Артикул: 91D5, NUT 5 |
| 26 | Артикул: TOOTH, TOOTH ASSY NLA - W/Ref. 11, 18 & 19 - used with 10C-1024 carriage bolt - Order 6693183 tooth assy - Was 6641273 - A |
| 27 | Артикул: 6693183, KIT, TOOTH 10 W/Ref. 11, 18 & 19 - used with 39C-1028 plow bolt |
| 28 | Артикул: 10C1024, BOLT carriage bolt - used with 6641273 tooth - Was 6641272 - A |
| 29 | Артикул: 39C1028, BOLT, PLOW Used W/Ref. 18 (6693183 tooth) |
| 30 | Артикул: 6657039, ADAPTER weld on for 6-- (152,4mm) Auger |
| 31 | Артикул: 6657040, ADAPTER weld on for 9-- (228,6mm) or 12-- (304,8mm) Auger |
| 32 | Артикул: 6657041, ADAPTER weld on for 18-- (457,2mm) or 24-- (609,6mm) Auger |
| 33 | Артикул: 6599659, TOOTH, AUGER Tungsten Carb. - used with 10C-1024 carriage bolt - Was 6659557 - D |
| 34 | Артикул: 6630664, KIT W/Ref. 15 & 20, For 6-- (152,4mm) Auger |
| 35 | Артикул: 6630665, KIT W/Ref. 15 & 20, For 9-- (228,6mm) 12-- (304,8mm), 15-- (381mm), TS18, TS24 & TS30 Augers |
| 36 | Артикул: 6630666, KIT W/Ref. 15 & 20, For 18-- (457,2mm), 24-- (609,6mm), 30-- (762mm), 36-- (914,4mm) & TS36 Augers |
8-- (22,23 ММ) ОТВЕРСТИЕМ): Техника, которая работает на результат
БУР ГИДРАВЛИЧЕСКИЙ (ШНЕКОВЫЙ БУР С 1/2-- (12,7 ММ) И 7/8-- (22,23 ММ) ОТВЕРСТИЕМ) на Bobcat Навесное оборудование BOBCAT БУРЫ ГИДРАВЛИЧЕСКИЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
Документация
Документация временно недоступна.
