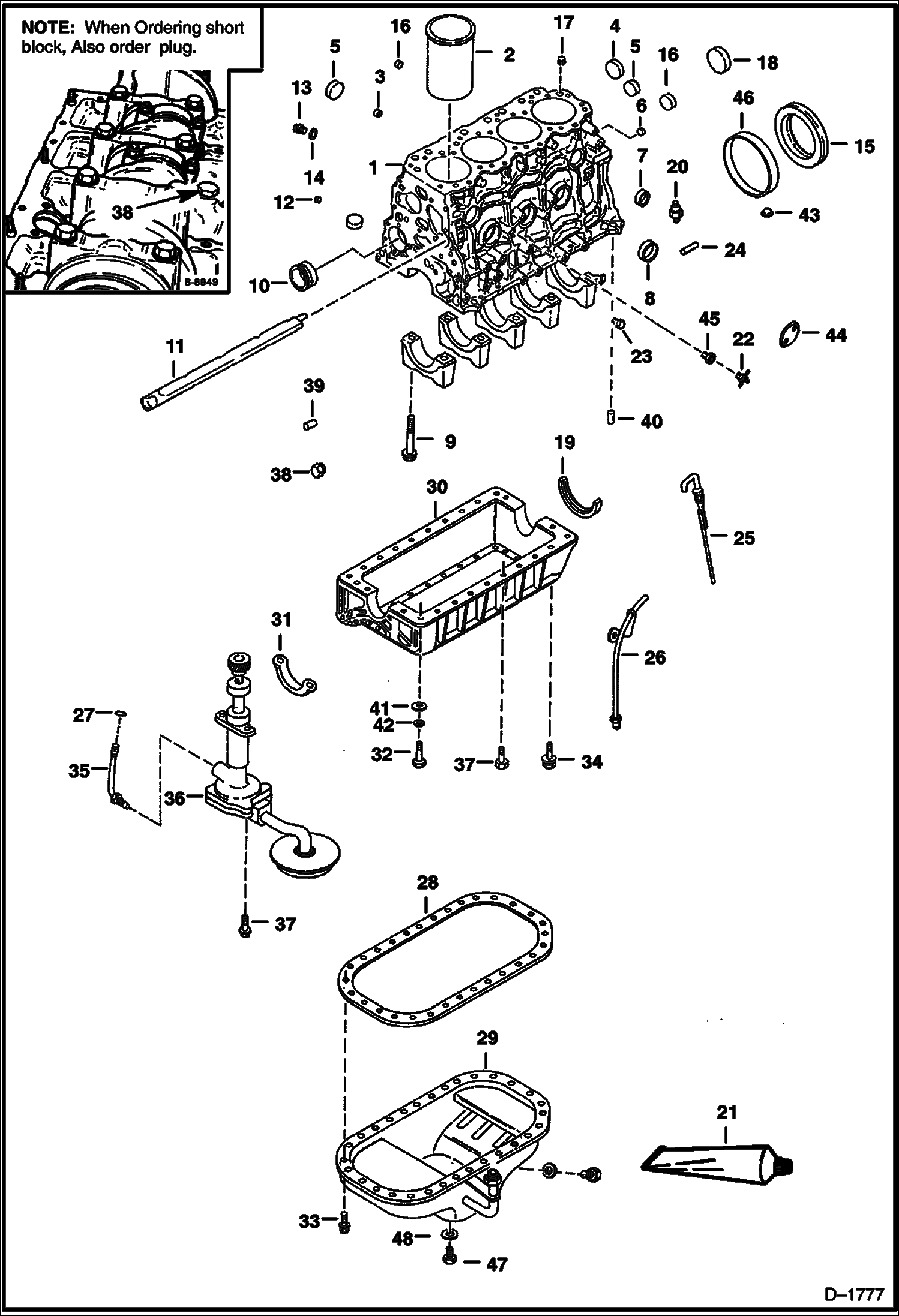

БЛОК ЦИЛИНДРОВ И ПОДДОН КАРТЕРА в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация
| 1 | Артикул: 6631768, BLOCK W/Ref. 2-10 |
| 2 | Артикул: BLOCK, BLOCK NLA - W/Ref. 2-10 - Was 6655862 - A |
| 3 | Артикул: 6631853, LINER, CYL CRANKCASE |
| 4 | Артикул: LINER, LINER NLA - Kit, W/Liner, Piston, Rings, Rod Bushing - For Complete Engine - Was 6664579 - A |
| 5 | Артикул: 6631743, PLUG sealing - 18 mm |
| 6 | Артикул: 6631745, CUP sealing - 38,42 mm |
| 7 | Артикул: 6631746, PLUG sealing - 36 mm |
| 8 | Артикул: 6631738, CUP sealing - size not available |
| 9 | Артикул: 6669706, CUP sealing - 31,75 mm - Was 6667158 - A |
| 10 | Артикул: 6631730, CUP sealing - 44,6 mm |
| 11 | Артикул: 6631893, BOLT |
| 12 | Артикул: 6636008, BEARING SET camshaft std. - Was 6631842 - A |
| 13 | Артикул: BEARING, BEARING SET NLA - camshaft - 0.25 mm - Was 6640808 - A |
| 14 | Артикул: BEARING, BEARING SET NLA - camshaft - 0.50mm - Was 6630639 - A |
| 15 | Артикул: BEARING, BEARING SET NLA - camshaft - 0.75 mm - Was 6640810 - A |
| 16 | Артикул: 6640811, BEARING SET camshaft - 1.00 mm |
| 17 | Артикул: 6658192, DUCT water - Was 6631792 - A |
| 18 | Артикул: 6631739, PLUG taper oil gallery |
| 19 | Артикул: 6631824, PLUG oil gallery |
| 20 | Артикул: 3674009, GASKET |
| 21 | Артикул: 6656476, SEAL fabric lip seal - Was 6631847 - A |
| 22 | Артикул: 6670643, CUP sealing - 16 mm - Was 6512964 - A |
| 23 | Артикул: 6631895, DOWEL |
| 24 | Артикул: 6631922, CUP sealing - 56 mm |
| 25 | Артикул: 6660009, GASKET Was 6632961 - A |
| 26 | Артикул: SWITCH, SWITCH See Illustration ENGINE ELECTRICAL/ E1767 oil pressure |
| 27 | Артикул: 6650388, SEALANT gasket - Between Ref. 30 & 1 - Was 1802303B - A |
| 28 | Артикул: 6569288, VALVE drain - Was 6569258 - A |
| 29 | Артикул: 6631891, PLUG water drain |
| 30 | Артикул: 6631887, PIN rear plate |
| 31 | Артикул: 6659342, DIPSTICK Was 6631867 - A |
| 32 | Артикул: 6659931, TUBE W/Nut - Was 6632957 - A |
| 33 | Артикул: 6631740, O-RING |
| 34 | Артикул: 6660325, GASKET Was 6632958 - A |
| 35 | Артикул: 6659930, PAN Was 6632956 - A |
| 36 | Артикул: 6659927, CRANKCASE Was 6632959 - A |
| 37 | Артикул: 6665210, GASKET Was 6632962 - A |
| 38 | Артикул: 6632968, BOLT |
| 39 | Артикул: 6667582, BOLT Was 6631879 - A |
| 40 | Артикул: 6661096, BOLT Was 6632970 - A |
| 41 | Артикул: 6658199, PIPE W/Nut - Also Order Ref. 27 - Was 6631773 - A |
| 42 | Артикул: 6660007, OIL PUMP See Illustration OIL PUMP/ C2929 Was 6632963 - A |
| 43 | Артикул: 6658214, BOLT Was 3676977B - A |
| 44 | Артикул: 6513010, PLUG oil jet |
| 45 | Артикул: 6631886, PIN |
| 46 | Артикул: 6632965, PIN |
| 47 | Артикул: 6632969, WASHER |
| 48 | Артикул: 6512736, WASHER |
| 49 | Артикул: 6632964, CAP sealing |
| 50 | Артикул: 6632960, COVER With Gasket |
| 51 | Артикул: 6569287, ADAPTER |
| 52 | Артикул: SPEEDI, SPEEDI SLEEVE NLA - not to be used with fabric lip seal Order Ref. 15 - Was 6653217 - A |
| 53 | Артикул: 6631907, OIL PLUG |
| 54 | Артикул: 6667583, GASKET |
