ЦИЛИНДР НАКЛОНА в Алматы
×
![]()
Характеристики и описание

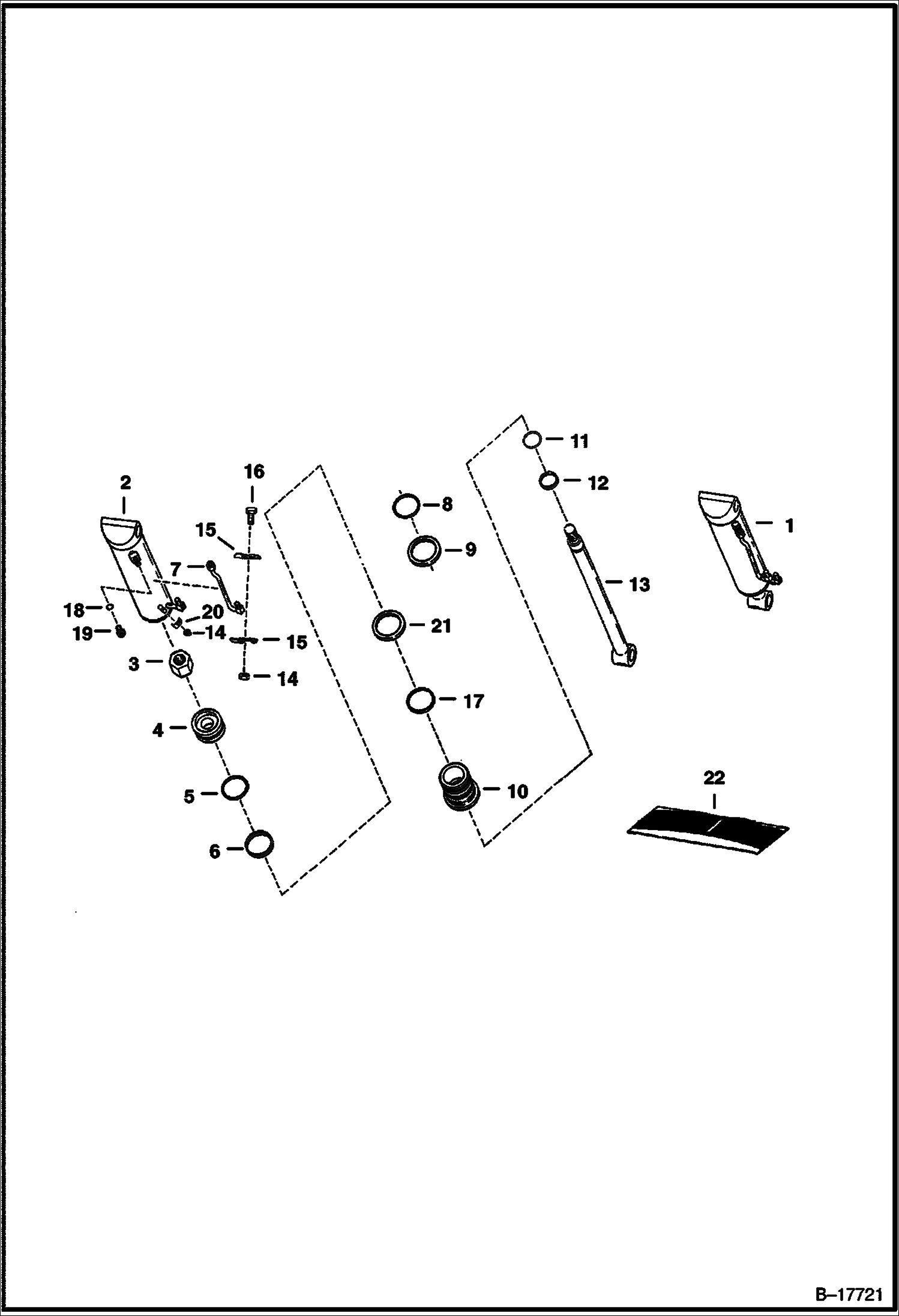

Габариты, схема
Техническая документация
| 1 | Артикул: 6589331, CYLINDER, TILT tilt - Ref. 2-16 |
| 2 | Артикул: CASE, CASE NLA - Order 6589331 - Was 6589332 - A |
| 3 | Артикул: 6810539, NUT Was 6804592 - A |
| 4 | Артикул: 6803870, PISTON Was 6553912 - A |
| 5 | Артикул: 947088, RING, BACK-UP Was NSS |
| 6 | Артикул: 25K30218, O RING 10 Was 54K30218 - B |
| 7 | Артикул: 6593392, TUBE |
| 8 | Артикул: 25K40224, RING,O Was 54K40224 - B |
| 9 | Артикул: 73K232, RING, BACK-UP back-up - Was 80K232 - A |
| 10 | Артикул: 6538367, HEAD, CYL TILT |
| 11 | Артикул: 6667326, SEAL Was 6538141 - B |
| 12 | Артикул: 6690707, WIPER, ROD CYL Was 6665086 - A |
| 13 | Артикул: 6592897, ROD |
| 14 | Артикул: 95D6, NUT Was 91D-6 - A |
| 15 | Артикул: 6502426, CLAMP |
| 16 | Артикул: 17C624, BOLT 5 |
| 17 | Артикул: 58K234, O RING 10 Was 54K40300 - B |
| 18 | Артикул: 79K6, O RING 10 Flat Boss Face |
| 19 | Артикул: 95K6, O-RING Tapered Boss Face |
| 20 | Артикул: PLUG, PLUG NLA - W/Ref. 18 - Flat Boss Face - Was 90K-5 - B |
| 21 | Артикул: 24K5, PLUG W/Ref. 18 - Tapered Boss Face - Was 90KV5 - A |
| 22 | Артикул: 6562266, CLAMP |
| 23 | Артикул: 7008355, SEAL, QUAD |
| 24 | Артикул: 7135547, KIT, SEAL Ref. 3, 5, 6, 8, 9, 11 & 12 - Was 6816325 - A |
ЦИЛИНДР НАКЛОНА: Техника, которая работает на результат
ЦИЛИНДР НАКЛОНА на Bobcat 500s Bobcat 553 513011001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
