Name: ЦИЛИНДР РУКОЯТИ
Brand: Bobcat
SKU: cilindr-rukoati-149502
Availability: InStock

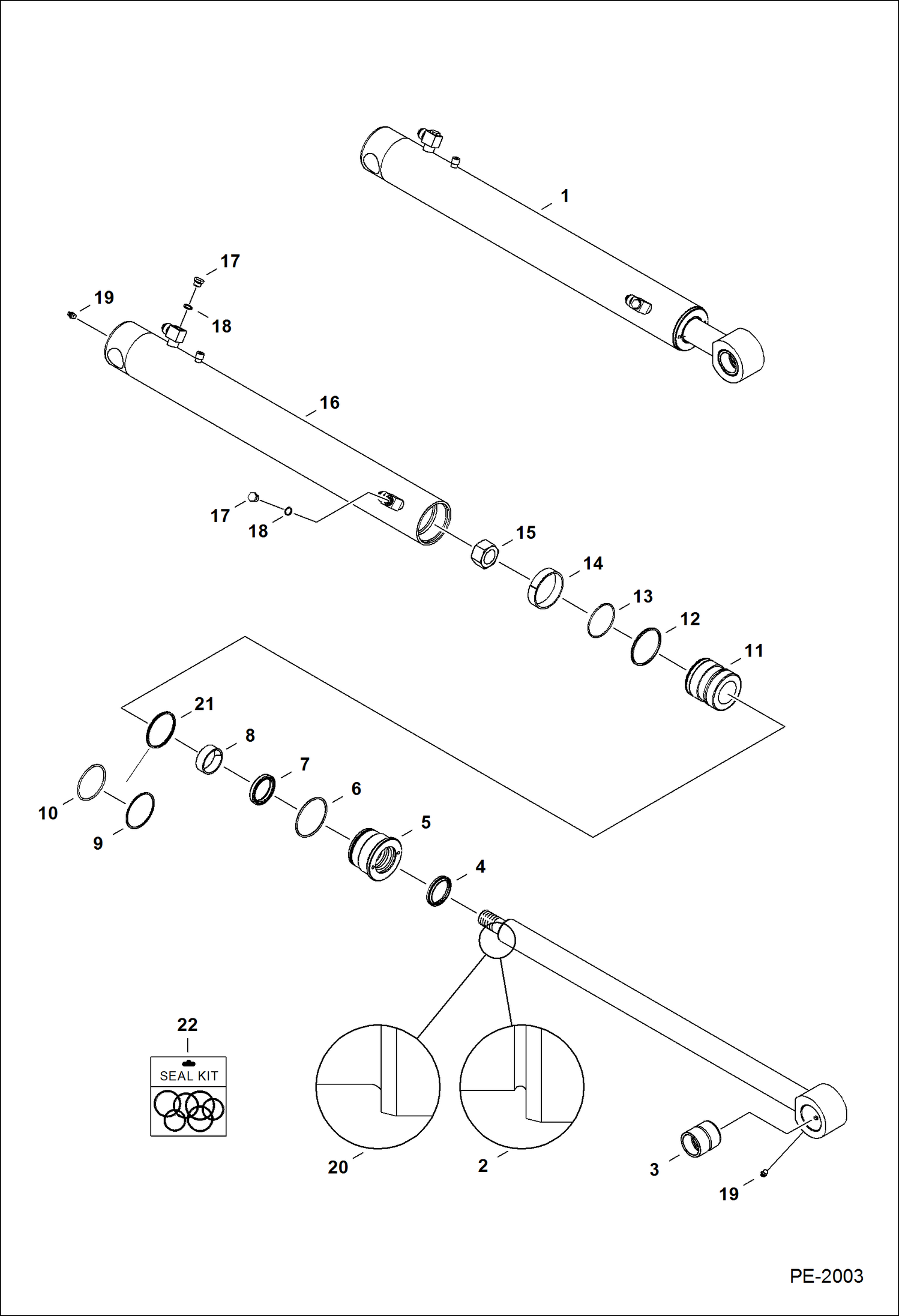

Спецтехника ЦИЛИНДР РУКОЯТИ - главное фото

Техника доступна в:

Рассрочка Лизинг Trade-In

Полный спектр услуг:

Сервис Офисы продаж Гарантия

Для Вашего удобства:

Запчасти Доставка

Характеристики и описание

Габариты, схема

Техническая документация

1	Артикул: CYLINDER, CYLINDER NLA - W/Ref. 2, 4-19 - Order 7167481 - Also Order Ref. 3 - Was 6816744 - A
2	Артикул: CYLINDER,, CYLINDER, ARM NLA - W/ 35.91-- (912 mm) tube length - Order 7167481 - W/Ref. 4-20 - Also Order Ref. 3 - Was 7155447 - A
3	Артикул: 7167481, CYLINDER, ARM ASSY W/ 36.51-- (927 mm) tube length - Also Order Ref. 3
4	Артикул: ROD, ROD NLA - Order Ref. 3, 11, 19, & 20 - BEFORE ORDERING SERVICE PARTS, NOTE THE DIFFERENCE IN TUBE LENGTHS WHICH DETERMINES THE CORRECT PISTON - Was 6816745 - A
5	Артикул: 6816829, BUSHING
6	Артикул: 6686998, WIPER, ROD CYL Was 6666545 - A
7	Артикул: 6817122, HEAD
8	Артикул: 82K236, RING,O Was 58K236 - A
9	Артикул: 6667328, SEAL
10	Артикул: 7000772, RING, WEAR Was 6698134 - A
11	Артикул: 73K234, BACK-UP RING back-up - Was 80K234 - A
12	Артикул: 58K234, O RING 10 Was 54K40300 - B
13	Артикул: 7147311, PISTON 3.19-- (81 mm) long - Use W/Ref. 16 (NLA tube) - Was 6816759 - A
14	Артикул: 7177230, PISTON, CYL 3.79-- (96.27 mm) long - Use W/Ref. 16 (7167482 tube, case cyl) - Was 7167484 - A
15	Артикул: 25K30226, O RING 10 Was 54K30226 - B
16	Артикул: 6513466, PISTON RG
17	Артикул: 7000778, RING, WEAR Was 6698180 - A
18	Артикул: 6810540, NUT
19	Артикул: TUBE,, TUBE, CASE CYL NLA - 35.91-- (912 mm) tube length - Use W/Ref. 11 (7147311) - Order Ref. 1 - Was 6816826 - A
20	Артикул: 7167482, TUBE, CASE CYL 36.51-- (927 mm) tube length - Use W/Ref. 11 (7167484)
21	Артикул: 6812171, PLUG W/Ref. 18
22	Артикул: 75K6, O-RING
23	Артикул: 10H25, FITTING, GREASE 5
24	Артикул: 7146694, ROD Also Order Ref. 3 & 19
25	Артикул: 7008354, SEAL, QUAD
26	Артикул: 7162072, KIT, SEAL W/Ref. 4, 6-8, 12-15, & 21 - Was 7155669 - A
