ДИЗЕЛЬНЫЙ ДВИГАТЕЛЬ DEUTZ F2L411D в Алматы
×
![]()
Характеристики и описание

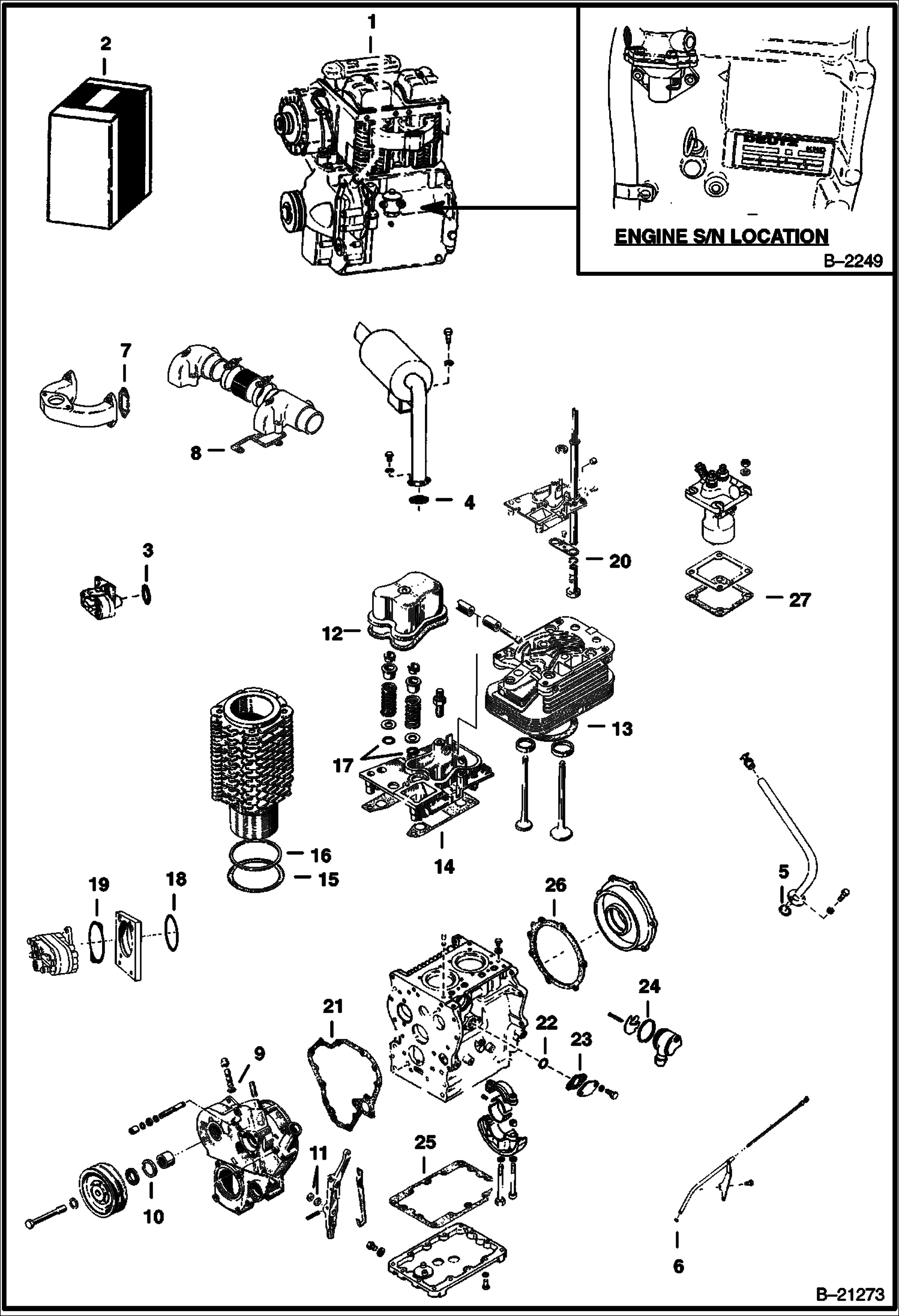

Габариты, схема
Техническая документация
| 1 | Артикул: ENGINE, ENGINE NLA - Deutz |
| 2 | Артикул: ENGINE, ENGINE NLA - remanufactured - includes manifold, fuel pump, blower, injection pump, injectors & oil filter - does not include starter, flywheel, alternator, air cleaner or fuel filter - Was 6548244REM - A |
| 3 | Артикул: 6512685, GASKET KIT overhaul - W/Ref. 3-27 - Also Order (1) 6512621 intake manifold gasket |
| 4 | Артикул: 6515913, O-RING See Illustration ENGINE & ATTACHING PARTS/ C1723 Ref. 52 |
| 5 | Артикул: 6541299, GASKET See Illustration ENGINE & ATTACHING PARTS/ C1723 Ref. 61 |
| 6 | Артикул: O-RING, O-RING See Illustration ENGINE & ATTACHING PARTS/ D1240 NLA - Ref. 10 - WAS 6505542 - A |
| 7 | Артикул: 6515616, O-RING See Illustration ENGINE & ATTACHING PARTS/ D1240 Ref. 16 |
| 8 | Артикул: 4110763, GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B21274 Ref. 6 |
| 9 | Артикул: 6512621, GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B21274 Ref. 16 |
| 10 | Артикул: 6515986, O-RING See Illustration FRONT COVER/ B21275 Ref. 7 |
| 11 | Артикул: 6511607, SEAL See Illustration FRONT COVER/ B21275 Ref. 35 |
| 12 | Артикул: 6516185, O-RING See Illustration THROTTLE ARM & GOVERNOR/ PI1659 Ref. 4 |
| 13 | Артикул: 6511128, GASKET See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 5 |
| 14 | Артикул: 6511351, GASKET See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 21 |
| 15 | Артикул: 6511837, GASKET See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 27 |
| 16 | Артикул: 6511937, SHIM See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 28 |
| 17 | Артикул: WASHER, WASHER See Illustration CYLINDER BLOCK & HEADS/ PI1756 NLA - Ref. 29 - Was 6511836 - A |
| 18 | Артикул: 6632540, O-RING See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 33 |
| 19 | Артикул: 6515913, O-RING See Illustration HYDRAULIC PUMP MOUNTING/ B1238 Ref. 8 |
| 20 | Артикул: GASKET, GASKET See Illustration HYDRAULIC PUMP MOUNTING/ B1238 Ref. 13 NLA - Ref. 13 - Was 6503220 - A |
| 21 | Артикул: 6519268, O-RING See Illustration CAMSHAFT & VALVE LIFTER/ PI1760 Ref. 9 |
| 22 | Артикул: 6515954, GASKET See Illustration CYLINDER BLOCK/ B21276 Ref. 1 |
| 23 | Артикул: 6516118, O-RING See Illustration CYLINDER BLOCK/ B21276 Ref. 17 |
| 24 | Артикул: GASKET, GASKET See Illustration CYLINDER BLOCK/ B21276 NSS - Ref. 20 |
| 25 | Артикул: 6512622, O-RING See Illustration CYLINDER BLOCK/ B21276 Ref. 23 |
| 26 | Артикул: GASKET, GASKET See Illustration CYLINDER BLOCK/ B21276 NLA - Was 6511834 - A |
| 27 | Артикул: 6513846, GASKET See Illustration CYLINDER BLOCK/ B21276 Ref. 55 |
| 28 | Артикул: GASKET, GASKET See Illustration FUEL SYSTEM/ C2261 NLA - Ref. 21 - Was 6511355 - A |
ДИЗЕЛЬНЫЙ ДВИГАТЕЛЬ DEUTZ F2L411D: Техника, которая работает на результат
ДИЗЕЛЬНЫЙ ДВИГАТЕЛЬ DEUTZ F2L411D на Bobcat 600s Bobcat 611 4960MA11001 И ВЫШЕ, 4967MA11001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
Документация
Документация временно недоступна.
