ДВИГАТЕЛЬ И КРЕПЕЖНЫЕ ДЕТАЛИ в Алматы
×
![]()
Характеристики и описание

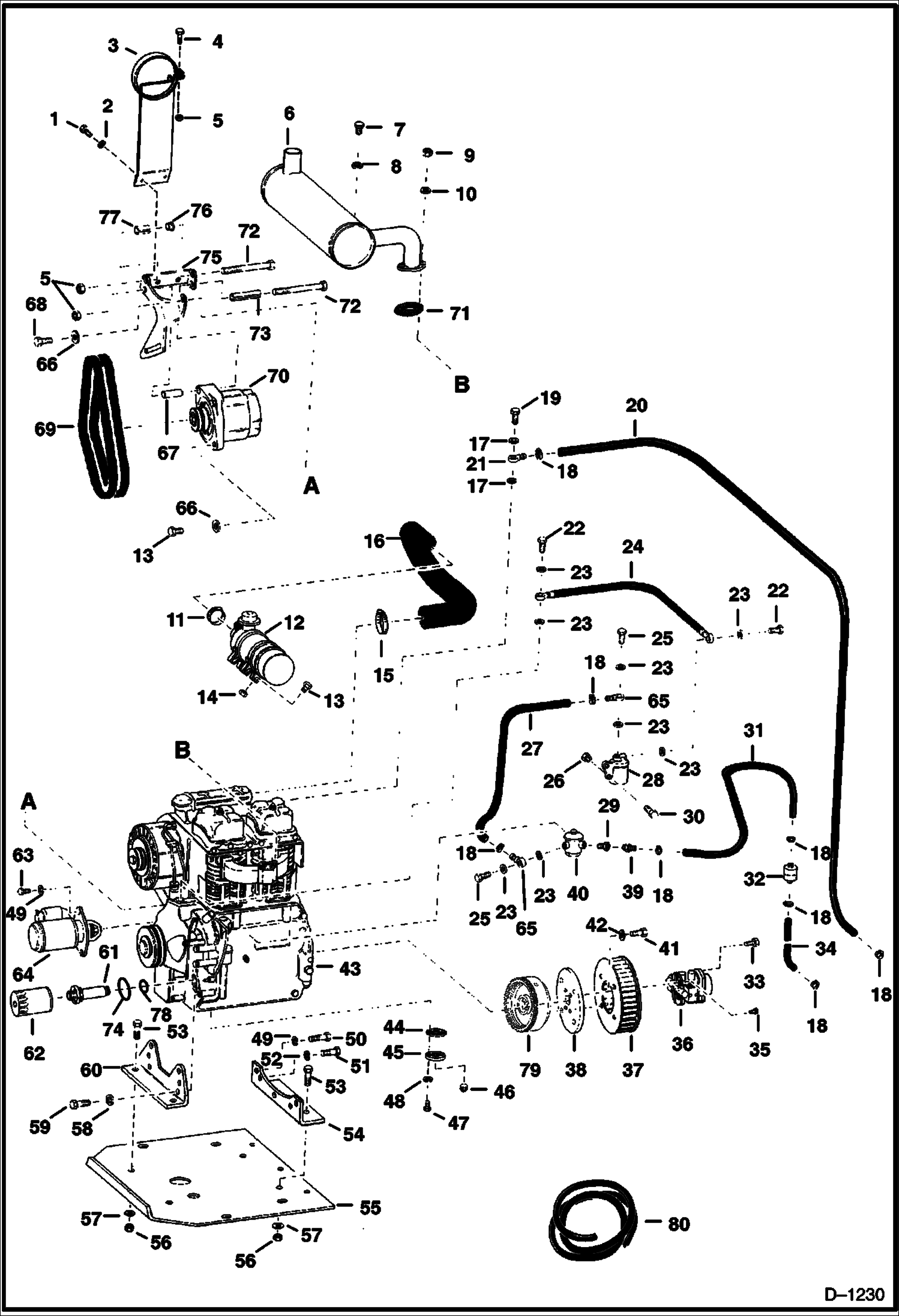

Габариты, схема
Техническая документация
| 1 | Артикул: 17C612, BOLT 5 |
| 2 | Артикул: 25E18, WASHER |
| 3 | Артикул: 6555512, BRACKET See BTI108 muffler |
| 4 | Артикул: 17C524, BOLT |
| 5 | Артикул: 91D5, NUT 5 Was 81D000005B - A |
| 6 | Артикул: MUFFLER, MUFFLER NLA - Was 6551116 - A |
| 7 | Артикул: 1CM820, BOLT Was 4CM820 - A |
| 8 | Артикул: 6EM80, WASHER, SPRING |
| 9 | Артикул: 1DM10, NUT |
| 10 | Артикул: 6EM100, WASHER |
| 11 | Артикул: 42H32, HS CLAMP5 Was 42H000024B - A |
| 12 | Артикул: CLEANER,, CLEANER, AIR See Illustration AIR CLEANER/ B17881 NLA - Was 6518192 - A |
| 13 | Артикул: 35C516, BOLT 10 Was 6554744 - A |
| 14 | Артикул: 61D5, NUT |
| 15 | Артикул: 44H48, CLAMP Was 6515576 - A |
| 16 | Артикул: 6548205, HOSE |
| 17 | Артикул: 1FM80115, WASHER |
| 18 | Артикул: 42HS04, CLAMP, HOSE Was 6515575 - A |
| 19 | Артикул: 6555923, BOLT banjo |
| 20 | Артикул: 6552639, HOSE return |
| 21 | Артикул: FITTING, FITTING NLA - banjo - Was 6511900 - A |
| 22 | Артикул: 6666396, SCREW banjo - Was 6514745 - A |
| 23 | Артикул: 6513763, WASHER Was 2FM14180 - A |
| 24 | Артикул: 6516120, HOSE filter to injection pump |
| 25 | Артикул: 6555921, BOLT banjo |
| 26 | Артикул: 61D6, NUT 5 |
| 27 | Артикул: HOSE, HOSE NLA - fuel pump to filter - 14-- (355,6 mm) long - Order Ref. 80 - Was 6558133 - A |
| 28 | Артикул: FILTER, FILTER See Illustration FUEL SYSTEM/ C2502 FUEL |
| 29 | Артикул: ADAPTER, ADAPTER NLA - Was 6511902 - A |
| 30 | Артикул: 17C616, BOLT 5 |
| 31 | Артикул: HOSE, HOSE NLA - 86 in. (2184,4 mm) long - Order Ref. 80 - Was 6547638 - A |
| 32 | Артикул: 6511393, FILTER |
| 33 | Артикул: 94G512, BOLTS 5 |
| 34 | Артикул: 6552638, HOSE |
| 35 | Артикул: 94G510, BOLTS 5 |
| 36 | Артикул: UNIVERSAL, UNIVERSAL JOINT See Illustration UNIVERSAL JOINT/ B17937 |
| 37 | Артикул: FAN, FAN NLA - Was 6558638 - A |
| 38 | Артикул: 6551019, ADAPTER flywheel |
| 39 | Артикул: ADAPTER, ADAPTER NLA - barbed - Was 6511901 - A |
| 40 | Артикул: 6658087, FUEL PUMP fuel - Was 6513747 - A |
| 41 | Артикул: 17C620, BOLT |
| 42 | Артикул: 6E6, WASHER |
| 43 | Артикул: ENGINE, ENGINE See Illustration ENGINE/ B17936 DEUTZ F2L-411D |
| 44 | Артикул: 6550746, GASKET NLA - Was 6550746 - A |
| 45 | Артикул: 6550745, FLANGE |
| 46 | Артикул: 40K6, PLUG |
| 47 | Артикул: 1CM620, BOLT Was 4CM620 - A |
| 48 | Артикул: 6EM60, WASHER, SPRING |
| 49 | Артикул: 6EM120, WASHER |
| 50 | Артикул: 1CM1245, BOLT 5 Was 4CM1245 - A |
| 51 | Артикул: 4CM1040, SCREW |
| 52 | Артикул: 6EM100, WASHER |
| 53 | Артикул: 17C828, BOLT |
| 54 | Артикул: 6548351, MOUNT engine |
| 55 | Артикул: 6551142, PLATE |
| 56 | Артикул: 85D8, NUT, 5 |
| 57 | Артикул: 25E22, WASHER |
| 58 | Артикул: 6EM140, WASHER |
| 59 | Артикул: 1CM1450, BOLT Was 4CM1450 - A |
| 60 | Артикул: 6548350, MOUNT engine |
| 61 | Артикул: ADAPTER, ADAPTER NLA - filter - Was 6511792 - A |
| 62 | Артикул: 6511793, ELEMENT engine oil |
| 63 | Артикул: 4CM1228, BOLT |
| 64 | Артикул: STARTER, STARTER See Illustration STARTER/ B1248 |
| 65 | Артикул: 6511899, ADAPTER banjo |
| 66 | Артикул: 25E16, WSHR |
| 67 | Артикул: BUSHING, BUSHING NLA - Was 6508137 - A |
| 68 | Артикул: 1CM850, BOLT |
| 69 | Артикул: 6511851, BELT fan |
| 70 | Артикул: ALTERNATOR, ALTERNATOR See Illustration ALTERNATOR/ B17933 |
| 71 | Артикул: 6541299, GASKET muffler |
| 72 | Артикул: 17C588, BOLT |
| 73 | Артикул: BUSHING, BUSHING NLA - Was 6508073 - A |
| 74 | Артикул: 6516076, O-RING |
| 75 | Артикул: BRACKET, BRACKET NLA - Was 6558535 - A |
| 76 | Артикул: ADAPTER, ADAPTER NLA - Was 6558536 - A |
| 77 | Артикул: PIN, PIN NLA - Was 6558537 - A |
| 78 | Артикул: 6516709, O-RING |
| 79 | Артикул: 6512547, FLYWHEEL See Illustration CRANKSHAFT, PISTON & FLYWHEEL/ C2248 W/RING GEAR |
| 80 | Артикул: 6516106, RING GEAR |
| 81 | Артикул: 6577821, HOSE sold per foot |
