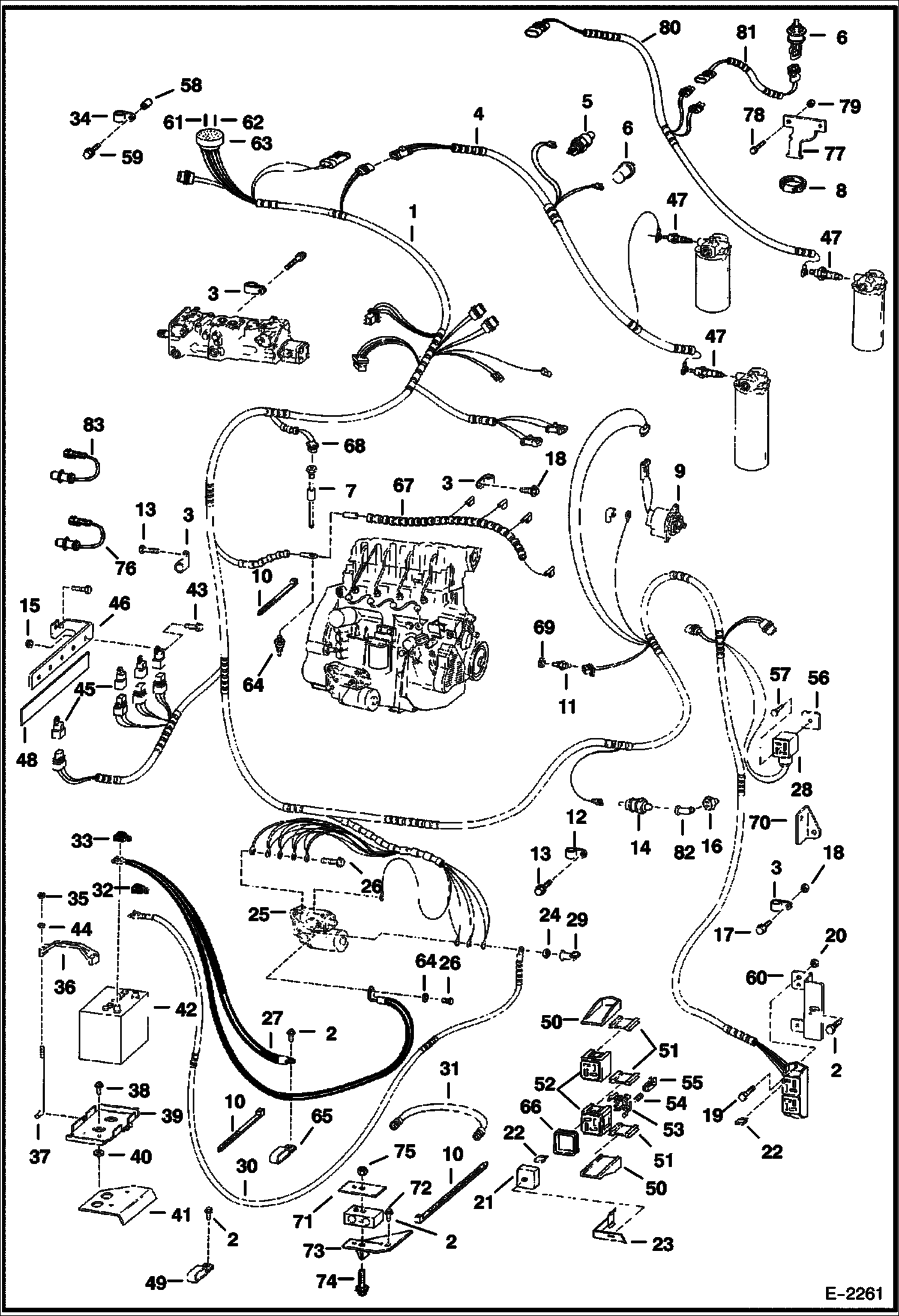

ЭЛЕКТРОСХЕМА ДВИГАТЕЛЯ (БЕЗ B.O.S.S. (ОПЦИЯ)) в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация
| 1 | Артикул: 6711562, HARNESS See BTI352 engine - Was 6709896 - A |
| 2 | Артикул: 6718070, HARNESS, ENG BASE See BTI352 engine - for side console - W/4 glow plug head - Was 6715947 - A |
| 3 | Артикул: 84G3712, BOLT 5 |
| 4 | Артикул: 30H49, CLAMP |
| 5 | Артикул: 6710729, HARNESS filter |
| 6 | Артикул: 7251584, SWITCH, TEMP hyd temp - Was 6632633 - A |
| 7 | Артикул: 6667292, SWITCH hyd. charge pressure |
| 8 | Артикул: SENSOR, SENSOR NLA - fuel - W/ O-ring - Order 6674209 sensor - Was 6669642 - A |
| 9 | Артикул: 79K14, O RING 10 |
| 10 | Артикул: 7286464, SENSOR, FUEL Was 7179839 - A |
| 11 | Артикул: 6717579, GASKET |
| 12 | Артикул: 42H16, CLAMP, HOSE 5 1.5-- max. dia. |
| 13 | Артикул: 44H20, CLAMP Was 42H000020B - A |
| 14 | Артикул: ALTERNATOR, ALTERNATOR See Illustration ALTERNATOR/ C3312 - Was 6661611 - B |
| 15 | Артикул: 6610510, TIE |
| 16 | Артикул: 6717120, SENDER, TEMP OIL engine oil temp. - W/ black wire - Was 6666613 - A |
| 17 | Артикул: 30H57, CLAMP |
| 18 | Артикул: 1CM816, BOLT |
| 19 | Артикул: 6631010, SWITCH, PRESS OIL ENG engine oil pressure |
| 20 | Артикул: 55D4, NUT |
| 21 | Артикул: 6708580, ADAPTER |
| 22 | Артикул: 17C512, BOLT 5 Was 17C-3112 - B |
| 23 | Артикул: 85D5, NUT 5 |
| 24 | Артикул: 45G1212, BOLT Was 45D000012B - B |
| 25 | Артикул: 50D12, NUT |
| 26 | Артикул: 6665358, COVER , FUSE fuses |
| 27 | Артикул: 6707620, FUSE, 10A MINI 5 |
| 28 | Артикул: 6707621, FUSE, 15A MINI 5 |
| 29 | Артикул: 6707623, FUSE, 25A MINI 5 |
| 30 | Артикул: 6674099, BREAKER, 25A |
| 31 | Артикул: 6708437, CLIP spring |
| 32 | Артикул: 4DM5, NUT |
| 33 | Артикул: STARTER, STARTER See Illustration STARTER/ D2365 - Was 6685191 - B |
| 34 | Артикул: 45C620, BOLT Was 35C000620B - B |
| 35 | Артикул: 6713670, CABLE ground - Was 6713118 - C |
| 36 | Артикул: 6665659, CONNECTOR, SHUTDOWN fuel shutdown |
| 37 | Артикул: 6560172, COVER |
| 38 | Артикул: 6576188, CABLE positive - W/ 30-- (762 mm) of Ref. 31 - Was 6579809 - A |
| 39 | Артикул: 6563505, CONDUIT bulk - sold per foot |
| 40 | Артикул: 2356058, BOOT |
| 41 | Артикул: BOOT, BOOT NLA - Was 6599652 - A |
| 42 | Артикул: 30H60, CLIP |
| 43 | Артикул: 59D5, NUT 5 |
| 44 | Артикул: 6569203, CLAMP |
| 45 | Артикул: 6576280, BOLT |
| 46 | Артикул: 84G3716, SCREW 5 |
| 47 | Артикул: 6712536, PAN Was 6577809 - A |
| 48 | Артикул: 6555455, WASHER |
| 49 | Артикул: 6579989, BRACKET |
| 50 | Артикул: 7312553, BATTERY 700 CCA DRY - Was 6665427 - A |
| 51 | Артикул: 17C412, BOLT 5 |
| 52 | Артикул: 25E15, WASHER |
| 53 | Артикул: 6670312, SWITCH, MAGNETIC relay - Was 6665005 - A |
| 54 | Артикул: 6707649, MOUNT |
| 55 | Артикул: 6632053, SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818A filter |
| 56 | Артикул: 6707787, DECAL fuse location |
| 57 | Артикул: 30H46, CLIP |
| 58 | Артикул: 6665369, MOUNT fuse |
| 59 | Артикул: 6665411, WEDGE red |
| 60 | Артикул: 6665356, BLOCK fuse - W/Ref. 66 |
| 61 | Артикул: 6665357, LOCK yellow |
| 62 | Артикул: 6650107, SEAL |
| 63 | Артикул: PIN, PIN NLA - female - Order 6668719 pin for 16 ga. wire - Order 6668720 pin for 14 ga. wire - Was 6648311 - A |
| 64 | Артикул: 6668760, SEAL |
| 65 | Артикул: 6668761, BOLT |
| 66 | Артикул: 6712975, SPACER |
| 67 | Артикул: 84G3732, BOLT |
| 68 | Артикул: 6714764, MOUNT fuse block - Use W/ 1-piece rear door |
| 69 | Артикул: 6664828, SOCKET |
| 70 | Артикул: 6664041, SOCKET |
| 71 | Артикул: 6664585, CONNECTOR Also Order Ref. 61 & 62 as needed - Was 6665682 - A |
| 72 | Артикул: 6511720, PRE-HEATER |
| 73 | Артикул: 31H46, CLAMP |
| 74 | Артикул: 6671528, SEAL green square - Was 6671156 - D |
| 75 | Артикул: 6714434, HARNESS See BTI310 for 4 glow plug changeover |
| 76 | Артикул: 6646383, CONNECTOR fuel sender |
| 77 | Артикул: 6632946, TERMINAL female |
| 78 | Артикул: 6666405, WASHER seal |
| 79 | Артикул: 6714979, BRACKET harness |
| 80 | Артикул: 6715132, RETAINER cable clamp |
| 81 | Артикул: 6715197, CLAMP |
| 82 | Артикул: 6715131, BRACKET battery cable |
| 83 | Артикул: 17C540, BOLT |
| 84 | Артикул: 95D5, NUT |
| 85 | Артикул: 6684037, SENSOR RPM - Was 6658260 - B |
| 86 | Артикул: 6704319, MOUNT |
| 87 | Артикул: 17C416, BOLT |
| 88 | Артикул: 85D4, NUT 5 |
| 89 | Артикул: 6716642, HARNESS filter - for M-44 pump |
| 90 | Артикул: 6717131, HARNESS |
| 91 | Артикул: 25F1, ELBOW |
| 92 | Артикул: 6679853, SENSOR RPM |
ЭЛЕКТРОСХЕМА ДВИГАТЕЛЯ (БЕЗ B.O.S.S. (ОПЦИЯ)): Техника, которая работает на результат
ЭЛЕКТРОСХЕМА ДВИГАТЕЛЯ (БЕЗ B.O.S.S. (ОПЦИЯ)) на Bobcat 800s Bobcat 863 514411001 - 514439999, 514511001 - 514539999, 514611001 - 514639999 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
