Name: ФРЕЗА (60-- 467000101 - 02281)
Brand: Bobcat
SKU: freza-60-467000101-02281-73950
Availability: InStock

Спецтехника ФРЕЗА (60-- 467000101 - 02281) - главное фото

Купить ФРЕЗА (60-- 467000101 - 02281) в Казахстане

Техника доступна в:

Рассрочка Лизинг Trade-In

Полный спектр услуг:

Сервис Офисы продаж Гарантия

Для Вашего удобства:

Запчасти Доставка

Характеристики и описание

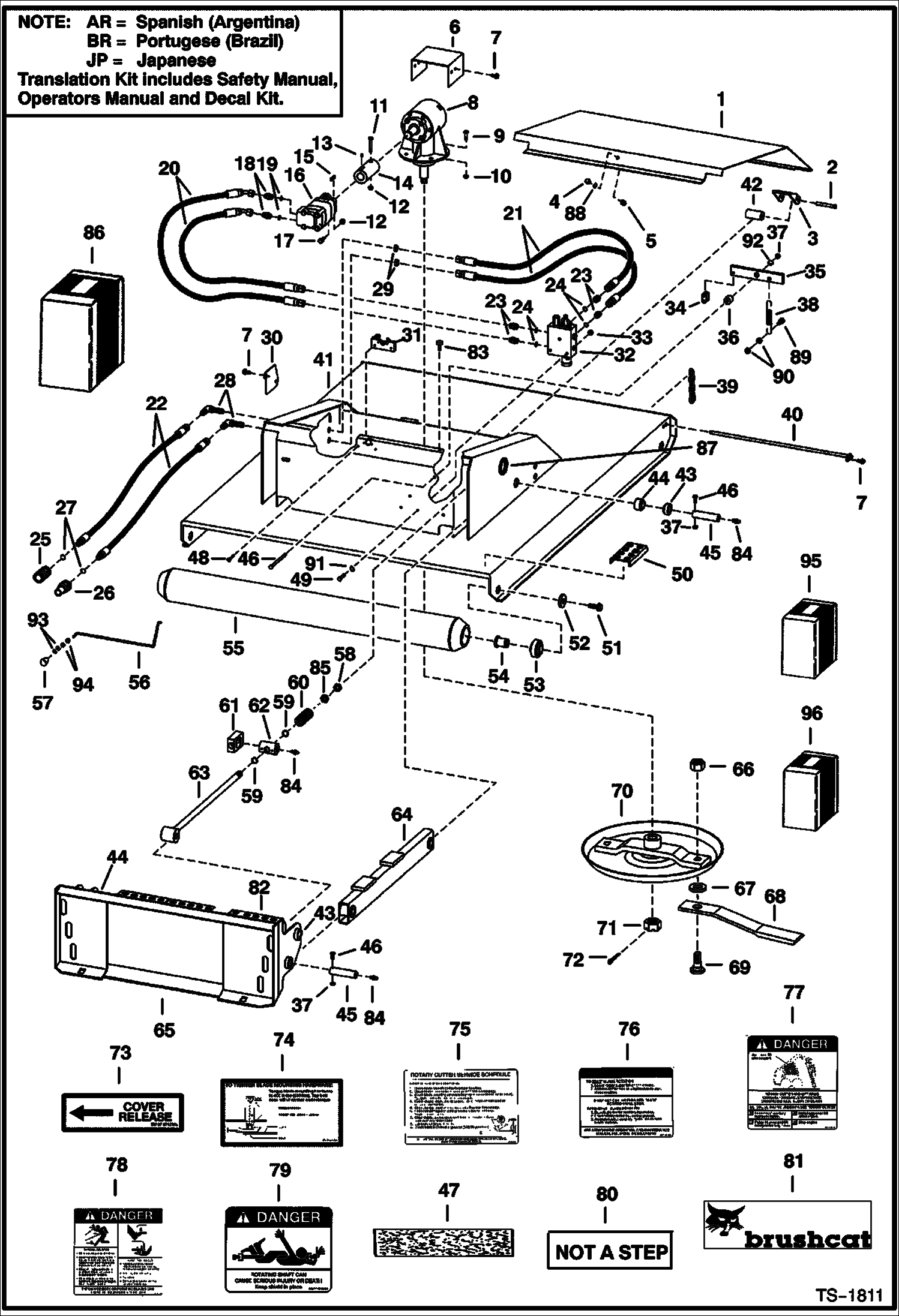

Габариты, схема

Техническая документация

1	Артикул: 6714714, COVER
2	Артикул: 6564340, PIN
3	Артикул: 6562225, HINGE
4	Артикул: 35C716, BOLT
5	Артикул: 6568047, NUT
6	Артикул: 6714687, COVER
7	Артикул: 84G3712, BOLT 5
8	Артикул: GEARBOX, GEARBOX See Illustration ROTARY CUTTER/ D2408
9	Артикул: 17C1032, BOLT
10	Артикул: 89D10, NUT
11	Артикул: 17C848, BOLT
12	Артикул: 89D8, NUT
13	Артикул: 15G410, SET SCREW
14	Артикул: 6714930, COUPLER
15	Артикул: 7J4204, KEY
16	Артикул: MOTOR, MOTOR
17	Артикул: 93G828, BOLT
18	Артикул: 15KB1010, FITTING, HYD CONNECTOR W/Ref. 19 - Was 15KV00007B - A
19	Артикул: 97K10, O-RING 10 for flared end
20	Артикул: 99K10, RING,O
21	Артикул: 6816334, HOSE Was 6807342 - A
22	Артикул: 6809881, HOSE Was 6715386 - A
23	Артикул: 6715387, HOSE
24	Артикул: 15KB1212, FITTING, HYD CONNECTOR W/Ref. 24 - Was 15KN00008B - A
25	Артикул: 97K12, RING,O flared end
26	Артикул: 99K12, O RING
27	Артикул: 7246790, COUPLER, FF FEMALE See BTI433att - straight - Was 6672960 - A
28	Артикул: 7246777, COUPLER, FF MALE See BTI433att - Was 6674688 - A
29	Артикул: 79K12, O RING 10
30	Артикул: 88F7, ELBOW bulkhead
31	Артикул: 88F7, ELBOW bulkhead - W/O-ring on flare end - Was 88FN00007B - A
32	Артикул: 97K10, O-RING 10 for flared end
33	Артикул: 86F7, LOCK NUT
34	Артикул: 6714713, COVER
35	Артикул: 6665531, LATCH
36	Артикул: VALVE, VALVE See Illustration ROTARY CUTTER/ D2417 SHUTOFF
37	Артикул: 83D5, NUT 5
38	Артикул: 6715370, LINK
39	Артикул: 6714717, ARM shutoff
40	Артикул: 6715397, MOUNT
41	Артикул: 89D6, NUT
42	Артикул: 6715840, SPRING
43	Артикул: 6714698, CHAIN
44	Артикул: 6714695, ROD
45	Артикул: HOUSING, HOUSING NLA - order 6812734 housing, 6812807 cover, (2) of 6728966 hose & (2) of 6679764 latch - Was 6714673 - A
46	Артикул: 6812734, HOUSING
47	Артикул: 6562224, BUSHING weld on
48	Артикул: 6555989, BUSHING outer - weld on
49	Артикул: 6555987, BUSHING inner - weld on
50	Артикул: 6703572, PIN, PIVOT
51	Артикул: 17C640, BOLT
52	Артикул: 6577947, SAFETY TREAD 190,5 x 381 mm (7.5 x 15--)
53	Артикул: 25G416, BOLT
54	Артикул: 17C552, BOLT
55	Артикул: 6905990, STEP Was 6701943 - B
56	Артикул: 31C1236, BOLT
57	Артикул: 6552871, WASHER
58	Артикул: 6671962, BEARING, BALL
59	Артикул: 6714694, MOUNT, BEARING 2.10-- (53,34mm) long
60	Артикул: 6714691, ROLLER, MOWER
61	Артикул: 6714708, ROD
62	Артикул: 6672326, COVER
63	Артикул: 8D16, NUT
64	Артикул: 1657083, WIPER ROD wiper
65	Артикул: 6594434, SPRING, COMPRESSION
66	Артикул: 6717059, SPACER
67	Артикул: 6809668, BUSHING Also Order Ref. 59 - Was 6717341 - A
68	Артикул: 6810712, SHAFT, ROD CYL POWER BOB-TACH Was 6716946 - A
69	Артикул: 6714704, MOUNT
70	Артикул: 6812808, MOUNT Was 6714699 - A
71	Артикул: NUT, NUT NLA - without flange-with nylon insert- order 6810800 nut & 6813014 bolt
72	Артикул: 6810800, NUT with flange-without nylon insert
73	Артикул: WASHER, WASHER NLA - 3.00-- O.D. - Order 6809851 washer & 6809869 bolt - Was 6813014 - C
74	Артикул: 6809851, WASHER 4.50-- O.D.
75	Артикул: BLADE, BLADE NSS - standard - 3-- offset - Order Ref. 95 - Was 6715080 - A
76	Артикул: BLADE, BLADE NSS - 2-- offset - cut is approx. 1-- higher than standard blade - Order Ref. 95 - Was 6719541 - A
77	Артикул: BOLT, BOLT NLA - Order 6809851 washer & 6813014 bolt - Was 6714929 - C
78	Артикул: BOLT, BOLT NLA - without nylon patch - order 6813014 bolt & 6810800 nut - Was 6809869 - A
79	Артикул: 6813014, BOLT with nylon patch
80	Артикул: 6719729, MOUNT Was 6715062 - A
81	Артикул: 6672818, NUT
82	Артикул: 1F632, PIN
83	Артикул: 6715355, DECAL, INSTRUCTIONS release
84	Артикул: 6715356, DECAL, INSTRUCTIONS See Illustration ROTARY CUTTER/ NA6229 - nut torque
85	Артикул: 7214473, DECAL, INSTRUCTIONS See Illustration ROTARY CUTTER/ NA6229 - no-text - nut torque
86	Артикул: 6809665, DECAL service - Was 6715357 - A
87	Артикул: 6715358, DECAL operation
88	Артикул: 6715359, DECAL danger/service
89	Артикул: 6715360, DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229
90	Артикул: 7214474, DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - no-text
91	Артикул: 6715361, DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - rotating shaft
92	Артикул: 7214475, DECAL, DANGER - no-text
93	Артикул: 6657351, DECAL, STEP See Illustration ROTARY CUTTER/ NA6229
94	Артикул: 7130136, DECAL, STEP See Illustration ROTARY CUTTER/ NA6229 - no-text
95	Артикул: 6717587, DECAL Brushcat - Was 6711327 - B
96	Артикул: 6577917, STEP
97	Артикул: 6655399, BUMPER
98	Артикул: 10H25, FITTING, GREASE 5
99	Артикул: 58D16, NUT
100	Артикул: 6716976AR, KIT decal - SEE NOTE
101	Артикул: 6716976BR, KIT decal - SEE NOTE
102	Артикул: 6716976JP, KIT decal - SEE NOTE
103	Артикул: 6716975AR, KIT translation - SEE NOTE
104	Артикул: 6716975BR, KIT translation - SEE NOTE
105	Артикул: 6714688, BUSHING weld on
106	Артикул: 25E19, WASHER
107	Артикул: 31C640, BOLT
108	Артикул: 55D6, NUT
109	Артикул: 25E15, WASHER
110	Артикул: 619021, WASHER, 5
111	Артикул: 25E14, WSHR
112	Артикул: 61D4, NUT 5
113	Артикул: 6732897, BLADE KIT standard 3-- offset - W/qty. 2 ea. of Ref. 66, 68 & 69
114	Артикул: 6732896, BLADE KIT 2-- offset - cut is 1-- higher than standard blade - W/qty. 2 ea. of Ref. 66, 68 & 69
