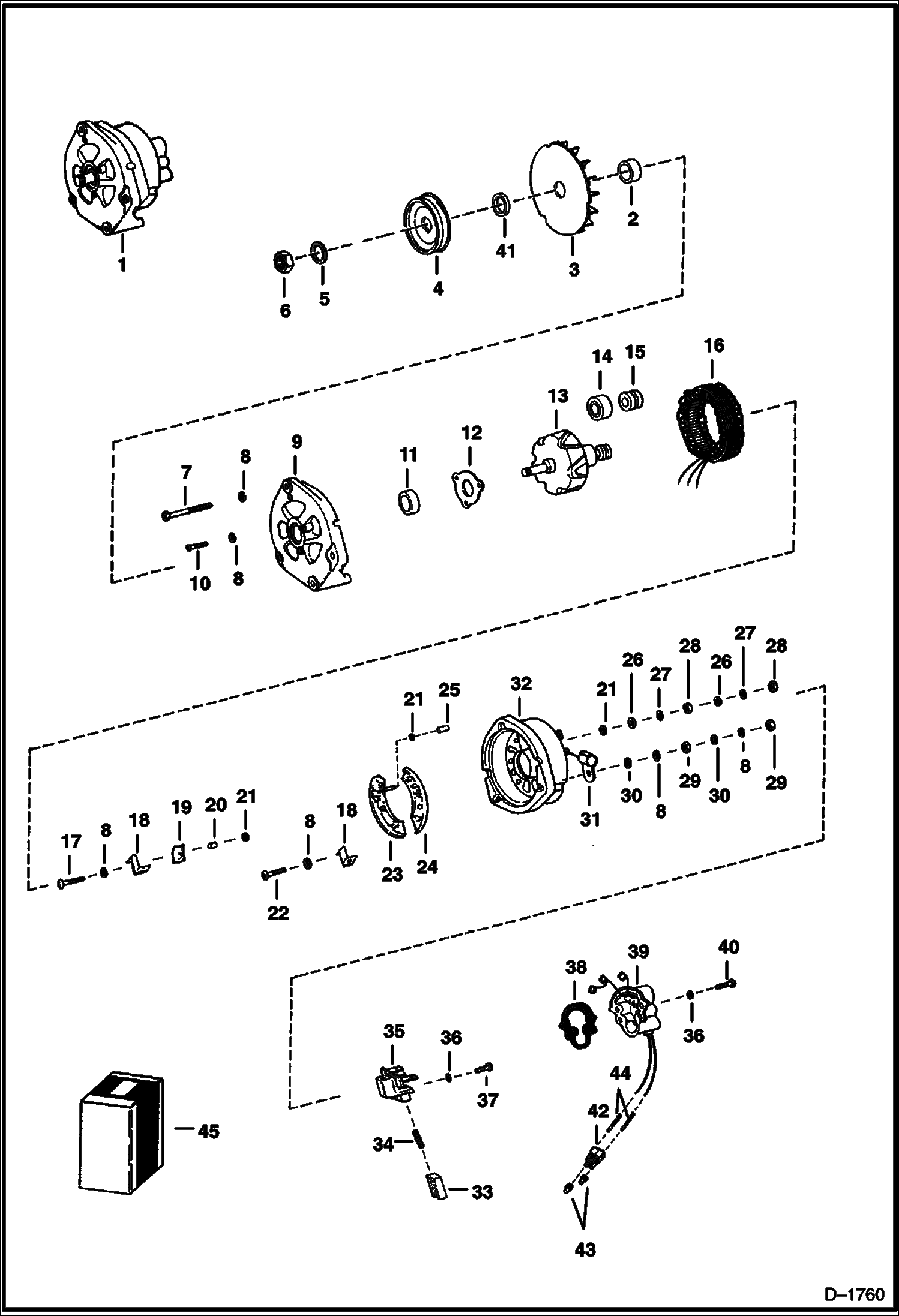

| 1 | Артикул: ALTERNATOR, ALTERNATOR NLA - Less Fan & Pulley - Order 6661611 Alternator & 6659375 Fan - Was 6632211 - B |
| 2 | Артикул: 6632210, WASHER Was 6632323 - B |
| 3 | Артикул: FAN, FAN NLA - Order 6661611 Alternator & 6659375 Fan - Was 6632209 - A |
| 4 | Артикул: 6571536, PULLEY Was 6577035 - A |
| 5 | Артикул: WASHER, WASHER NLA - Was 6632208 - A |
| 6 | Артикул: NUT, NUT NLA - Was 6632207 - A |
| 7 | Артикул: 6632222, BOLT |
| 8 | Артикул: WASHER, WASHER NSS |
| 9 | Артикул: BRACKET, BRACKET NLA - W/Ref. 8 & 10-12 - Was 6632224 - A |
| 10 | Артикул: SCREW, SCREW NSS |
| 11 | Артикул: BEARING, BEARING NSS |
| 12 | Артикул: RETAINER, RETAINER NSS |
| 13 | Артикул: ROTOR, ROTOR NLA - W/Ref. 14 & 15 - Was 6632229 - A |
| 14 | Артикул: BEARING, BEARING NSS |
| 15 | Артикул: SLIP, SLIP RING NSS |
| 16 | Артикул: STATOR, STATOR NSS - Was 6632230 - A |
| 17 | Артикул: BOLT, BOLT NSS |
| 18 | Артикул: CLAMP, CLAMP NSS |
| 19 | Артикул: MOLD-U, MOLD-U NSS |
| 20 | Артикул: BUSHING, BUSHING NSS - insulation |
| 21 | Артикул: WASHER, WASHER NSS - insulation |
| 22 | Артикул: SCREW, SCREW NSS |
| 23 | Артикул: HEATSINK, HEATSINK NSS |
| 24 | Артикул: HEATSINK, HEATSINK NSS |
| 25 | Артикул: BUSHING, BUSHING NSS - insulation |
| 26 | Артикул: WASHER, WASHER NSS |
| 27 | Артикул: WASHER, WASHER NSS |
| 28 | Артикул: NUT, NUT NSS |
| 29 | Артикул: NUT, NUT NSS |
| 30 | Артикул: WASHER, WASHER NSS |
| 31 | Артикул: 6632242, CONDENSER |
| 32 | Артикул: BRACKET, BRACKET NSS - W/Ref. 8 & 17-31 - Was 6632231 - A |
| 33 | Артикул: BRUSH, BRUSH NSS |
| 34 | Артикул: SPRING, SPRING NSS |
| 35 | Артикул: BRUSH, BRUSH HOLDER NSS - W/Ref. 33 & 34 - Was 6632248 - A |
| 36 | Артикул: WASHER, WASHER NSS |
| 37 | Артикул: SCREW, SCREW NSS |
| 38 | Артикул: 6632253, GASKET |
| 39 | Артикул: KIT, KIT NSS - regulator - W/Ref. 36 & 38-40 - Also Order Ref. 44 - Was 6632384 - A |
| 40 | Артикул: SCREW, SCREW NSS |
| 41 | Артикул: 6571554, SPACER |
| 42 | Артикул: 6630949, CONNECTOR |
| 43 | Артикул: 6648320, SEAL Was 6630950 - A |
| 44 | Артикул: 6630951, TERMINAL |
| 45 | Артикул: KIT, KIT NLA - bearing - W/Ref. 11, 14 & 15 - Was 6632381 - A |
| 46 | Артикул: KIT, KIT NLA - external hardware - W/Ref. 8, 21,26-30,36,37&40- Was 6632382 - A |
| 47 | Артикул: 6632383, KIT internal hardware - W/Ref. 8, 17-22 & 25 |
| 48 | Артикул: KIT, KIT NSS - brush holder - W/Ref. 33-37 - See Ref. 1 - Was 6632385 - A |
