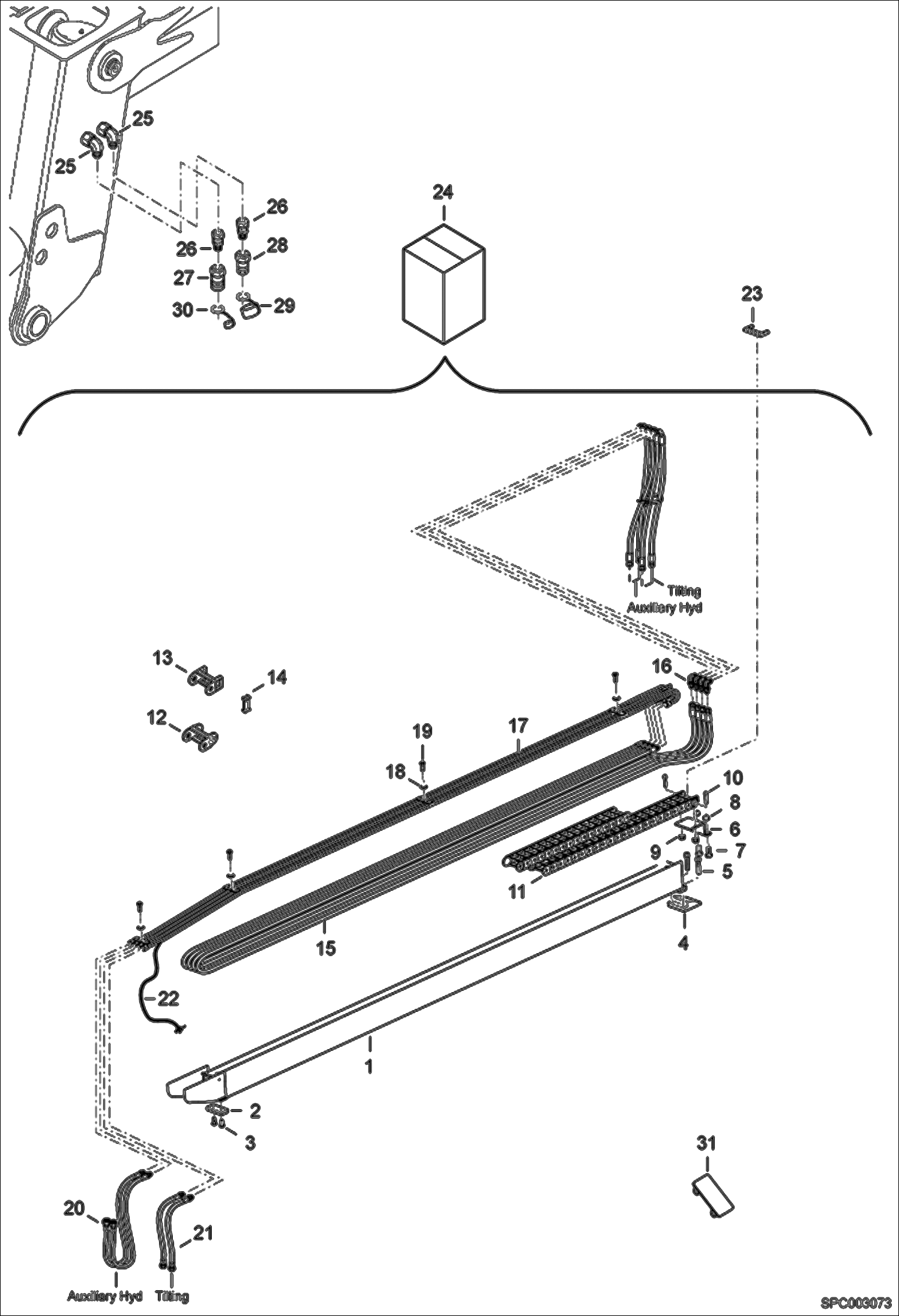

ГИДРАВЛИЧЕСКАЯ СИСТЕМА СТРЕЛЫ в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация
| 1 | Артикул: 7247294, BOX, SUPPORT Was 6910842 - A |
| 2 | Артикул: 6910307, PATIN |
| 3 | Артикул: 7214544, SCREW Was 95502.1 - A |
| 4 | Артикул: 7215444, SLIDE Was 6915701 - A |
| 5 | Артикул: 6GM1040, SCREW Was 88540.0 - A |
| 6 | Артикул: 7247213, BRACKET Was 6910278 - A |
| 7 | Артикул: 1CM1025, BOLT Was 01605.5 - B |
| 8 | Артикул: 7252655, NUT Was 100345-09A - A |
| 9 | Артикул: 7248549, NUT Was 100345-05V - B |
| 10 | Артикул: 6GM525, SCREW Was 33786.5 - A |
| 11 | Артикул: 7247277, CHAIN Was 6909226 - A |
| 12 | Артикул: 95571.6, Link |
| 13 | Артикул: 95572.4, Link |
| 14 | Артикул: 95088.1, Chain spacer |
| 15 | Артикул: 7247304, HOSE, HYD Was 6910210 - A |
| 16 | Артикул: 010370-57L, ELBOW UNION |
| 17 | Артикул: 7247207, TUBELINE Was 6909214 - A |
| 18 | Артикул: 01718.6, Washer |
| 19 | Артикул: 4CM825, BOLT Was 01597.4 - B |
| 20 | Артикул: 7247278, HOSE, HYD Was 76401.9 - A |
| 21 | Артикул: 7247212, HOSE, HYD Was 80407.0 - A |
| 22 | Артикул: 6911736, WIRE HARNESS 2 or 3 wires |
| 23 | Артикул: 7215442, PLATE, CHAIN FIXATION Was 6909681 - A |
| 24 | Артикул: 6916579, HYDRAULIC ARM - CHANNEL ASSY W/Ref. 1-22 |
| 25 | Артикул: 010370-90W, ELBOW PIECE |
| 26 | Артикул: 7225156, FITTING, HYD Was 022375-06W - A |
| 27 | Артикул: 7225158, COUPLER, HYD See BTI433th Was 95993.2 - A |
| 28 | Артикул: 7225159, COUPLER, HYD Was 95994.0 - A |
| 29 | Артикул: 7225160, CAP, COUPLER Was 96513.7 - A |
| 30 | Артикул: 7225161, CAP, COUPLER Was 96514.5 - A |
| 31 | Артикул: 7178513, CAP, SOCKET |
ГИДРАВЛИЧЕСКАЯ СИСТЕМА СТРЕЛЫ: Техника, которая работает на результат
ГИДРАВЛИЧЕСКАЯ СИСТЕМА СТРЕЛЫ на телескопический погрузчик Bobcat T35120L A8GJ11001 И ВЫШЕ, A8GV11001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
