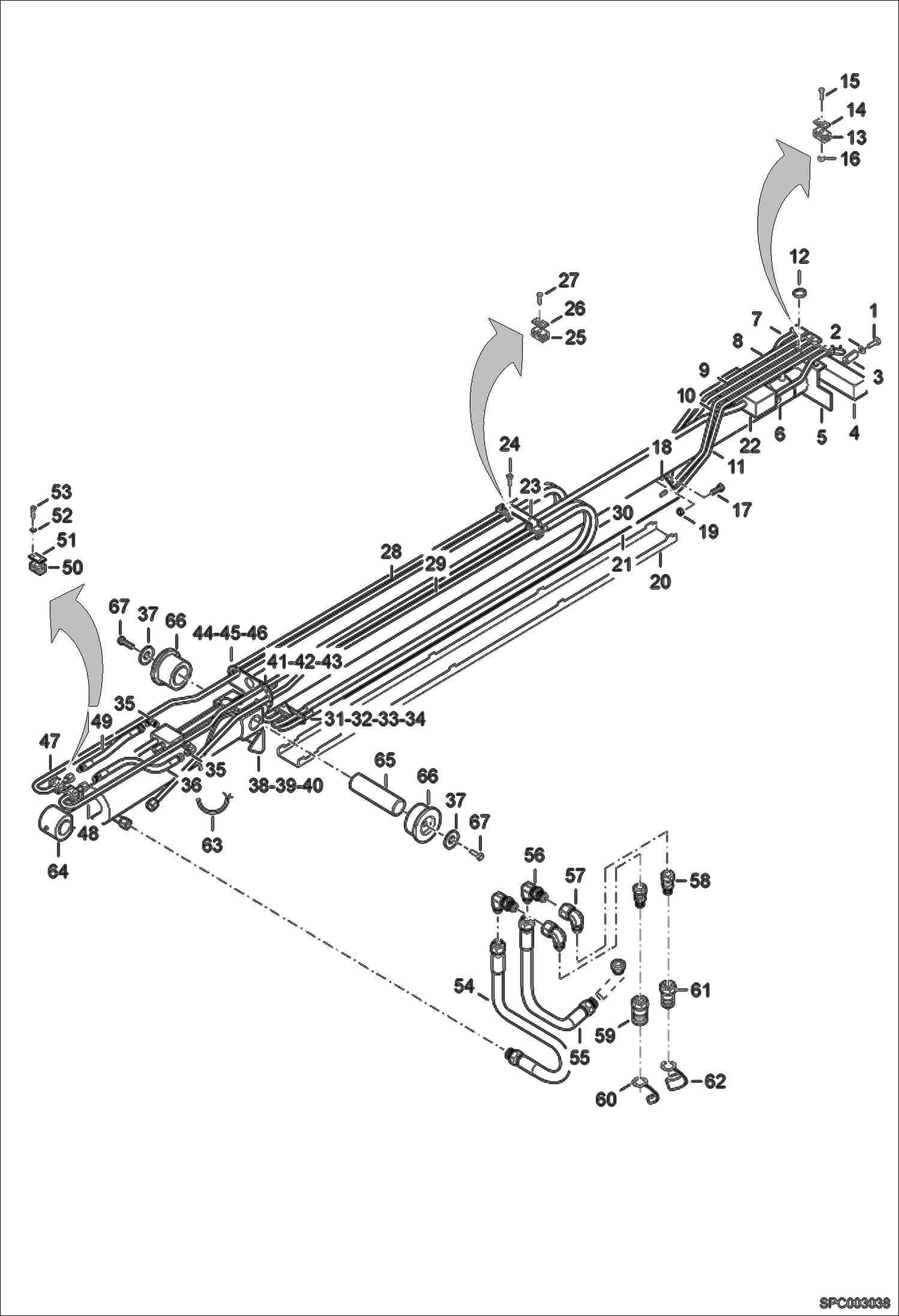

ГИДРАВЛИЧЕСКАЯ СИСТЕМА СТРЕЛЫ в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация
| 1 | Артикул: 77492.7, Screw |
| 2 | Артикул: 89518.5, Washer |
| 3 | Артикул: 100357-03X, PIN |
| 4 | Артикул: 77798.7, Support |
| 5 | Артикул: 88523.8, Support |
| 6 | Артикул: 7244942, FITTING, HYD Was 014375-30H - A |
| 7 | Артикул: 77792.0, Hydraulic pipe |
| 8 | Артикул: 77386.1, Tube |
| 9 | Артикул: 77387.9, Tube |
| 10 | Артикул: 77388.7, Tube |
| 11 | Артикул: 77389.5, Tube |
| 12 | Артикул: 6624289, STRAP, TIE |
| 13 | Артикул: 55932.8, Clamp |
| 14 | Артикул: 7228311, PLATE Was 54215.9 - A |
| 15 | Артикул: 01508.1, Screw |
| 16 | Артикул: 01681.6, Nut Was 51851.4 - B |
| 17 | Артикул: 01604.8, Screw |
| 18 | Артикул: 77791.2, Spacer |
| 19 | Артикул: 7252655, NUT Was 100345-09A - A |
| 20 | Артикул: 77396.0, Support |
| 21 | Артикул: 77652.6, Panel |
| 22 | Артикул: CYLINDER, CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003057 NLA - Was 6912582 - A |
| 23 | Артикул: CYLINDER, CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003058 NLA - Was 6913007 - A |
| 24 | Артикул: CYLINDER, CYLINDER ASSY, TELESCOPE See Illustration TELESCOPE CYLINDER/ SPC003263 NLA - Was 6924515 - A |
| 25 | Артикул: 6927069, TELESCOPE CYLINDER See Illustration TELESCOPE CYLINDER/ EM8430 |
| 26 | Артикул: 89390.9, Bracket |
| 27 | Артикул: 1CM816, BOLT Was 01595.8 - A |
| 28 | Артикул: 55932.8, Clamp |
| 29 | Артикул: 7228311, PLATE Was 54215.9 - A |
| 30 | Артикул: 01578.4, Screw |
| 31 | Артикул: 77777.1, Hose |
| 32 | Артикул: 77778.9, Hose |
| 33 | Артикул: 77397.8, Hose |
| 34 | Артикул: 77655.9, Pin |
| 35 | Артикул: 77402.6, Support |
| 36 | Артикул: 01604.8, Screw |
| 37 | Артикул: 7252655, NUT Was 100345-09A - A |
| 38 | Артикул: 7244882, FITTING, HYD ELBOW for tilt cylinder 6917920 - Was 65285.9 - A |
| 39 | Артикул: 7244942, FITTING, HYD for tilt cylinder 6926430 - Was 014375-30H - A |
| 40 | Артикул: 94414.0, Hose for tilt cylinder 6917920 |
| 41 | Артикул: 6925869, HOSE for tilt cylinder 6926430 |
| 42 | Артикул: 7030195, WASHER Was 6923051 |
| 43 | Артикул: 77794.6, Support |
| 44 | Артикул: 7225260, WASHER Was 89516.9 - A |
| 45 | Артикул: 01604.8, Screw |
| 46 | Артикул: 77784.7, Support |
| 47 | Артикул: 7225260, WASHER Was 89516.9 - A |
| 48 | Артикул: 01604.8, Screw |
| 49 | Артикул: 77394.5, Bracket |
| 50 | Артикул: 32090.3, Screw |
| 51 | Артикул: 7252655, NUT Was 100345-09A - A |
| 52 | Артикул: 90180.1, Tube |
| 53 | Артикул: 90179.3, Tube |
| 54 | Артикул: 7247212, HOSE, HYD for tilt cylinder 6917920 - Was 80407-0 - A |
| 55 | Артикул: 6925870, HOSE for tilt cylinder 6926430 |
| 56 | Артикул: 7179623, SLEEVE Was 61358.8 - A |
| 57 | Артикул: 61357.0, Welding plate |
| 58 | Артикул: 01717.8, Washer |
| 59 | Артикул: 001338-08T, SCREW |
| 60 | Артикул: 76367.2, Hose |
| 61 | Артикул: 77398.6, Hose |
| 62 | Артикул: 010370-57L, ELBOW UNION |
| 63 | Артикул: 010370-90W, ELBOW PIECE |
| 64 | Артикул: 7225156, FITTING, HYD Was 022375-06W - A |
| 65 | Артикул: 7225158, COUPLER, HYD See BTI433th Was 95993.2 - A |
| 66 | Артикул: 7225161, CAP, COUPLER Was 96514.5 - A |
| 67 | Артикул: 7225159, COUPLER, HYD Was 95994.0 - A |
| 68 | Артикул: 7225160, CAP, COUPLER Was 96513.7 - A |
| 69 | Артикул: 6916536, WIRE Was 96474.2 - A |
| 70 | Артикул: CYLINDER,, CYLINDER, TILT See Illustration TILT CYLINDER/ SPC003059 NLA - Was 90788.1 - A |
| 71 | Артикул: CYLINDER,, CYLINDER, TILT See Illustration TILT CYLINDER/ SPC003174 NLA - Was 6917920 - A |
| 72 | Артикул: 6926430, HYDRAULIC CYLINDER See Illustration TILT CYLINDER/ EM7435 |
| 73 | Артикул: 84627.9, Pivot pin |
| 74 | Артикул: 84626.1, Plug |
| 75 | Артикул: 84630.3, Screw |
ГИДРАВЛИЧЕСКАЯ СИСТЕМА СТРЕЛЫ: Техника, которая работает на результат
ГИДРАВЛИЧЕСКАЯ СИСТЕМА СТРЕЛЫ на телескопический погрузчик Bobcat T3571 362811001 - 362811999, 362911001 - 362911999 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
