Name: ГИДРОСТАТИЧЕСКИЙ НАСОС
Brand: Bobcat
SKU: gidrostaticeskij-nasos-113750
Availability: InStock

Спецтехника ГИДРОСТАТИЧЕСКИЙ НАСОС - главное фото

Купить ГИДРОСТАТИЧЕСКИЙ НАСОС в Казахстане

Техника доступна в:

Рассрочка Лизинг Trade-In

Полный спектр услуг:

Сервис Офисы продаж Гарантия

Для Вашего удобства:

Запчасти Доставка

Характеристики и описание

Габариты, схема

Техническая документация

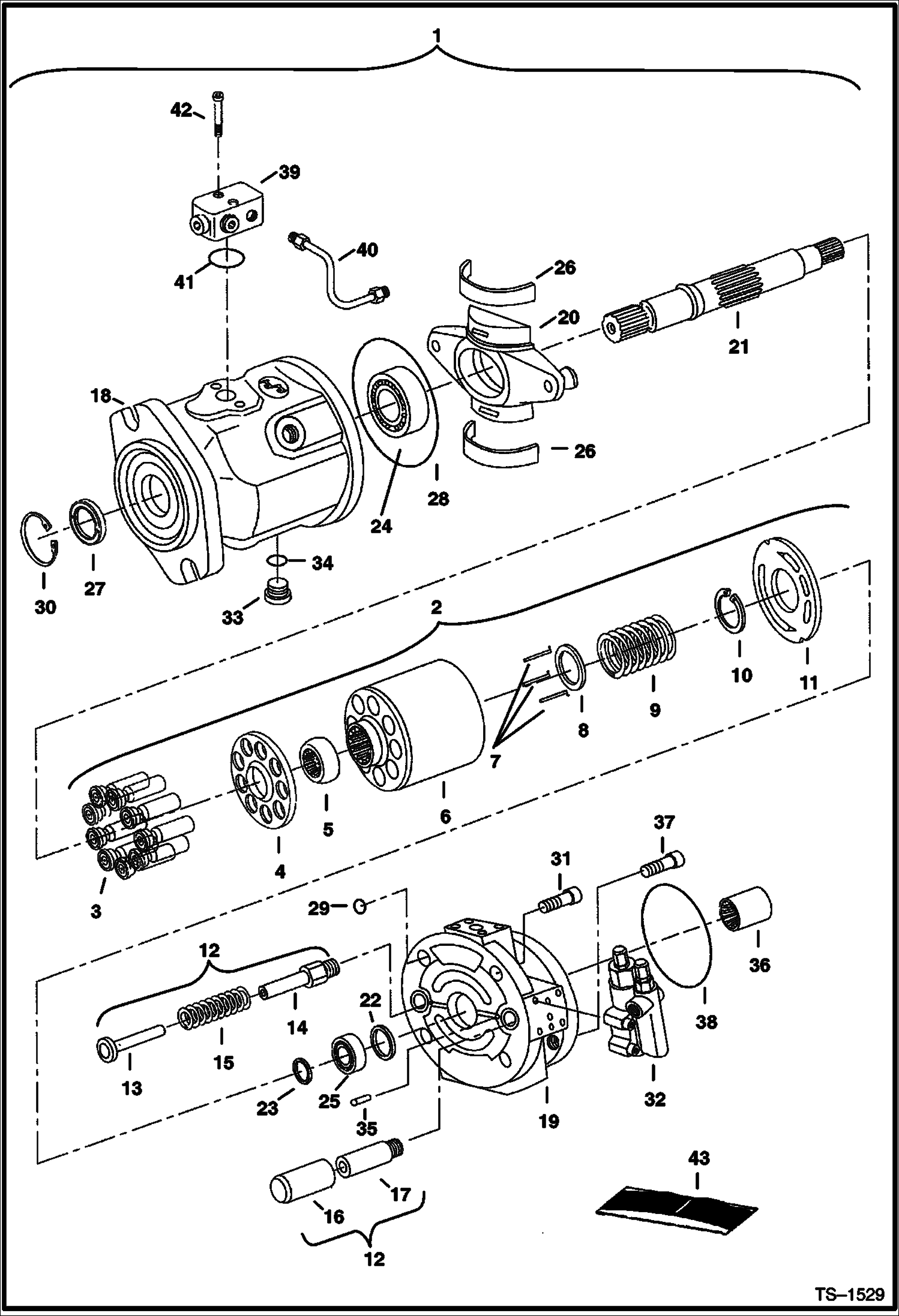

1	Артикул: 6672207, PUMP Hydrostatic - Includes Ref. 2-42
2	Артикул: 6672220, BLOCK ASSY Piston, includes Ref. 3 - 11
3	Артикул: PISTON, PISTON NSS - Include W/Ref. 2
4	Артикул: PLATE, PLATE NSS - Retainer - Include W/Ref. 2
5	Артикул: RETAINER, RETAINER NSS - Ball - Include W/Ref. 2
6	Артикул: BLOCK, BLOCK NSS - Piston - Include W/Ref. 2
7	Артикул: PIN, PIN NSS - Include W/Ref. 2
8	Артикул: RETAINER, RETAINER NSS - Include W/Ref. 2
9	Артикул: SPRING, SPRING NSS - Include W/Ref. 2
10	Артикул: SNAP, SNAP RING NSS - Include W/Ref. 2
11	Артикул: 6672245, PLATE Lens - Include W/Ref. 2
12	Артикул: 6688520, CONTROL Control - Includes Ref. 13-17 - Was 6672221 - A
13	Артикул: 6672247, PISTON Include W/Ref. 12
14	Артикул: GUIDE, GUIDE NSS - Include W/Ref. 12
15	Артикул: 6672248, SPRING Include W/Ref. 12
16	Артикул: 6672246, PISTON Include W/Ref. 12
17	Артикул: GUIDE, GUIDE NSS - Include W/Ref. 12
18	Артикул: 6672222, HOUSING
19	Артикул: 6672223, COVER
20	Артикул: 6672224, CRADLE ASSY
21	Артикул: 6672225, DRIVE SHAFT 15 tooth
22	Артикул: 6672226, WASHER
23	Артикул: 6691449, SHIM Was 6686748 - A
24	Артикул: 6672228, BEARING
25	Артикул: 6672229, BEARING
26	Артикул: 6672230, BEARING Cradle
27	Артикул: 6672231, SEAL Shaft - Include W/Ref. 43
28	Артикул: O-RING, O-RING NSS - Include W/Ref. 43
29	Артикул: O-RING, O-RING NSS - Include W/Ref. 43
30	Артикул: 6672232, SNAP RING Was 6672232 - A
31	Артикул: 6688008, SCREW 40mm Long - Was 6672233 - A
32	Артикул: 6672234, VALVE ASSY See Illustration CONTROL VALVE/ B15928 - Control
33	Артикул: 6671748, PLUG W/Ref.
34	Артикул: 6671787, O-RING Include W/Ref. 43
35	Артикул: 6672235, DOWEL PIN
36	Артикул: 6688921, COUPLING Was 6672236 - A
37	Артикул: 6692894, BOLT 25mm long - Was 6672237 - D
38	Артикул: 6675169, O-RING Include W/Ref. 43- Was 6672238 - D
39	Артикул: 6672239, VALVE ASSY See Illustration CONTROL VALVE/ TS1527 - Control
40	Артикул: 6686776, PIPE includes fittings - Was 6672240 - A
41	Артикул: 6672241, O-RING
42	Артикул: 6672242, BOLT 35mm Long
43	Артикул: 6686695, SEAL KIT See Illustration CONTROL VALVE/ B15928 Ref. 3,6, & 10-11 - Also includes 27-29, 34 & 38 on this page - Was 6672243 - A
