Характеристики и описание
Габариты, схема
Техническая документация

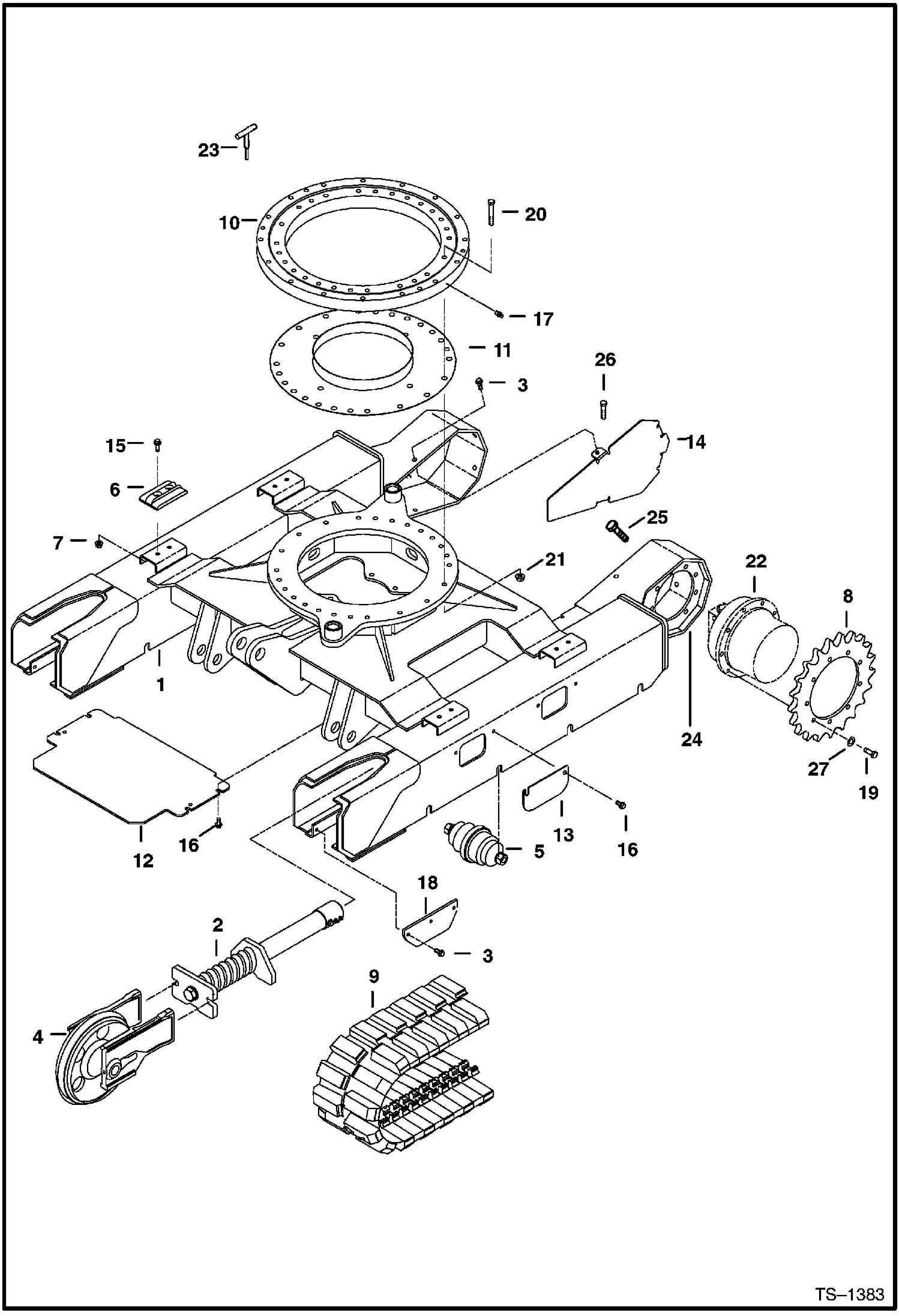

| 1 | Артикул: TRACK, TRACK FRAME See BTIE-082 - NLA - Was 6597364 - A |
| 2 | Артикул: TRACK, TRACK FRAME See BTIE-082 - NLA - Was 6807594 - A |
| 3 | Артикул: TRACK, TRACK FRAME See BTIE-082 - NLA - Was 6809707 - A |
| 4 | Артикул: CYLINDER, CYLINDER See Illustration TRACK TENSIONER/ PE3459 - coil |
| 5 | Артикул: 26GM10030, BOLT - Used with steel tracks only |
| 6 | Артикул: FRONT, FRONT IDLER See Illustration FRONT IDLER/ B17111 - Rubber Track |
| 7 | Артикул: IDLER, IDLER See Illustration FRONT IDLER/ B17111 Steel Track - Was 6814884 - A |
| 8 | Артикул: ROLLER, ROLLER ASSY See Illustration TRACK ROLLER/ C3357A - for rubber tracks - Was 6589006 - A |
| 9 | Артикул: ROLLER, ROLLER ASSY See Illustration TRACK ROLLER/ D1958 - Steel Track - Was 6589002 - Steel Track - Was 6810770 - A |
| 10 | Артикул: 6534234, BRACKET track slide |
| 11 | Артикул: 51DM10, NUT |
| 12 | Артикул: 6814137, SPROCKET, MOTOR DRIVE TRACK 21 tooth - 9 hole - Was 6811940 - A |
| 13 | Артикул: TRACK,, TRACK, RUBBER See Illustration TRACKS/ NA6195 |
| 14 | Артикул: TRACK,, TRACK, STEEL See Illustration TRACKS/ B17458 |
| 15 | Артикул: 6655124, BEARING 96 teeth on swing gear |
| 16 | Артикул: 6535548, FLANGE |
| 17 | Артикул: 6597346, COVER |
| 18 | Артикул: 6596723, COVER |
| 19 | Артикул: 6596689, COVER |
| 20 | Артикул: 6807599, COVER |
| 21 | Артикул: 29CM1030, BOLT |
| 22 | Артикул: 26GM10020, BOLT Self tapping |
| 23 | Артикул: 6652970, GREASE FITTING |
| 24 | Артикул: 6596396, PLATE guide - steel track |
| 25 | Артикул: 55CM1235, BOLT Was 1CM01235B - A |
| 26 | Артикул: 7CM1280, BOLT |
| 27 | Артикул: 51DM12, NUT |
| 28 | Артикул: DRIVE, DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2172 See Illustration HYDRAULIC CIRCUITRY/ D2358 |
| 29 | Артикул: 6586495, PIN alignment -service tool for aligning swing bearing when upperstructure has been removed from undercarriage |
| 30 | Артикул: 6596688, PLATE Travel motor mount - weld on |
| 31 | Артикул: 1CM1225, BOLT |
| 32 | Артикул: 26GM10030, BOLT for cover 6807599 |
| 33 | Артикул: 26GM10025, SCREW for cover 6596689 |
| 34 | Артикул: 18EM1224, WASHER |
НАДСТРОЙКА: Техника, которая работает на результат
НАДСТРОЙКА на мини-экскаватор Bobcat 331 512913001 И ВЫШЕ, 516711001 И ВЫШЕ, 517711001 И ВЫШЕГабаритные размеры
Нажмите на схему для увеличения
