ОРГАНЫ РУЧНОГО УПРАВЛЕНИЯ в Алматы
×
![]()
Характеристики и описание

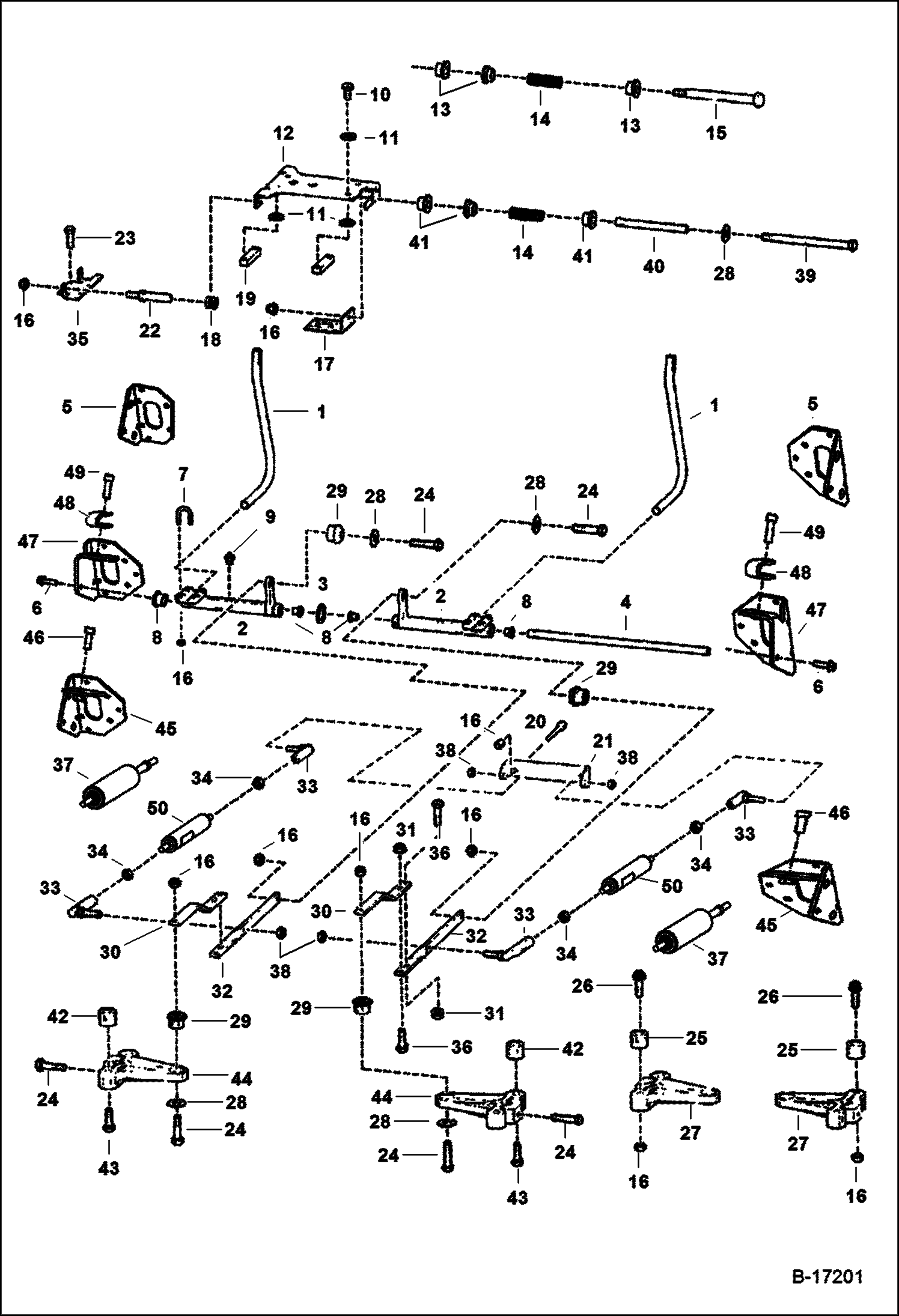

Габариты, схема
Техническая документация
| 1 | Артикул: 6702543, LEVER, STEERING |
| 2 | Артикул: BELLCRANK, BELLCRANK NLA - W/Notch for bushing tab - Order 7110571 Bellcrank, Ref. 9 (10H000035B Grease Zerk), Ref. 28 (619021B Washer) & Ref. 29 (6678067 Bushing) - Was 6703880 - A |
| 3 | Артикул: BELLCRANK, BELLCRANK NLA - W/Notch for bushing tab - Use W/Ref. 9 (6518200 Grease Zerk) - Order 7110571 Bellcrank & Ref. 9 (10H000035B Grease Zerk) - Was 7101047 - A |
| 4 | Артикул: 7110571, BELLCRANK, STEERING W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk) |
| 5 | Артикул: 6599741, WASHER wave |
| 6 | Артикул: ROD, ROD NLA - Use W/Ref. 6 (17C-616 Bolt) - Order 6716545 Rod & (2) of 45C000620B Bolt - Was 6576250 - A |
| 7 | Артикул: 6716545, ROD Use W/Ref. 6 (45C-620 Bolt) |
| 8 | Артикул: 6577230, BRACKET L shaped |
| 9 | Артикул: 17C616, BOLT 5 |
| 10 | Артикул: 45C620, BOLT Was 45C-524 - B |
| 11 | Артикул: 6732997, U-BOLT Was 6700768 - A |
| 12 | Артикул: 6703879, BUSHING, PLASTIC W/tab |
| 13 | Артикул: 6518200, FITTNG, GREASE 10 press fit |
| 14 | Артикул: 10H35, FITTING, GREASE 10 threaded |
| 15 | Артикул: 8C616, SCREW |
| 16 | Артикул: 6557831, WASHER |
| 17 | Артикул: 6706095, MOUNT |
| 18 | Артикул: BUSHING, BUSHING NLA - Order Ref. 28, 35, 36 & (3) of Ref. 37 - Was 6706097 - A |
| 19 | Артикул: 6701535, SPRING |
| 20 | Артикул: BOLT, BOLT NLA - shoulder - Order Ref. 28, 35, 36 & (3) of Ref. 37 -Was 6702715 - A |
| 21 | Артикул: 95D6, NUT Was 91D000006B - A |
| 22 | Артикул: 6576196, MOUNT |
| 23 | Артикул: 6706098, GUIDE |
| 24 | Артикул: 6702716, BLOCK |
| 25 | Артикул: 17C612, BOLT 5 |
| 26 | Артикул: 6706106, MOUNT |
| 27 | Артикул: 6577058, PIN |
| 28 | Артикул: 1CM820, BOLT |
| 29 | Артикул: 17C626, BOLT |
| 30 | Артикул: 6704435, WEAR CAM |
| 31 | Артикул: 93G616, SCREW |
| 32 | Артикул: 6701145, LEVER, PINTLE .63 in. pump lever shaft |
| 33 | Артикул: 6563914, WASHER 1.00 in. (25,4 mm) O.D. |
| 34 | Артикул: 619021, WASHER, 5 |
| 35 | Артикул: 6665701, BUSHING, PRESS FIT neoprene - .885 in. (22,5 mm) O.D. |
| 36 | Артикул: 6685060, BUSHING, TORSION torsion - 26,8 mm (1.055--) OD - Was 6678067 - A |
| 37 | Артикул: 6576194, LINK |
| 38 | Артикул: 83D6, NUT 5 |
| 39 | Артикул: 6576195, LINK |
| 40 | Артикул: 6599744, BALL JOINT |
| 41 | Артикул: 8D6, NUT 5 |
| 42 | Артикул: 6706096, MOUNT |
| 43 | Артикул: 17C620, BOLT |
| 44 | Артикул: GAS, GAS SPRING NLA - Japan Option - Order Ref. 50 - Was 6649551 - A |
| 45 | Артикул: 62D6, NUT 5 |
| 46 | Артикул: 17C680, BOLT |
| 47 | Артикул: 6715164, SLEEVE, SPRING |
| 48 | Артикул: 6715163, BUSHING, PRESS FIT |
| 49 | Артикул: 6711643, CAM |
| 50 | Артикул: 35C612, BOLT |
| 51 | Артикул: LEVER, LEVER NLA - .8725 in. (22,2 MM) I.D. hole for Ref. 29 ( 6665701 Bushing) - Order 6729956 Lever, Ref. 28 (619021 Washer) & Ref. 29 (6678067 BUSHING) - Was 6711644 - A |
| 52 | Артикул: 6729956, LEVER, PINTLE 1.0475 in. (26,5 mm) I.D. hole - W/Ref. 29 (6678067 Bushing) |
| 53 | Артикул: BRACKET, BRACKET NLA - R.H. - Order Ref. 47-49 - Was 6733022 - A |
| 54 | Артикул: BRACKET, BRACKET NLA - L.H. - Order Ref. 47-49 - Was 6733024 - A |
| 55 | Артикул: 93G824, BOLT Was 73G824 - A |
| 56 | Артикул: 7128600, BRACKET RH |
| 57 | Артикул: 7128601, BRACKET LH |
| 58 | Артикул: 7121779, PAD |
| 59 | Артикул: 73G828, BOLT |
| 60 | Артикул: 7188108, GAS SPRING |
ОРГАНЫ РУЧНОГО УПРАВЛЕНИЯ: Техника, которая работает на результат
ОРГАНЫ РУЧНОГО УПРАВЛЕНИЯ на Bobcat 700s Bobcat 751 515611001 - 515619999, 515711001 - 515729999 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
