ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH в Алматы
×
![]()
Характеристики и описание

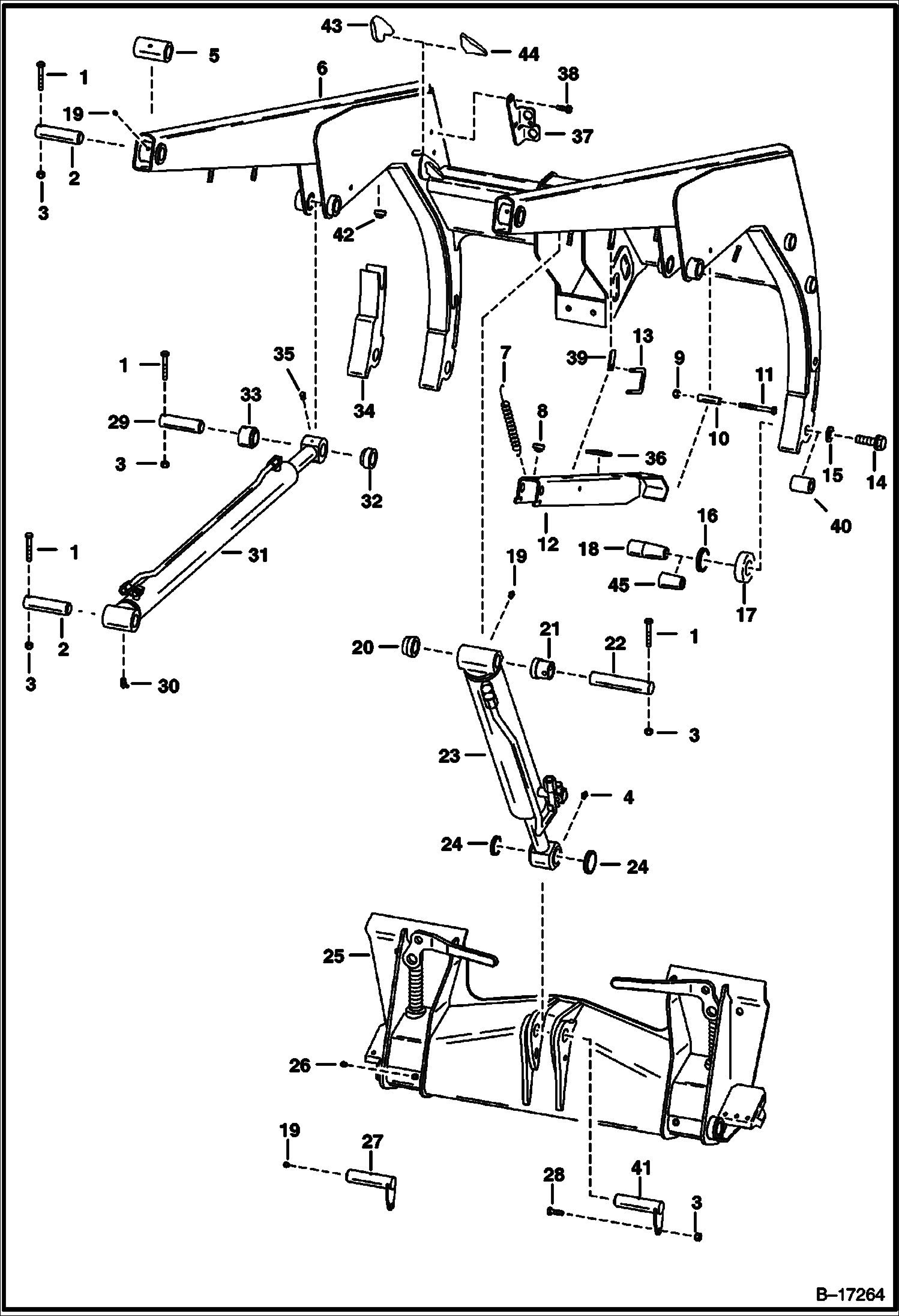

Габариты, схема
Техническая документация
| 1 | Артикул: 17C640, BOLT |
| 2 | Артикул: 6577954, PIN, PIVOT 1.25-- x 4.65-- (31,7 mm x 118 mm) |
| 3 | Артикул: 85D6, NUT, 5 |
| 4 | Артикул: 10H35, FITTING, GREASE 10 |
| 5 | Артикул: 6578356, BUSHING Weld On |
| 6 | Артикул: LIFT, LIFT ARM NLA - 1.25 in. (31,8 mm) dia. Bob-Tach pin - Order 6730797 Lift Arm & (2) ea. of Ref. 15 (6560416 Washer) & Ref. 45 - Was 6703136 - A |
| 7 | Артикул: 6730797, LIFT ARM 1.50 in. (38,1 mm) dia. Bob-Tach pin |
| 8 | Артикул: 6700743, SPRING |
| 9 | Артикул: 6519178, BUMPER rubber |
| 10 | Артикул: 61D6, NUT 5 |
| 11 | Артикул: 6700469, SPACER |
| 12 | Артикул: 17C648, BOLT 5 |
| 13 | Артикул: 6705089, LIFT ARM STOP |
| 14 | Артикул: 6714810, PIN retainer |
| 15 | Артикул: 31C1064, BOLT for 1.25 in. (31,8 mm) dia. Bob-tach pins - Was 17C001064B - B |
| 16 | Артикул: 31C1264, BOLT for 1.50 in. (38,1 mm) dia. Bob-Tach pins |
| 17 | Артикул: 6555455, WASHER for 1.25 in. (31,8 mm) dia. Bob-tach pins |
| 18 | Артикул: 6560416, WASHER for 1.25 in. (31,8 mm) dia. Bob-tach pins - Use W/Ref. 45 |
| 19 | Артикул: 6718723, WASHER for 1.50 in. (38,1 mm) dia. Bob-Tach pins |
| 20 | Артикул: 6651709, SEAL |
| 21 | Артикул: 6700039, CUP seal - for 1.25 in. (31,8 mm) dia. Bob-tach pins |
| 22 | Артикул: 6700463, CUP, SEAL seal - for 1.50 in. (38,1 mm) dia. Bob-Tach pins |
| 23 | Артикул: PIN, PIN NLA - 1.25 in. (31,8 mm) dia. x 4.00 in. (101,6mm) long - Order 6732012 Pin - Was 6707042 - A |
| 24 | Артикул: 6732012, PIN, PIVOT 1.25 in. (31,8 mm) dia. x 3.88 in. (98,6 mm) long - Use W/Ref. 40 (6714874 bushing) |
| 25 | Артикул: 6730263, PIN, PIVOT 1.50 in. (38,1 mm) dia. - Use W/Ref. 40 (7171338 bushing) |
| 26 | Артикул: 10H25, FITTING, GREASE 5 straight |
| 27 | Артикул: 10H25, FITTING, GREASE 5 straight |
| 28 | Артикул: 6703363, BUSHING weld on - Also Order Ref. 22 |
| 29 | Артикул: 6737623, BUSHING weld on - Also Order Ref. 22 - Was 6704287 - A |
| 30 | Артикул: 6704288, PIN, PIVOT 32 x 178 mm (1.25 x 7--) |
| 31 | Артикул: CYLINDER, CYLINDER See Illustration TILT CYLINDER/ TS1127A See Illustration TILT CYLINDER/ TS1127 TILT |
| 32 | Артикул: 6654117, SEAL, OIL 51 mm (2--) OD - Use W/Ref. 27 & 41 |
| 33 | Артикул: 225855, SEAL, OIL 10 38 mm (1.5--) OD - Use W/Ref. 27 & 41 |
| 34 | Артикул: BOB-TACH, BOB-TACH See Illustration BOB-TACH/ PE1523 |
| 35 | Артикул: 743332, FITTING, GREASE 5 |
| 36 | Артикул: 6705223, PIN W/grease zerk hole |
| 37 | Артикул: 17C620, BOLT |
| 38 | Артикул: 6547593, PIN, PIVOT |
| 39 | Артикул: 11H15, GREASE FITTING |
| 40 | Артикул: CYLINDER, CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT |
| 41 | Артикул: 6555989, BUSHING Weld On |
| 42 | Артикул: 6555987, BUSHING weld on |
| 43 | Артикул: ARM, ARM NLA - R.H. - Weld On |
| 44 | Артикул: ARM, ARM NLA - L.H. - Weld On |
| 45 | Артикул: 12H15, FITTING, GREASE 5 |
| 46 | Артикул: 6704436, PAD foam - self adhesive |
| 47 | Артикул: MOUNT, MOUNT See Illustration AUXILIARY HYDRAULICS/ B17266 |
| 48 | Артикул: BOLT, BOLT See Illustration AUXILIARY HYDRAULICS/ B17266 |
| 49 | Артикул: 6705091, TAB weld on |
| 50 | Артикул: 6714874, BUSHING, WELD-ON weld-on-W/tapered hole - Use W/Ref. 18 (6732012 pin) |
| 51 | Артикул: 7171338, BUSHING, WELD-ON weld-on - W/tapered hole - 38.1 mm (1.5--) - 50,8 mm (2--) long - Use W/Ref. 18 (6730263 pin) |
| 52 | Артикул: 6716601, PIN, PIVOT W/O grease zerk hole |
| 53 | Артикул: 6704403, STOP weld on |
| 54 | Артикул: 6727544, PLATE weld on |
| 55 | Артикул: 6727545, PLATE weld on |
| 56 | Артикул: 6731254, BUSHING tapered - allows 1.25-- (31,8 mm) dia pin to be used in 1.50-- (38,1 mm) dia lift arm hole |
ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH: Техника, которая работает на результат
ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH на Bobcat 700s Bobcat 751 515611001 - 515619999, 515711001 - 515729999 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
