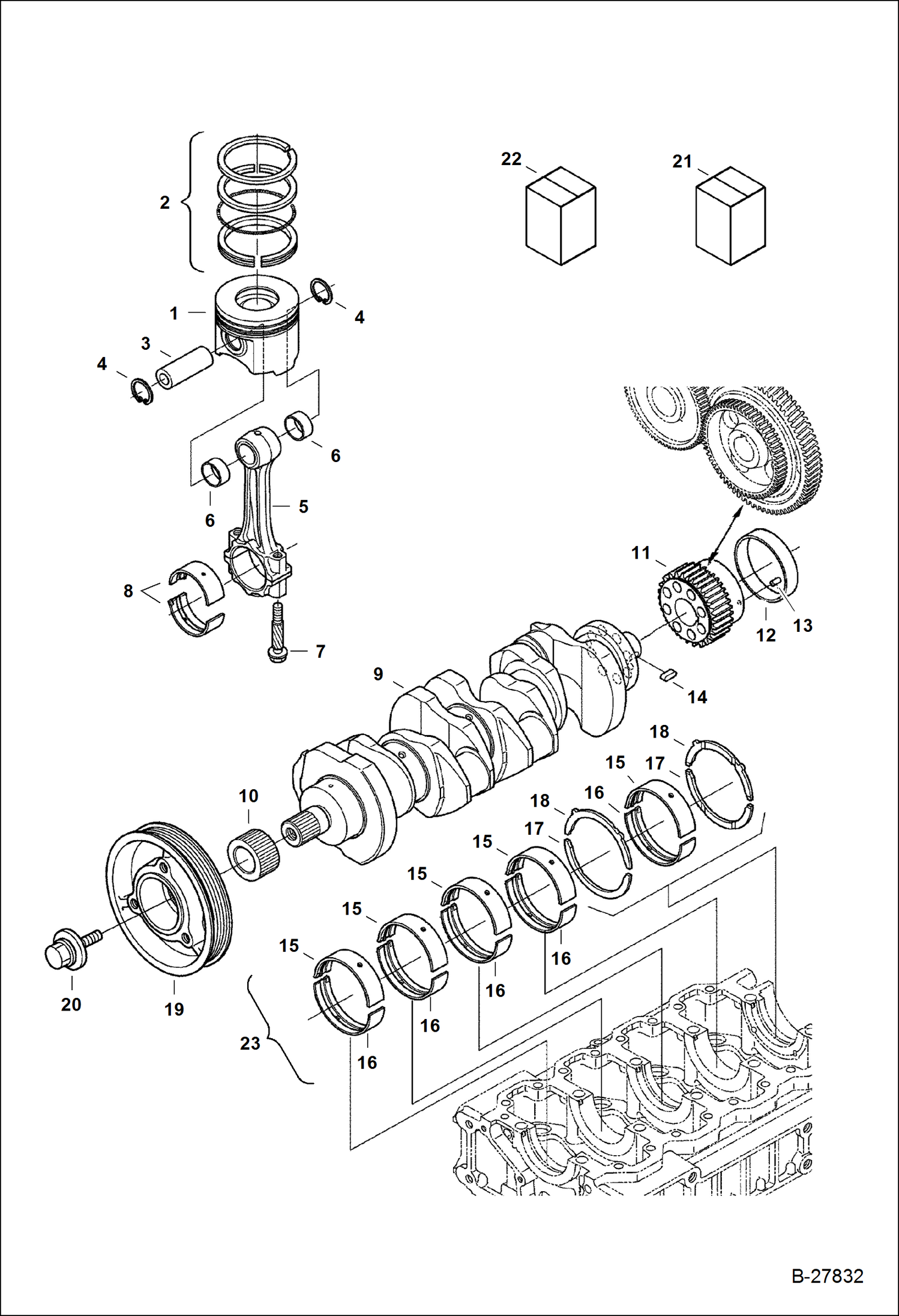

ПОРШНЬ И КОЛЕНЧАТЫЙ ВАЛ в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация
| 1 | Артикул: 7008470, PISTON, ENG (05) std - 1G777-2111 - Was 7008470 - A |
| 2 | Артикул: 7022423, PISTON, ENG (05) std - 1J751-2111 |
| 3 | Артикул: 7008475, PISTON, ENG OS (05) +0,50 mm - 1G777-2111 OS50 - Was 7008471 - D |
| 4 | Артикул: 7022426, PISTON, ENG OS (05) +0,50 mm - 1J751-2111 OS50 |
| 5 | Артикул: 7008471, PISTON, ENG (00) std - 1G777-2112 - Was 7008472 - D |
| 6 | Артикул: 7022424, PISTON, ENG (00) std - 1J751-2112 |
| 7 | Артикул: 7008476, PISTON, ENG OS (00) +0,50 mm - 1G777-2112 OS50 - Was 7008475 - D |
| 8 | Артикул: 7022427, PISTON, ENG OS (00) +0,50 mm - 1J751-2112 OS50 |
| 9 | Артикул: PISTON,, PISTON, ENG - A |
| 10 | Артикул: 7022425, PISTON, ENG (10) std - 1J751-2113 |
| 11 | Артикул: 7008477, PISTON, ENG OS (10) +0,50 mm - 1G777-2113 OS50 |
| 12 | Артикул: 7022428, PISTON, ENG OS (10) +0,50 mm - 1J751-2113 OS50 |
| 13 | Артикул: 7008415, RING, PISTON set |
| 14 | Артикул: 7008416, RING, PISTON OS set +0,50 mm |
| 15 | Артикул: 7008417, PIN, PISTON ENG |
| 16 | Артикул: 7008386, CIRCLIP |
| 17 | Артикул: 7008479, ROD, CONNECTING W/Ref. 6 & 7 |
| 18 | Артикул: 7022429, ROD, CONNECTING W/Ref. 6 & 7 |
| 19 | Артикул: 7008478, BUSHING, PIN PISTON |
| 20 | Артикул: 7022430, BUSHING, PIN PISTON |
| 21 | Артикул: 7008418, BOLT |
| 22 | Артикул: 7008419, BEARING, ENG ROD CONNECTING std/blue/set |
| 23 | Артикул: 7008420, BEARING, ENG ROD CONNECTING std/set |
| 24 | Артикул: 7008421, BEARING, ENG ROD CONNECTING -0,20 mm/green/set |
| 25 | Артикул: 7008422, BEARING, ENG ROD CONNECTING -0,40 mm/red/set |
| 26 | Артикул: 7008534, CRANKSHAFT, ENG W/Ref. 10 |
| 27 | Артикул: 7000616, GEAR, DRIVE |
| 28 | Артикул: 7008433, GEAR, CRANKSHAFT W/Ref. 12 & 13 |
| 29 | Артикул: 7008391, SLEEVE, WEAR |
| 30 | Артикул: 3974395, PIN |
| 31 | Артикул: 7000749, KEY, SHAFT Was 3974546 - B |
| 32 | Артикул: 7008423, BEARING, ENG CRANKSHAFT std |
| 33 | Артикул: BEARING,, BEARING, ENG CRANKSHAFT NLA - -0,20 mm - Order Ref. 23 - Was 7008426 - A |
| 34 | Артикул: 7008427, BEARING, ENG CRANKSHAFT -0,40 mm |
| 35 | Артикул: 7008480, BEARING, ENG CRANKSHAFT std |
| 36 | Артикул: 7008484, BEARING, ENG CRANKSHAFT -0,20 mm - Was 7008484 |
| 37 | Артикул: 7008485, BEARING, ENG CRANKSHAFT -0,40 mm - Was 7008485 |
| 38 | Артикул: 7008424, WASHER, THRUST std |
| 39 | Артикул: 7008428, WASHER, THRUST +0,20 mm |
| 40 | Артикул: 7008429, WASHER, THRUST +0,40 mm |
| 41 | Артикул: WASHER,, WASHER, THRUST std - Order 7321589 washer & 7321590 washer - Was 7008425 - A |
| 42 | Артикул: 7008430, WASHER, THRUST +0,20 mm |
| 43 | Артикул: 7008431, WASHER, THRUST +0,40 mm |
| 44 | Артикул: 7008542, PULLEY, DRIVE |
| 45 | Артикул: 7020991, BOLT Was 7000748 - B |
| 46 | Артикул: KIT,, KIT, PISTON NLA - (10) std - Ref. 1-3 & 6 - Order components - Was 7008473 - A |
| 47 | Артикул: 7008474, KIT, PISTON OS (10) +0,50 mm - Ref. 1-3 & 6 |
| 48 | Артикул: 7008481, KIT, BEARING ENG Ref. 8 & 15-18 |
| 49 | Артикул: 7271811, KIT, BEARING ENG -0,20 mm/+0,20 mm - Ref. 8 & 15-18 - Was 7008482 - A |
| 50 | Артикул: 7271812, KIT, BEARING ENG -0,40 mm/+0,40 mm - Ref. 8 & 15-18 - Was 7008483 - A |
| 51 | Артикул: 7245293, BEARING, ENG CRANKSHAFT -0,20 mm - Ref. 15 & 16 |
ПОРШНЬ И КОЛЕНЧАТЫЙ ВАЛ: Техника, которая работает на результат
ПОРШНЬ И КОЛЕНЧАТЫЙ ВАЛ на мини-погрузчик Bobcat T650 1MLT11001 И ВЫШЕ, 1MLT11001 - 11010 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
