ПОРШНИ И КОЛЕНВАЛ в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация

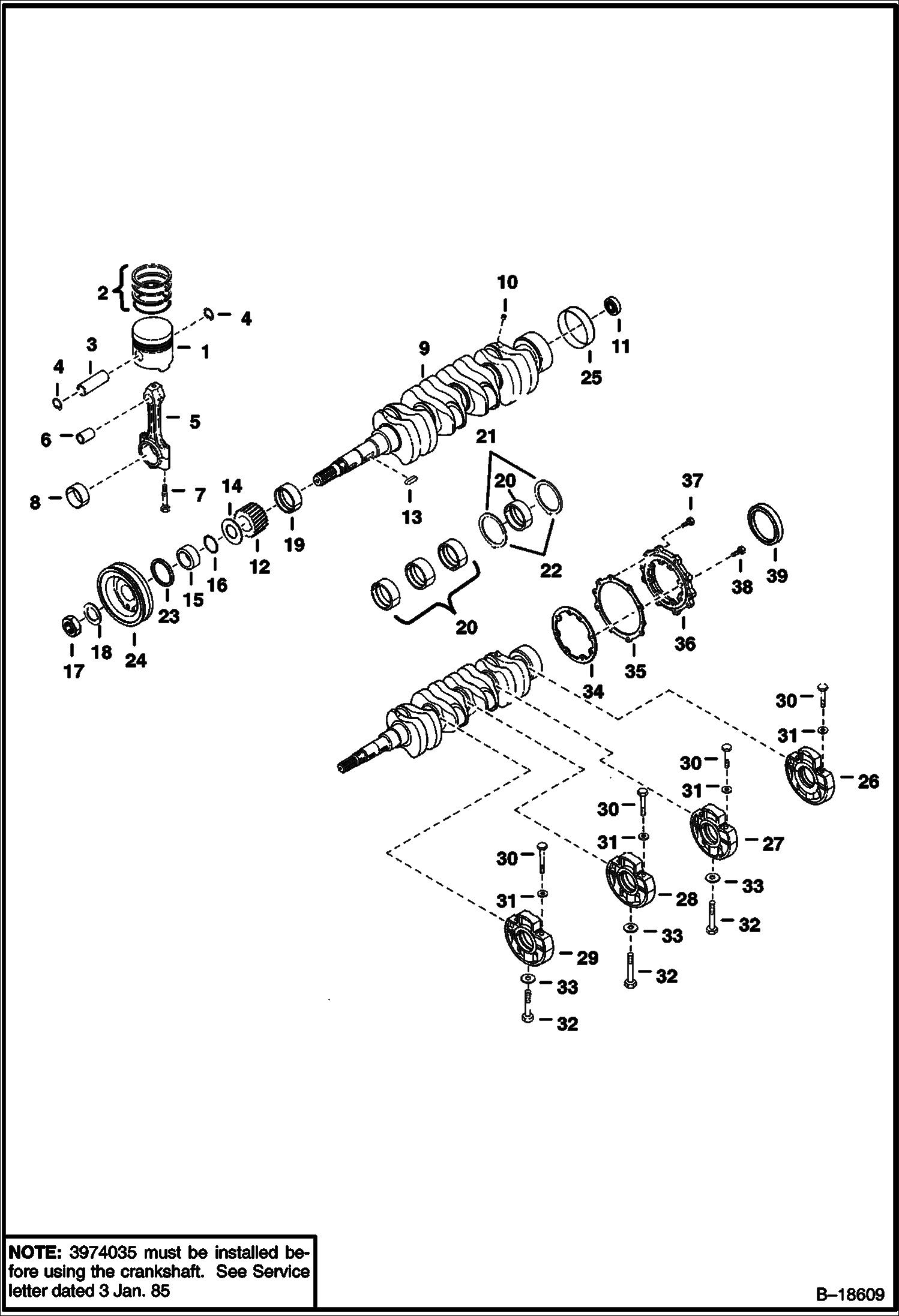

| 1 | Артикул: 6598762, PISTON Std. |
| 2 | Артикул: 6599914, PISTON, ENG 0,5 mm - .0197 Oversized |
| 3 | Артикул: 6598110, RINGS piston - Std. - one piston |
| 4 | Артикул: 6599913, RINGS piston - 0,5 mm - .0197 Oversized |
| 5 | Артикул: 3974937, PIN PISTN |
| 6 | Артикул: 3974561, SNAP RG 5 |
| 7 | Артикул: 7261041, ROD, CONNECTING connecting - W/Ref. 6, 7 & 8 - Torque nut to 40-45NM - Was 3974938 |
| 8 | Артикул: 3974939, BUSHING one bushing |
| 9 | Артикул: BOLT, BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs |
| 10 | Артикул: 6598699, BEARING rod - Std. - Was 3974567B - A |
| 11 | Артикул: 7013228, CRANKSHAFT, ASSY See Note - Ref. 10 & 25 - Was 6649299 - A |
| 12 | Артикул: 3974035, PLUG pin |
| 13 | Артикул: 3974571, BEARING |
| 14 | Артикул: 6598142, GEAR |
| 15 | Артикул: 3974546, KEY |
| 16 | Артикул: 6653861, SLINGER, OIL Was 6598141 - A |
| 17 | Артикул: 3975337, COLLAR Was 3974576B - A |
| 18 | Артикул: 3974577, RING,O |
| 19 | Артикул: 3974671, NUT |
| 20 | Артикул: 3974672, WASHER |
| 21 | Артикул: 6655185, BEARING main - Std. - Was 3974578B - A |
| 22 | Артикул: 3975017, BEARING MAIN main - 0,2 mm-.0079 |
| 23 | Артикул: 6655239, BEARING main - 0,4 mm-.0157 - Was 3975018B - A |
| 24 | Артикул: 6655186, BEARING main - Std. - Was 3974579B - A |
| 25 | Артикул: 6655240, BEARING main (0,2 mm - .0079) - Was 3975019B - A |
| 26 | Артикул: 3975020, MAIN BRG main - 0,4 mm-.0157 |
| 27 | Артикул: 3974945, WASHER, THRUST thrust - Std. |
| 28 | Артикул: 3975021, WASHER thrust - 0,2 mm-.0079 - one half washer |
| 29 | Артикул: 3975022, WASHER, THRUST thrust - 0,4 mm-.0157 |
| 30 | Артикул: 6653865, WASHER, THRUST thrust - Std. - Was 3974946B - A |
| 31 | Артикул: 3975023, WASHER thrust - 0,2 mm-.0079 - one half washer |
| 32 | Артикул: 3975024, WASHER thrust - 0,4 mm-.0157 |
| 33 | Артикул: 7024826, SEAL, OIL oil frt main - Was 6631664 - A |
| 34 | Артикул: 6648764, PULLEY Was 6598186 - A |
| 35 | Артикул: 6653859, SLEEVE Was 3975334B - A |
| 36 | Артикул: BEARING,, BEARING, MAIN main bearing - Was 7282492 - A |
| 37 | Артикул: 6598122, CASE main bearing |
| 38 | Артикул: 3974901, BEAR CASE main bearing |
| 39 | Артикул: 6653816, CASE main bearing - Was 3974900B - A |
| 40 | Артикул: 6653813, BOLT W/O washer - Was 3974898B - A |
| 41 | Артикул: 6653585, BOLT with washer |
| 42 | Артикул: 3974899, WASHER |
| 43 | Артикул: 6653821, BOLT Was 3974902B - A |
| 44 | Артикул: 3974903, WASHER |
| 45 | Артикул: 3974471, GASKET |
| 46 | Артикул: 6666787, GASKET Was 6655887 - A |
| 47 | Артикул: 6653814, COVER Was 3975336B - A |
| 48 | Артикул: 1CM825, BOLT Was 4CM825 - A |
| 49 | Артикул: 4CM828, BOLT |
| 50 | Артикул: 6684789, SEAL oil - Was 6649300 - A |
ПОРШНИ И КОЛЕНВАЛ: Техника, которая работает на результат
ПОРШНИ И КОЛЕНВАЛ на Bobcat 700s Bobcat 743 5025M50001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
