ПОРШНИ И КОЛЕНВАЛ в Алматы
×
![]()
Характеристики и описание

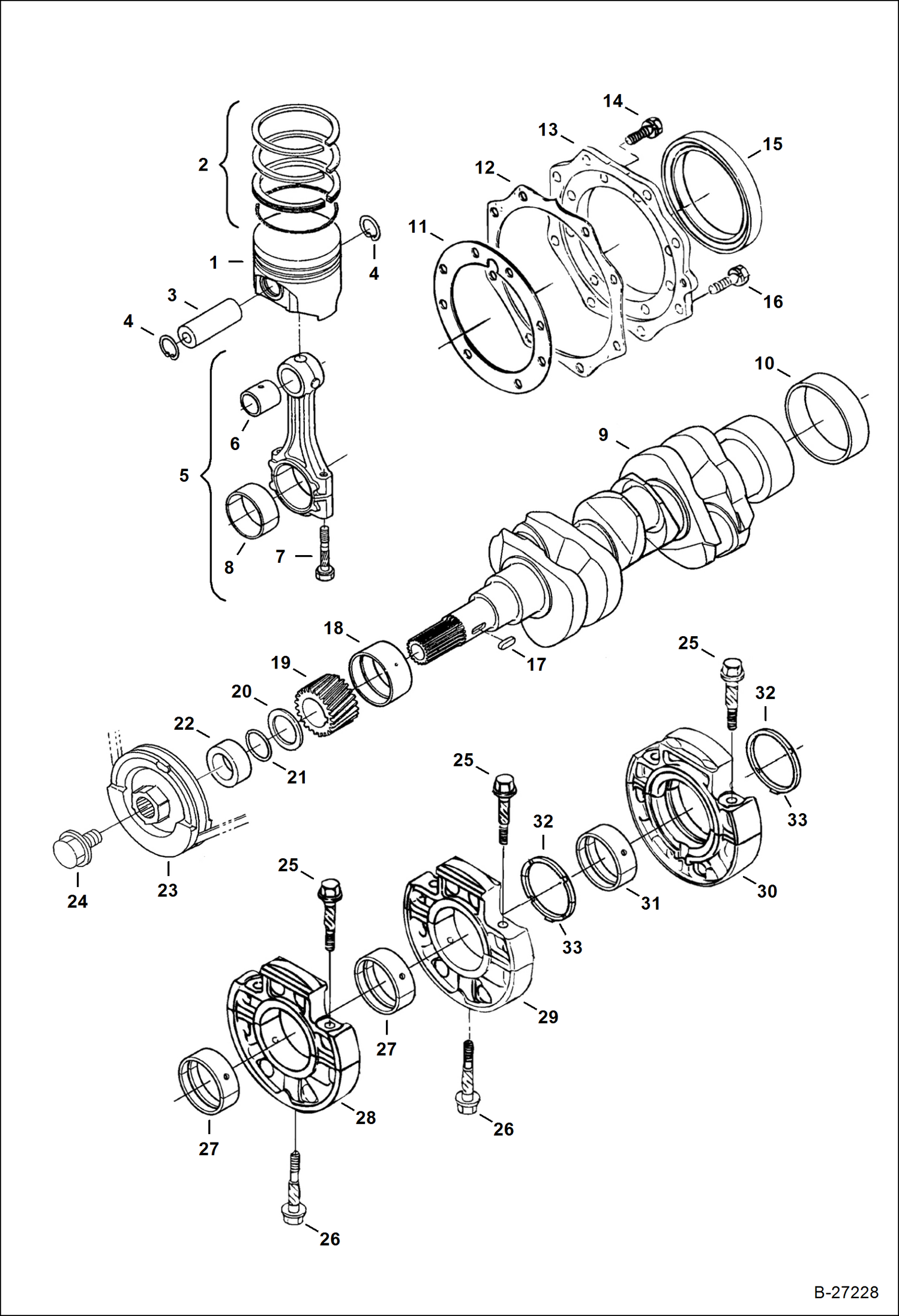

Габариты, схема
Техническая документация
| 1 | Артикул: 7000376, PISTON, ENG std. - piston only - (16851-2111) - Was 6670393 |
| 2 | Артикул: 6670394, PISTON +0.25mm |
| 3 | Артикул: 6670395, RING ASSY piston - std - for 1 piston |
| 4 | Артикул: 6670396, RING ASSY piston (+0.25 mm) - for 1 piston |
| 5 | Артикул: 6670397, PIN |
| 6 | Артикул: 3974216, RING |
| 7 | Артикул: 6690166, ROD, CONNECTING W/Ref. 6-8 |
| 8 | Артикул: 6670399, BUSHING |
| 9 | Артикул: 6670400, BOLT |
| 10 | Артикул: 6670401, BEARING rod - std |
| 11 | Артикул: 6670402, BEARING rod (+0.2 mm) |
| 12 | Артикул: 6670403, BEARING rod (+0.4 mm) |
| 13 | Артикул: 6670404, CRANKSHAFT W/Ref. 10 |
| 14 | Артикул: 3986830, SLEEVE |
| 15 | Артикул: 6670377, GASKET bearing case |
| 16 | Артикул: 7000494, GASKET case cover - Was 6670379 - A |
| 17 | Артикул: 7000493, COVER Was 6670378 - A |
| 18 | Артикул: 6653584, BOLT |
| 19 | Артикул: 3918818, SEAL |
| 20 | Артикул: 6687691, SEAL |
| 21 | Артикул: 4CM622, BOLT |
| 22 | Артикул: 3974226, KEY |
| 23 | Артикул: 6670406, BEARING main - std |
| 24 | Артикул: 6670407, BEARING main (-0.2 mm) |
| 25 | Артикул: 7246761, BEARING ENG ROD CONNECTING main (-0.4 mm) - 1 bearing - Was 6670408 - A |
| 26 | Артикул: 6670405, GEAR |
| 27 | Артикул: 6670414, OIL SLINGER |
| 28 | Артикул: 6683014, SEAL |
| 29 | Артикул: 6670413, COLLAR |
| 30 | Артикул: 6670783, PULLEY |
| 31 | Артикул: 6670784, BOLT |
| 32 | Артикул: 6670376, BOLT bearing case |
| 33 | Артикул: 6670382, BOLT flange head |
| 34 | Артикул: 6670409, BEARING main - std |
| 35 | Артикул: 6670410, BEARING main (-0.2 mm) |
| 36 | Артикул: 6670411, BEARING main (-0.4 mm) |
| 37 | Артикул: 6693052, CASE, BEARING ASSY W/Ref. 25 & 27 |
| 38 | Артикул: 6693205, CASE, BEARING ASSY W/Ref. 25 & 27 |
| 39 | Артикул: 7000375, CASE, BEARING ASSY W/Ref. 25 & 31 - Was 7000375 |
| 40 | Артикул: 7023260, BEARING, ENG CRANKSHAFT std - rear - (1) bearing - Was 6670412 - A |
| 41 | Артикул: 6660336, BEARING main (-0,2mm) |
| 42 | Артикул: 6660337, BEARING main (-0,4mm) |
| 43 | Артикул: 6652636, WASHER thrust - std. - 1/2 thrust washer |
| 44 | Артикул: 6513613, WASHER thrust (+0.2 mm) - 1/2 thrust washer |
| 45 | Артикул: 6513615, WASHER thrust (+0.4 mm) - 1/2 thrust washer |
| 46 | Артикул: 7000492, WASHER, THRUST SIDE Std - 1/2 thrust washer - Was 6652637 - A |
| 47 | Артикул: 6698149, WASHER, THRUST SIDE thrust - (+0.2 mm) 1/2 thrust washer - Was 6513614 - A |
| 48 | Артикул: 6513616, WASHER thrust (+0.4 mm) - 1/2 thrust washer |
ПОРШНИ И КОЛЕНВАЛ: Техника, которая работает на результат
ПОРШНИ И КОЛЕНВАЛ на мини-трак Bobcat MT52 A3WR11001 И ВЫШЕ, A3WS11001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
