РАМА — Продажа в Казахстане Цены от официального дилера с доставкой в Алматы, Астану и регионы
×
❮
![Увеличенное изображение]()
❯
Характеристики и описание
Габариты, схема
Техническая документация

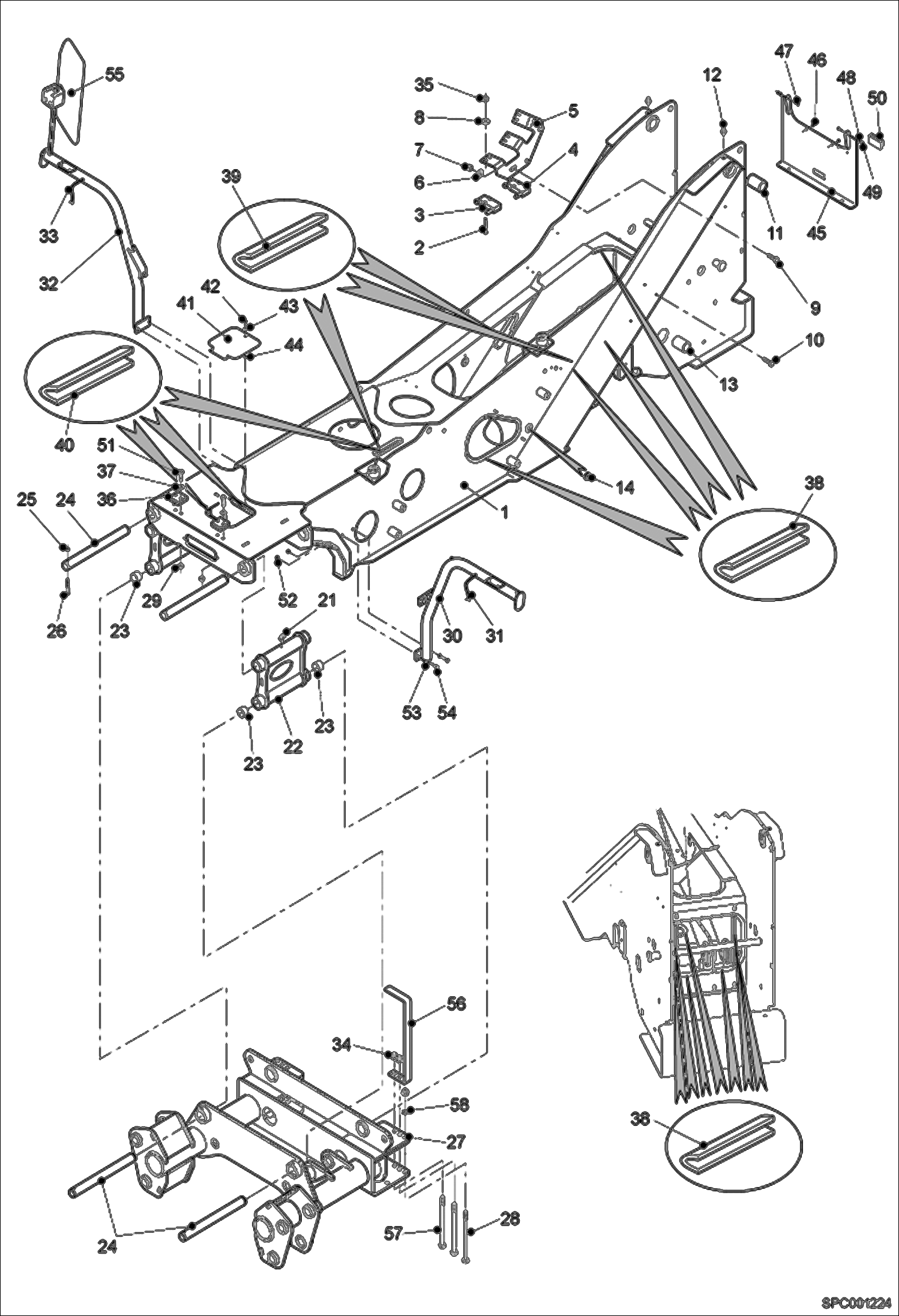

| 1 | Артикул: 6924053, CHASSIS |
| 2 | Артикул: 53100.4, Screw |
| 3 | Артикул: 92972.9, Switch Man platform only |
| 4 | Артикул: 6918632, SWTICH W/man platform |
| 5 | Артикул: 6911738, SWITCH |
| 6 | Артикул: 92968.7, Plate |
| 7 | Артикул: 1EM120, WASHER Was 01699.8 - B |
| 8 | Артикул: 000345-96E, NUT |
| 9 | Артикул: 61378.6, Washer |
| 10 | Артикул: 7CM1240, SCREW Was 01614.7 - B |
| 11 | Артикул: 96541.8, Rivet |
| 12 | Артикул: 7213359, BEARING, SWING Was 77380.4 - A |
| 13 | Артикул: 01775.6, Grease Nipple |
| 14 | Артикул: 7246766, BEARING Was 90281.7 - A |
| 15 | Артикул: 79288.7, Rubber mounting |
| 16 | Артикул: 01782.2, Grease nipple |
| 17 | Артикул: 7213154-B, LINK LVL W/A W/ (4) of Ref. 23 - Was 84106.4 - A |
| 18 | Артикул: 7213158, LINK, BEARING Was 77261.6 - A |
| 19 | Артикул: 7213171, PIN Was 84176.7 - A |
| 20 | Артикул: 7252655, NUT Was 100345-09A - A |
| 21 | Артикул: 7CM10100, SCREW HEX Was 65397.2 - A |
| 22 | Артикул: 6915086, Front support |
| 23 | Артикул: 1CM20220, SCREW Was 25237.9 - A |
| 24 | Артикул: 7252655, NUT Was 100345-09A - A |
| 25 | Артикул: 6915265, SUPPORT LIGHT LH |
| 26 | Артикул: 79539.3, Front Light Wire Harness, LH LH |
| 27 | Артикул: 6915264, SUPPORT LIGHT RH |
| 28 | Артикул: 96587.1, Front Light Wire Harness, RH |
| 29 | Артикул: 6923941, NUT Was 100345-20M |
| 30 | Артикул: 7199735, LOCK HEX NUT M4 Was 100345-04U - A |
| 31 | Артикул: 7214217, STOP, BOOM Was 6917004 - A |
| 32 | Артикул: 1EM100, WASHER Was 01698.0 - B |
| 33 | Артикул: 7229468, GASKET, PLATE 3,9 m - sold per meter - Was 95464.4 - B |
| 34 | Артикул: 7229363, GASKET, PLATE 1,4 m sold per meter - Was 80919.4 - B |
| 35 | Артикул: 95465.1, Seal 1,4 m - sold per meter |
| 36 | Артикул: 7215006, COVER, FRONT Was 6908505 - A |
| 37 | Артикул: 6914053, Screw |
| 38 | Артикул: 01718.6, Washer |
| 39 | Артикул: 6914051, Nut |
| 40 | Артикул: 6909735, Plate |
| 41 | Артикул: 57702.3, Plug |
| 42 | Артикул: 1CM1035, BOLT Was 01607.1 - B |
| 43 | Артикул: 000350-03W, WASHER |
| 44 | Артикул: 7252655, NUT Was 100345-09A - A |
| 45 | Артикул: HANDLE, HANDLE NLA - Was 90327.8 - A |
| 46 | Артикул: 2GM1030, SCREW Was 01640.2 - A |
| 47 | Артикул: 7252655, NUT Was 100345-09A - A |
| 48 | Артикул: 1EM100, WASHER Was 01698.0 - B |
| 49 | Артикул: 1CM1035, BOLT Was 01607.1 - B |
| 50 | Артикул: 100432-51C, MIRROR, SIDE REAR Was 6922760 - A |
| 51 | Артикул: 6925407, HORIZONTAL INDICATOR Was 6917958 |
| 52 | Артикул: 76680.8, SCREW Was 6923940 |
| 53 | Артикул: 000350-08C, WASHER |
РАМА: Техника, которая работает на результат
РАМА на телескопический погрузчик Bobcat T40140 363212001 И ВЫШЕ, 363312001 И ВЫШЕ, 363912001 И ВЫШЕ, 365412001 И ВЫШЕГабаритные размеры
Нажмите на схему для увеличения
