Характеристики и описание
Габариты, схема
Техническая документация
| 1 | Артикул: 6703963, INSULATION crossmember |
| 2 | Артикул: 6703964, INSULATION crossmember |
| 3 | Артикул: 6732726, INSULATION crossmember - Was 6703965 - A |
| 4 | Артикул: 6732725, INSULATION crossmember - Was 6703969 - A |
| 5 | Артикул: 7152242, INSULATION, STRIP fender - Was 6703967 - B |
| 6 | Артикул: 6703968, INSULATION transmission |
| 7 | Артикул: 6553411, BUSHING |
| 8 | Артикул: 6731121, PLUG Was 11F000012B - A |

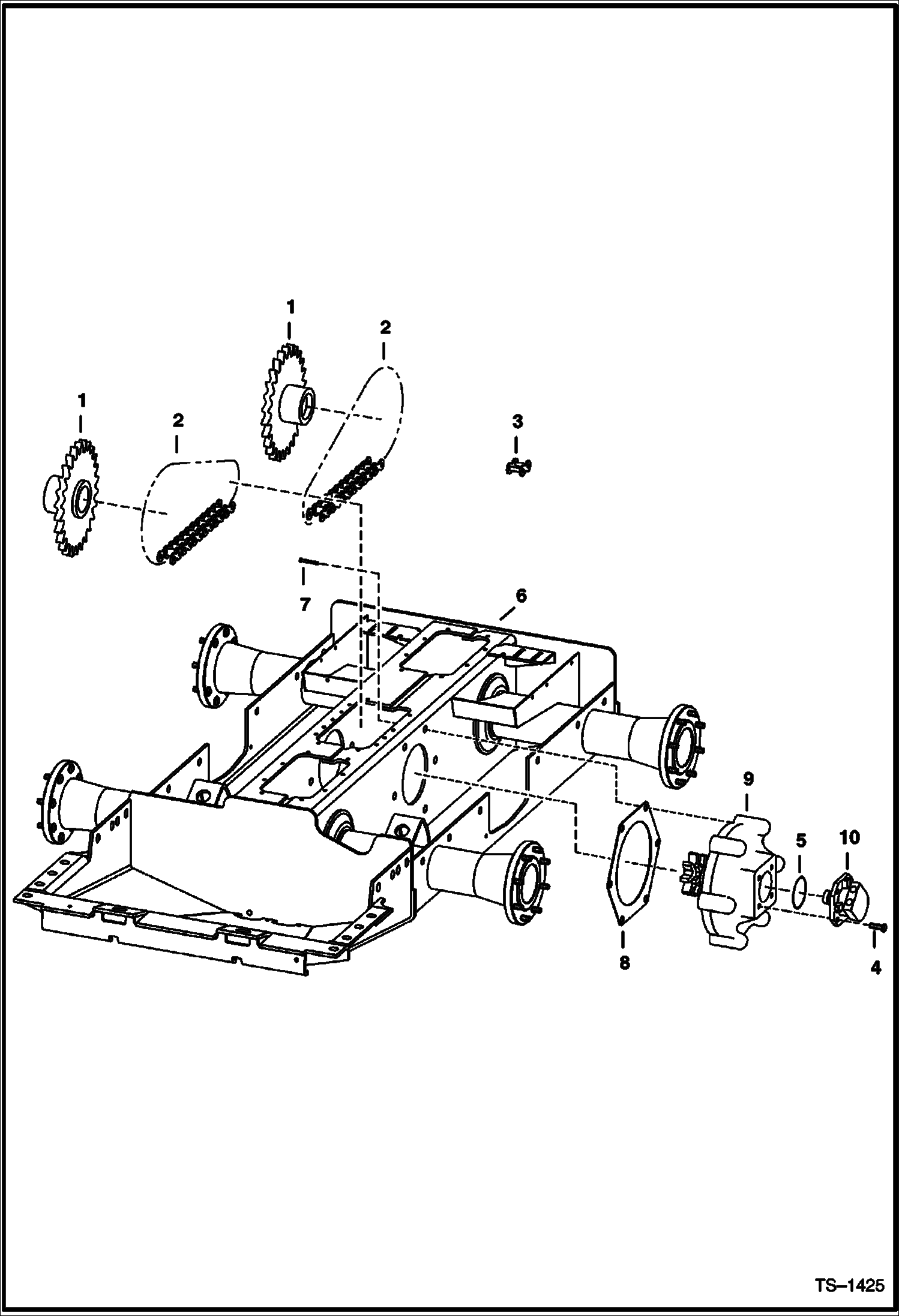

| 9 | Артикул: 6719225, CHAINCASE See Illustration DRIVE TRAIN/ TS1425 WAS 6709771 - B |
| 10 | Артикул: 53D12, NUT Was 83D000012B - B |
| 11 | Артикул: MAIN, MAIN FRAME NLA - Order 6725574 , also Order 6726451 cover, 6726452 cover, Ref. 19 (8) & Ref. 27 (4) - Was 6718303 - B |
| 12 | Артикул: 6725574, MAIN FRAME |
| 13 | Артикул: 31C1228, BOLT |
| 14 | Артикул: 6719168, COVER Was 6719201 - A |
| 15 | Артикул: COVER, COVER See Illustration DISC BRAKE/ PE1678 See Illustration DISC BRAKE/ TS1237 |
| 16 | Артикул: 6705047, BUSHING weld on |
| 17 | Артикул: 6718544, BUSHING weld on - Was 6710744 - B |
| 18 | Артикул: 6713823, BUSHING weld on |
| 19 | Артикул: COVER, COVER See Illustration DISC BRAKE/ PE1678 See Illustration DISC BRAKE/ TS1237 |
| 20 | Артикул: 84G3712, BOLT 5 |
| 21 | Артикул: 84G3716, SCREW 5 |
| 22 | Артикул: 6680970, BREATHER Was 6670627 - A |
| 23 | Артикул: 6719333, INSULATION blower housing |
| 24 | Артикул: COVER, COVER See Illustration DISC BRAKE/ PE1678 See Illustration DISC BRAKE/ TS1237 |
| 25 | Артикул: 6700182, COVER, DRAIN |
| 26 | Артикул: 6719086, COVER pump - right - 7 mounting holes - Was 6717110 - B |
| 27 | Артикул: 6726451, COVER pump - right - 6 mounting holes |
| 28 | Артикул: 6719085, COVER pump - left - 7 mounting holes - Was 6717111 - B |
| 29 | Артикул: 6726452, COVER pump - left - 7 mounting holes |
| 30 | Артикул: 6633583, SEALANT, POLYURETHANE 300 ML chaincase cover |
| 31 | Артикул: 6730078, COVER cylinder hole |
| 32 | Артикул: 6599645, PLUG, STEEL |
| 33 | Артикул: 6702164, SPACER flexible |
| 34 | Артикул: 6579106, SHIM |
| 35 | Артикул: 6706485, HOOK tie down - weld-on |
| 36 | Артикул: 6708987, HINGE, WELD-ON |
| 37 | Артикул: 6718545, BUSHING weld-on - Was 6710745 - B |
| 38 | Артикул: 6726867, BLOCK 2 Hole Bar - Was 6706857 - B,D |
| 39 | Артикул: 6706857, BLOCK 3 Hole Bar |
| 40 | Артикул: 6718486, PLUG |
| 41 | Артикул: 6718796, PLUG front crossmember & right fender - Was 6660646 - A |
| 42 | Артикул: 6719332, INSULATION blower housing |
| 43 | Артикул: 6731939, BRACE |
РАМА: Техника, которая работает на результат

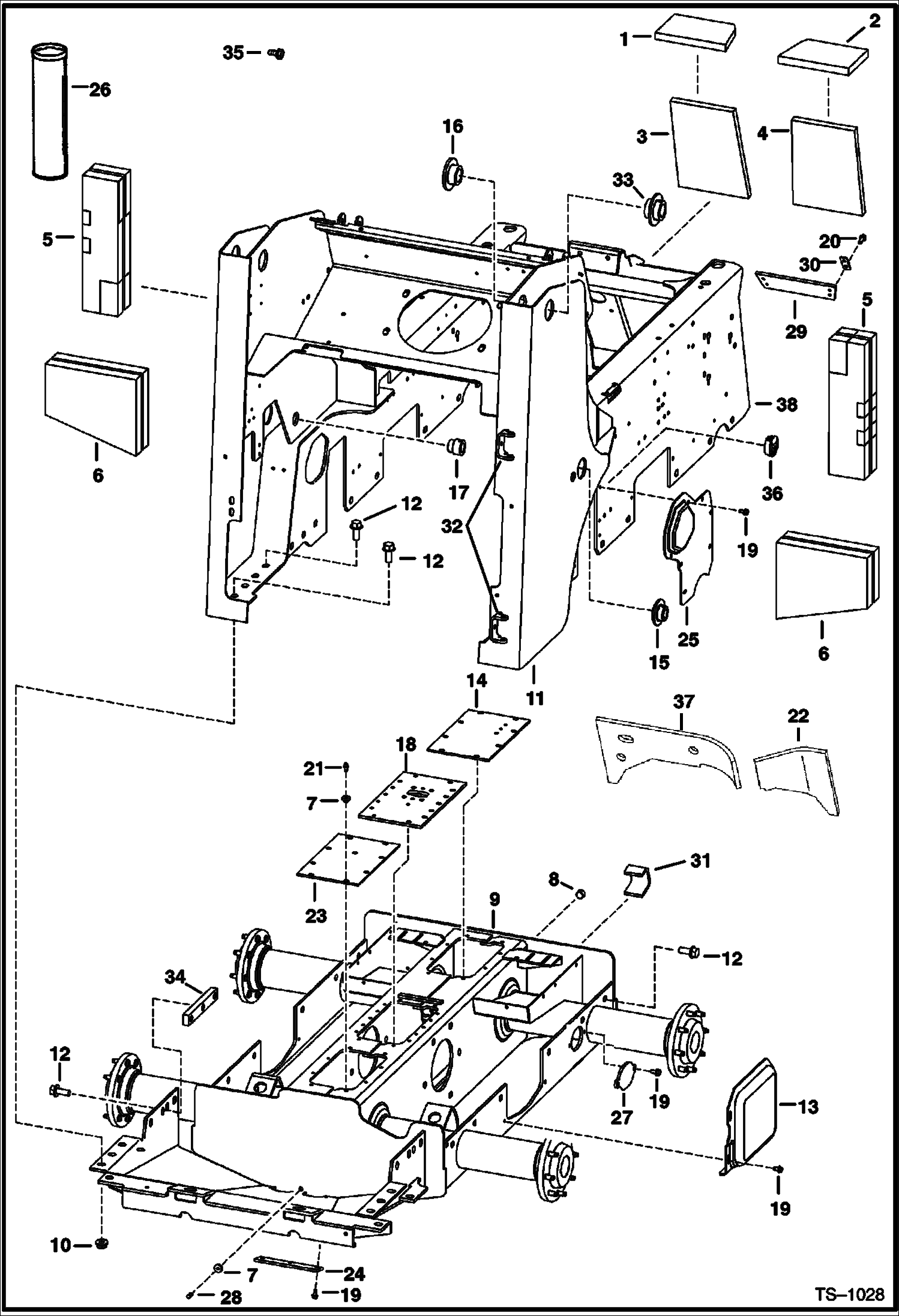

РАМА на Bobcat 800s Bobcat 863 514440001 И ВЫШЕ, 514540001 И ВЫШЕ, 514640001 И ВЫШЕГабаритные размеры
Нажмите на схему для увеличения
