Name: ЩЕТОЧНАЯ МАШИНА (54-- 7826) (60-- 7144) (72-- 7837)
Brand: Bobcat
SKU: setocnaa-masina-54-7826-60-7144-72-7837-72292
Availability: InStock

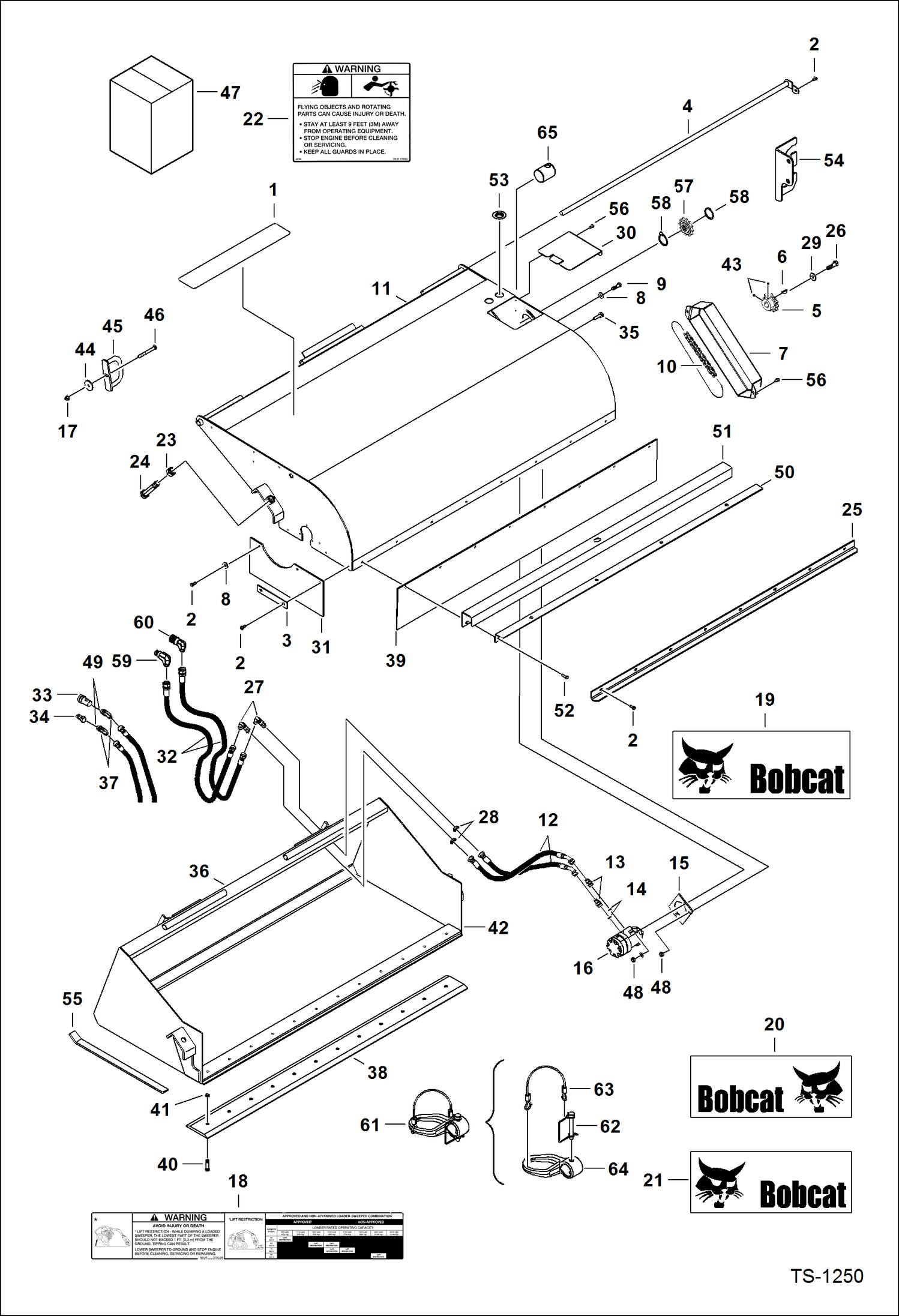

Спецтехника ЩЕТОЧНАЯ МАШИНА (54-- 7826) (60-- 7144) (72-- 7837) - главное фото

Купить ЩЕТОЧНАЯ МАШИНА (54-- 7826) (60-- 7144) (72-- 7837) в Казахстане

Техника доступна в:

Рассрочка Лизинг Trade-In

Полный спектр услуг:

Сервис Офисы продаж Гарантия

Для Вашего удобства:

Запчасти Доставка

Характеристики и описание

Габариты, схема

Техническая документация

1	Артикул: 6905990, STEP
2	Артикул: 84G3716, SCREW 5
3	Артикул: 6707160, PLATE
4	Артикул: 6594792, HINGE PIN 54--
5	Артикул: 6591249, HINGE PIN 60--
6	Артикул: 6594364, HINGE PIN 72--
7	Артикул: 6813246, SPROCKET, SWEEPER Use with keyed motor shaft - Was 6594342 - A
8	Артикул: 6634899, KEY woodruff - Use W/Ref. 5
9	Артикул: 6707162, GUARD, COVER SPROCKET chain
10	Артикул: 27E8, WASHER 10
11	Артикул: 17C828, BOLT Was 17C832 - B
12	Артикул: 6594642, CHAIN
13	Артикул: 6515191, LINK press fit connector
14	Артикул: 6632387, LINK W/clip connector
15	Артикул: 6707830, FRAME 54--
16	Артикул: 6707151, FRAME 60--
17	Артикул: 6707841, FRAME, SWEEPER 72-- 72--
18	Артикул: HOSE, HOSE NLA - 54-- - Order 6537694 - Was 6594372 - A
19	Артикул: 6537694, HOSE Use for all sweepers
20	Артикул: HOSE, HOSE NLA - 72-- - Order 6537694 - Was 6702670 - A
21	Артикул: 15KB1010, FITTING, HYD CONNECTOR W/Ref. 14 - Was 15K000007B - B
22	Артикул: 79K10, O RING 10
23	Артикул: 6594341, MOUNT 4,3 mm (.17--) thick - Use with Eaton 103-1037-010 motor
24	Артикул: 7125868, MOUNT 6,35 mm (.25--) thick - Use with Eaton 104-3155-006 & 104-3938-006 motor
25	Артикул: MOTOR, MOTOR See Illustration SWEEPER/ NA1338 See Illustration SWEEPER/ B18046A
26	Артикул: 85D6, NUT, 5
27	Артикул: 7127607, DECAL, WARNING See Illustration SWEEPER/ NA6248 - Was 6707991 - A
28	Артикул: 7130142, DECAL, WARNING See Illustration SWEEPER/ NA6248 - no-text
29	Артикул: 6809831, DECAL, LOGO BOBCAT AND HEAD front cover - Was 6727307 - B
30	Артикул: DECAL, DECAL NLA - Bobcat Sweeper - Order 6727323 - Was 6531053 - A
31	Артикул: 6727323, DECAL, LOGO BOBCAT AND HEAD LH
32	Артикул: DECAL, DECAL NLA - Bobcat Sweeper - Order 6727324 - Was 6531052 - A
33	Артикул: 6727324, DECAL, LOGO BOBCAT AND HEAD RH
34	Артикул: 7109473, DECAL, LOGO BOBCAT AND HEAD Use on both sides
35	Артикул: 6708822, DECAL, WARNING See Illustration SWEEPER/ NA6248
36	Артикул: 7130144, DECAL, WARNING See Illustration SWEEPER/ NA6248 - no-text
37	Артикул: 63D16, NUT Was 61D16 - B
38	Артикул: 6594345, BOLT
39	Артикул: 6707834, BRACKET 54-- - Use on sweepers without Ref. 51
40	Артикул: 6707157, BRACKET 60-- - Use on sweepers without Ref. 51
41	Артикул: 6707845, BRACKET 72-- - Use on sweepers without Ref. 51
42	Артикул: 17C412, BOLT 5 Use W/Ref. 5
43	Артикул: 88F7, ELBOW
44	Артикул: 86F7, LOCK NUT
45	Артикул: 6817775, WASHER Use W/Ref. 5
46	Артикул: 6707156, COVER motor
47	Артикул: 6707161, SHIELD, SWEEPER RUBBER rubber
48	Артикул: 6708220, HOSE, HYD ASSY 1448 mm (57--) long - .875-- threads - Use with straight couplers
49	Артикул: 7170596, HOSE, HYD 1448 mm (57--) long - .875-- thread & 1.063-- thread - Use with 90 degree couplers
50	Артикул: 6598758, COUPLER, POPPET FEMALE straight
51	Артикул: 7246790, COUPLER, FF FEMALE See BTI433att - straight - Was 6672960 - A
52	Артикул: 6598757, COUPLER, POPPET MALE straight
53	Артикул: 7246777, COUPLER, FF MALE See BTI433att - Was 6674688 - A
54	Артикул: SEAL, SEAL See BTI433att - blue - front - 7251807 or 6679841
55	Артикул: 31C816, BOLT Was 35C820 - B
56	Артикул: BUCKET, BUCKET NLA - 54-- - Order 6707833, does not include bolt-on edge or hardware - W/Ref. 38, 40, 41 & 42 - Was 500029SUB - A
57	Артикул: 500030SUB, BUCKET 60-- - W/Ref. 38, 40, 41 & 42 - Was 6707146 - A
58	Артикул: 500031SUB, BUCKET, 72-- 72-- - W/Ref. 38, 40, 41 & 42 - Was 6707844 - A
59	Артикул: 17K7, ELBOW Use with poppet couplers - flat boss face
60	Артикул: 17KB1012, FITTING, HYD ELBOW Use with flush face couplers - flat boss face - Was 1302104B - A
61	Артикул: 6715651, ELBOW Use with flush face couplers - tapered boss face
62	Артикул: 97K12, RING,O flared end
63	Артикул: 6805366, EDGE, CUTTING BOLT ON BEVELED REV 53.88-- 54-- - Use 39C1032 bolt & 93D10 nut - holes in weld-on edge may have to be drilled to 17,5 mm (.688--) dia when ordering bolt-on edge, as the cutting edges now use a larger (5/8--) bolt & nut - Was 6706554 - A
64	Артикул: 6805367, EDGE, CUTTING BOLT-ON 60-- 54-- - Use 39C1032 bolt & 93D10 nut - holes in weld-on edge may have to be drilled to 17,5 mm (.688--) dia when ordering bolt-on edge, as the cutting edges now use a larger (5/8--) bolt & nut - Was 6706554 - A
65	Артикул: 6805368, EDGE, CUTTING BOLT-ON 72-- 54-- - Use 39C1032 bolt & 93D10 nut - holes in weld-on edge may have to be drilled to 17,5 mm (.688--) dia when ordering bolt-on edge, as the cutting edges now use a larger (5/8--) bolt & nut - Was 6706554 - A
66	Артикул: 6707836, SHIELD 54-- - rubber
67	Артикул: 6707159, SHIELD, SWEEPER RUBBER 60-- - rubber
68	Артикул: 6707847, SHIELD, SWEEPER RUBBER 72-- - rubber
69	Артикул: 6704903, BOLT 5 1/2--
70	Артикул: 39C1032, BOLT 5/8-- - Use (9) with 54-- bucket, (10) with 60-- bucket & (12) with 72-- bucket
71	Артикул: 85D8, NUT, 5 1/2-- - Use (9) with 54-- bucket, (10) with 60-- bucket & (12) with 72-- bucket
72	Артикул: 93D10, NUT 5/8-- - Use Qty. 9 with 54--bucket & Qty. 12 with 72-- bucket - Was 85D000010B - B
73	Артикул: 85D10, NUT, 5 Use Qty. 10 with 60-- bucket
74	Артикул: 6707831, BAR 54--
75	Артикул: 6707150, BAR 60--
76	Артикул: 6707843, BAR 72--
77	Артикул: 15G505, SCREW Use W/Ref. 5
78	Артикул: 872229, WASHER
79	Артикул: 6706160, GUIDE
80	Артикул: 37C648, BOLT 540-s, 640-s & 740s
81	Артикул: 37C656, BOLT 750-s
82	Артикул: 37C664, BOLT 7753, 853 & 840-s
83	Артикул: 6716684AR, KIT decal - AR=Spanish (Argentine)
84	Артикул: 6716684BR, KIT decal - BR=Portugese (Brazil)
85	Артикул: 6716684JP, KIT decal - JP=Japanese
86	Артикул: 6716685AR, KIT translation - AR=Spanish (Argentine) - translation kit includes safety manual, operators manual and decal kit
87	Артикул: 6716685BR, KIT translation - BR=Portugese (Brazil) - translation kit includes safety manual, operators manual and decal kit
88	Артикул: 7184256, CANOPY U-BOLT NUT 8 Was 85D8 - B
89	Артикул: 79K12, O RING 10 for flat boss face
90	Артикул: 99K12, O RING tapered boss face
91	Артикул: 6716817, BRACE 54-- - Use with Ref. 51
92	Артикул: 6716815, BRACE 60-- - Use with Ref. 51
93	Артикул: 6716813, BRACE 72-- - Use with Ref. 51
94	Артикул: 6716816, BRACE 54--
95	Артикул: 6716814, BRACE 60--
96	Артикул: 6716812, BRACE 72--
97	Артикул: 84G3720, BOLT
98	Артикул: 6676173, PLUG
99	Артикул: 6808305, BRACKET
100	Артикул: 6730269, SKID BAR
101	Артикул: 84G3712, BOLT 5
102	Артикул: 7165291, SPROCKET splined
103	Артикул: 21J20, RING, SNAP Use W/Ref. 57
104	Артикул: 7246795, COUPLER, FF MALE See BTI433att - 90 degree - Was 7168432 - A
105	Артикул: 7246781, COUPLER, FF FEMALE See BTI433att - 90 degree - Was 7168433 - A
106	Артикул: 7161953, GUIDE, HOSE ASSY Ref. 62-64
107	Артикул: 7161559, PIN, SNAPPER
108	Артикул: CABLE, CABLE ASSY NSS - 304,8 mm (12--) long - Order 6558309 wire rope & (2) 6558310 sleeve - Was 7167775 - D
109	Артикул: 6558309, WIRE ROPE bulk - sold per foot
110	Артикул: 6558310, SLEEVE
111	Артикул: GUIDE, GUIDE NSS - Order Ref. 61
112	Артикул: 7170300, PIN, PIVOT
