СТАРТЕР в Алматы
×
![]()
Характеристики и описание

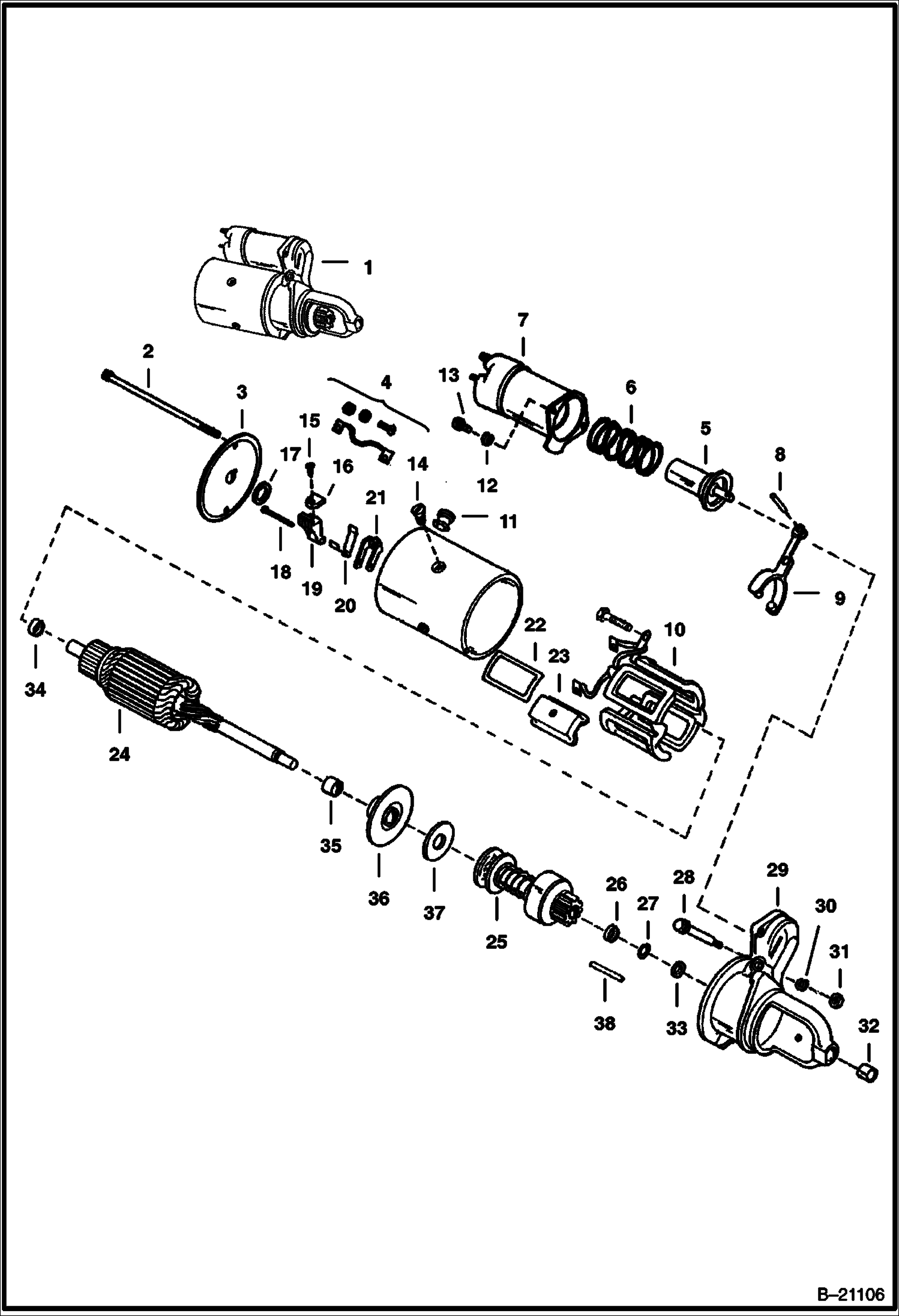

Габариты, схема
Техническая документация
| 1 | Артикул: STARTER, STARTER NLA - Delco 1107588 - Order 6660797 |
| 2 | Артикул: STARTER, STARTER NLA - Delco 1108692 - Order 6660797 |
| 3 | Артикул: BOLT, BOLT NLA - thru - Was 895675B - A |
| 4 | Артикул: FRAME, FRAME NLA - Was 883008B - A |
| 5 | Артикул: 877650, SUPPORT brush support |
| 6 | Артикул: PLUNGER, PLUNGER NSS |
| 7 | Артикул: 888968, SPRING |
| 8 | Артикул: 884581, SWITCH |
| 9 | Артикул: PIN, PIN NLA - Was 999472B - A |
| 10 | Артикул: 896126, LEVER |
| 11 | Артикул: COIL, COIL NLA - field - 4 Coils - Was 991101B - A |
| 12 | Артикул: GROMMET, GROMMET NLA - Was 898131B - A |
| 13 | Артикул: WASHER, WASHER NSS |
| 14 | Артикул: SCREW, SCREW NLA - Was 43G000408B - A |
| 15 | Артикул: 859377, SCREW |
| 16 | Артикул: SCREW, SCREW NLA - Was 65G000812B - A |
| 17 | Артикул: BRUSHES, BRUSHES NLA - For 1107588 - Was 1810250B - A |
| 18 | Артикул: BRUSHES, BRUSHES NLA - For 1108692 - Was 1810488B - A |
| 19 | Артикул: WASHER, WASHER NLA - Was 863995B - A |
| 20 | Артикул: PIN, PIN NSS |
| 21 | Артикул: 871515, HOLDER brush |
| 22 | Артикул: 6656399, SPRING brush - Was 871517B - A |
| 23 | Артикул: 880603, HOLDER brush |
| 24 | Артикул: INSULATOR, INSULATOR NSS |
| 25 | Артикул: POLE, POLE SHOE NSS |
| 26 | Артикул: 6511629, ARMATURE Was 991100B - A |
| 27 | Артикул: 6645247, DRIVE ASSY. Was 899271B - A |
| 28 | Артикул: STOP, STOP NLA - Was 878608B - A |
| 29 | Артикул: 942142, SNAP RING |
| 30 | Артикул: SCREW, SCREW NLA - Was 891188B - A |
| 31 | Артикул: 884576, BOLT. For 1108692 |
| 32 | Артикул: 6630419, HOUSING drive - W/Ref. 32 - Was 991099B - A |
| 33 | Артикул: WASHER, WASHER NSS |
| 34 | Артикул: NUT, NUT NLA - Was 856357B - A |
| 35 | Артикул: 860669, BUSHING |
| 36 | Артикул: 850363, COLLAR thrust |
| 37 | Артикул: 874935, BUSHING |
| 38 | Артикул: BUSHING, BUSHING NSS - Purchase Locally |
| 39 | Артикул: 6630411, PLATE center bearing - Was 871524B |
| 40 | Артикул: WASHER, WASHER NSS |
| 41 | Артикул: 6630405, DOWEL PIN |
