СТАРТЕР (BOSCH 0-001-211-228) в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация

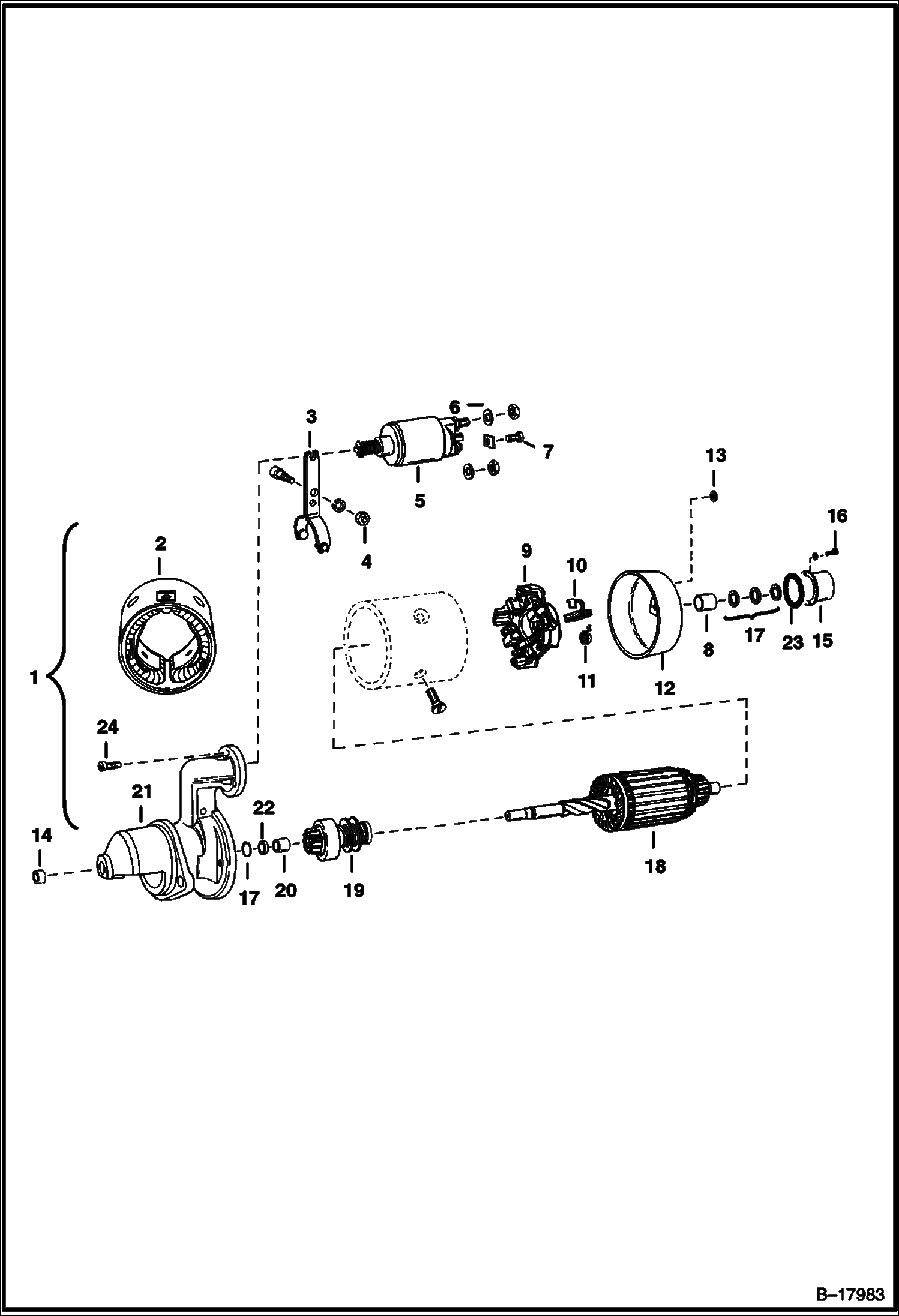

| 1 | Артикул: 7303331, STARTER Was 6514006 - A |
| 2 | Артикул: 7303331, STARTER Was 6665502REM - A |
| 3 | Артикул: NLA, NLA - Was 6513289 |
| 4 | Артикул: LEVER, LEVER NLA - Was 6513298 |
| 5 | Артикул: 1DM6, NUT |
| 6 | Артикул: SOLENOID, SOLENOID NLA - Was 6513296 |
| 7 | Артикул: 4E5, WASHER |
| 8 | Артикул: NUT, NUT NLA - Was 6517902 |
| 9 | Артикул: BUSHING, BUSHING NLA - Was 4148008B - A |
| 10 | Артикул: 6598070, PLATE brush |
| 11 | Артикул: 4, 4 BRUSHES NLA - Was 6513301 - See General Service Bulletin G-006 |
| 12 | Артикул: 6514885, SPRING |
| 13 | Артикул: COVER, COVER W/Ref. 8 NLA - Was 6513299 |
| 14 | Артикул: 6513303, WASHER |
| 15 | Артикул: 6513291, BUSHING |
| 16 | Артикул: COVER, COVER NLA - Was 6513302 |
| 17 | Артикул: SCREW, SCREW NLA - Was 6517905 |
| 18 | Артикул: WASHER, WASHER KI NLA - Was 6598071 - armature hardware |
| 19 | Артикул: ARMATURE, ARMATURE NLA - Was 6598069 - A |
| 20 | Артикул: 6514877, DRIVE |
| 21 | Артикул: BUSHING, BUSHING NLA - Was 6513294 |
| 22 | Артикул: HOUSING, HOUSING NLA - Was 6598072 - A |
| 23 | Артикул: 6514878, RING |
| 24 | Артикул: 6514891, SEAL |
| 25 | Артикул: 6664478, SCREW |
СТАРТЕР (BOSCH 0-001-211-228): Техника, которая работает на результат
СТАРТЕР (BOSCH 0-001-211-228) на Bobcat 700s Bobcat 732 5000M11001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
