ЦИЛИНДР РУКОЯТИ в Алматы
×
![]()
Характеристики и описание

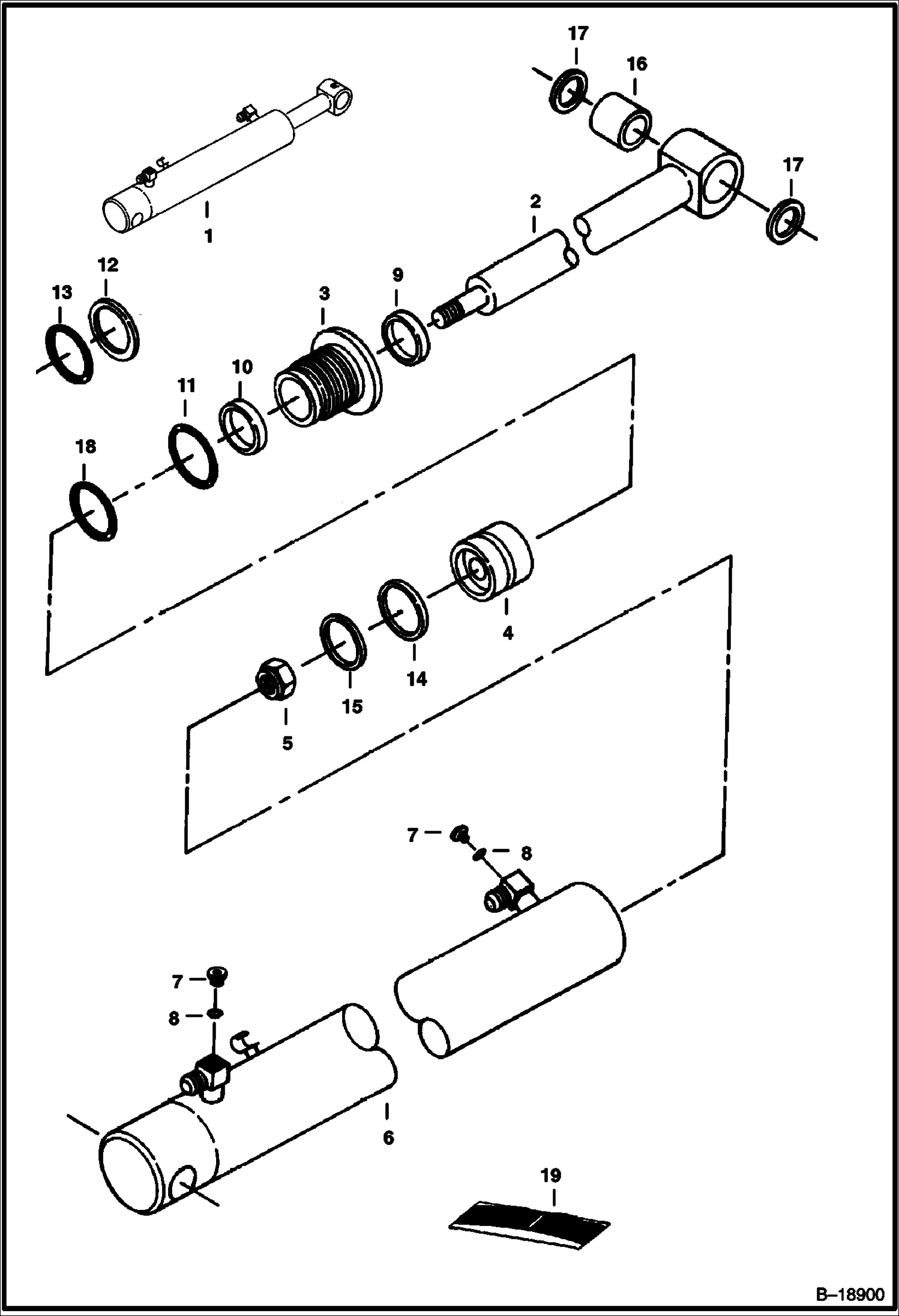

Габариты, схема
Техническая документация
| 1 | Артикул: 6589397, CYLINDER Ref. 2-17 |
| 2 | Артикул: 6589404, ROD W/Ref. 16 & 17 |
| 3 | Артикул: 6586568, HEAD |
| 4 | Артикул: 6589401, PISTON |
| 5 | Артикул: 6810539, NUT Was 6804592 - A |
| 6 | Артикул: 6589403, HOUSING |
| 7 | Артикул: PLUG, PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A |
| 8 | Артикул: 24K5, PLUG W/Ref. 8 - tapered boss face - Was 90KV5 - A |
| 9 | Артикул: 79K6, O RING 10 flat boss face-Was 91F000005B - A |
| 10 | Артикул: 95K6, O-RING tapered boss face |
| 11 | Артикул: 6686999, WIPER, ROD CYL Was 6666544 - A |
| 12 | Артикул: 6667327, SEAL Was NSS |
| 13 | Артикул: 58K234, O RING 10 Was 54K40300 - B |
| 14 | Артикул: 73K232, RING, BACK-UP back-up - Was 80K232 - A |
| 15 | Артикул: 25K40224, RING,O Was 54K40224 - B |
| 16 | Артикул: 25K30218, O RING 10 Was 54K30218 - B |
| 17 | Артикул: 947088, RING, BACK-UP Was NSS |
| 18 | Артикул: 6539220, BUSHING Was NSS |
| 19 | Артикул: 6652915, SEAL, OIL Was NSS |
| 20 | Артикул: 7008355, SEAL, QUAD |
| 21 | Артикул: 6804603, SEAL KIT W/Ref. 5, 9-11, 14, 15 & 18 - Was 6587990 - A |
ЦИЛИНДР РУКОЯТИ: Техника, которая работает на результат
ЦИЛИНДР РУКОЯТИ на мини-экскаватор Bobcat 331 511920001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
