ДВИГАТЕЛЬ И КОМПЛЕКТ ПРОКЛАДОК в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация

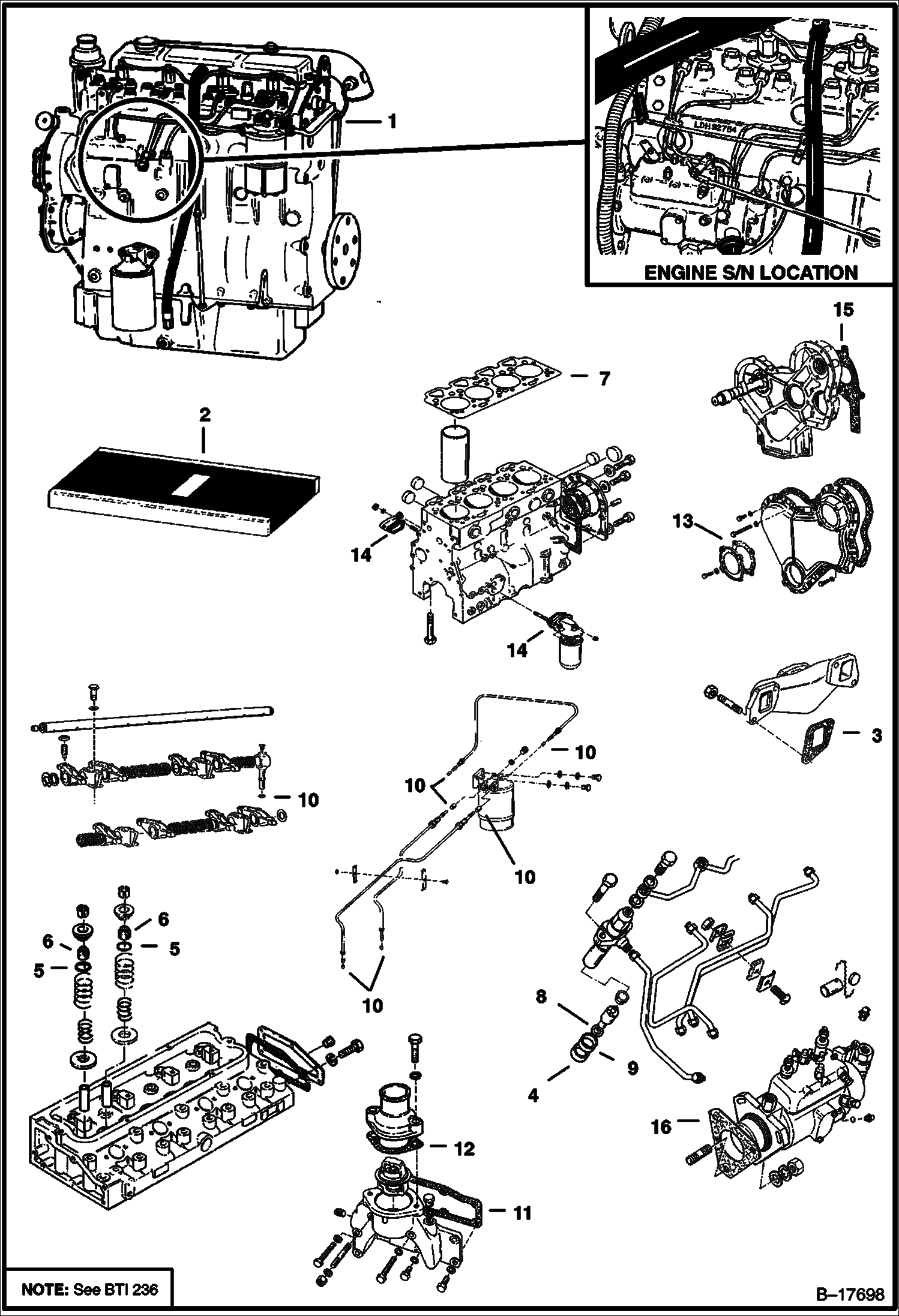

| 1 | Артикул: ENGINE, ENGINE See BTI236 NLA - W/Injection pump & filters - less starter, alternator & flywheel - Order 6661655REM - Was 6661655 - A |
| 2 | Артикул: 6661655REM, ENGINE, PERKINS 4.236 remanufactured |
| 3 | Артикул: 6641320, SHORT BLOCK W/Liners, pistons, rings, rod, rod bearings, main bearings, crankshaft, rear oil seal & housing |
| 4 | Артикул: BLOCK,, BLOCK, REMAN SHORT ENG PERKINS LD39339 NLA - Was 6641320REM - A |
| 5 | Артикул: 6662043, GASKET KIT Upper-Spec. No. LD70269-2200 - W/Ref. 3-12 |
| 6 | Артикул: 6662044, GASKET KIT Lower-Spec. No. LD70269-2200 Less Front & Rear Seal - W/Ref. 13-16 |
| 7 | Артикул: 6662041, GASKET See Illustration MANIFOLDS/ B7928 Ref. 4 |
| 8 | Артикул: 6631512, SEAL See Illustration FUEL INJECTOR SYSTEM/ B7844 Ref. 12 |
| 9 | Артикул: 907934, RING See Illustration CYLINDER HEAD/ B8097 Ref. 4 |
| 10 | Артикул: 6519507, SEAL See Illustration CYLINDER HEAD/ B8097 Ref. 21 |
| 11 | Артикул: 6662040, GASKET See Illustration CYLINDER BLOCK/ B8096 Ref. 1 |
| 12 | Артикул: 3725682, WASHER See Illustration FUEL INJECTOR SYSTEM/ B7844 Ref. 9 |
| 13 | Артикул: 909605, SPACER See Illustration FUEL INJECTOR SYSTEM/ B7844 Ref. 4 |
| 14 | Артикул: 3727375, FERRULE See Illustration ROCKER SHAFT/ B7918 Ref. 16 - Also Ref. 10 on Ill. D1712 FUEL FILTER |
| 15 | Артикул: 6668030, GASKET See Illustration WATER OULET BODY/ B13393 Ref. 8 |
| 16 | Артикул: 6668014, GASKET See Illustration WATER OULET BODY/ B13393 Ref. 2 |
| 17 | Артикул: 6660651, GASKET See Illustration TIMING GEARS/ B7927 Ref. 32 |
| 18 | Артикул: 6668022, GASKET See Illustration CYLINDER BLOCK/ B8096 Ref. 42 |
| 19 | Артикул: 6668034, GASKET See Illustration TIMING GEARS/ B7927 Ref. 13 |
| 20 | Артикул: 6649431, GASKET See Illustration TIMING GEARS/ B7927 Ref. 13 |
| 21 | Артикул: 6668020, GASKET See Illustration FUEL INJECTOR SYSTEM/ B7844 Ref. 18 |
ДВИГАТЕЛЬ И КОМПЛЕКТ ПРОКЛАДОК: Техника, которая работает на результат
ДВИГАТЕЛЬ И КОМПЛЕКТ ПРОКЛАДОК на Bobcat 900s Bobcat 953 513111001 И ВЫШЕ, 513115001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
