ГИДРОСТАТИЧЕСКИЙ НАСОС в Алматы
×
![]()
Характеристики и описание

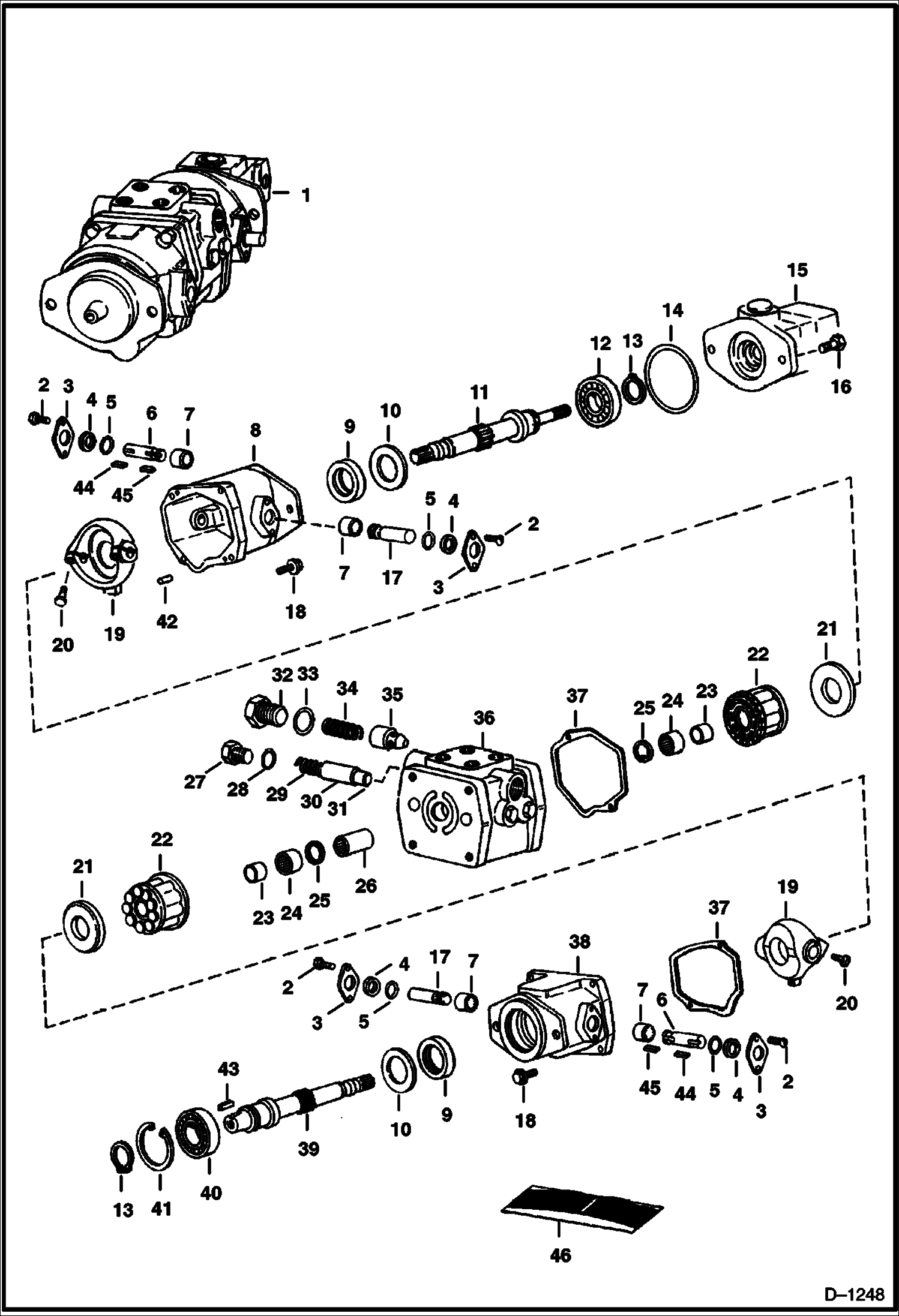

Габариты, схема
Техническая документация
| 1 | Артикул: PUMP, PUMP NLA - Was 6511316 - A |
| 2 | Артикул: PUMP,, PUMP, HYD COMPLETE NLA - Remanufactured - Was 6599502REM - A |
| 3 | Артикул: 85G1004, SCREW |
| 4 | Артикул: PLATE, PLATE Was 6519293 - A |
| 5 | Артикул: O-RING, O-RING NSS |
| 6 | Артикул: O-RING, O-RING NSS |
| 7 | Артикул: PINTLE, PINTLE NSS |
| 8 | Артикул: BEARING, BEARING NSS |
| 9 | Артикул: HOUSING, HOUSING NLA |
| 10 | Артикул: SEAL, SEAL NSS - shaft |
| 11 | Артикул: 6519655, SPACER |
| 12 | Артикул: SHAFT, SHAFT NLA - Was 6519345 - A |
| 13 | Артикул: 853189, BEARING |
| 14 | Артикул: 711298, RING |
| 15 | Артикул: 6519704, O-RING |
| 16 | Артикул: PUMP, PUMP See Illustration VANE PUMP/ C1866 - NLA - vane - Was 6512084 - A |
| 17 | Артикул: 17C616, BOLT 5 |
| 18 | Артикул: PINTLE, PINTLE NSS |
| 19 | Артикул: 93G624, SCREW Was 71G000624B - A |
| 20 | Артикул: YOKE, YOKE NPA - Was 6519343 - A |
| 21 | Артикул: 17C732, BOLT |
| 22 | Артикул: PLATE, PLATE NLA |
| 23 | Артикул: KIT, KIT NLA - rotating group - W/Ref. 21 - Was 6519302 - A |
| 24 | Артикул: SLEEVE, SLEEVE NLA - Was 6519347 - A |
| 25 | Артикул: 784807, BEARING |
| 26 | Артикул: SNAP, SNAP RING NLA - Was 6519658 - A |
| 27 | Артикул: COUPLING, COUPLING NLA - Was 6519344 - A |
| 28 | Артикул: 24K6, FITTING W/Ref. 28 |
| 29 | Артикул: 79K8, O RING 10 |
| 30 | Артикул: SPRING, SPRING NSS |
| 31 | Артикул: RELIEF, RELIEF VALVE NSS - Order Ref. 31 |
| 32 | Артикул: 6519292, KIT high pressure relief - Ref. 29 & 30 |
| 33 | Артикул: 24K8, PLUG W/Ref. 33 |
| 34 | Артикул: 79K12, O RING 10 |
| 35 | Артикул: SPRING, SPRING NLA - Was 6519701 - A |
| 36 | Артикул: POPPET, POPPET NLA - charge pressure - Was 6519295 - A |
| 37 | Артикул: 6519303, VALVE PLATE valve |
| 38 | Артикул: 6519342, GASKET |
| 39 | Артикул: HOUSING, HOUSING NLA |
| 40 | Артикул: 6519346, SHAFT |
| 41 | Артикул: 1300111, BEARING |
| 42 | Артикул: 711406, RING |
| 43 | Артикул: 214028, PIN |
| 44 | Артикул: KEY, KEY NLA - Was 6519654 - A |
| 45 | Артикул: 6519656, KEY |
| 46 | Артикул: 6519657, KEY |
| 47 | Артикул: 6519304, SEAL KIT Ref. 4, 5, 9, 14, 28, 33 & 37 |
| 48 | Артикул: KIT, KIT NLA - Ref. 6, 7 & 17 - Was 6551835 - A |
