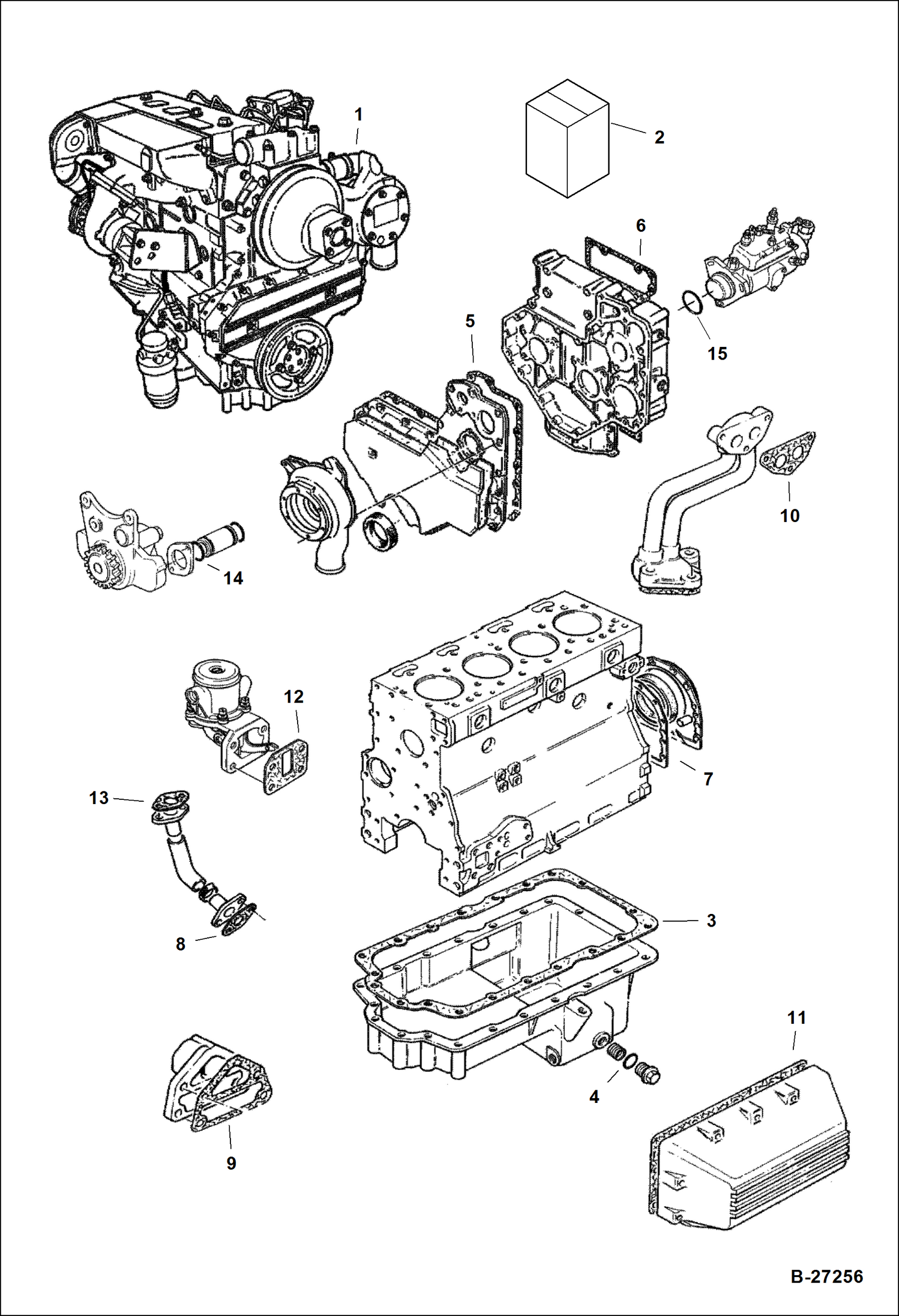

| 1 | Артикул: ENGINE, ENGINE NLA - Order 6669595REM or 6686580 long block kit - Was 6669595 - A |
| 2 | Артикул: 6669595REM, ENGINE, PERKINS 1004-40T W/O starter, alternator, flywheel, pump mount or turbo |
| 3 | Артикул: 6672270, SHORT BLOCK engine - includes plugs, cylinder block, liner, crankshaft, connecting rod, main bearing, big end bearing, thrust washer, seal & housing |
| 4 | Артикул: 6672166, GASKET KIT lower - W/Ref. 3-16 |
| 5 | Артикул: 3727656, GSKT See Illustration LUBRICATION SYSTEM/ B17234 oil pan - See Ref. 5 |
| 6 | Артикул: 6649447, O-RING See Illustration LUBRICATION SYSTEM/ B17234 drain plug - See Ref. 3 |
| 7 | Артикул: 6670915, GASKET See Illustration TIMING GEARS/ B17232 damper - See Ref. 20 |
| 8 | Артикул: 6668257, GASKET See Illustration TIMING GEARS/ B17232 cover - See Ref. 2 |
| 9 | Артикул: 6674359, GASKET See Illustration CYLINDER BLOCK/ B17226 rear cover - See Ref. 33 |
| 10 | Артикул: 6668578, GASKET See Illustration TURBO CHARGER - MANIFOLD EXHAUST/ B17241 turbo hose - See Ref. 23 |
| 11 | Артикул: 6668510, GASKET See Illustration FILTER OIL - COOLER OIL/ B17236 adapter - See Ref. 3 |
| 12 | Артикул: 6668529, GASKET See Illustration FILTER OIL - COOLER OIL/ B17236 pipe - See Ref. 25 |
| 13 | Артикул: 6668522, GASKET See Illustration FILTER OIL - COOLER OIL/ B17236 cover - See Ref. 15 |
| 14 | Артикул: 6668035, GASKET See Illustration FUEL PUMP/ B17244 fuel pump - See Ref. 5 |
| 15 | Артикул: 6670980, GASKET See Illustration TURBO CHARGER - MANIFOLD EXHAUST/ B17241 turbo hose - See Ref. 18 |
| 16 | Артикул: 6668289, O-RING See Illustration PUMP OIL - VALVE RELIEF/ B5537 pipe - See Ref. 18 |
| 17 | Артикул: 6673114, O-RING See Illustration FUEL INJECTOR SYSTEM/ B15180 injection pump - See Ref. 27 |
