ПОРШНИ И КОЛЕНВАЛ в Алматы
×
![]()
Характеристики и описание

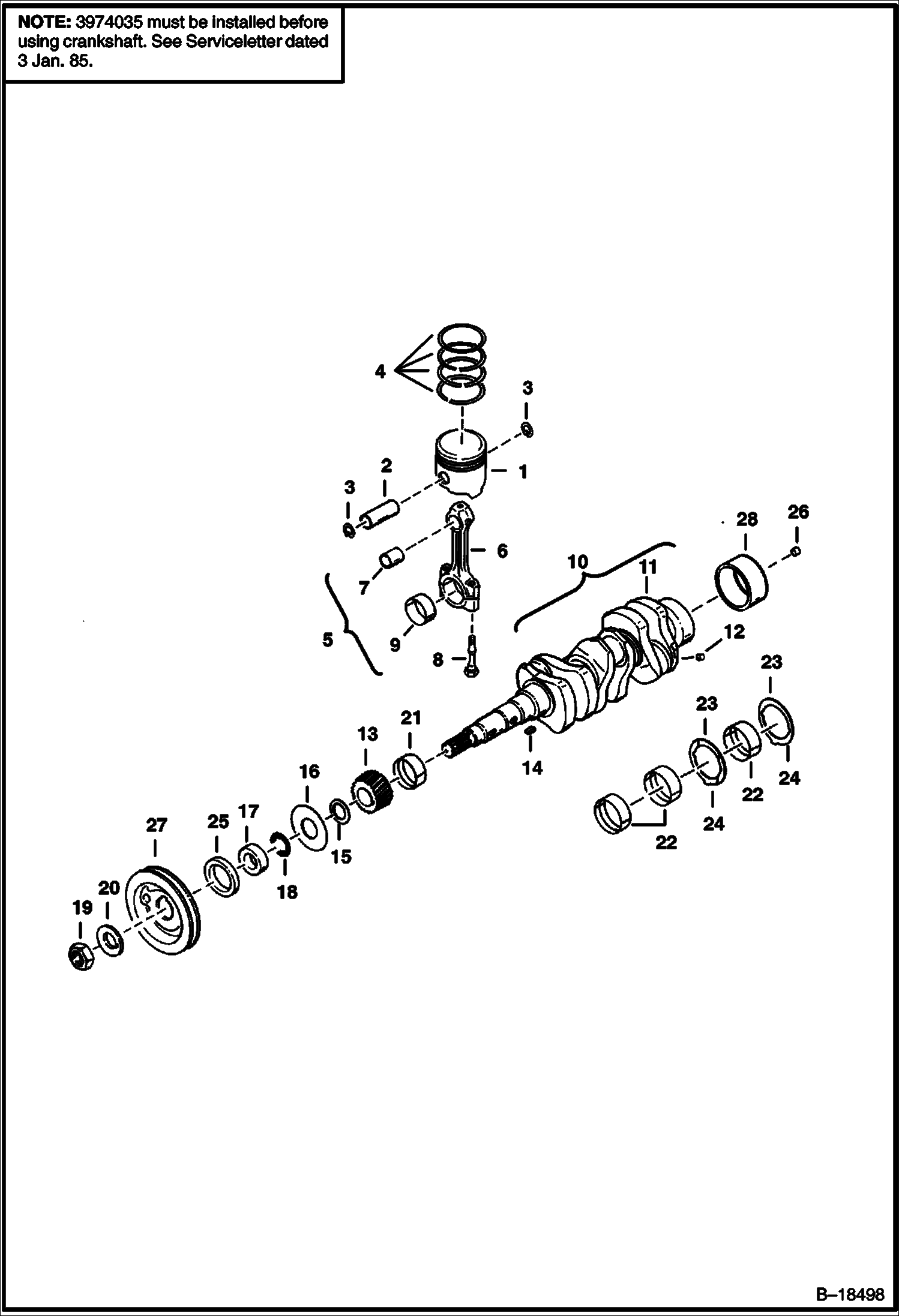

Габариты, схема
Техническая документация
| 1 | Артикул: PISTON, PISTON NLA - Use 6630185 for front & rear - For center use 6653844 |
| 2 | Артикул: PISTON, PISTON NLA - Use 6631945 for front & rear - For center use 6634611 - .0197 (0,5 mm) - Oversized - Was 6599921 - A |
| 3 | Артикул: 6630185, PISTON Front & Rear - One Piston - w/o rings & pin |
| 4 | Артикул: 6631945, PISTON .0197 (0,5 mm) Oversized Front & Rear One Piston - w/o rings & pin |
| 5 | Артикул: 6634309, PISTON Center - w/o rings & pin |
| 6 | Артикул: 6634611, PISTON .0197 (0.5 mm) Oversized Center - - w/o rings & pin |
| 7 | Артикул: 3974937, PIN PISTN |
| 8 | Артикул: 3974561, SNAP RG 5 |
| 9 | Артикул: RING, RING ASSY. NLA - piston Use 6630463 - Was 6598712 - A |
| 10 | Артикул: RING, RING ASSY. NLA - piston .0197 (0,5 mm) Oversized Use 6631946 - Was 6599920 - A |
| 11 | Артикул: 6630463, RING ASSY. For one piston |
| 12 | Артикул: 6631946, RING ASSY. .0197 (0,5 mm) Oversized For one piston |
| 13 | Артикул: 7261041, ROD, CONNECTING connecting - W/Ref. 6, 7 & 8 - Torque nut to 40-45NM - Was 7261041 - A |
| 14 | Артикул: ROD, ROD NSS |
| 15 | Артикул: 3974939, BUSHING |
| 16 | Артикул: BOLT, BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs |
| 17 | Артикул: 6598699, BEARING rod |
| 18 | Артикул: 6599918, BEARING rod -.0079 (0,2 mm) One Bearing |
| 19 | Артикул: 6599919, BEARING rod - .0157 (0,4 mm) |
| 20 | Артикул: 6598745, CRANKSHAFT Ref. 11 & 12 See Note & Serviceletter |
| 21 | Артикул: 6598745, CRANKSHAFT Ref. 11, 12 & 28 - Was 6653856 - A |
| 22 | Артикул: CRANKSHAFT, CRANKSHAFT NSS |
| 23 | Артикул: 3974035, PLUG |
| 24 | Артикул: 6653860, GEAR Was 3974943B - A |
| 25 | Артикул: 3974546, KEY |
| 26 | Артикул: 3974944, COLLAR |
| 27 | Артикул: 6653861, SLINGER, OIL Was 6598141 - A |
| 28 | Артикул: 3975337, COLLAR Was 3974576B - A |
| 29 | Артикул: 3974577, RING,O In 6630553 Gasket Kit |
| 30 | Артикул: 3974671, NUT |
| 31 | Артикул: 3974672, WASHER |
| 32 | Артикул: 6655185, BEARING main - Was 3974578B - A |
| 33 | Артикул: 3975017, BEARING MAIN main - .0079 (0,2 mm) |
| 34 | Артикул: 6655239, BEARING main - .0157 (0,4 mm) - Was 3975018B - A |
| 35 | Артикул: 6655186, BEARING main - Was 3974579B - A |
| 36 | Артикул: 6655240, BEARING main (0,2 mm - .0079) - Was 3975019B - A |
| 37 | Артикул: 3975020, MAIN BRG main - .0157 (0,4 mm) |
| 38 | Артикул: 3974945, WASHER, THRUST thrust Top Half |
| 39 | Артикул: 3975021, WASHER thrust - .0079 (0,2 mm) Top Half |
| 40 | Артикул: 6599915, WASHER thrust - .0157 (0,4 mm) Top Half |
| 41 | Артикул: 6653865, WASHER, THRUST thrust Bottom Half - Was 3974946B - A |
| 42 | Артикул: 3975023, WASHER thrust - .0079 (0,2 mm) Bottom Half |
| 43 | Артикул: 3975024, WASHER thrust - .0157 (0,4 mm) Bottom Half |
| 44 | Артикул: 7024826, SEAL, OIL oil frt main - Was 6631664 - A |
| 45 | Артикул: 6598187, PLUG |
| 46 | Артикул: 6598720, PULLEY |
| 47 | Артикул: 6653859, SLEEVE Was 3975334B - A |
