РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT) в Алматы
×
![]()
Характеристики и описание

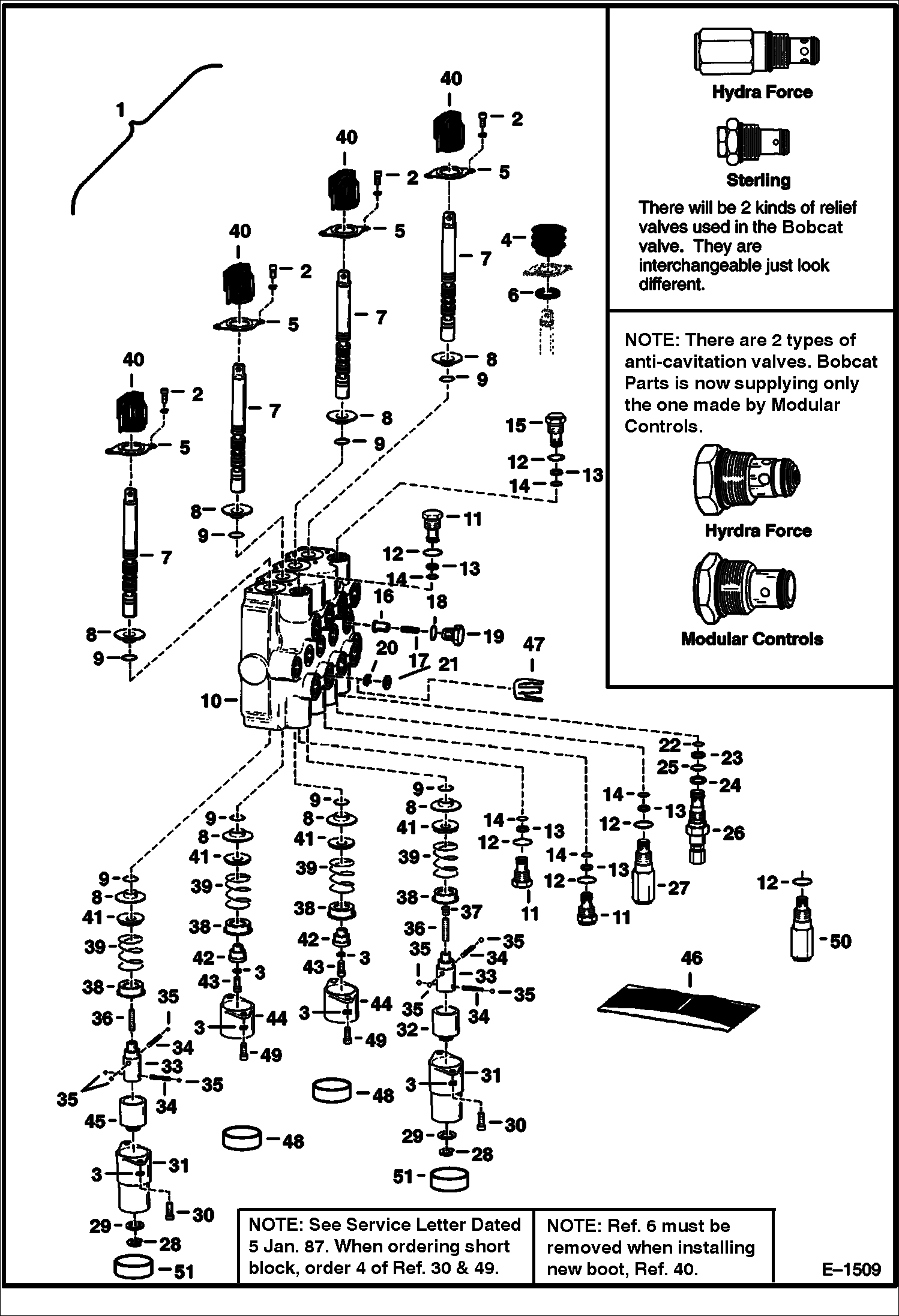

Габариты, схема
Техническая документация
| 1 | Артикул: VALVE, VALVE NLA - Order components - Ref. 2-48 - See instruction that comes with valve - Was 6539333 - A |
| 2 | Артикул: 6592740, SHORT BLOCK Ref. 2-10 & 37 - See Note |
| 3 | Артикул: 6588165, SCREW |
| 4 | Артикул: 22E4, WASHER |
| 5 | Артикул: BOOT, BOOT NLA - Order Ref. 40 - Was 6592122 - A |
| 6 | Артикул: 6592123, RETAINER |
| 7 | Артикул: FILTER, FILTER NLA - sintered - Not Use W/Ref. 40 - Was 6592124 - A |
| 8 | Артикул: SPOOL, SPOOL NSS |
| 9 | Артикул: 6592103, BUSHING See Service Letter dated 5 Jan. 87 |
| 10 | Артикул: 6538466, BUSHING With part # stamped on face |
| 11 | Артикул: 6659554, SEAL See BTI374 - Was 6632204 - A |
| 12 | Артикул: 6646372, SEAL See BTI374 quad ring seal |
| 13 | Артикул: VALVE,, VALVE, CONTROL SERVICE NLA - Was 6804529 - body |
| 14 | Артикул: 6592720, PLUG W/Ref. 12-14 |
| 15 | Артикул: 79K10, O RING 10 |
| 16 | Артикул: 80K14, BACK-UP WASHER Was 73K000014B - B |
| 17 | Артикул: 58K014, O-RING 10 back-up washer required - Was 25K20016 - B |
| 18 | Артикул: 6677106, O-RING back-up washer not required |
| 19 | Артикул: 6667549, VALVE anti-cavity - W/Ref. 12-14 - SEE NOTE - Was 6661345 - A |
| 20 | Артикул: 6592115, SEAT |
| 21 | Артикул: 6592117, SPRING, LOAD CHECK |
| 22 | Артикул: 79K8, O RING 10 |
| 23 | Артикул: 6592116, NUT load check |
| 24 | Артикул: 6592111, ORIFICE .161/.154 (4,08/3,91 mm) |
| 25 | Артикул: 6593680, RETAINER |
| 26 | Артикул: O-RING, O-RING NSS |
| 27 | Артикул: WASHER, WASHER NSS - back-up |
| 28 | Артикул: O-RING, O-RING NSS |
| 29 | Артикул: WASHER, WASHER NSS - back-up |
| 30 | Артикул: VALVE, VALVE NLA - main relief - W/Ref. 22-25 - press. preset at factory - Was 6676199 - A |
| 31 | Артикул: 7219324, VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A |
| 32 | Артикул: 6599161, RELIEF VALVE W/Ref. 12-14 - See Note |
| 33 | Артикул: 799119, RING |
| 34 | Артикул: 6592098, WASHER |
| 35 | Артикул: 6588163, SCREW 7/8-- (22,22 mm) - Was 69G000412B - B |
| 36 | Артикул: 29G416, BOLT 1-- (25,4 mm) - Was 6588982 - A |
| 37 | Артикул: BONNET, BONNET NLA - W/.25-- flange - Order 6589226 bonnet, 6660644 cap, and 2 29G000416B screws - Was 6592094 - A |
| 38 | Артикул: 6589226, COVER, END 0.63-- flange |
| 39 | Артикул: 6592096, SLEEVE lift |
| 40 | Артикул: 6587575, ADAPTER Was 6592099 - A |
| 41 | Артикул: 6592107, SPRING |
| 42 | Артикул: 6592105, BALL |
| 43 | Артикул: 6586918, SCREW Was 6535747 - A |
| 44 | Артикул: PLUG, PLUG NLA - plastic - Order 6596807 plug and 54K020002B O-Ring - Was 6592752 - A |
| 45 | Артикул: 6596807, PLUG plastic - 0.46-- long |
| 46 | Артикул: 54K20002, O-RING 10 |
| 47 | Артикул: 6592100, COLLAR |
| 48 | Артикул: 6587580, SPRING Was 6592106 - A |
| 49 | Артикул: 6587763, BOOT Was 6583727 - A |
| 50 | Артикул: 7211397, WASHER, SPRING Was 6587523 - A |
| 51 | Артикул: 6592109, ADAPTER |
| 52 | Артикул: 6588166, SCREW Was 74G000416B - B |
| 53 | Артикул: BONNET, BONNET NLA - W/.25-- (6,35 mm) flange - Order 6587633, 6662848 & 2 of 6588164 |
| 54 | Артикул: 7101345, BONNET, DETENT HYD VALVE W/.50-- (12,7 mm) flange - Was 6587633 - A |
| 55 | Артикул: 6593349, SLEEVE auxiliary |
| 56 | Артикул: 6816251, KIT, SEAL See BTI374 - Ref. 9, 12-14, 18, 22-25, 37 & 40 - Was 6816717 - A |
| 57 | Артикул: 6816250, KIT, SEAL Ref. 9, 30 & 40 for one spool - Was 6803605 - A |
| 58 | Артикул: 6661328, SEAL KIT main relief seal - Ref. 22-25 |
| 59 | Артикул: 6809425, SEAL KIT upper deck - Ref. 12-14 & 18 - Was 6586461 - A |
| 60 | Артикул: 6532633, RESTRICTOR .153 (3,88 mm) |
| 61 | Артикул: 6662848, CAP Use with 6587633 bonnet |
| 62 | Артикул: 6588164, SCREW |
| 63 | Артикул: 6664373, VALVE Optional - port relief & anti cav. - W/Ref. 12 - 2500 PSI - use in tilt cyl. base end port |
| 64 | Артикул: 6660644, CAP |
РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT): Техника, которая работает на результат
РЕГУЛИРУЮЩИЙ КЛАПАН (BOBCAT) на Bobcat 800s Bobcat 843 502613001 - 502623999 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
