СХЕМА ГИДРОСТАТИЧЕСКОЙ СИСТЕМЫ в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация

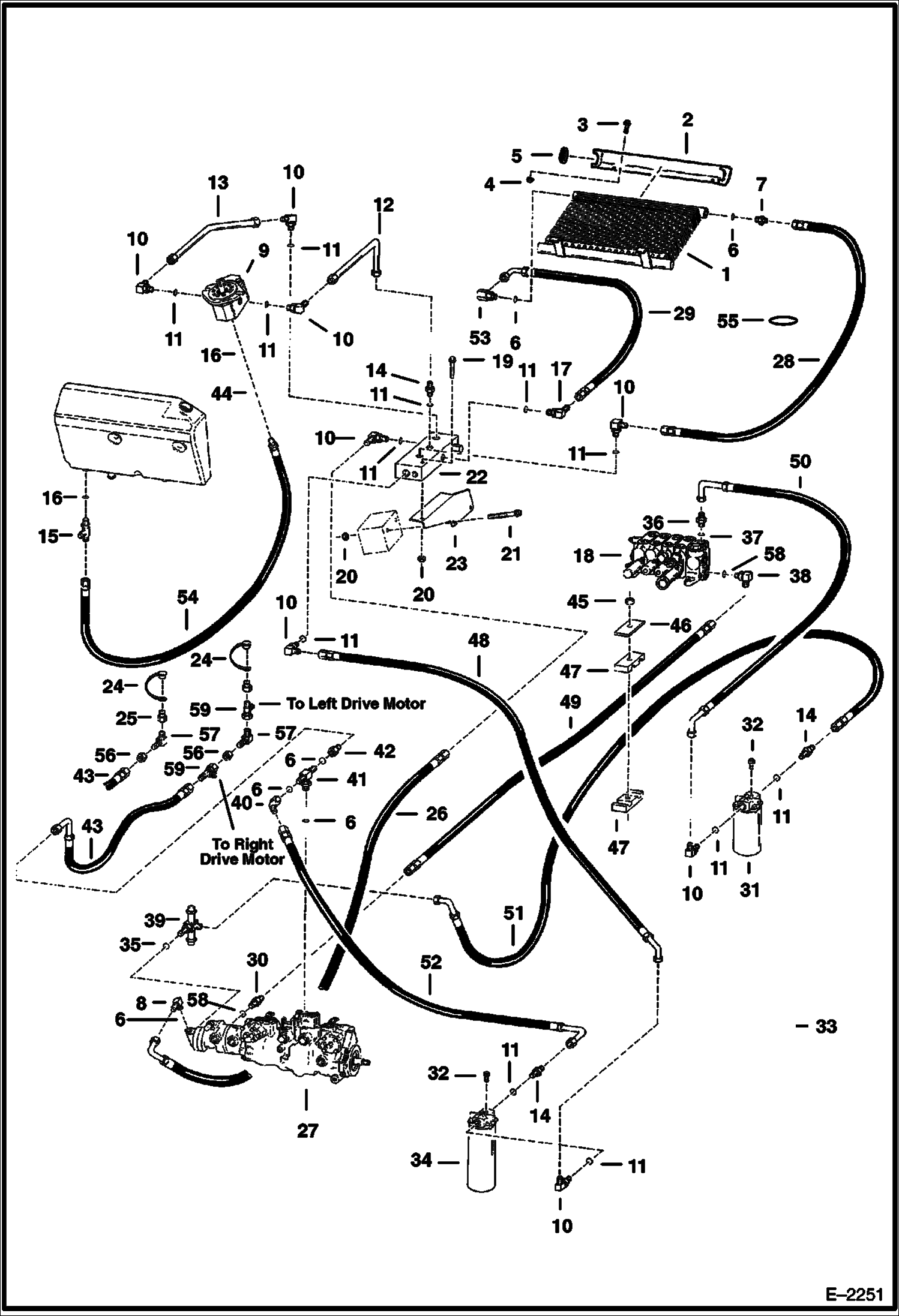

| 1 | Артикул: 6631476, OIL COOLER |
| 2 | Артикул: MOUNT, MOUNT NLA - Was 6568680 - A |
| 3 | Артикул: 35C616, BOLT 5 |
| 4 | Артикул: 57D6, NUT 5 |
| 5 | Артикул: 6511983, GROMMET |
| 6 | Артикул: 79K10, O RING 10 |
| 7 | Артикул: 6800567, ADAPTER Was 730963B - B |
| 8 | Артикул: 17KB1210, FITTING, HYD ELBOW Was 6714901 - A |
| 9 | Артикул: MOTOR, MOTOR See Illustration COOLING FAN MOTOR/ C3061 |
| 10 | Артикул: 85K8, ELBOW W/Ref. 11 - Was 17K000008B - B |
| 11 | Артикул: 75K12, O-RING 10 Was 79K000012B - B |
| 12 | Артикул: 6596196, TUBE |
| 13 | Артикул: 6595334, TUBE Was 6596195 - A |
| 14 | Артикул: 83K8, ADAPTER Was 15K000008B - B |
| 15 | Артикул: 88K5, TEE Was 21K000005B - B |
| 16 | Артикул: 75K6, O-RING Was 79K000006B - B |
| 17 | Артикул: 86K8, ELBOW 45 degrees - Was 18K000008B - B |
| 18 | Артикул: VALVE, VALVE See Illustration CONTROL VALVE/ E1656 |
| 19 | Артикул: 35C640, BOLT 10 |
| 20 | Артикул: 55D6, NUT |
| 21 | Артикул: 31C656, BOLT |
| 22 | Артикул: 6577268, BLOCK See Illustration PORT BLOCK/ C2883 |
| 23 | Артикул: 6595230, BRACKET |
| 24 | Артикул: 6630367, CAP |
| 25 | Артикул: 6646635, COUPLER Diagnostic |
| 26 | Артикул: 6595312, HOSE |
| 27 | Артикул: PUMP, PUMP See Illustration HYDROSTATIC PUMP/ C3376 |
| 28 | Артикул: 6595317, HOSE |
| 29 | Артикул: 6595316, HOSE |
| 30 | Артикул: 6800566, ADAPTER W/Ref. 58 |
| 31 | Артикул: FILTER, FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818A HYDROSTATIC |
| 32 | Артикул: 6661248, FILTER, OIL HYD 12 #3 media - 152,4 mm (6--) long - Was 6630977 - B |
| 33 | Артикул: 17C610, BOLT |
| 34 | Артикул: 58K21, O RING 10 |
| 35 | Артикул: FILTER, FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 HYDROSTATIC |
| 36 | Артикул: 79K16, O RING 10 |
| 37 | Артикул: 6800576, ADAPTER Was 6569138 - B |
| 38 | Артикул: 79K14, O RING 10 |
| 39 | Артикул: 6628594, ADAPTER Was 712555B - B |
| 40 | Артикул: 6595164, FITTING |
| 41 | Артикул: 12K7, UNION 45 degrees |
| 42 | Артикул: 87K7, TEE Was 19K000007B - B |
| 43 | Артикул: 784244, ADAPTOR |
| 44 | Артикул: 6595305, HOSE |
| 45 | Артикул: 83K5, ADAPTER W/Ref. 16 - Was 15K000005B - B |
| 46 | Артикул: 61D6, NUT 5 |
| 47 | Артикул: 6595356, PLATE |
| 48 | Артикул: 7248556, CLAMP, HOSE Was 6595353 - A |
| 49 | Артикул: 6595311, HOSE |
| 50 | Артикул: 6850034, HOSE Also Order Ref. 38 - Was 6595313 - A |
| 51 | Артикул: 6595314, HOSE |
| 52 | Артикул: 6595315, HOSE |
| 53 | Артикул: 6595310, HOSE |
| 54 | Артикул: 6669277, ELBOW Was 6647875 - B |
| 55 | Артикул: 6632048, SEAL KIT For 6669277 Elbow |
| 56 | Артикул: 6632047, SNAP RING For 6669277 Elbow |
| 57 | Артикул: 6587975, HOSE |
| 58 | Артикул: 6577545, GROMMET |
| 59 | Артикул: 86F7, LOCK NUT Was 86F000006B - B |
| 60 | Артикул: 6588893, ELBOW |
| 61 | Артикул: 75K16, O RING 10 |
| 62 | Артикул: 13K8, TEE See Illustration HYDROSTATIC CIRCUITRY/ E2250 |
СХЕМА ГИДРОСТАТИЧЕСКОЙ СИСТЕМЫ: Техника, которая работает на результат
СХЕМА ГИДРОСТАТИЧЕСКОЙ СИСТЕМЫ на Bobcat 900s Bobcat 953 513111001 И ВЫШЕ, 513115001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
