СИДЕНИЕ И ОПОРА СИДЕНЬЯ в Алматы
×
![]()
Характеристики и описание

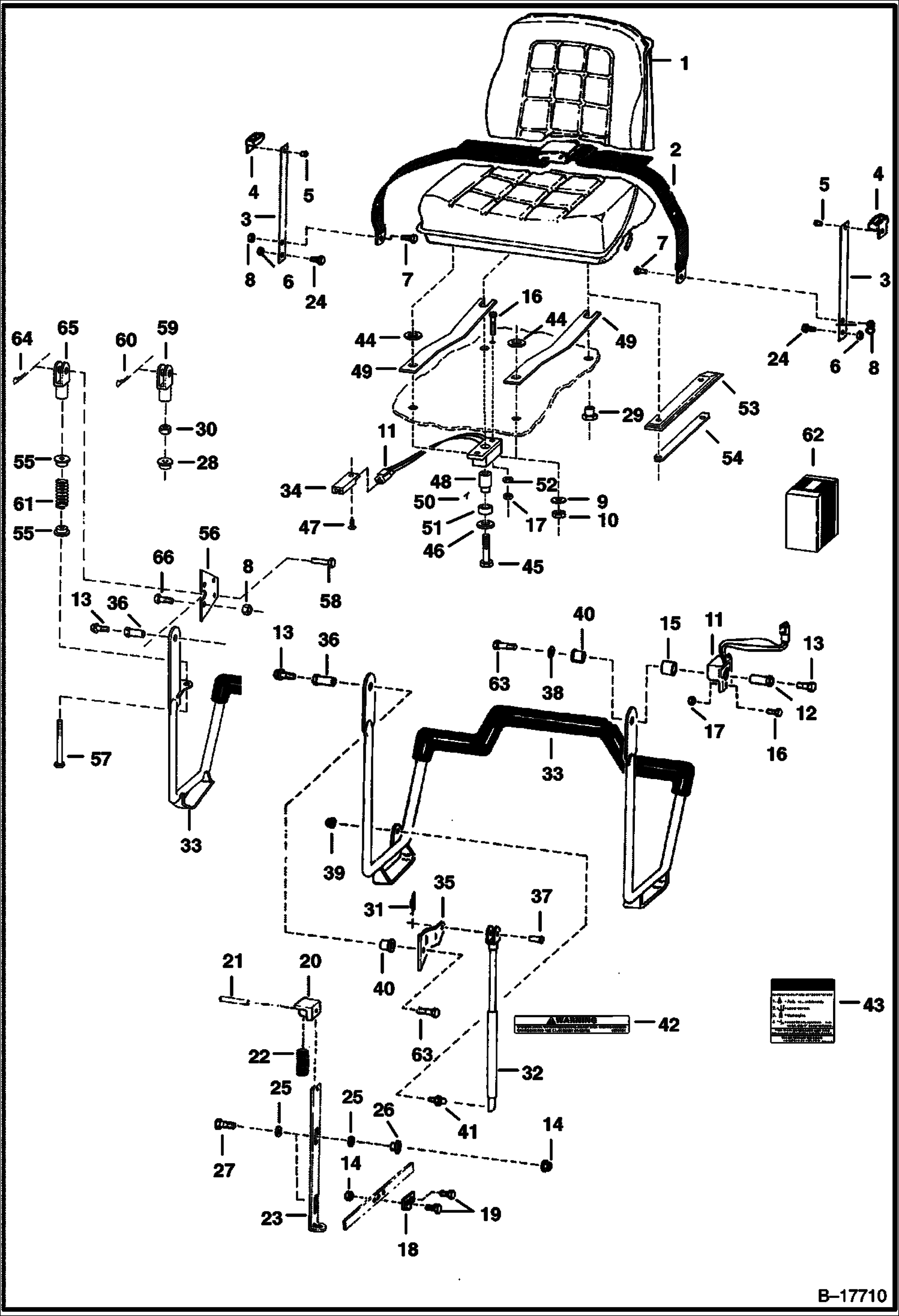

Габариты, схема
Техническая документация
| 1 | Артикул: SEAT, SEAT See Illustration SEAT/ B14720 See Illustration SEAT/ B7185 |
| 2 | Артикул: SEAT, SEAT BELT NLA - Order Ref. 62 - Was 6564774 - A |
| 3 | Артикул: SEAT, SEAT BELT NLA - Use W/ NLA 6711907 Guide Assy. - Order 6675074 Seat Belt - Was 6667875 - A |
| 4 | Артикул: SEAT, SEAT BELT NLA - W/ Spring Plates - Order 6675074 Seat Belt & (2) of Ref. 3 (6725373) Spring Plate - Was 6725403 - A |
| 5 | Артикул: 6675074, SEAT BELT W/O spring plates |
| 6 | Артикул: GUIDE, GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75 in. (349 mm) Long - Use W/Ref. 2 (NLA/ 6564774 Seat Belt) - Order Ref. 62 - Was 6565354 - A |
| 7 | Артикул: GUIDE, GUIDE ASSY. NLA - W/Ref. 4 & 5 - 12.25 in. (311 mm) Long - Use W/Ref. 2 (NLA/ 6667875 Seat Belt) - Order 6711908 Spring Plate - Ref. 4 & (2) of Ref. 5 - Was 6711907 - A |
| 8 | Артикул: 6711908, SPRING PLATE Use W/Ref. 2 (NLA/ 6667875 Seat Belt) |
| 9 | Артикул: 6725373, SPRING PLATE Use W/Ref. 2 (6675074 seal belt) |
| 10 | Артикул: GUIDE, GUIDE NLA - Order 6703703 - Was 6565355 |
| 11 | Артикул: 6630207, RIVET 5 |
| 12 | Артикул: 85D6, NUT, 5 |
| 13 | Артикул: 17C716, BOLT Was 17C-715 - D |
| 14 | Артикул: 85D7, NUT |
| 15 | Артикул: 6701174, WASHER |
| 16 | Артикул: 61D5, NUT |
| 17 | Артикул: 7105252, SENSOR, SEAT BAR POSITION Also Order Ref. 50 - Was 6680430 - A |
| 18 | Артикул: 6706685, BUSHING |
| 19 | Артикул: 35C608, BOLT 3/8 x .50-- |
| 20 | Артикул: 35C612, BOLT 3/8 x .75-- |
| 21 | Артикул: 83D6, NUT 5 |
| 22 | Артикул: 6680473, BUSHING, MAGNET Was 6680442 - A |
| 23 | Артикул: 35C410, BOLT 5 FASTENS THRU TAB OF Ref. 11- 5/8--(15,9 MM)LONG |
| 24 | Артикул: 17C428, BOLT Fastens Thru Body Of Ref. 11 - 1.75 in. (44,4 mm) Long - Was 6710539 - A |
| 25 | Артикул: 83D4, NUT 10 fastens thru tab of Ref. 11 |
| 26 | Артикул: 50D12, NUT fastens thru body of Ref. 11 |
| 27 | Артикул: 6563151, LINK |
| 28 | Артикул: 17C616, BOLT 5 |
| 29 | Артикул: 6563148, BLOCK, SPRING |
| 30 | Артикул: 14J2512, PIN 5 |
| 31 | Артикул: 6702430, SPRING, COMPRESSION |
| 32 | Артикул: 6578150, LOCK |
| 33 | Артикул: 17C612, BOLT 5 |
| 34 | Артикул: 6700170, WASHER plastic |
| 35 | Артикул: 6559479, NUT |
| 36 | Артикул: 6705489, BOLT |
| 37 | Артикул: 6571991, GUIDE |
| 38 | Артикул: 6707319, NUT spacer |
| 39 | Артикул: 8D6, NUT 5 jam |
| 40 | Артикул: 6631418, RING, RETAINING |
| 41 | Артикул: 6664207, GAS SPRING |
| 42 | Артикул: 6716778, SEAT BAR For Use W/ Gas Spring - Was 6706358 - A |
| 43 | Артикул: SEAT, SEAT BAR NLA - For Use W/ Compression Springs - Order 6716777 Seat Bar & (2) Each Of Ref. 55, 57, 64 & 65 - Was 6710661 - A |
| 44 | Артикул: 6716777, SEAT BAR For Use W/ Gas Spring - Was 6713609 - A |
| 45 | Артикул: 6665000, CLIP |
| 46 | Артикул: 6706388, BRACKET |
| 47 | Артикул: 6706962, BUSHING |
| 48 | Артикул: 4F5062, PIN |
| 49 | Артикул: 25E17, WASHER 5 |
| 50 | Артикул: 85D5, NUT 5 |
| 51 | Артикул: 6680441, BUSHING Keyed - Was 6664882 - A |
| 52 | Артикул: 6649244, BALL STUD |
| 53 | Артикул: 6577754, DECAL, WARNING 5 gas spring |
| 54 | Артикул: 6707134, DECAL instruction for LCS |
| 55 | Артикул: 6706890, WASHER |
| 56 | Артикул: 17C508, BOLT |
| 57 | Артикул: 25E16, WSHR |
| 58 | Артикул: 6664221, RETAINER |
| 59 | Артикул: 6710751, BUSHING spacer - Was 6706686 - A |
| 60 | Артикул: 6706966, SPRING, SEAT plate - qty. (1) used for std. seat- qty. (2) used for Milsco seat. |
| 61 | Артикул: 6680523, KEY,MAGNETIC Magnet Bushing - Was 6664881 - A |
| 62 | Артикул: 6680472, SENSOR Tapered Magnetic - Was 6666608 - A |
| 63 | Артикул: 25E10, WASHER |
| 64 | Артикул: 6711729, COVER |
| 65 | Артикул: 6711730, STRIP |
| 66 | Артикул: 6710659, BUSHING |
| 67 | Артикул: 6710660, MOUNT |
| 68 | Артикул: 6713887, BOLT Was 6711897 - A |
| 69 | Артикул: 4F6106, PIN |
| 70 | Артикул: 2J6208, YOKE |
| 71 | Артикул: 1306637, CLIP |
| 72 | Артикул: 6701535, SPRING |
| 73 | Артикул: KIT, KIT NLA - Seat Belt - W/Ref. 2 & 3 - Order Ref. 2 (6725403 Seat Belt) - Was 6713061 - A |
| 74 | Артикул: 17C612, BOLT 5 3/8 x .75-- - Used to mount seat bar sensor in position |
| 75 | Артикул: 17C608, BOLT 3/8 x .50-- - Used to mount seat bar sensor in position |
| 76 | Артикул: 6631418, RING, RETAINING |
| 77 | Артикул: 6713589, CLEVIS .375---24UNF threaded |
| 78 | Артикул: 17C712, BOLT 3/8 x 3/4 |
СИДЕНИЕ И ОПОРА СИДЕНЬЯ: Техника, которая работает на результат
СИДЕНИЕ И ОПОРА СИДЕНЬЯ на Bobcat 500s Bobcat 553 513011001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
