ТОРМОЗ в Алматы
×
![]()
Характеристики и описание
Габариты, схема
Техническая документация

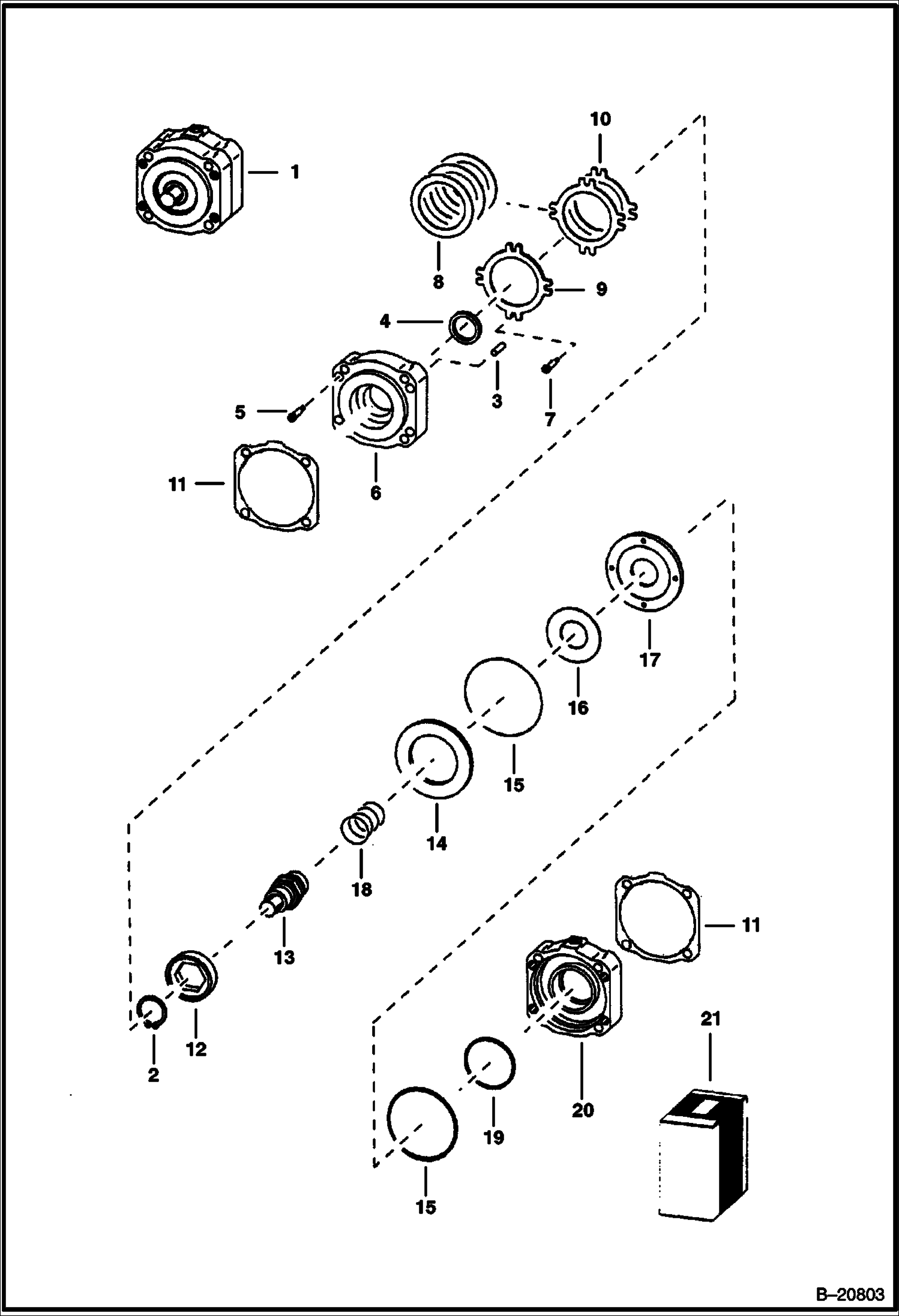

| 1 | Артикул: 6661193, BRAKE ASSY. W/Ref. 2 - 20 |
| 2 | Артикул: 6661364, SNAP RING |
| 3 | Артикул: DOWEL, DOWEL PIN NLA - Was6646677 - A |
| 4 | Артикул: SEAL, SEAL NSS - See Ref. 21 |
| 5 | Артикул: BOLT, BOLT 2 NLA - Was 6632029 - A |
| 6 | Артикул: HOUSING, HOUSING NLA - Was 6661365 - A |
| 7 | Артикул: SCREW, SCREW NLA - Was 6650141 - A |
| 8 | Артикул: 6646663, ROTOR |
| 9 | Артикул: PRIMARY, PRIMARY NLA - Was 6646660 - A |
| 10 | Артикул: STATOR, STATOR NLA - Was 6646661 - A |
| 11 | Артикул: 6662341, GASKET |
| 12 | Артикул: SPLINE, SPLINE NLA - Was 6650147 - A |
| 13 | Артикул: SHAFT, SHAFT NLA - Was 6661366 - A |
| 14 | Артикул: PLATE, PLATE NLA - Was 6661367 - A |
| 15 | Артикул: O-RING, O-RING NSS |
| 16 | Артикул: 6632012, WASHER Belleville - Was 6650142 - A |
| 17 | Артикул: PISTON, PISTON NLA - Was 6661368 - A |
| 18 | Артикул: SPRING, SPRING NSS - See Ref. 21 |
| 19 | Артикул: O-RING, O-RING NSS - See Ref. 21 |
| 20 | Артикул: 6661369, PLATE pressure |
| 21 | Артикул: 6661361, SEAL KIT Ref. 4, 15, 19 & 20 |
| 22 | Артикул: KIT,, KIT, SEAL NLA - disc Ref. 8, 9, 10, 15 & 20 - Was 6650152 - A |
| 23 | Артикул: 6658514, KIT spring - Ref. 11, Ref. 15, (1) Ref. 16 & (1) Ref. 18 |
