| 1 | Артикул: DRIVECASE, DRIVECASE NLA - Was 7114609 - A |
| 2 | Артикул: IDLER,, IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - NLA - W/threaded holes - 1.38-- (35 mm) deep threads - Was 6693238 - B |
| 3 | Артикул: 6693238, IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - W/threaded holes - 1.77-- (45 mm) deep threads |
| 4 | Артикул: 6734702, FRAME, RH track |
| 5 | Артикул: 6734703, FRAME, LH track |
| 6 | Артикул: 53D10, NUT |
| 7 | Артикул: MOTOR, MOTOR See Illustration HYDROSTATIC MOTOR/ MS2282 |
| 8 | Артикул: 7165111, SPROCKET Was 6736306 |
| 9 | Артикул: 31C1228, BOLT |
| 10 | Артикул: 7240780, COVER, ACCESS Was 6716010 - A |
| 11 | Артикул: 84G3712, BOLT 5 |
| 12 | Артикул: 84G3712, BOLT 5 |
| 13 | Артикул: 31C1032, BOLT |
| 14 | Артикул: TENSIONER,, TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ PE1491 - Was 7152280 - A |
| 15 | Артикул: 7103526, COVER RH - selectable joystick controls |
| 16 | Артикул: 7116614, COVER LH - selectable joystick controls - Was 7103525 - A |
| 17 | Артикул: ROLLER,, ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - NLA - W/threaded holes - 1.38-- (35 mm) deep threads - Was 6689371 - B |
| 18 | Артикул: 6689371, ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - W/threaded holes - 45 mm (1.77--) deep threads |
| 19 | Артикул: 6693237, IDLER, FRONT 2 See Illustration FRONT IDLER/ PE2554 Was 6691267 - A |
| 20 | Артикул: TRACK,, TRACK, RUBBER See Illustration TRACKS/ NA6161 |
| 21 | Артикул: 17C616, BOLT 5 |
| 22 | Артикул: 31C1220, BOLT |
| 23 | Артикул: 85D6, NUT, 5 |
| 24 | Артикул: 6726066, STOP base cylinder |
| 25 | Артикул: 17C628, BOLT |
| 26 | Артикул: 6700182, COVER, DRAIN |
| 27 | Артикул: 84G3716, SCREW 5 |
| 28 | Артикул: 6730378, COVER |
| 29 | Артикул: 6737088, COVER, ACCESS |
| 30 | Артикул: 7102184, SCREW selectable joystick controls |
| 31 | Артикул: 75K5, O-RING |
| 32 | Артикул: SENSOR,, SENSOR, SPEED See BTI419 - NLA - Was 7139902 |
| 33 | Артикул: SENSOR, SENSOR NLA - nylon conduit - selectable joystick controls - Order 7139902 sensor - Was 6684443 - B |
| 34 | Артикул: 17C616, BOLT 5 selectable joystick controls |
| 35 | Артикул: 83D6, NUT 5 selectable joystick controls |
ТРАНСМИССИЯ: Техника, которая работает на результат

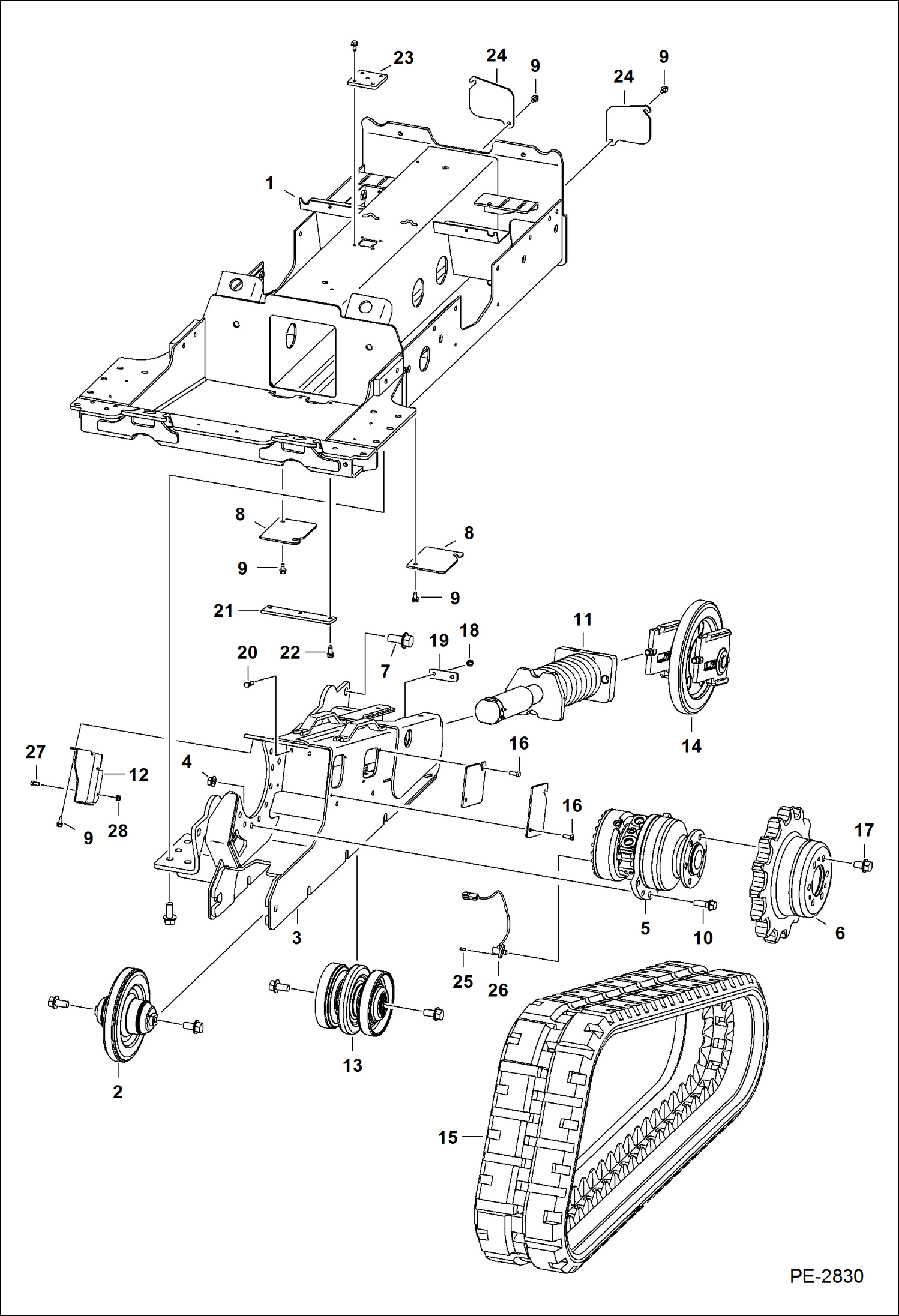

ТРАНСМИССИЯ на мини-погрузчик Bobcat T140 529311001 И ВЫШЕ, 531311001 И ВЫШЕ, A8M511001 И ВЫШЕГабаритные размеры
