ВНУТРЕННИЕ ДЕТАЛИ в Алматы
×
![]()
Характеристики и описание

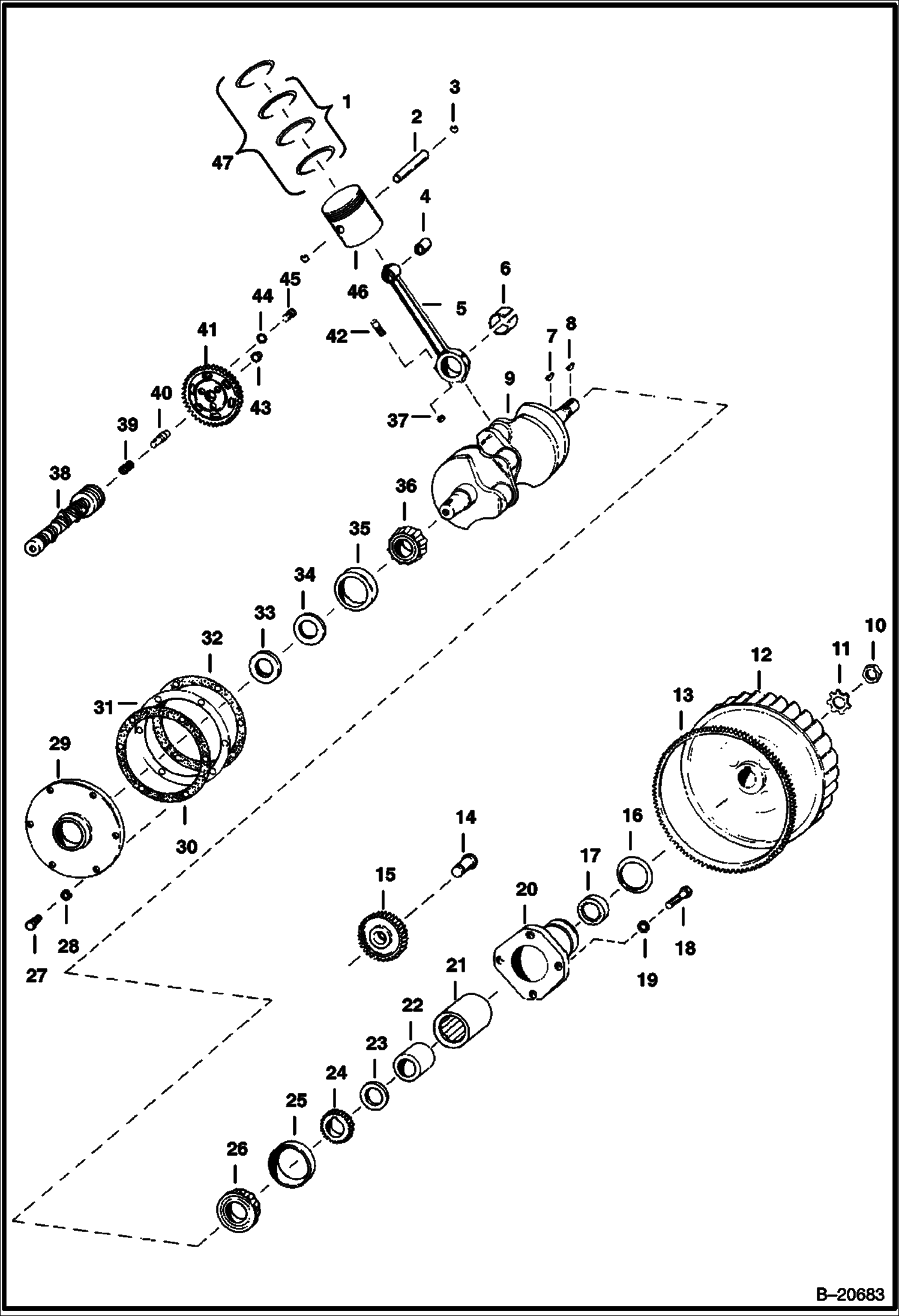

Габариты, схема
Техническая документация
| 1 | Артикул: RING, RING SET See BTI183 NLA - Std. (3 Ring) Complete Set - Was 6512149 - A |
| 2 | Артикул: 6512150, RINGS See BTI183 .010 - 3 ring - complete set |
| 3 | Артикул: 6512151, RINGS See BTI183 .020 - 3 ring - complete set |
| 4 | Артикул: RINGS, RINGS See BTI183 NLA - .03-- (0.76mm) - 3 ring - complete set - Was 6512152 |
| 5 | Артикул: 6516476, PIN piston - Std. |
| 6 | Артикул: 6517473, PIN piston - .005 |
| 7 | Артикул: 6517474, PIN piston - .010 |
| 8 | Артикул: 6516463, RETAINER snap ring |
| 9 | Артикул: 6516462, BUSHING |
| 10 | Артикул: 6517472, ROD connecting |
| 11 | Артикул: 6517475, BEARING Std. - One Bearing |
| 12 | Артикул: BEARING, BEARING NLA - .001 - One Bearing - Was 6517476 - A |
| 13 | Артикул: BEARING, BEARING NLA - .002 - One Bearing - Was 6517477 - A |
| 14 | Артикул: 6517478, BEARING .010 - One Bearing |
| 15 | Артикул: 6517479, BEARING .020 - One Bearing |
| 16 | Артикул: 6J404, KEY, WOODRUFF Crankshaft |
| 17 | Артикул: 6J1011, KEY Flywheel |
| 18 | Артикул: 6513182, CRANKSHAFT |
| 19 | Артикул: 6516449, NUT |
| 20 | Артикул: 6516448, WASHER |
| 21 | Артикул: FLYWHEEL, FLYWHEEL NLA - W/Ref. .13 - includes magnets - Was 6513183 - A |
| 22 | Артикул: 6516682, RING GEAR |
| 23 | Артикул: STUD, STUD NLA - idler gear - Was 6510869 - A |
| 24 | Артикул: IDLER, IDLER GEAR NLA - Was 6512388 - A |
| 25 | Артикул: 6512384, O-RING |
| 26 | Артикул: 6516526, SEAL oil - flywheel |
| 27 | Артикул: 6512383, BOLT |
| 28 | Артикул: 6E5, WASHER |
| 29 | Артикул: 6512336, HOUSING bearing - W/Ref. 17 & 21 |
| 30 | Артикул: 6512382, BEARING |
| 31 | Артикул: 6512386, RACE bearing |
| 32 | Артикул: 6512385, SPACER |
| 33 | Артикул: 6512334, GEAR |
| 34 | Артикул: RACE, RACE NSS - bearing |
| 35 | Артикул: 6512381, BEARING W/Ref. 25 |
| 36 | Артикул: 17C620, BOLT |
| 37 | Артикул: 4E6, WASHER |
| 38 | Артикул: 6513184, PLATE |
| 39 | Артикул: 6516458, GASKET .003 thk |
| 40 | Артикул: 6516457, SHIM .013 thk |
| 41 | Артикул: 6516456, GASKET .006 thk |
| 42 | Артикул: 6516455, SEAL Shaft |
| 43 | Артикул: 6516454, RETAINER |
| 44 | Артикул: RACE, RACE NSS - bearing - W/Ref. 36 |
| 45 | Артикул: 872144, BEARING main |
| 46 | Артикул: 86D5, NUT |
| 47 | Артикул: 6516517, CAMSHAFT |
| 48 | Артикул: 6516518, SPRING thrust plunger |
| 49 | Артикул: 6516519, PLUNGER thrust |
| 50 | Артикул: 6512387, GEAR camshaft |
| 51 | Артикул: 6516461, BOLT rod |
| 52 | Артикул: 6516522, BUTTON camshaft thrust plunger - Was 6512332 - A |
| 53 | Артикул: 6516521, WASHER |
| 54 | Артикул: 17C516, BOLT |
| 55 | Артикул: PISTON, PISTON See BTI183 NLA - Std. 3 Ring - One Piston - Was 6512145 - A |
| 56 | Артикул: 6512146, PISTON - W/Pin See BTI183 .010 3 Ring - One Piston |
| 57 | Артикул: PISTON, PISTON - W/Pin See BTI183 NLA - .020 (3 Ring) - Was 6512147 |
| 58 | Артикул: PISTON, PISTON - W/Pin See BTI183 NLA - .030 (3 Ring) - Was 6512148 - A |
| 59 | Артикул: 6630708, PISTON - W/Pin See BTI218 std - 4 ring - Was 6516472 - A |
| 60 | Артикул: 6630709, PISTON - W/Pin See BTI218 .010 (0,25mm) - ring - Was 6516473 - A |
| 61 | Артикул: 6630710, PISTON - W/Pin See BTI218 .020 (0,51mm) - 4 Ring - Was 6516474 - A |
| 62 | Артикул: PISTON, PISTON See BTI218 NLA - .030 4 Ring - Was 6516475 - A |
| 63 | Артикул: 6630708, PISTON - W/Pin See BTI218 std - 4 ring - one piston |
| 64 | Артикул: 6630709, PISTON - W/Pin See BTI218 .010 4 Ring |
| 65 | Артикул: 6630710, PISTON - W/Pin See BTI218 .020 4 Ring |
| 66 | Артикул: 6630711, PISTON - W/Pin See BTI218 .030 4 Ring - Complete Set |
| 67 | Артикул: PISTON, PISTON See BTI218 NLA - .040 4 Ring - Was 6656406 - A |
| 68 | Артикул: 6516464, RINGS See BTI218 Std. 4 Ring |
| 69 | Артикул: RINGS, RINGS See BTI218 NLA - .010 (0,25mm) - 4 ring - complete engine - Was 6516465 - A |
| 70 | Артикул: 6516466, RINGS See BTI218 .020 4 Ring |
| 71 | Артикул: 6516467, RINGS See BTI218 .030 4 Ring |
| 72 | Артикул: 6630712, SET RINGS See BTI218 Std. 4 Ring |
| 73 | Артикул: 6630713, SET RINGS See BTI218 .010 4 Ring |
| 74 | Артикул: 6630714, SET RINGS See BTI218 .020 4 Ring - Two Ring Set |
| 75 | Артикул: 6630715, SET RINGS See BTI218 .030 4 Ring |
| 76 | Артикул: RING, RING SET NLA - .040 Ring Set - Was 6656405 - A |
